NYOS QUANTUM - BUILT TO PERFORMExtreme performance. Very smooth operation. Low power consumption. Easy to maintain.NYOS QUANTUM: THE IMPRESSIVE OUTCOMEFour things are characteristic for the NYOS Quantum skimmer: FIRST: EXTREME PERFORMANCE Performance, performance and once again performance. NYOS Quantum is characterized by high skimming performance as a result of the large amount of air in combination with and optimum air-water mixture. SECOND: VERY SMOOTH OPERATIONAquariums should be seen and not heard. That is NYOS Quantum is especially silent when running and therefore can hardly be heard. THIRD: LOW POWER CONSUMPTION NYOSQuantum is conceived to be especially energy efficient and uses a minimum of power, despite its huge performance. FOURTH: EASY TO MAINTAINConsistently strong skimming and simple settings are a joy. For this reason, NYOS Quantum is especially easy to maintain and provides the same consistent level of performance over a long period of time. Reliable pump starts are a matter of course. NYOS QUANTUM: THE INNOVATIVE INPUTThese are the innovative features of the NYOS Quantum skimmer: 1. The new NYOS Hybrid WheelThe heart of every skimmer is its propulsion. That is why we have developed a new high-performance drive for the Quantum: the Hybrid Wheel. This especially precisely manufactured impeller, built with super light materials, combines the advantages of a needle wheel and a lattice wheel. The Hybrid Wheel is characterized by its lattice-shaped base, on which numerous very narrow needles are mounted. This structure ensures that countless extremely fine micro air bubbles are generated. The greatly reduced weight and the high precision lead to lower maintenance and at the same time low energy consumption. 2. NYOS Clear-View ReactorThe hybrid wheel needs a pump chamber that is specially adapted to it. That is why we have developed the NYOS Clear-View Reactor. The Clear-View Reactor is a transparent, performance-optimized large-volume reaction chamber in which the water-air mixture is generated. In combination with the hybrid wheel and the adapted venturi nozzle, it produces an extreme air performance with an optimum air-water ratio. Its transparency means that any foreign bodies can be identified easily. At the same time it is possible to see the huge performance of the pump in operation. Stylish and practical! 3. The NYOS TwisterExtreme air performance and the finest bubbles are one thing. But in order to achieve optimum skimming, the bubbles that are generated must also remain in contact with the water for as long as possible. That is why, in addition to our normal bubble plate, we have developed the saw-blade shaped Twister. This gives the bubbles an additional spin and swirls them further in a vortex. This greatly increases the contact time of the air bubbles in the water column. 4. Combination of form and function: the Sinus designWater doesn't like corners. That is why we have developed a flow-optimized, protected double-S form. In this so-called Sinus design the air bubbles can rise without hindrance and completely free, ergonomically so to speak, without the formation of poor-flow zones at disruptive corners. 5. optimized, variable setting optionsEach aquarium is different. That is why NYOS Quantum can be adapted individually to all aquarium conditions: water quantity and air quantity can be set separately and independently of each other. An approximate setting of the water level is achieved by means of the water setting pipe, while the especially precise micro-adjustment screw, which is also included, allows an additional fine-tuning of the water level. Other Features Extremely non-breakable high-performance waves from zirconium dioxide (strength 1600 MPa Vickers hardness) Nine sea-waterproof screws from pure titanium grade 2 Precise micro-adjustment screws to fine-tune the water level Full decoupling by means of silicone feet Skimming pot with twist-lock seal Ready-to-use plug-and-play device Specifications Pump Included: Quantum 1.0 Recommended Tank Size: 100 - 500 litres (25-125 Gallons) Power Consumption: 8 Watts Dimensions (LxWxH): 15 x 21 x 46.5cm (5.9 x 8.3 x 18.3")

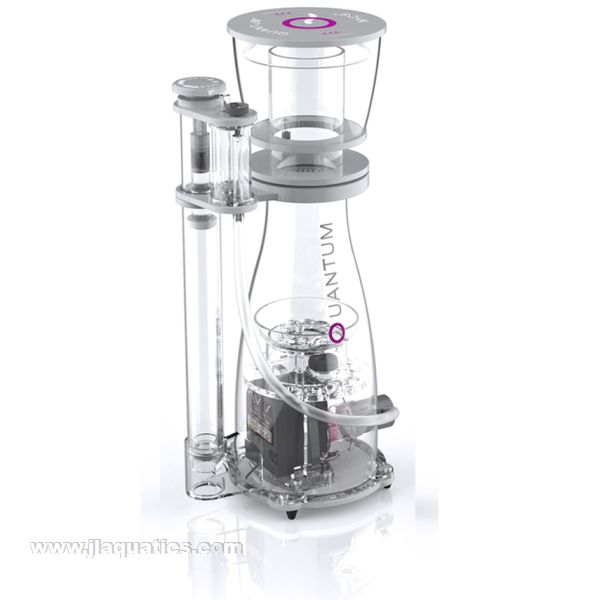

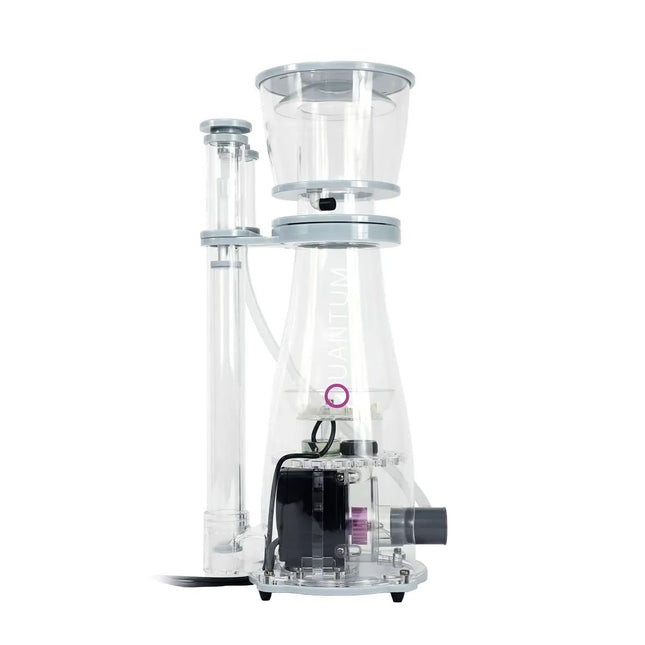

Nyos Quantum 160 EQ Protein Skimmer
Why choose the Nyos Quantum 160 EQ for your reef tank
The Nyos Quantum 160 EQ combines the proven Quantum 160 skimmer body with a fully controllable 24V DC pump and smart app control delivering stable nutrient export and ultra quiet operation for medium sized reef systems up to 125 gallons.Wireless integration with Mobius and Apex Fusion lets you schedule skimmer intensity around feeding maintenance and nighttime plankton activity while built in safety logic protects your system from overflows or blockages.
Features
In sump internal protein skimmer built on the proven Quantum 160 acrylic body and reaction chamber
24V Quantum 3.0 DC pump with speed control from 1 to 100 percent for precise wet or dry skimming
Wireless control through the Mobius app or Apex Fusion via the optional MXM module for easy integration with existing Ecotech and Aqua Illumination gear
Smart preset modes including Performance Plankton Saving and Nutrient Export Reduction to match changing nutrient demands
Energy efficient low voltage European made pump using up to about 20 percent less power with roughly 10 percent more output than non controllable Quantum pumps
RGB LED status light that indicates pump speed and doubles as a cabinet flashlight during maintenance
Intelligent safety shutdown that pauses the pump and sends alerts if the intake is blocked or the skimmer overflows
Specifications
Recommended aquarium volume up to 125 gallons depending on bioload
Footprint approximately 7.1 in x 9.8 in in sump space
Height approximately 20.9 in
Pump model Quantum 3.0 24V DC controllable
Power consumption around 15W at full air draw
Skimmer type in sump internal installation only
Directions
Install the Nyos Quantum 160 EQ in a sump chamber with stable water height ideally around 8 to 10 inches then allow the unit to run with the air and water level opened conservatively during the initial break in period.Once the skimmer slime coat has formed over several days use the Mobius or Apex app to tune pump speed and select a preset mode then fine tune the water level via the skimmer outlet for your preferred wet or dry skimmate.Clean the collection cup and neck regularly to maintain consistent foam production and periodically inspect the pump intake to keep it free of salt creep and debris.
What's Included
Quantum 160 EQ Protein Skimmer
24V Quantum skimmer pump

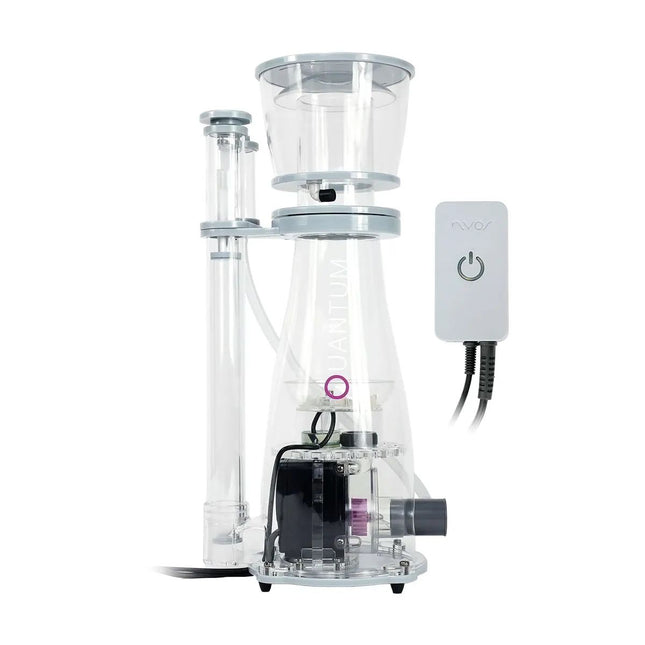

Pump controller
RGB LED skimmer lighting
Bubble plate
Power supply
Note: MXM Module is sold separately (required for Apex integration).
NYOS QUANTUM - BUILT TO PERFORMExtreme performance. Very smooth operation. Low power consumption. Easy to maintain.NYOS QUANTUM: THE IMPRESSIVE OUTCOMEFour things are characteristic for the NYOS Quantum skimmer: FIRST: EXTREME PERFORMANCE Performance, performance and once again performance. NYOS Quantum is characterized by high skimming performance as a result of the large amount of air in combination with and optimum air-water mixture. SECOND: VERY SMOOTH OPERATIONAquariums should be seen and not heard. That is NYOS Quantum is especially silent when running and therefore can hardly be heard. THIRD: LOW POWER CONSUMPTION NYOSQuantum is conceived to be especially energy efficient and uses a minimum of power, despite its huge performance. FOURTH: EASY TO MAINTAINConsistently strong skimming and simple settings are a joy. For this reason, NYOS Quantum is especially easy to maintain and provides the same consistent level of performance over a long period of time. Reliable pump starts are a matter of course. NYOS QUANTUM: THE INNOVATIVE INPUTThese are the innovative features of the NYOS Quantum skimmer: 1. The new NYOS Hybrid WheelThe heart of every skimmer is its propulsion. That is why we have developed a new high-performance drive for the Quantum: the Hybrid Wheel. This especially precisely manufactured impeller, built with super light materials, combines the advantages of a needle wheel and a lattice wheel. The Hybrid Wheel is characterized by its lattice-shaped base, on which numerous very narrow needles are mounted. This structure ensures that countless extremely fine micro air bubbles are generated. The greatly reduced weight and the high precision lead to lower maintenance and at the same time low energy consumption. 2. NYOS Clear-View ReactorThe hybrid wheel needs a pump chamber that is specially adapted to it. That is why we have developed the NYOS Clear-View Reactor. The Clear-View Reactor is a transparent, performance-optimized large-volume reaction chamber in which the water-air mixture is generated. In combination with the hybrid wheel and the adapted venturi nozzle, it produces an extreme air performance with an optimum air-water ratio. Its transparency means that any foreign bodies can be identified easily. At the same time it is possible to see the huge performance of the pump in operation. Stylish and practical! 3. The NYOS TwisterExtreme air performance and the finest bubbles are one thing. But in order to achieve optimum skimming, the bubbles that are generated must also remain in contact with the water for as long as possible. That is why, in addition to our normal bubble plate, we have developed the saw-blade shaped Twister. This gives the bubbles an additional spin and swirls them further in a vortex. This greatly increases the contact time of the air bubbles in the water column. 4. Combination of form and function: the Sinus designWater doesn't like corners. That is why we have developed a flow-optimized, protected double-S form. In this so-called Sinus design the air bubbles can rise without hindrance and completely free, ergonomically so to speak, without the formation of poor-flow zones at disruptive corners. 5. optimized, variable setting optionsEach aquarium is different. That is why NYOS Quantum can be adapted individually to all aquarium conditions: water quantity and air quantity can be set separately and independently of each other. An approximate setting of the water level is achieved by means of the water setting pipe, while the especially precise micro-adjustment screw, which is also included, allows an additional fine-tuning of the water level. Other Features Extremely non-breakable high-performance waves from zirconium dioxide (strength 1600 MPa Vickers hardness) Nine sea-waterproof screws from pure titanium grade 2 Precise micro-adjustment screws to fine-tune the water level Full decoupling by means of silicone feet Skimming pot with twist-lock seal Ready-to-use plug-and-play device Specifications Pump Included: Quantum 3.0 Recommended Tank Size: 250 - 100 litres (60-250 Gallons) Power Consumption: 18 Watts Dimensions (LxWxH): 18.5 x 25 x 53cm (7.1 x 9.8 x 20.9")

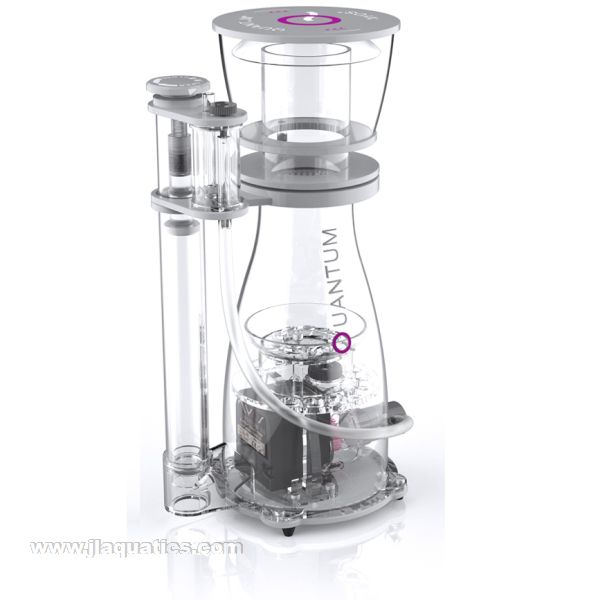

Nyos Quantum 220 EQ Protein Skimmer
High performance control for larger reef systemsThe Nyos Quantum 220 EQ takes the flagship Quantum 220 body and pairs it with a controllable 24V Quantum 5.0 pump delivering serious nutrient export capacity for heavily stocked reef aquariums up to 500 gallons while keeping noise and energy use low.With full app based control via Mobius or Apex Fusion you can match skimmer output to feeding cycles maintenance windows and nighttime plankton activity instead of running one fixed setting around the clock.Features
In sump internal skimmer built on the proven Nyos Quantum 220 acrylic body for tanks up to roughly 500 gallons
24V Quantum 5.0 DC pump with stepless speed control from 1 to 100 percent for precise foam height and dryness
Wireless control through the Mobius app or Apex Fusion using the optional MXM module allowing schedules and interlocks with other smart equipment
Preset operating modes including Performance Plankton Saving and Nutrient Export Reduction to simplify day and night nutrient management
Energy saving 24V pump engineered in Europe that can use around 20 percent less power while delivering roughly 10 percent more performance than non controllable Quantum pumps
RGB LED feedback that displays pump speed at a glance and acts as a handy maintenance light inside the stand
Built in safety features that shut the pump down and trigger alerts if the intake is obstructed or the skimmer starts to overflow
Specifications
Recommended aquarium volume up to 500 gallons depending on bioload
Footprint approximately 9.3 in x 12.2 in
Height approximately 23.8 in
Pump model Quantum 5.0 24V DC controllable
Power consumption around 20W at full air draw
Skimmer type in sump internal installation only
DirectionsPlace the Nyos Quantum 220 EQ in a stable sump chamber with a water depth close to 8 to 10 inches and ensure the skimmer outlet is unobstructed so water can exit freely.Start the skimmer at a conservative pump speed using the Mobius or Apex app and run it with a slightly lower water level during the first week of operation while the skimmer breaks in and the system stabilizes.After the break in period gradually raise the internal water level and fine tune pump speed until you achieve a consistent dark skimmate then maintain performance by cleaning the collection cup and air intake on a regular schedule.What's Included
Quantum 220 EQ Protein Skimmer
24V Quantum skimmer pump
Pump controller
RGB LED skimmer lighting
Bubble plate
Power supply
Note: MXM Module is sold separately (required for Apex integration).
NYOS QUANTUM - BUILT TO PERFORMExtreme performance. Very smooth operation. Low power consumption. Easy to maintain.NYOS QUANTUM: THE IMPRESSIVE OUTCOMEFour things are characteristic for the NYOS Quantum skimmer: FIRST: EXTREME PERFORMANCE Performance, performance and once again performance. NYOS Quantum is characterized by high skimming performance as a result of the large amount of air in combination with and optimum air-water mixture. SECOND: VERY SMOOTH OPERATIONAquariums should be seen and not heard. That is NYOS Quantum is especially silent when running and therefore can hardly be heard. THIRD: LOW POWER CONSUMPTION NYOSQuantum is conceived to be especially energy efficient and uses a minimum of power, despite its huge performance. FOURTH: EASY TO MAINTAINConsistently strong skimming and simple settings are a joy. For this reason, NYOS Quantum is especially easy to maintain and provides the same consistent level of performance over a long period of time. Reliable pump starts are a matter of course. NYOS QUANTUM: THE INNOVATIVE INPUTThese are the innovative features of the NYOS Quantum skimmer: 1. The new NYOS Hybrid WheelThe heart of every skimmer is its propulsion. That is why we have developed a new high-performance drive for the Quantum: the Hybrid Wheel. This especially precisely manufactured impeller, built with super light materials, combines the advantages of a needle wheel and a lattice wheel. The Hybrid Wheel is characterized by its lattice-shaped base, on which numerous very narrow needles are mounted. This structure ensures that countless extremely fine micro air bubbles are generated. The greatly reduced weight and the high precision lead to lower maintenance and at the same time low energy consumption. 2. NYOS Clear-View ReactorThe hybrid wheel needs a pump chamber that is specially adapted to it. That is why we have developed the NYOS Clear-View Reactor. The Clear-View Reactor is a transparent, performance-optimized large-volume reaction chamber in which the water-air mixture is generated. In combination with the hybrid wheel and the adapted venturi nozzle, it produces an extreme air performance with an optimum air-water ratio. Its transparency means that any foreign bodies can be identified easily. At the same time it is possible to see the huge performance of the pump in operation. Stylish and practical! 3. The NYOS TwisterExtreme air performance and the finest bubbles are one thing. But in order to achieve optimum skimming, the bubbles that are generated must also remain in contact with the water for as long as possible. That is why, in addition to our normal bubble plate, we have developed the saw-blade shaped Twister. This gives the bubbles an additional spin and swirls them further in a vortex. This greatly increases the contact time of the air bubbles in the water column. 4. Combination of form and function: the Sinus designWater doesn't like corners. That is why we have developed a flow-optimized, protected double-S form. In this so-called Sinus design the air bubbles can rise without hindrance and completely free, ergonomically so to speak, without the formation of poor-flow zones at disruptive corners. 5. optimized, variable setting optionsEach aquarium is different. That is why NYOS Quantum can be adapted individually to all aquarium conditions: water quantity and air quantity can be set separately and independently of each other. An approximate setting of the water level is achieved by means of the water setting pipe, while the especially precise micro-adjustment screw, which is also included, allows an additional fine-tuning of the water level. Other Features Extremely non-breakable high-performance waves from zirconium dioxide (strength 1600 MPa Vickers hardness) Nine sea-waterproof screws from pure titanium grade 2 Precise micro-adjustment screws to fine-tune the water level Full decoupling by means of silicone feet Skimming pot with twist-lock seal Ready-to-use plug-and-play device Specifications Pump Included: Quantum 5.0 Recommended Tank Size: 500 - 2000 litres (125-500 Gallons) Power Consumption: 22 Watts Dimensions (LxWxH): 23.5 x 31 x 60.5cm (9.3 x 12.2 x 23.8")

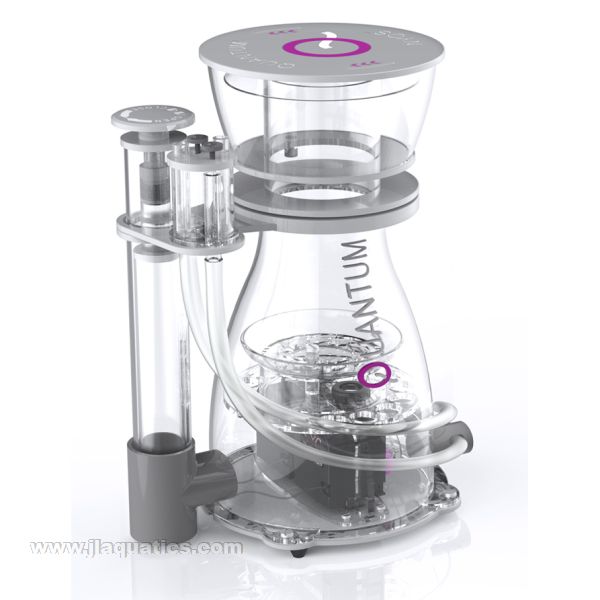

Nyos Quantum 300 EQ Protein Skimmer
Smart skimming for serious large volume reef tanksThe Nyos Quantum 300 EQ is built for demanding systems pairing the massive Quantum 300 skimmer body with twin controllable 24V Quantum 5.0 pumps to handle nutrient export on large reef aquariums up to 1000 gallons with precision and redundancy.Full Mobius and Apex Fusion integration lets you automate skimmer behavior across the day adjust output during feeding or maintenance and receive real time safety alerts if anything interrupts normal operation.Features
Large in sump internal protein skimmer designed for high bioload systems such as heavily stocked SPS or fish heavy reef tanks

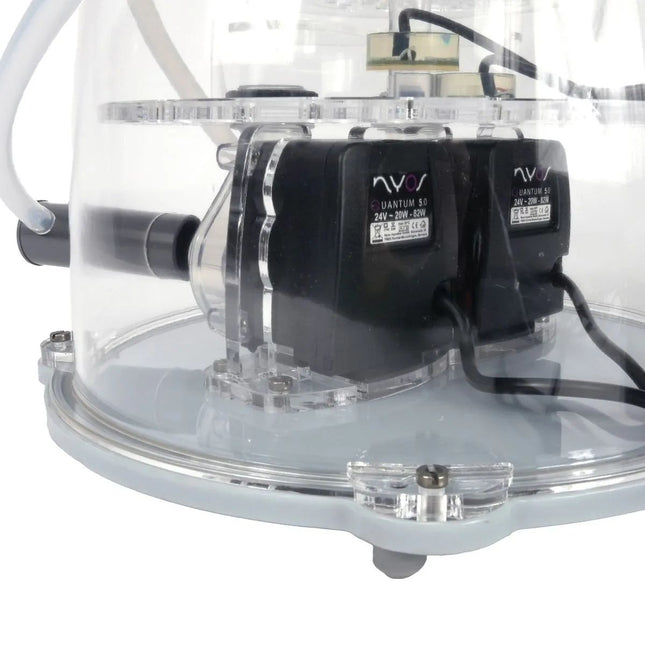

Dual Quantum 5.0 24V DC pumps with independent controllability providing high air draw and the ability to fine tune overall performance from 1 to 100 percent output
Wireless app control via Mobius or Apex Fusion through the optional MXM module for advanced scheduling automation and interlocks
Preset modes including Performance Plankton Saving and Nutrient Export Reduction so you can quickly adapt skimmer intensity to nutrient levels and photoperiod
Energy efficient low voltage European made pumps that can reduce power draw by about 20 percent while offering roughly 10 percent more performance compared to non controllable Quantum models
Integrated RGB LED feedback ring that shows pump status and doubles as a bright cabinet light during service
Comprehensive safety logic that pauses the pumps and triggers alerts if the intake is blocked or the collection cup begins to overflow
Specifications
Recommended aquarium volume up to 1000 gallons depending on bioload
Footprint approximately 13.4 in x 16.4 in
Height approximately 26 in
Pump configuration two Quantum 5.0 24V DC controllable pumps
Power consumption around 2 x 20W at full air draw
Skimmer type in sump internal installation only
DirectionsInstall the Nyos Quantum 300 EQ in a sump section that can provide a stable water depth of roughly 8 inches and enough footprint clearance for the skimmer body and cup removal.Begin operation at a moderate combined pump speed using the Mobius or Apex app and keep the internal water level slightly lower during the first week as the skimmer breaks in then slowly increase water level and pump output to reach your desired skimmate consistency.Because the Quantum 300 EQ processes large volumes of water inspect and clean the collection cup neck pumps and air intakes frequently to maintain peak performance and quiet operation.What's Included
Quantum 300 EQ Protein Skimmer
Two 24V Quantum skimmer pumps
Pump controller
RGB LED skimmer lighting
Bubble plate
Power supply
Note: MXM Module is sold separately (required for Apex integration).
