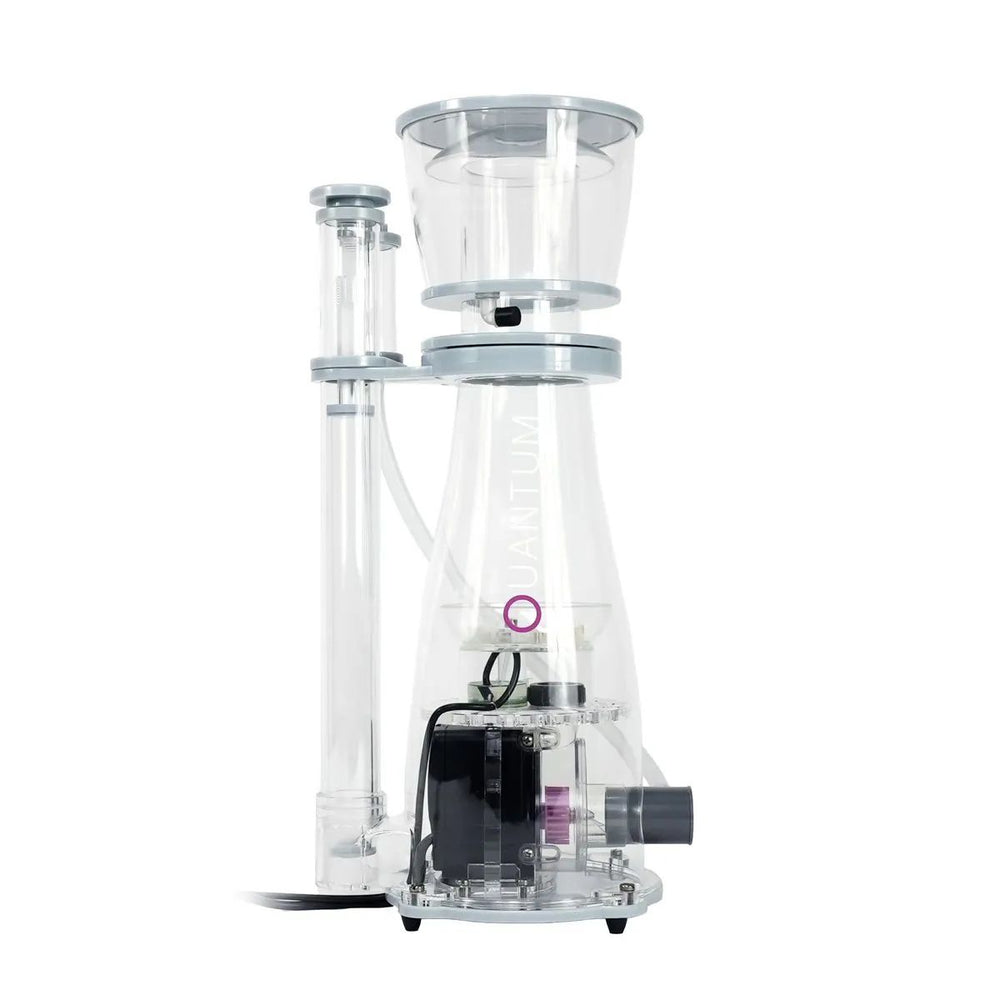

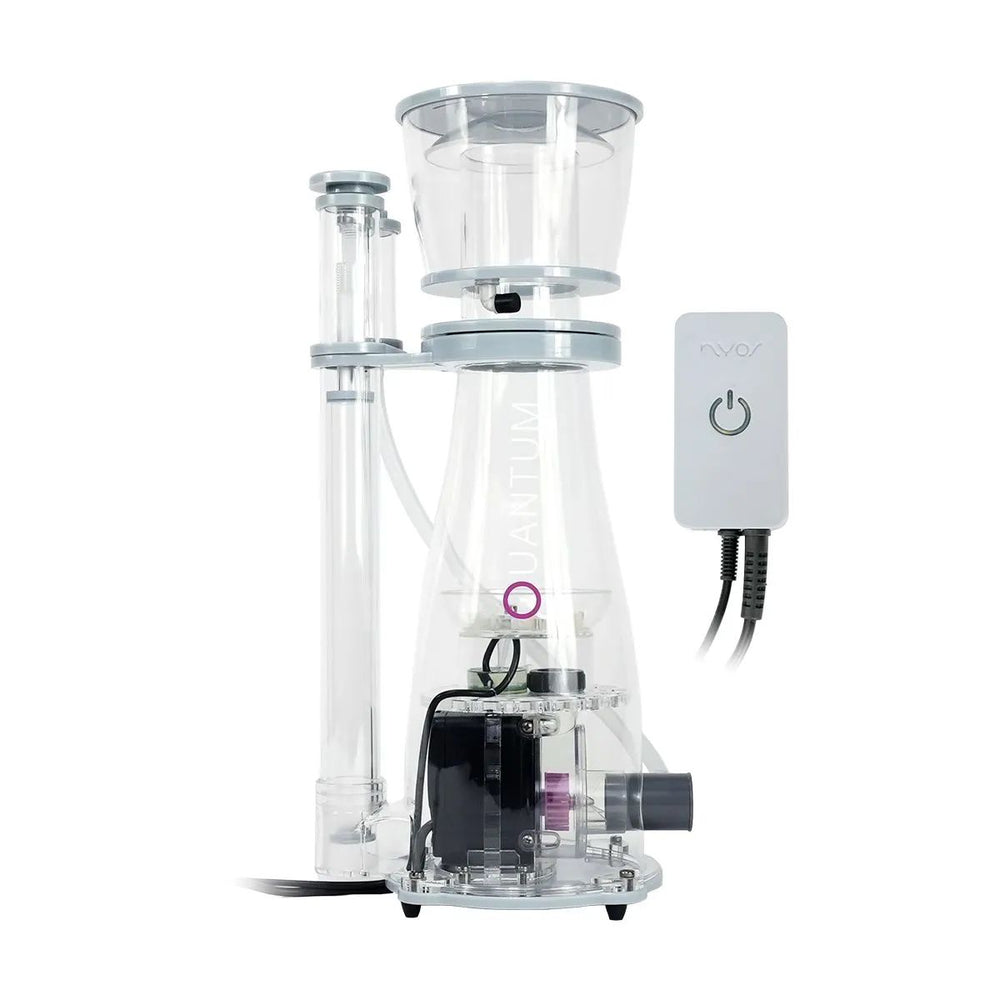

Nyos Quantum 160 EQ Protein Skimmer

Why choose the Nyos Quantum 160 EQ for your reef tank

The Nyos Quantum 160 EQ combines the proven Quantum 160 skimmer body with a fully controllable 24V DC pump and smart app control delivering stable nutrient export and ultra quiet operation for medium sized reef systems up to 125 gallons.
Wireless integration with Mobius and Apex Fusion lets you schedule skimmer intensity around feeding maintenance and nighttime plankton activity while built in safety logic protects your system from overflows or blockages.

Features

• In sump internal protein skimmer built on the proven Quantum 160 acrylic body and reaction chamber
• 24V Quantum 3.0 DC pump with speed control from 1 to 100 percent for precise wet or dry skimming
• Wireless control through the Mobius app or Apex Fusion via the optional MXM module for easy integration with existing Ecotech and Aqua Illumination gear
• Smart preset modes including Performance Plankton Saving and Nutrient Export Reduction to match changing nutrient demands
• Energy efficient low voltage European made pump using up to about 20 percent less power with roughly 10 percent more output than non controllable Quantum pumps
• RGB LED status light that indicates pump speed and doubles as a cabinet flashlight during maintenance
• Intelligent safety shutdown that pauses the pump and sends alerts if the intake is blocked or the skimmer overflows

Specifications

• Recommended aquarium volume up to 125 gallons depending on bioload
• Footprint approximately 7.1 in x 9.8 in in sump space
• Height approximately 20.9 in
• Pump model Quantum 3.0 24V DC controllable
• Power consumption around 15W at full air draw
• Skimmer type in sump internal installation only

Directions

Install the Nyos Quantum 160 EQ in a sump chamber with stable water height ideally around 8 to 10 inches then allow the unit to run with the air and water level opened conservatively during the initial break in period.
Once the skimmer slime coat has formed over several days use the Mobius or Apex app to tune pump speed and select a preset mode then fine tune the water level via the skimmer outlet for your preferred wet or dry skimmate.
Clean the collection cup and neck regularly to maintain consistent foam production and periodically inspect the pump intake to keep it free of salt creep and debris.

What's Included

• Quantum 160 EQ Protein Skimmer
• 24V Quantum skimmer pump

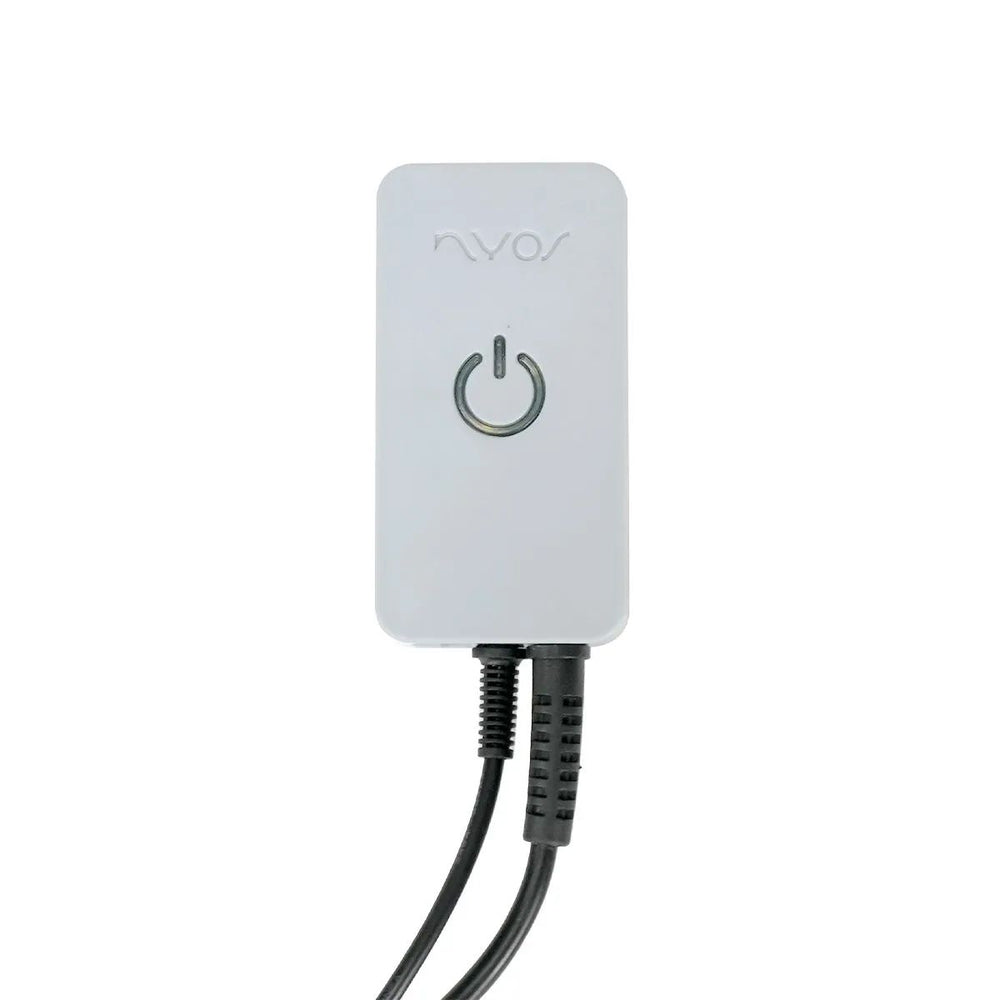

• Pump controller
• RGB LED skimmer lighting
• Bubble plate
• Power supply

Note: MXM Module is sold separately (required for Apex integration).
