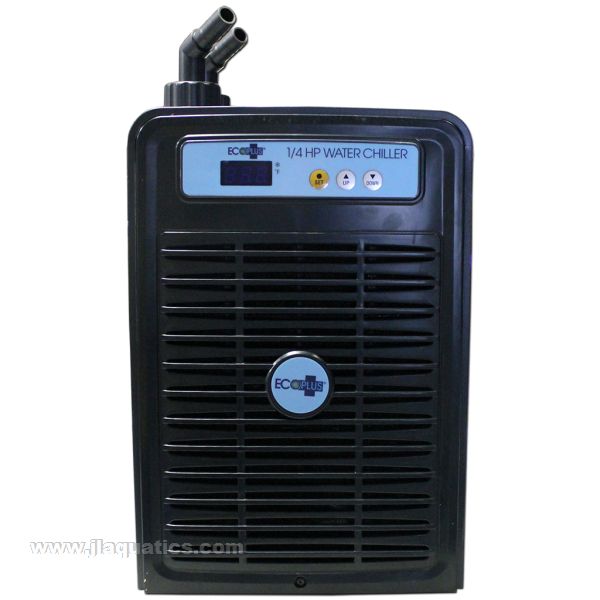

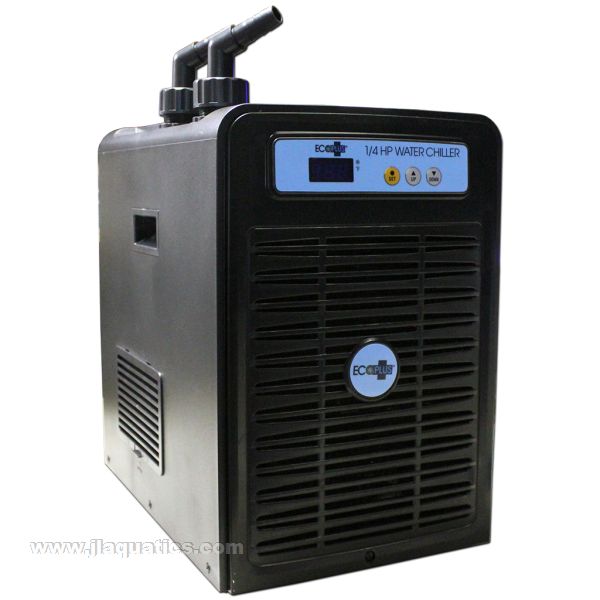

EcoPlus 1/4 HP Aquarium Chiller
Overview
Suitable for reservoirs, hydroponic systems or fresh & saltwater aquariums.
Each chiller has a high performance titanium heat exchanger for optimum performance and corrosion resistance as well as an efficient and reliable compressor.
The micro computer with digital LCD display allows for easy temperature setting.
Features
Chilling Capacity: 140 Gallons - 10oF, 80 Gallons 30oF *See sizing chart & manual for more information.
Power Consumption: 480 Watts / 3.0 Amps
Inlet/Outlet Sizes: 3/4"
Min Flow Rate: 265 GPH
Max Flow Rate: 660 GPH
Dimensions: 17.13" x 11.61" x 18.5"H
Pump sold separately
Allow the chiller to sit upright for at least 30 minutes prior to initial use.
1 year warranty
IMPORTANT: Chillers will only be covered under warranty if they are used within the range that they are designed for. Under-sizing a chiller for your aquarium will void warranty.
Sizing chart for the EcoPlus 1/4 HP Chiller

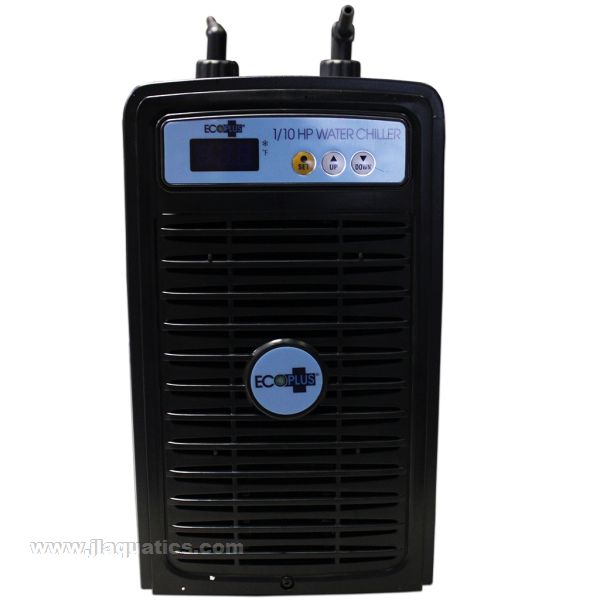

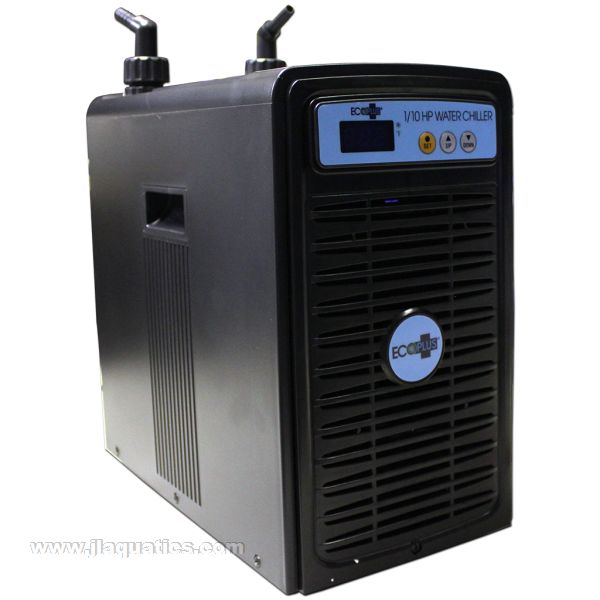

EcoPlus 1/10 HP Aquarium Chiller
Overview
Suitable for reservoirs, hydroponic systems or fresh & saltwater aquariums.
Each chiller has a high performance titanium heat exchanger for optimum performance and corrosion resistance as well as an efficient and reliable compressor.
The micro computer with digital LCD display allows for easy temperature setting.
Features
Approximate Chilling Capacity: 90 Gallons - 10oF, 35 Gallons 30oF *See sizing chart & manual for more information. Power Consumption: 280 Watts / 2.2 Amps
Inlet/Outlet Sizes: 1/2"
Min Flow Rate: 66 GPH
Max Flow Rate: 317 GPH
Dimensions: 15.75" x 8.58" x 16.34"H
Pump sold separately
Allow the chiller to sit upright for at least 30 minutes prior to initial use.
1 year warranty
IMPORTANT: Chillers will only be covered under warranty if they are used within the range that they are designed for. Under-sizing a chiller for your aquarium will void warranty.
Sizing chart for the EcoPlus 1/10 HP Chiller

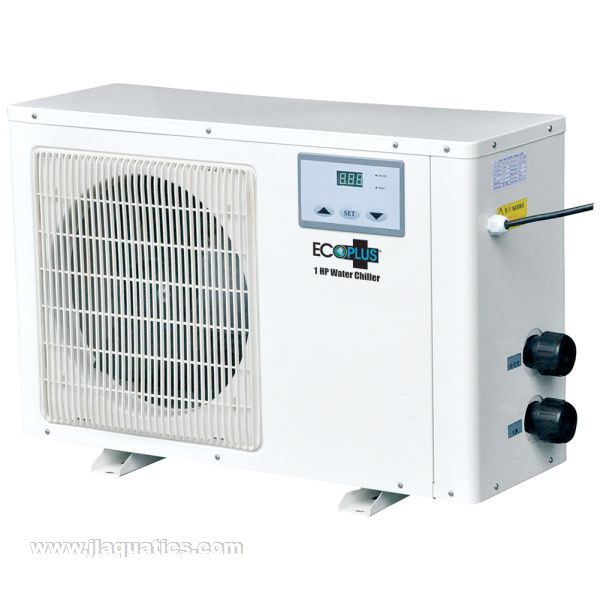

EcoPlus 1 HP Chiller with Dual Stage Controller
Overview
A commercial grade chiller suitable for reservoirs, hydroponic systems or fresh & saltwater aquariums.
Features
Each chiller has a high performance titanium heat exchanger for optimum performance and corrosion resistance as well as an efficient and reliable compressor.
High quality Japanese compressor is extremely efficient and reliable.
Heavy duty galvanized steel housing with a durable power coated finish.
Remote temperature controller with a 30 foot cord allows user to monitor and adjust chiller settings when the unit is installed in a remote location.
Auto restart and temperature memory in the event of a power failure.
Digital LCD display allows for easy operation.
Uses environmentally friendly R410A refrigerant.
Comes with two fittings to allow the chiller to be plumbed with 1" PVC hard pipe, or 1" flexible tubing.
Specifications
Chilling Capacity: 420 Gallons - 10oF, 220 Gallons 30oF *See sizing chart & manual for more information.
Power Consumption: 870 Watts / 8 Amps
Inlet/Outlet Sizes: 1"
Recommended flow rate: 417 - 993 GPH
Dimensions: 35"L x 14"D x 21"H
Pump sold separately
Allow the chiller to sit upright for at least 30 minutes prior to initial use.
1 year warranty
IMPORTANT: Chillers will only be covered under warranty if they are used within the range that they are designed for. Under-sizing a chiller for your aquarium will void warranty.

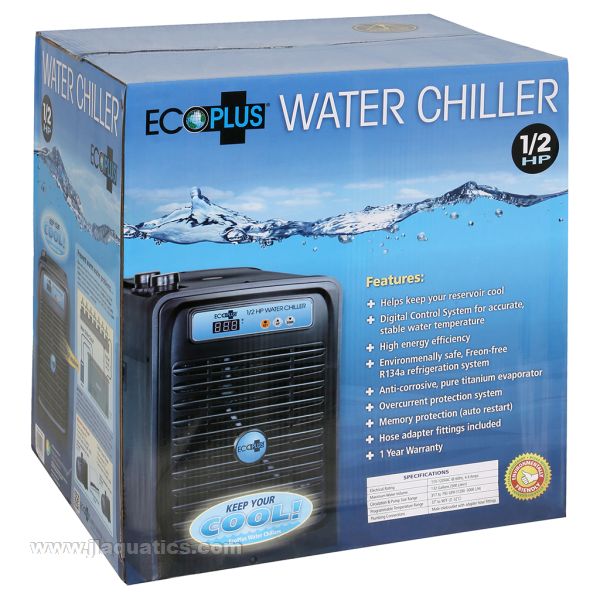

EcoPlus 1/2 HP Aquarium Chiller
Overview
Suitable for reservoirs, hydroponic systems or fresh & saltwater aquariums.
Each chiller has a high performance titanium heat exchanger for optimum performance and corrosion resistance as well as an efficient and reliable compressor.
The micro computer with digital LCD display allows for easy temperature setting.
Features
Chilling Capacity: 240 Gallons - 10oF, 120 Gallons 30oF *See sizing chart & manual for more information (approximate)
Power Consumption: 705 Watts / 4.4 Amps
Inlet/Outlet Sizes: 3/4"
Min Flow Rate: 317 GPH
Max Flow Rate: 793 GPH
Dimensions: 21" x 15.5" x 22"H
Pump sold separately
Allow the chiller to sit upright for at least 30 minutes prior to initial use.
1 year warranty
IMPORTANT: Chillers will only be covered under warranty if they are used within the range that they are designed for. Under-sizing a chiller for your aquarium will void warranty.

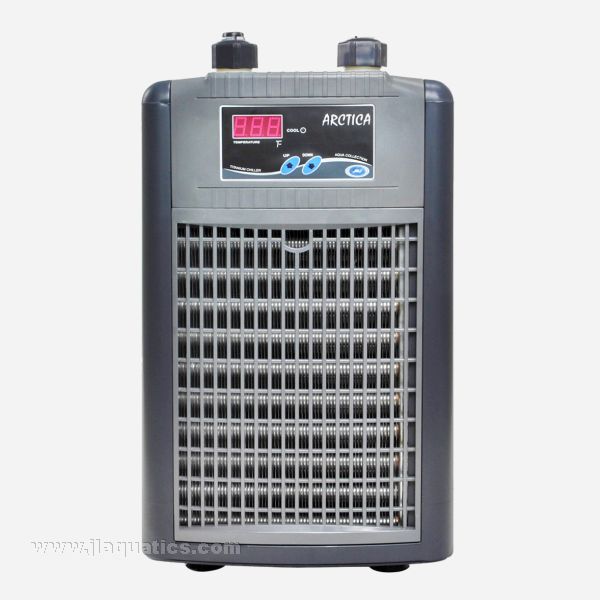

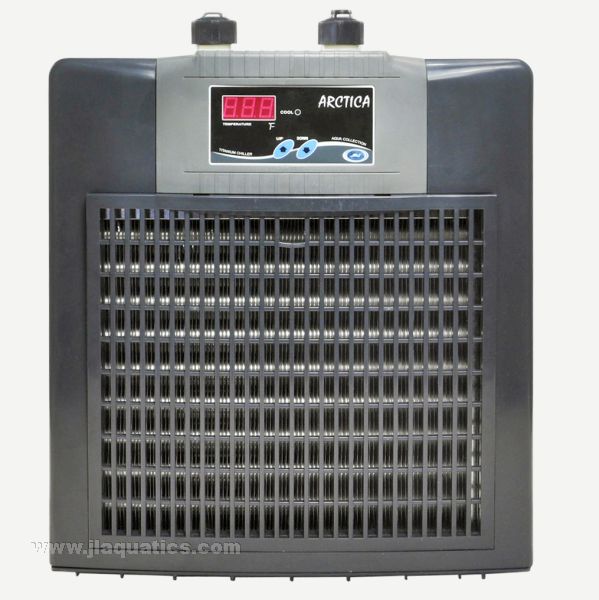

JBJ Arctica Titanium Chiller - Aquarium Series ChillerThis state-of-the-art aquarium cooler incorporates the most advanced technological features compared to any other chiller on the market. Many years of research and development has allowed us to offer the perfect solution to stabilize water temperatures for your aquarium environment. These units have been designed for maximum temperature pull down (BTU-s) with the least amount of energy draw. Titanium Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange on the market. This powerful cooling system guarantees stable consistent temperatures. Titanium coils are the most efficient for heat exchanging Corrosion resistant Anti-Freezing system will not allow the heat exchanger to freeze Contains safe Ozone Friendly Refrigerant (R-134a) Technical Specifications Model: 1/3hp (DBM-250) Maximum Capacity: 340 Gallons* Dimensions: 18.5" x 18" x 18" Inlet/Outlet: Adapters: 3/4", 5/8", 1/2" Power Supply: 115v Compressor HP/Output: 1/3hp / 250w Min/Max Flow Rates: 480gph - 2420gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouse
EcoPlus 1.5 HP Chiller with Dual Stage Controller
Overview
A commercial grade chiller suitable for reservoirs, hydroponic systems or fresh & saltwater aquariums.
Features
Each chiller has a high performance titanium heat exchanger for optimum performance and corrosion resistance as well as an efficient and reliable compressor.
High quality Japanese compressor is extremely efficient and reliable.
Heavy duty galvanized steel housing with a durable power coated finish.

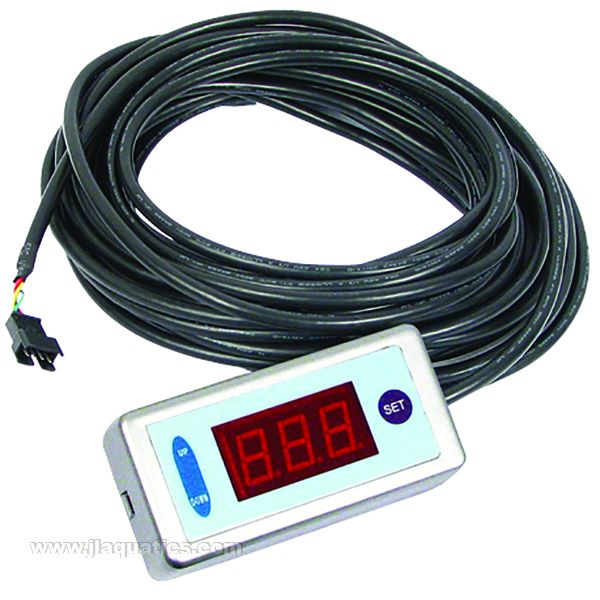

Remote temperature controller with a 30 foot cord allows user to monitor and adjust chiller settings when the unit is installed in a remote location.
Auto restart and temperature memory in the event of a power failure.
Digital LCD display allows for easy operation.
Uses environmentally friendly R410A refrigerant.
Comes with two fittings to allow the chiller to be plumbed with 1" PVC hard pipe, or 1" flexible tubing.
Specifications
Chilling Capacity: 420 Gallons - 10oF, 220 Gallons 30oF *See sizing chart & manual for more information.
Power Consumption: 870 Watts / 8 Amps
Inlet/Outlet Sizes: 1"
Recommended flow rate: 417 - 993 GPH
Dimensions: 35"L x 14"D x 21"H
Pump sold separately
Allow the chiller to sit upright for at least 30 minutes prior to initial use.
1 year warranty
IMPORTANT: Chillers will only be covered under warranty if they are used within the range that they are designed for. Under-sizing a chiller for your aquarium will void warranty.

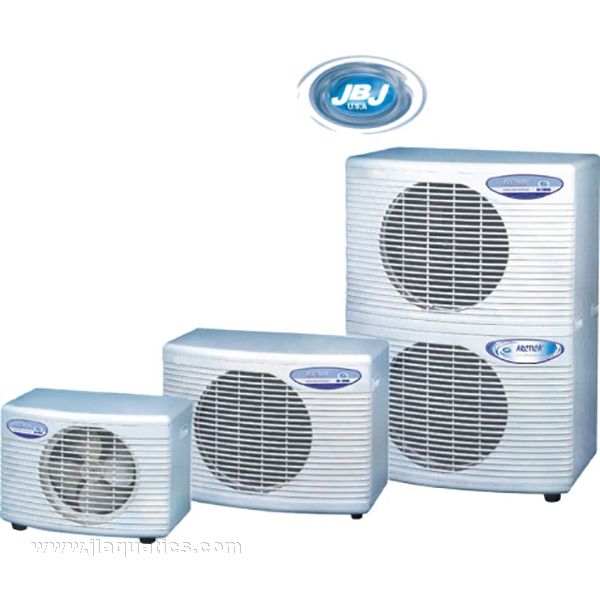

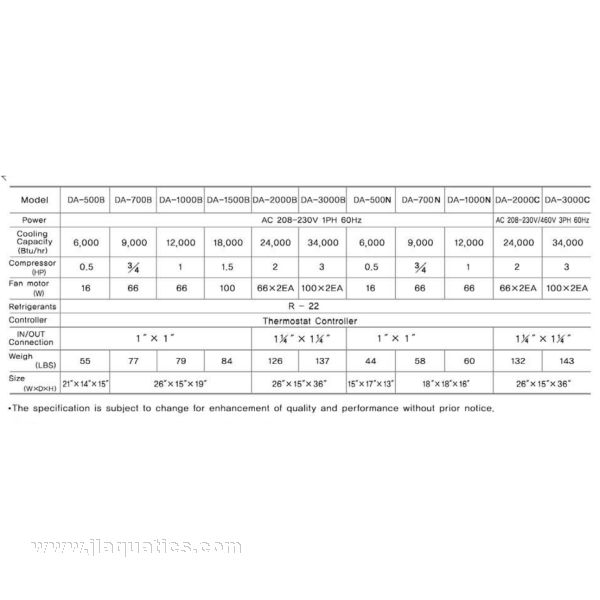

JBJ Arctica Titanium Chiller - Commercial Series ChillerThe newest addition to our line of quality engineered water cooling systems. Our Arctica-Commerical Series are specifically designed for cold water systems that must be kept constant at 59- F. Our Titanium "Helix" make this ideal for fresh or saltwater applications. These chillers range from 1/2 Hp - 3 Hp and provide the same powerful cooling performance with a remote Auto IC Temperature Control System. Note: these chillers may be used on tropical aquariums set at 77- F. Titanium "Helix" Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange and corrosion resistance.Energy EfficiencyOur unit provides the highest BTU-s (British Thermal Units) heat removal capacity with the lowest energy AMPERAGE draw.Full Auto IC Digital LED Control SystemThis state-of-the-art digital LED thermostat system will automatically control your temperature within +1/-1- F from your desired set point. Bright LED allows for constant temperature reading with an -easy- calibration function. We have even added a -Thermal Chip- in the control system that will prevent the heat exchanger from freezing due to controller failure or low water flow. Our Smart-Chip will store and reset the controller in case of a power failure."Easy Hook-Up"Our unique design allows the unit to be -hooked-up- without any tools or hard plumbing. We offer commercial grade compression fittings to be used with 1" & 1.25" PVC. These watertight fittings will handle up to a maximum working pressure of 25 PSI.Lowest Noise and Vibration LevelOur commercial series chillers provide the lowest noise and vibration level in the -industrial- classification.Side Handles ABS molded handles allow for easy lifting and moving.1 Year WarrantyWe warranty all commercial chillers for 1 full year from the date of purchase. We are committed to manufacturing the best quality products that we firmly stand behind.Technical Specifications Model: 3hp (DA-3000) Refrigerant Type: R-22 Cooling Capacity: 36000BTU Dimensions: 26" x 15" x 36" Inlet/Outlet: Adapters: 1-1/4" Power Supply: 230v Amps: 16 Compressor HP/Output: 3hp
Min/Max Flow Rates: 1902gph - 2856gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouseThese chillers must ship on a pallet. You will be contacted with a freight quote at time of ordering.
JBJ Arctica Titanium Chiller - Commercial Series ChillerThe newest addition to our line of quality engineered water cooling systems. Our Arctica-Commerical Series are specifically designed for cold water systems that must be kept constant at 59- F. Our Titanium "Helix" make this ideal for fresh or saltwater applications. These chillers range from 1/2 Hp - 3 Hp and provide the same powerful cooling performance with a remote Auto IC Temperature Control System. Note: these chillers may be used on tropical aquariums set at 77- F. Titanium "Helix" Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange and corrosion resistance.Energy EfficiencyOur unit provides the highest BTU-s (British Thermal Units) heat removal capacity with the lowest energy AMPERAGE draw.Full Auto IC Digital LED Control SystemThis state-of-the-art digital LED thermostat system will automatically control your temperature within +1/-1- F from your desired set point. Bright LED allows for constant temperature reading with an -easy- calibration function. We have even added a -Thermal Chip- in the control system that will prevent the heat exchanger from freezing due to controller failure or low water flow. Our Smart-Chip will store and reset the controller in case of a power failure."Easy Hook-Up"Our unique design allows the unit to be -hooked-up- without any tools or hard plumbing. We offer commercial grade compression fittings to be used with 1" & 1.25" PVC. These watertight fittings will handle up to a maximum working pressure of 25 PSI.Lowest Noise and Vibration LevelOur commercial series chillers provide the lowest noise and vibration level in the -industrial- classification.Side Handles ABS molded handles allow for easy lifting and moving.1 Year WarrantyWe warranty all commercial chillers for 1 full year from the date of purchase. We are committed to manufacturing the best quality products that we firmly stand behind.Technical Specifications Model: 1.5hp (DA-1500) Refrigerant Type: R-22 Cooling Capacity: 18000BTU Dimensions: 26" x 15" x 19" Inlet/Outlet: Adapters: 1" Power Supply: 230v Amps: 8.8 Compressor HP/Output: 1.5hp
Min/Max Flow Rates: 954gph - 1428gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouseThese chillers must ship on a pallet. You will be contacted with a freight quote at time of ordering.
JBJ Arctica Titanium Chiller - Commercial Series ChillerThe newest addition to our line of quality engineered water cooling systems. Our Arctica-Commerical Series are specifically designed for cold water systems that must be kept constant at 59- F. Our Titanium -Helix- make this ideal for fresh or saltwater applications. These chillers range from 1/2 Hp - 3 Hp and provide the same powerful cooling performance with a remote Auto IC Temperature Control System. Note: these chillers may be used on tropical aquariums set at 77- F. Titanium "Helix" Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange and corrosion resistance.Energy EfficiencyOur unit provides the highest BTU-s (British Thermal Units) heat removal capacity with the lowest energy AMPERAGE draw.Full Auto IC Digital LED Control SystemThis state-of-the-art digital LED thermostat system will automatically control your temperature within +1/-1- F from your desired set point. Bright LED allows for constant temperature reading with an -easy- calibration function. We have even added a -Thermal Chip- in the control system that will prevent the heat exchanger from freezing due to controller failure or low water flow. Our Smart-Chip will store and reset the controller in case of a power failure.-Easy Hook-Up-Our unique design allows the unit to be -hooked-up- without any tools or hard plumbing. We offer commercial grade compression fittings to be used with 1" & 1.25" PVC. These watertight fittings will handle up to a maximum working pressure of 25 PSI.Lowest Noise and Vibration LevelOur commercial series chillers provide the lowest noise and vibration level in the -industrial- classification.Side Handles ABS molded handles allow for easy lifting and moving.1 Year WarrantyWe warranty all commercial chillers for 1 full year from the date of purchase. We are committed to manufacturing the best quality products that we firmly stand behind.Technical Specifications Model: 1/2hp (DA-500) Refrigerant Type: R-22 Cooling Capacity: 6000BTU Dimensions: 21" x 14" x 15" Inlet/Outlet: Adapters: 1" Power Supply: 115v, 230v Compressor HP/Output: 1/2hp
Min/Max Flow Rates: 474gph - 792gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouseThese chillers must ship on a pallet. You will be contacted with a freight quote at time of ordering.
JBJ Arctica Titanium Chiller - Commercial Series ChillerThe newest addition to our line of quality engineered water cooling systems. Our Arctica-Commerical Series are specifically designed for cold water systems that must be kept constant at 59- F. Our Titanium "Helix" make this ideal for fresh or saltwater applications. These chillers range from 1/2 Hp - 3 Hp and provide the same powerful cooling performance with a remote Auto IC Temperature Control System. Note: these chillers may be used on tropical aquariums set at 77- F. Titanium "Helix" Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange and corrosion resistance.Energy EfficiencyOur unit provides the highest BTU-s (British Thermal Units) heat removal capacity with the lowest energy AMPERAGE draw.Full Auto IC Digital LED Control SystemThis state-of-the-art digital LED thermostat system will automatically control your temperature within +1/-1- F from your desired set point. Bright LED allows for constant temperature reading with an -easy- calibration function. We have even added a -Thermal Chip- in the control system that will prevent the heat exchanger from freezing due to controller failure or low water flow. Our Smart-Chip will store and reset the controller in case of a power failure."Easy Hook-Up"Our unique design allows the unit to be -hooked-up- without any tools or hard plumbing. We offer commercial grade compression fittings to be used with 1" & 1.25" PVC. These watertight fittings will handle up to a maximum working pressure of 25 PSI.Lowest Noise and Vibration LevelOur commercial series chillers provide the lowest noise and vibration level in the -industrial- classification.Side Handles ABS molded handles allow for easy lifting and moving.1 Year WarrantyWe warranty all commercial chillers for 1 full year from the date of purchase. We are committed to manufacturing the best quality products that we firmly stand behind.Technical Specifications Model: 2hp (DA-2000) Refrigerant Type: R-22 Cooling Capacity: 24000BTU Dimensions: 26" x 15" x 36" Inlet/Outlet: Adapters: 1-1/4" Power Supply: 230v Amps: 11 Compressor HP/Output: 2hp
Min/Max Flow Rates: 1266gph - 1902gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouseThese chillers must ship on a pallet. You will be contacted with a freight quote at time of ordering.
JBJ Arctica Titanium Chiller - Commercial Series ChillerThe newest addition to our line of quality engineered water cooling systems. Our Arctica-Commerical Series are specifically designed for cold water systems that must be kept constant at 59- F. Our Titanium "Helix" make this ideal for fresh or saltwater applications. These chillers range from 1/2 Hp - 3 Hp and provide the same powerful cooling performance with a remote Auto IC Temperature Control System. Note: these chillers may be used on tropical aquariums set at 77- F. Titanium "Helix" Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange and corrosion resistance.Energy EfficiencyOur unit provides the highest BTU-s (British Thermal Units) heat removal capacity with the lowest energy AMPERAGE draw.Full Auto IC Digital LED Control SystemThis state-of-the-art digital LED thermostat system will automatically control your temperature within +1/-1- F from your desired set point. Bright LED allows for constant temperature reading with an -easy- calibration function. We have even added a -Thermal Chip- in the control system that will prevent the heat exchanger from freezing due to controller failure or low water flow. Our Smart-Chip will store and reset the controller in case of a power failure."Easy Hook-Up"Our unique design allows the unit to be -hooked-up- without any tools or hard plumbing. We offer commercial grade compression fittings to be used with 1" & 1.25" PVC. These watertight fittings will handle up to a maximum working pressure of 25 PSI.Lowest Noise and Vibration LevelOur commercial series chillers provide the lowest noise and vibration level in the -industrial- classification.Side Handles ABS molded handles allow for easy lifting and moving.1 Year WarrantyWe warranty all commercial chillers for 1 full year from the date of purchase. We are committed to manufacturing the best quality products that we firmly stand behind.Technical Specifications Model: 1hp (DA-1000) Refrigerant Type: R-22 Cooling Capacity: 12000BTU Dimensions: 26" x 15" x 19" Inlet/Outlet: Adapters: 1" Power Supply: 230v Amps: 5.5 Compressor HP/Output: 1hp
Min/Max Flow Rates: 636gph - 954gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouseThese chillers must ship on a pallet. You will be contacted with a freight quote at time of ordering.

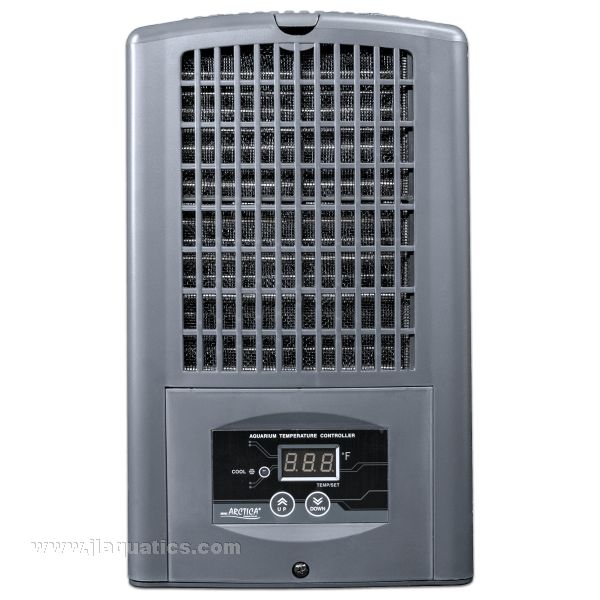

JBJ Arctica Titanium Chiller - Aquarium Series ChillerThis state-of-the-art aquarium cooler incorporates the most advanced technological features compared to any other chiller on the market. Many years of research and development has allowed us to offer the perfect solution to stabilize water temperatures for your aquarium environment. These units have been designed for maximum temperature pull down (BTU-s) with the least amount of energy draw. Titanium Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange on the market. This powerful cooling system guarantees stable consistent temperatures. Titanium coils are the most efficient for heat exchanging Corrosion resistant Anti-Freezing system will not allow the heat exchanger to freeze Contains safe Ozone Friendly Refrigerant (R-134a) Technical Specifications Model: 1/5hp (DBA-150) Maximum Capacity: 180 Gallons* Dimensions: 18.5" x 18" x 18" Inlet/Outlet: Adapters: 3/4", 5/8", 1/2" Power Supply: 115v Compressor HP/Output: 1/5hp / 150w Min/Max Flow Rates: 480gph - 1320gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouse
JBJ Arctica Titanium Chiller - Aquarium Series ChillerThis state-of-the-art aquarium cooler incorporates the most advanced technological features compared to any other chiller on the market. Many years of research and development has allowed us to offer the perfect solution to stabilize water temperatures for your aquarium environment. These units have been designed for maximum temperature pull down (BTU-s) with the least amount of energy draw. Titanium Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange on the market. This powerful cooling system guarantees stable consistent temperatures. Titanium coils are the most efficient for heat exchanging Corrosion resistant Anti-Freezing system will not allow the heat exchanger to freeze Contains safe Ozone Friendly Refrigerant (R-134a) Technical Specifications Model: 1/4hp (DBE-200) Maximum Capacity: 260 Gallons* Dimensions: 18.5" x 18" x 18" Inlet/Outlet: Adapters: 3/4", 5/8", 1/2" Power Supply: 115v Compressor HP/Output: 1/4hp / 180w Min/Max Flow Rates: 480gph - 1920gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouse
JBJ Arctica Titanium Chiller - Aquarium Series ChillerThis state-of-the-art aquarium cooler incorporates the most advanced technological features compared to any other chiller on the market. Many years of research and development has allowed us to offer the perfect solution to stabilize water temperatures for your aquarium environment. These units have been designed for maximum temperature pull down (BTU-s) with the least amount of energy draw. Titanium Heat Exchanger Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange on the market. This powerful cooling system guarantees stable consistent temperatures. Titanium coils are the most efficient for heat exchanging Corrosion resistant Anti-Freezing system will not allow the heat exchanger to freeze Contains safe Ozone Friendly Refrigerant (R-134a) Technical Specifications Model: 1/10hp (DBA-075) Maximum Capacity: 130 Gallons* Dimensions: 18.5" x 18" x 18" Inlet/Outlet: Adapters: 3/4", 5/8", 1/2" Power Supply: 115v Compressor HP/Output: 1/10hp / 75w Min/Max Flow Rates: 240gph - 960gph *Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.See documents tab for manual which includes warranty and maintenance information.JBJ Chillers take approximately 7 business days to arrive at our warehouse
