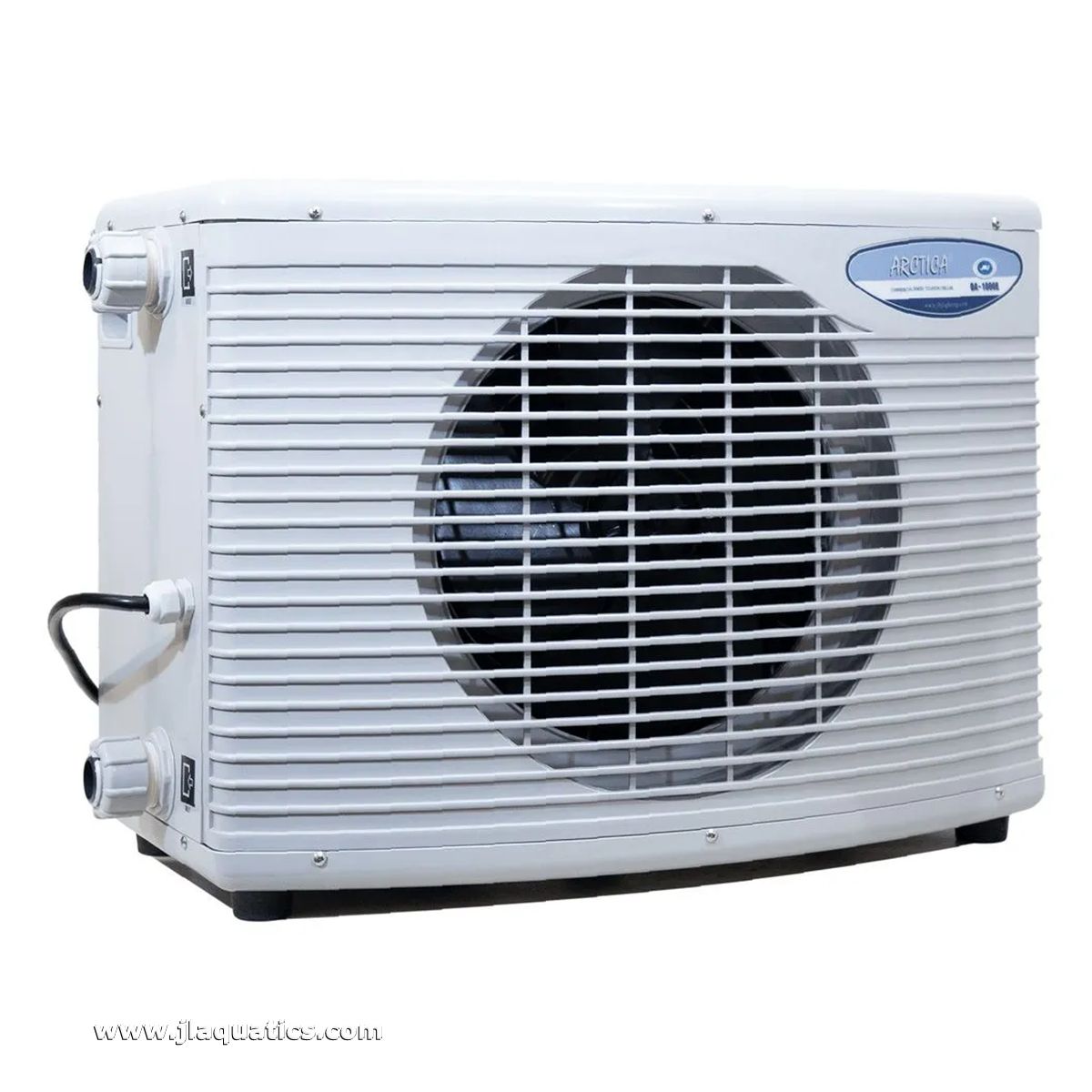

JBJ Arctica 1HP Commercial Chiller - 230V
The JBJ Arctica 1HP Commercial Chiller - 230V is a high-capacity titanium aquarium chiller engineered for larger aquatic systems that require serious temperature control. Built on JBJ's Commercial Series platform, the DA-1000 provides 12000 BTU of cooling capacity, a titanium Helix heat exchanger, and a remote Auto IC digital LED temperature control system for stable water temperature management in freshwater, saltwater, reef, coldwater, holding, and commercial aquarium applications.
JBJ Arctica 1HP Commercial Chiller Overview
The DA-1000 1HP Commercial Chiller is designed for larger systems with more demanding cooling requirements than standard aquarium chillers can comfortably handle. It is rated for aquariums around 300 gallons under recommended sizing conditions, with a maximum aquarium size rating up to 1000 gallons depending on heat load, ambient temperature, plumbing, livestock needs, and desired temperature drop. This model requires 200VAC to 240VAC power and should be installed with appropriate electrical planning.
Features of the JBJ Arctica 1HP Commercial Chiller
- 1HP commercial cooling capacity: Designed for large aquariums, coldwater systems, holding systems, and high heat-load aquatic installations.
- Titanium Helix heat exchanger: Provides corrosion-resistant heat transfer for freshwater and saltwater environments.
- 12000 BTU cooling capacity: Delivers substantial heat removal for larger systems that require active temperature control.

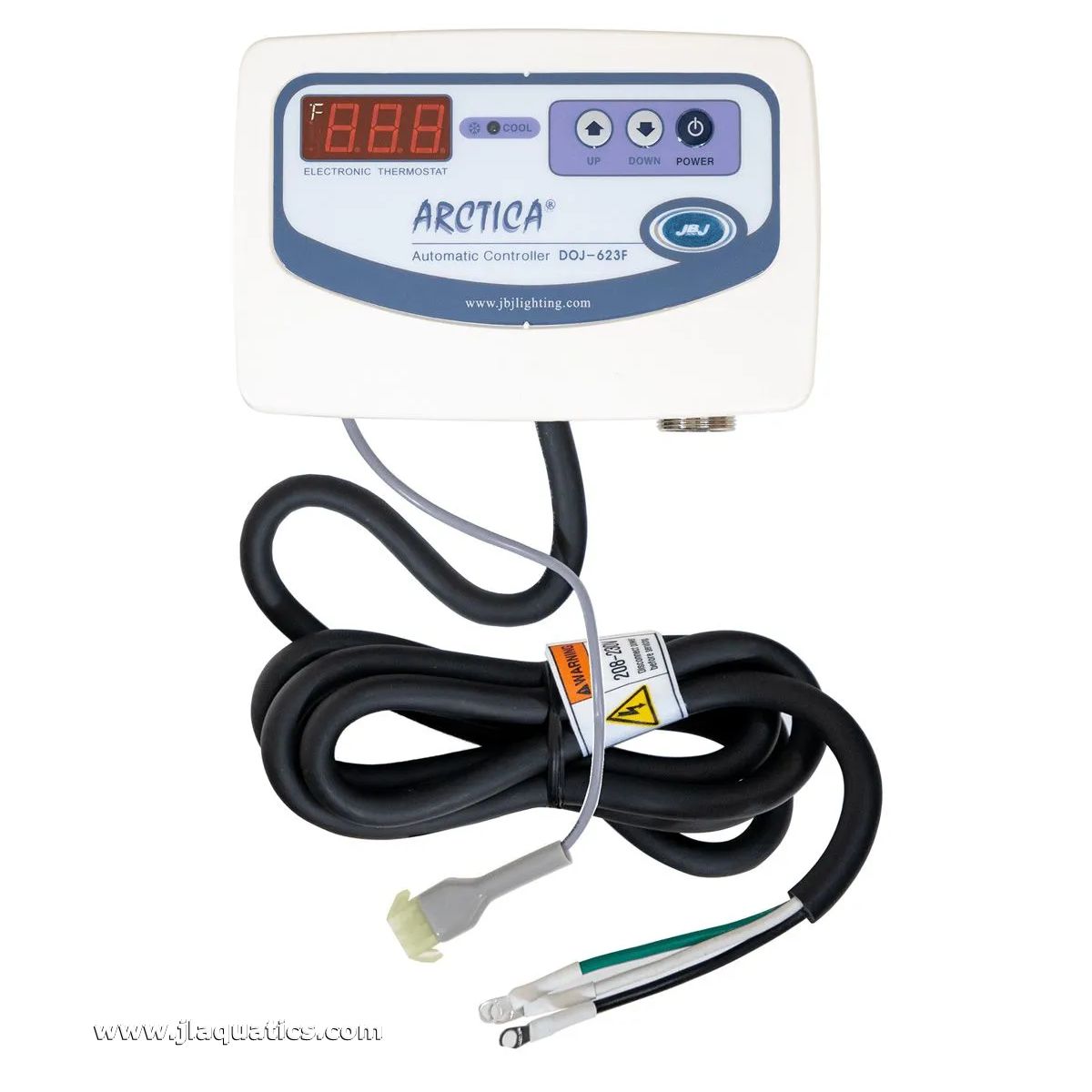

- Remote Auto IC digital LED controller: Provides easy temperature setting, monitoring, calibration, and automatic cooling control.
- +/- 1 degree Fahrenheit temperature control: Helps maintain stable water temperature for sensitive livestock and system reliability.
- Thermal chip protection: Helps prevent heat exchanger freezing during abnormal low-flow or control-failure conditions.
- Power-failure memory: Smart-chip control stores and restores controller settings after power interruption.
- Commercial-grade compression fittings: Supports secure plumbing connection without complicated hard-plumbing requirements.

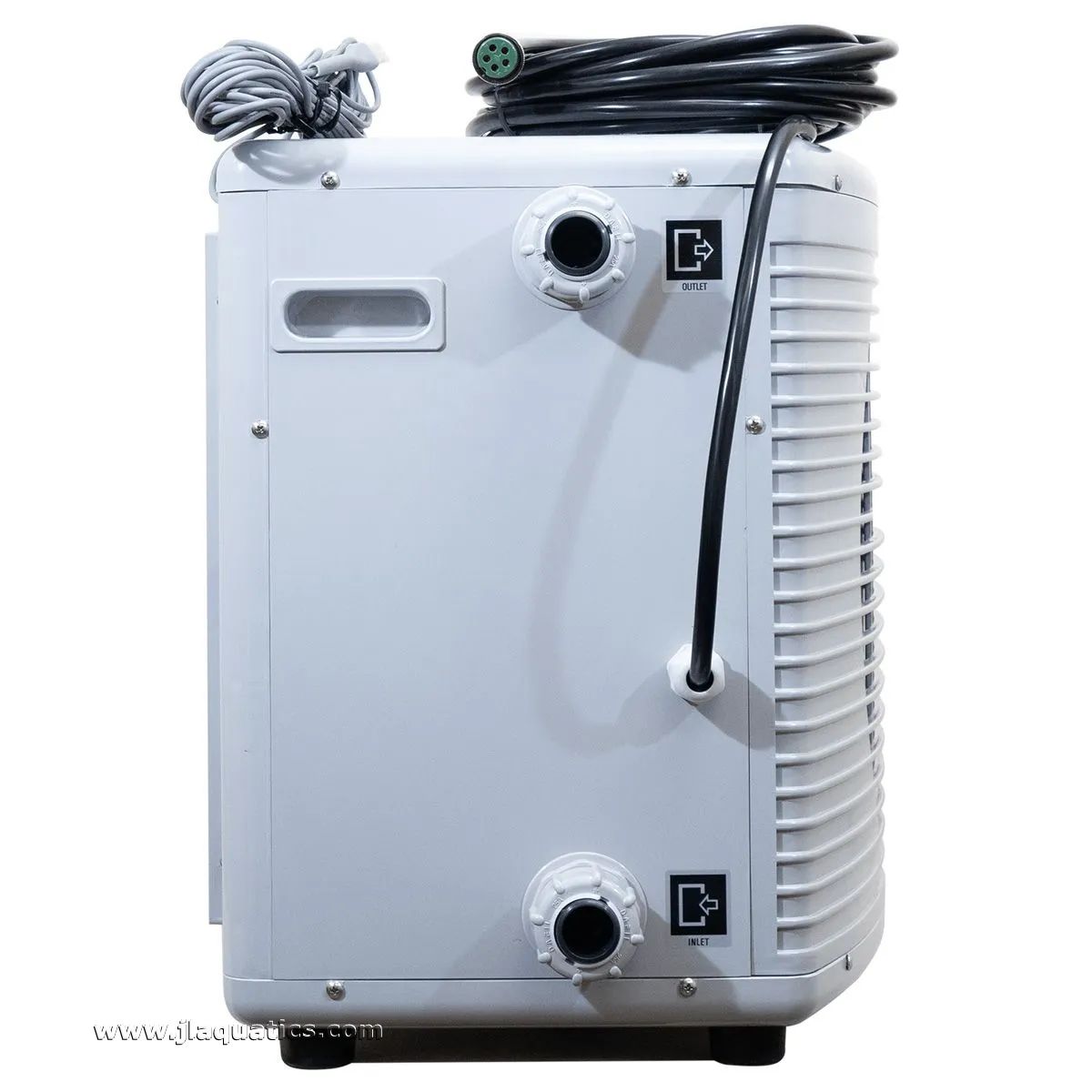

- 1 inch PVC union connections: Suitable for higher-flow aquarium and holding-system plumbing layouts.
- Quiet commercial operation: Designed for reduced noise and vibration compared with typical industrial cooling equipment.
- Freshwater and saltwater compatible: Appropriate for reef aquariums, marine systems, freshwater displays, and coldwater applications.
- Water pump not included: Requires an external pump or plumbing loop sized to the required flow range.

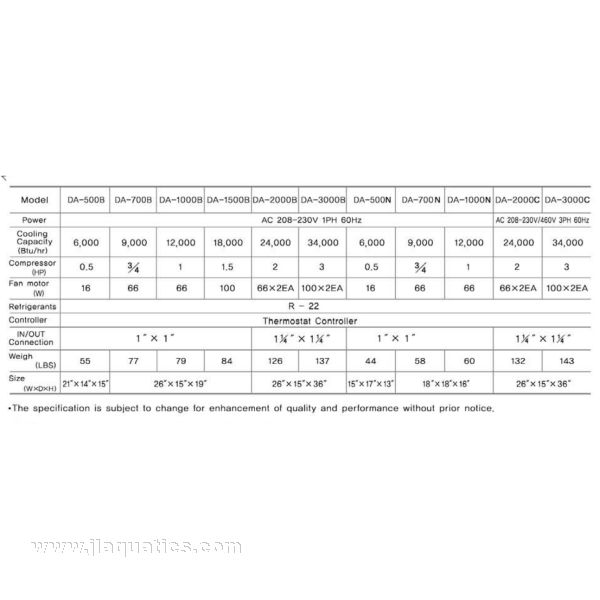

JBJ Arctica 1HP Commercial Chiller Specifications
- Brand: JBJ
- Series: Arctica Commercial Series
- Model: DA-1000
- Product type: Commercial inline aquarium chiller
- Compressor rating: 1 HP
- Recommended aquarium size: 300 gallons
- Maximum aquarium size: Up to 1000 gallons depending on heat load, ambient temperature, and desired temperature drop
- Cooling capacity: 12000 BTU
- Power: 230V / 5.5 amps
- Required power: 200VAC to 240VAC
- Heat exchanger: Titanium Helix
- Flow rate: 640 to 960 GPH
- Connection size: 1 inch PVC unions
- Controller type: Single-stage digital temperature controller
- Temperature accuracy: +/- 1 degree Fahrenheit
- Cord included: Yes
- Plug included: No
- Dimensions: 26 x 15 x 19 inches
- Weight: 79 lb
- Warranty: 1 year limited warranty
- Application: Freshwater and saltwater aquariums
- Water pump: Not included
Sizing and Installation Notes for the JBJ Arctica 1HP Commercial Chiller
Size this chiller based on full system demand rather than display volume alone. Total water volume, equipment heat, lighting heat, ambient room temperature, ventilation, plumbing restrictions, and required temperature pull-down all affect real-world performance. This 230V model does not include a plug and may require professional electrical installation. Use a pump that provides the required flow after head pressure and plumbing loss are accounted for.
Directions
Install the chiller in a dry, stable, well-ventilated location with open airflow around the cabinet. Connect the inlet and outlet using the 1 inch PVC union fittings and a pump that falls within the required flow range. Confirm all plumbing is secure, circulate water through the unit, and check for leaks before powering the chiller. The 230V electrical connection should be handled according to local electrical code and installed by a qualified electrician when required. Disconnect power before cleaning or service and keep the condenser area clear of dust and debris.
What's Included
- JBJ DA-1000 1HP 230V Commercial Chiller
- Remote Auto IC digital LED temperature controller
- 1 inch PVC union connection fittings
- Power cord
- Manufacturer documentation
