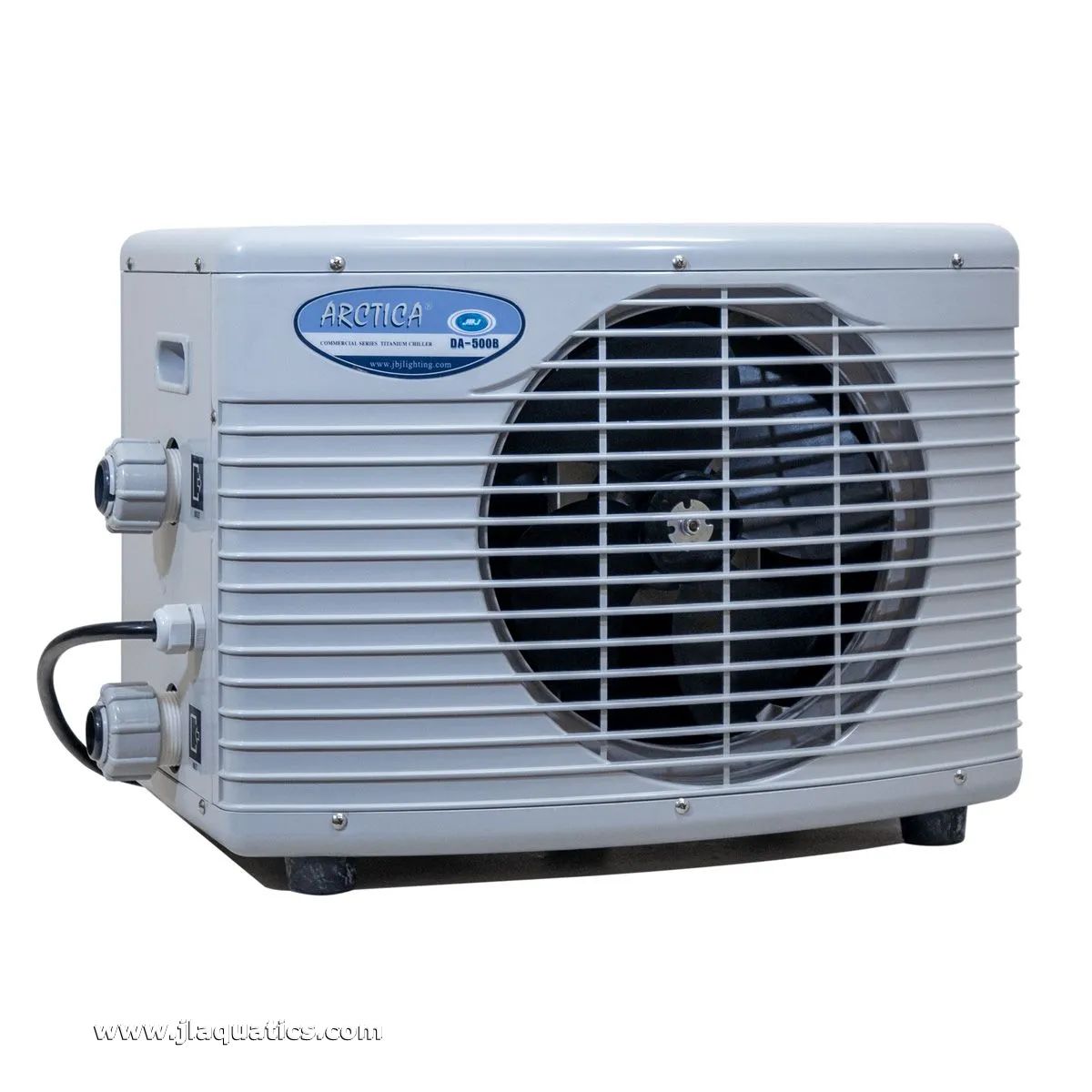

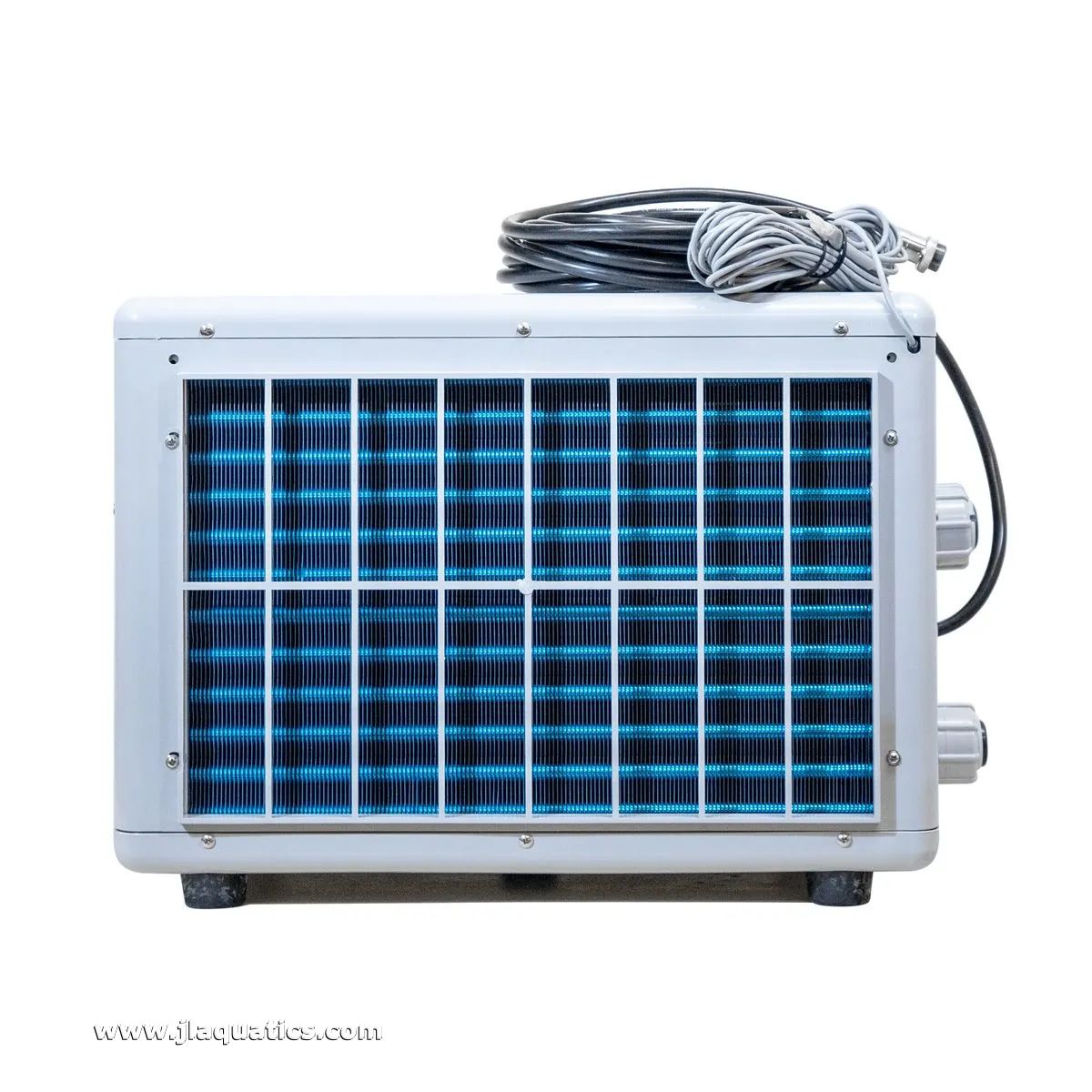

JBJ Arctica 1.5HP Commercial Chiller - 230V
The JBJ Arctica 1.5HP Commercial Chiller - 230V is a powerful commercial-grade aquarium chiller designed for large aquatic systems that need dependable heat removal and tight temperature control. Built with JBJ's titanium Helix heat exchanger and remote Auto IC digital LED temperature control system, the DA-1500 delivers 18000 BTU of cooling capacity for demanding freshwater, saltwater, reef, holding, and coldwater system applications.
JBJ Arctica 1.5HP Commercial Chiller Overview
The DA-1500 1.5HP Commercial Chiller is intended for larger aquariums, livestock holding systems, commercial aquatic installations, and high heat-load environments where standard chillers may be undersized. It is rated for aquariums around 400 gallons under recommended sizing conditions, with a maximum aquarium size rating up to 1500 gallons depending on heat load, room temperature, required pull-down, livestock demands, and system design. This model requires 200VAC to 240VAC power and does not include a plug.
Features of the JBJ Arctica 1.5HP Commercial Chiller
- 1.5HP commercial chiller platform: Provides strong cooling performance for large aquarium and holding-system applications.
- 18000 BTU cooling capacity: Removes significant heat from larger aquatic systems with high equipment or ambient heat loads.
- Titanium Helix heat exchanger: Corrosion-resistant titanium supports reliable heat exchange in freshwater and saltwater installations.

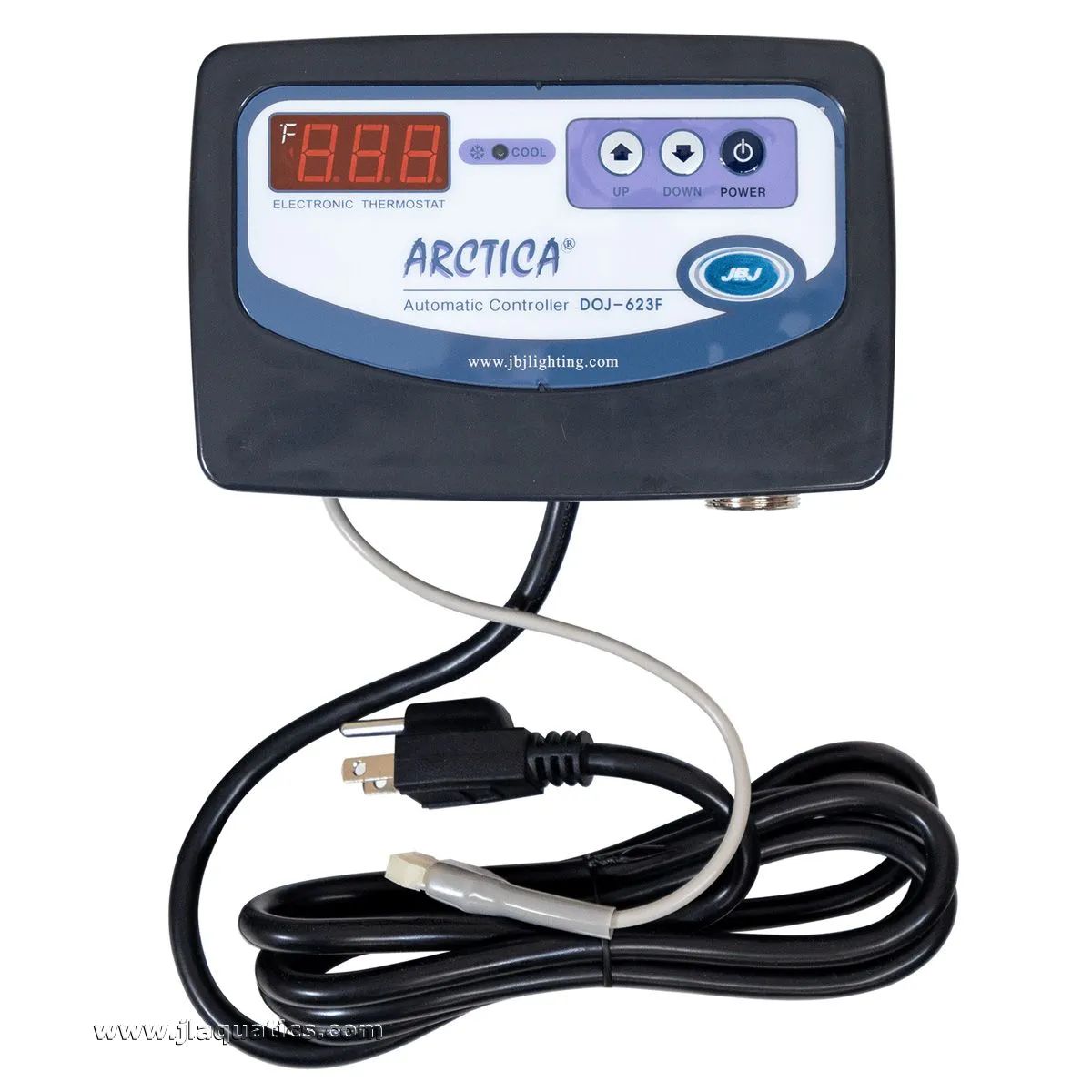

- Remote Auto IC digital LED control: Allows convenient temperature setting, monitoring, calibration, and automatic chiller operation.
- +/- 1 degree Fahrenheit control accuracy: Helps maintain stable water temperature for temperature-sensitive livestock.
- Thermal chip protection: Helps protect the heat exchanger from freezing during abnormal controller or low-flow conditions.
- Smart-chip memory: Stores and resets controller settings after a power failure.
- Commercial compression fittings: Designed for watertight plumbing connection with easy installation.
- 1 inch PVC unions: Support secure integration into commercial aquarium plumbing loops.
- Quiet commercial operation: Designed to reduce noise and vibration for its industrial-class cooling category.
- Coldwater and tropical compatibility: Built for coldwater systems while also being suitable for tropical aquarium systems when properly sized.
- Water pump not included: Requires a properly sized pump that provides the required operating flow range.
JBJ Arctica 1.5HP Commercial Chiller Specifications
- Brand: JBJ
- Series: Arctica Commercial Series
- Model: DA-1500
- Product type: Commercial inline aquarium chiller
- Compressor rating: 1.5 HP
- Recommended aquarium size: 400 gallons
- Maximum aquarium size: Up to 1500 gallons depending on heat load, ambient temperature, and desired temperature drop
- Cooling capacity: 18000 BTU
- Power: 230V / 8.8 amps
- Required power: 200VAC to 240VAC
- Heat exchanger: Titanium Helix
- Flow rate: 954 to 1428 GPH

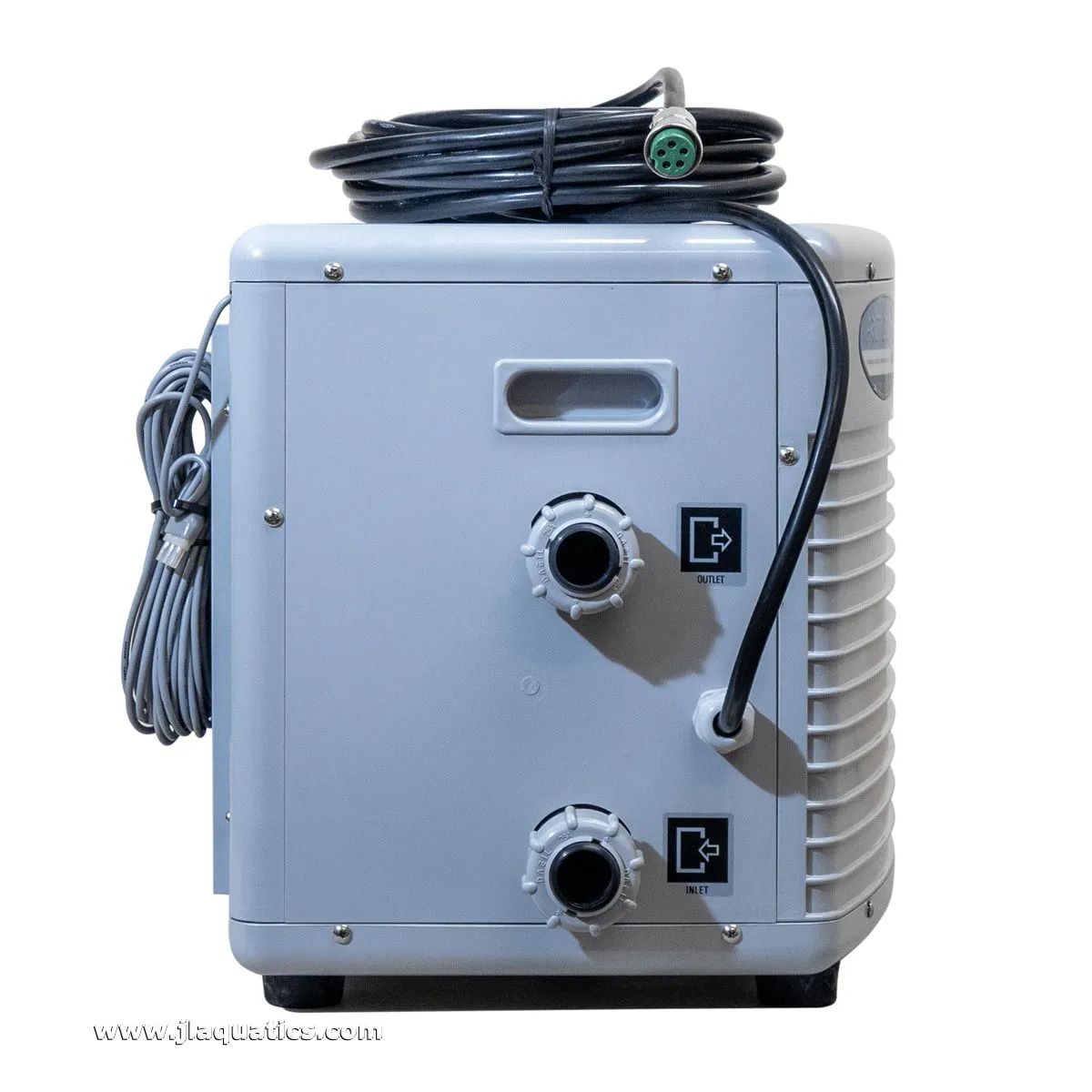

- Connection size: 1 inch PVC unions
- Controller type: Single-stage digital temperature controller
- Temperature accuracy: +/- 1 degree Fahrenheit
- Cord included: Yes
- Plug included: No
- Dimensions: 26 x 15 x 19 inches
- Weight: 84 lb
- Warranty: 1 year limited warranty
- Application: Freshwater and saltwater aquariums
- Water pump: Not included
Sizing and Installation Notes for the JBJ Arctica 1.5HP Commercial Chiller
For best results, size the chiller around total system demand, not just aquarium volume. Large pumps, high-output lighting, warm rooms, enclosed mechanical spaces, and larger temperature drops all increase cooling demand. Use a pump that delivers 954 to 1428 GPH after plumbing loss. Because this model requires 200VAC to 240VAC power and does not include a plug, electrical installation should be planned carefully and handled by a qualified electrician where required.
Directions
Place the chiller in a dry, level, well-ventilated area with enough clearance for proper airflow and service access. Connect the inlet and outlet using the 1 inch PVC union fittings and a pump capable of meeting the required flow rate after head pressure is considered. Run water through the chiller before applying power, check all connections for leaks, and set the desired temperature using the digital controller. Always disconnect power before maintenance and keep the condenser area clean to maintain cooling efficiency.
What's Included
- JBJ DA-1500 1.5HP 230V Commercial Chiller
- Remote Auto IC digital LED temperature controller
- 1 inch PVC union connection fittings
- Power cord
- Manufacturer documentation
