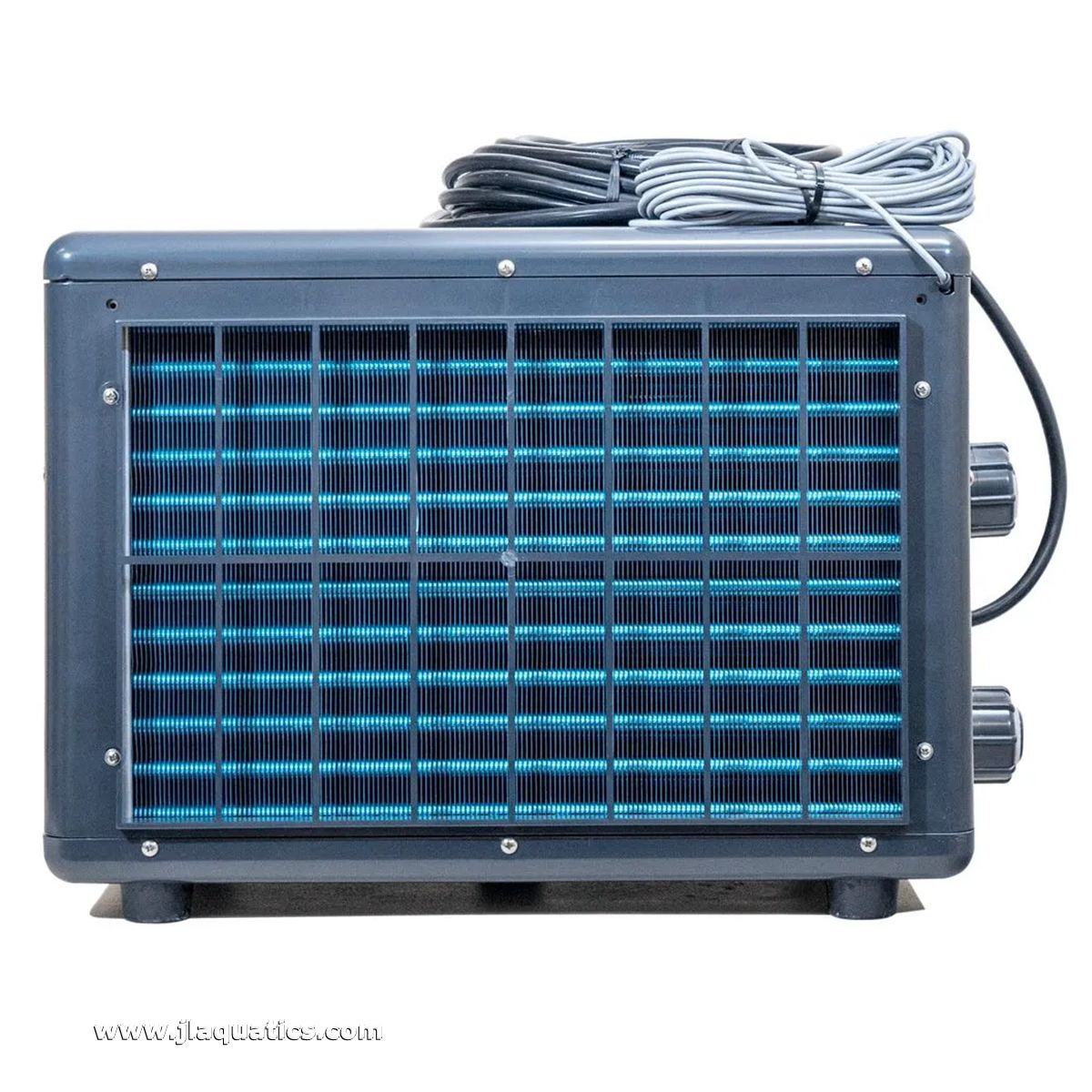

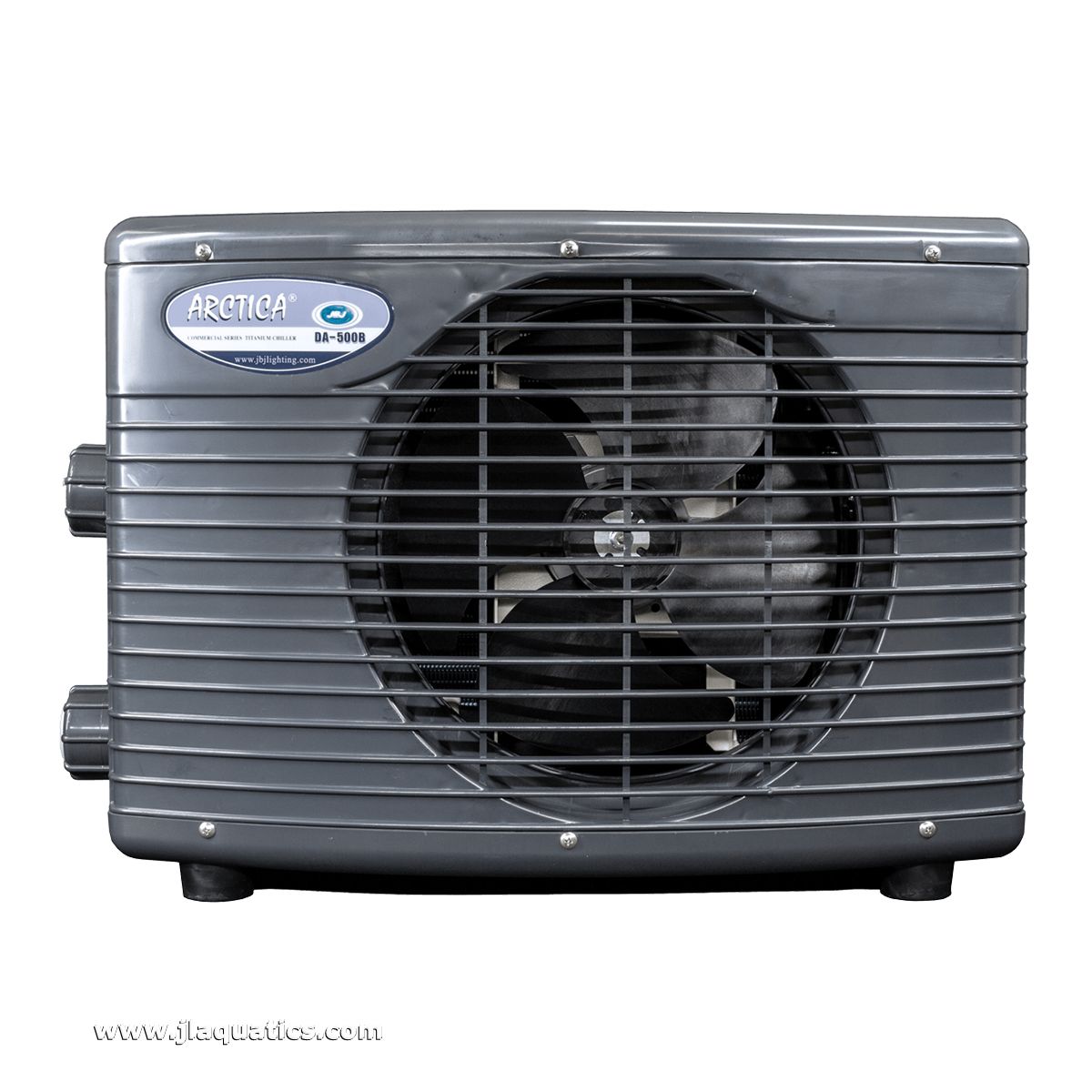

JBJ Arctica 1/2HP Commercial Chiller

JBJ Arctica Titanium Chiller - Commercial Series Chiller

The newest addition to our line of quality engineered water cooling systems. Our Arctica-Commerical Series are specifically designed for cold water systems that must be kept constant at 59- F. Our Titanium -Helix- make this ideal for fresh or saltwater applications.

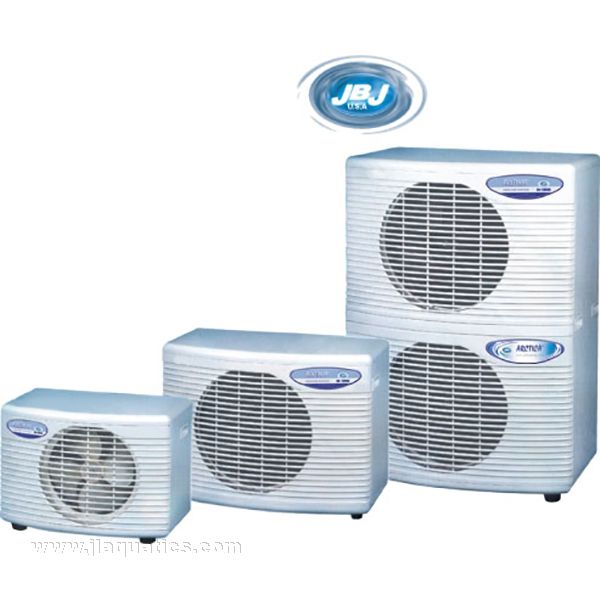

These chillers range from 1/2 Hp - 3 Hp and provide the same powerful cooling performance with a remote Auto IC Temperature Control System.

Note: these chillers may be used on tropical aquariums set at 77- F.

Titanium "Helix" Heat Exchanger

Unique titanium coil design allows for maximum contact exposure. The absolute best element for heat exchange and corrosion resistance.

Energy Efficiency

Our unit provides the highest BTU-s (British Thermal Units) heat removal capacity with the lowest energy AMPERAGE draw.

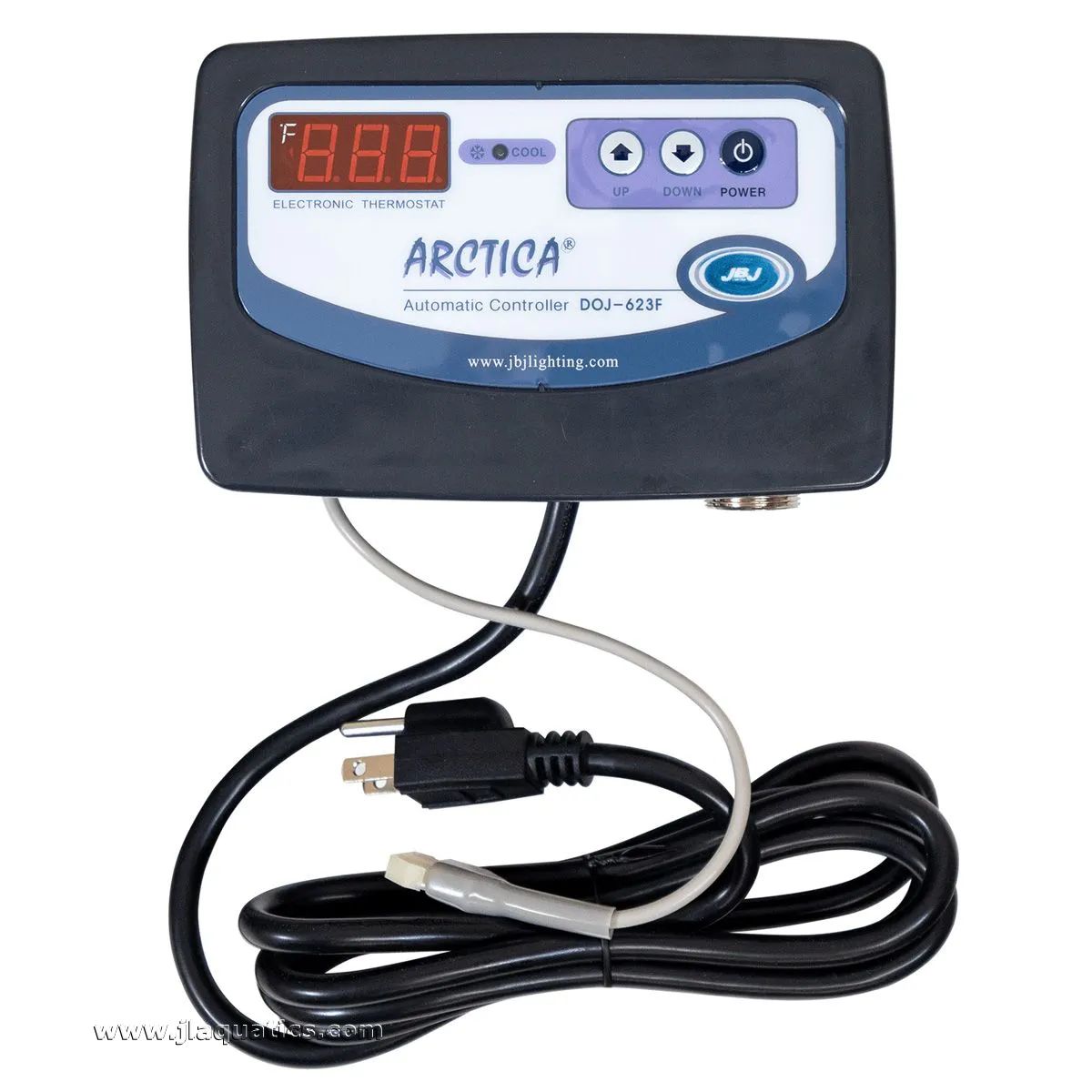

Full Auto IC Digital LED Control System

This state-of-the-art digital LED thermostat system will automatically control your temperature within +1/-1- F from your desired set point. Bright LED allows for constant temperature reading with an -easy- calibration function. We have even added a -Thermal Chip- in the control system that will prevent the heat exchanger from freezing due to controller failure or low water flow. Our Smart-Chip will store and reset the controller in case of a power failure.

-Easy Hook-Up-

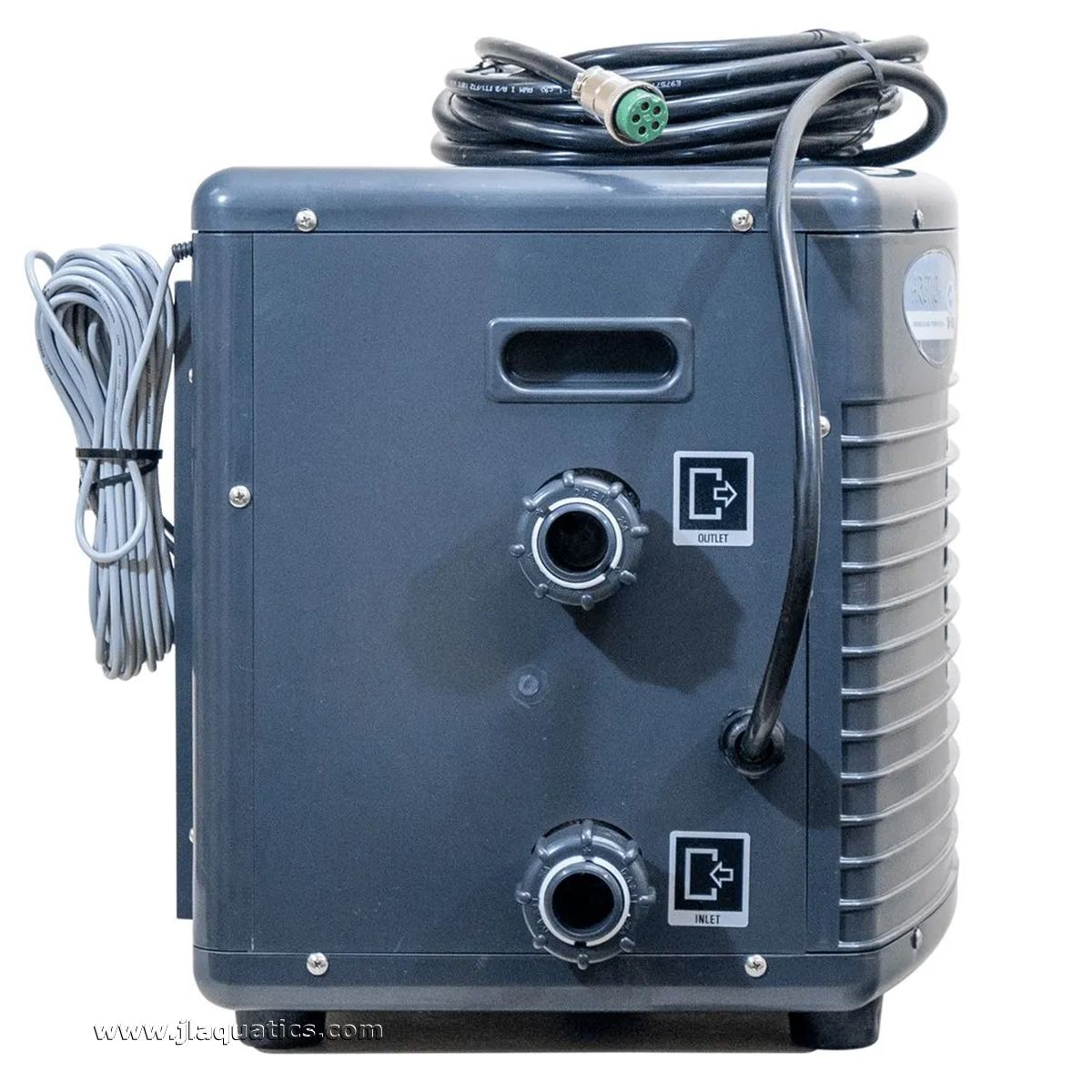

Our unique design allows the unit to be -hooked-up- without any tools or hard plumbing. We offer commercial grade compression fittings to be used with 1" & 1.25" PVC. These watertight fittings will handle up to a maximum working pressure of 25 PSI.

Lowest Noise and Vibration Level

Our commercial series chillers provide the lowest noise and vibration level in the -industrial- classification.

Side Handles

ABS molded handles allow for easy lifting and moving.

1 Year Warranty

We warranty all commercial chillers for 1 full year from the date of purchase. We are committed to manufacturing the best quality products that we firmly stand behind
.

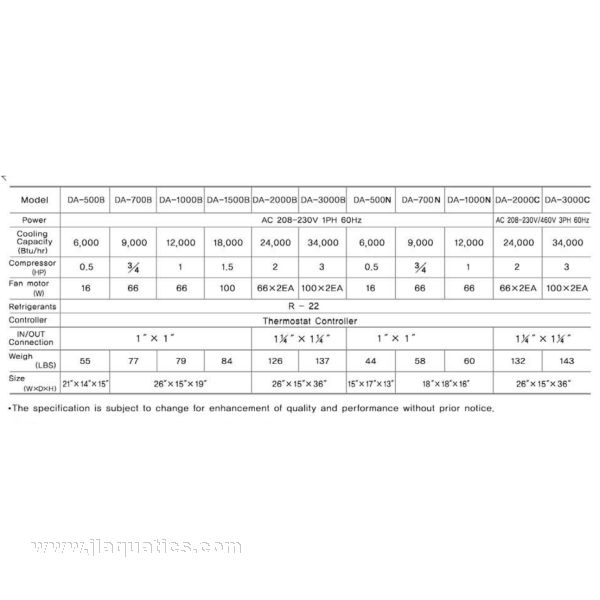

Technical Specifications

• Model: 1/2hp (DA-500)
• Refrigerant Type: R-22
• Cooling Capacity: 6000BTU
• Dimensions: 21" x 14" x 15"
• Inlet/Outlet: Adapters: 1"
• Power Supply: 115v, 230v
• Compressor HP/Output: 1/2hp

• Min/Max Flow Rates: 474gph - 792gph

*Maximum capacity can vary from system to system dependent on ambient temperature and equipment. If in doubt, upsize your chiller by one model.

See documents tab for manual which includes warranty and maintenance information.

JBJ Chillers take approximately 7 business days to arrive at our warehouse
These chillers must ship on a pallet. You will be contacted with a freight quote at time of ordering.
