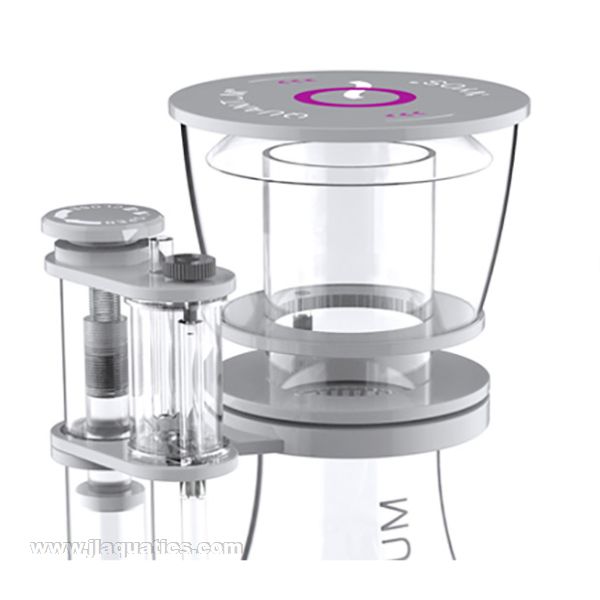

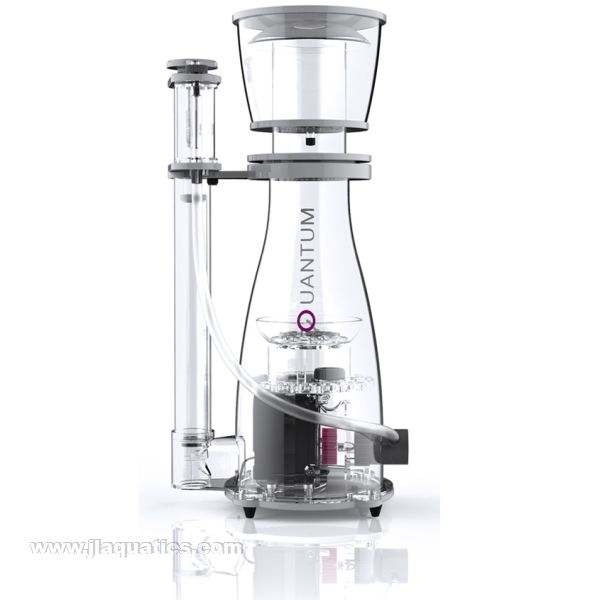

Nyos Quantum 160 Protein Skimmer
The Nyos Quantum 160 Protein Skimmer is a high-performance in-sump protein skimmer for marine and reef aquariums up to 1,000 litres or 250 gallons. Powered by the Quantum 3.0 pump, the Quantum 160 combines Nyos Hybrid Wheel technology, a Clear-View Reactor, Twister bubble plate, flow-optimized Sinus body design, separate air and water adjustment, and premium seawater-ready construction for strong nutrient export with quiet daily operation.
Balanced Skimming Power for Serious Reef Systems
The Quantum 160 is a popular mid-size choice for reef aquariums that need more export capacity than a compact skimmer but still require a manageable footprint. It is well suited to mixed reefs, SPS-focused systems, and stocked marine aquariums where dissolved organic waste removal helps maintain water clarity, reduce nutrient accumulation, and support long-term system stability.
Nyos Quantum 160 Skimmer Features
- Hybrid Wheel bubble production: Nyos combines needle-wheel and lattice-wheel geometry to create a dense field of fine micro bubbles for efficient foam separation.

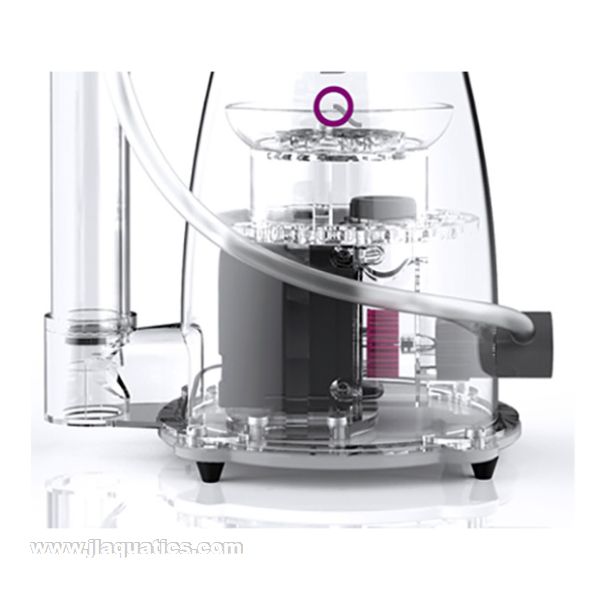

- Clear-View Reactor chamber: The transparent large-volume pump chamber is optimized for air-water mixing and makes it easier to identify debris or obstructions.
- Twister bubble management: The saw-blade shaped bubble plate gives the bubble column additional spin, increasing contact time inside the skimmer body.
- Sinus body design: The flow-optimized double-S shape reduces disruptive low-flow zones and helps bubbles rise cleanly through the reaction chamber.
- Independent tuning controls: Separate air and water adjustment allow the skimmer to be matched to the aquarium's sump depth, bioload, and preferred wet or dry skimming style.
- Precise water-level control: The water setting pipe provides coarse adjustment while the micro-adjustment screw allows fine control of the internal water level.
- Smooth quiet operation: Silicone feet help decouple vibration from the sump, supporting low-noise operation in reef cabinets.
- Designed for maintenance: The compact internal pump design avoids bulky external plumbing, the skimmer can be dismantled for cleaning, and the twist-lock cup makes routine service easier.
- Premium reef-safe details: Zirconium dioxide high-performance shafts and titanium grade 2 seawaterproof screws support reliable long-term saltwater operation.
Quantum 160 Specifications
- Model: Nyos Quantum 160
- Product type: Internal in-sump protein skimmer
- Recommended aquarium size: 250-1,000 L / 60-250 gal
- Pump: Quantum 3.0
- Power consumption: 18 W
- Dimensions: 18.5 x 25 x 53 cm / 7.1 x 9.8 x 20.9 in
- Adjustment: Separate air and water adjustment with micro-adjustment screw
- Installation: For in-sump marine and reef aquarium filtration
- Upgrade path: Compatible with the matching Nyos Quantum 160 EQ Upgrade Kit for conversion to the controllable Quantum EQ platform
Compatibility and Reef Application Notes
The Nyos Quantum 160 Protein Skimmer should be installed in a sump chamber with a stable water level and enough clearance for collection cup removal. For best results, match skimmer size to actual system volume, fish load, feeding intensity, nutrient goals, and sump layout rather than aquarium volume alone. New skimmers may need a break-in period before foam production stabilizes, so make final adjustments gradually.
Nyos Quantum Protein Skimmer Assembly Video
Directions for Use
Install the skimmer in a stable sump chamber, assemble the Quantum 3.0 pump and bubble plate, connect the air intake, and seat the collection cup securely. Begin with moderate settings while the skimmer breaks in, then use the water setting pipe and micro-adjustment screw to tune the foam height. Adjust air and water settings slowly, empty the cup before it overfills, clean the neck regularly, and periodically remove the pump for inspection and maintenance.
What's Included
- Nyos Quantum 160 Protein Skimmer
- Quantum 3.0 pump
- Skimmer cup with twist-lock seal
- Integrated air and water adjustment hardware
