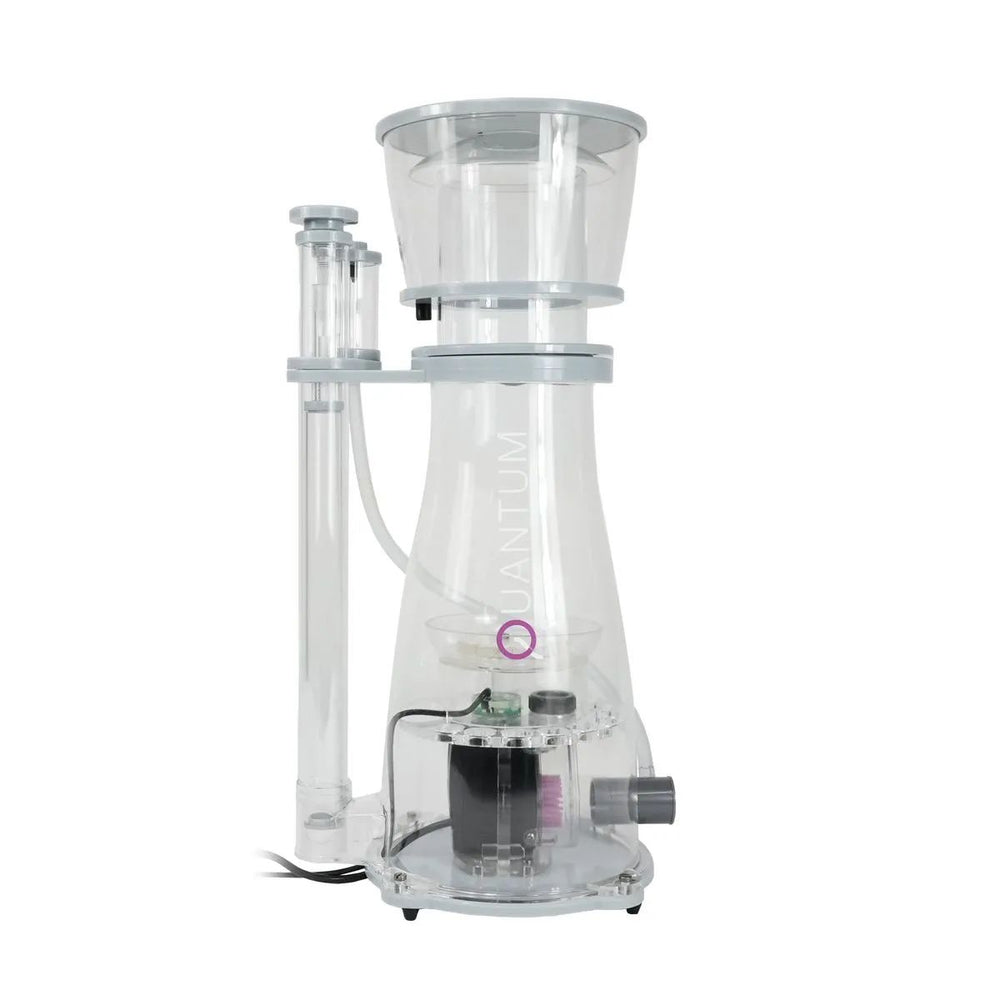

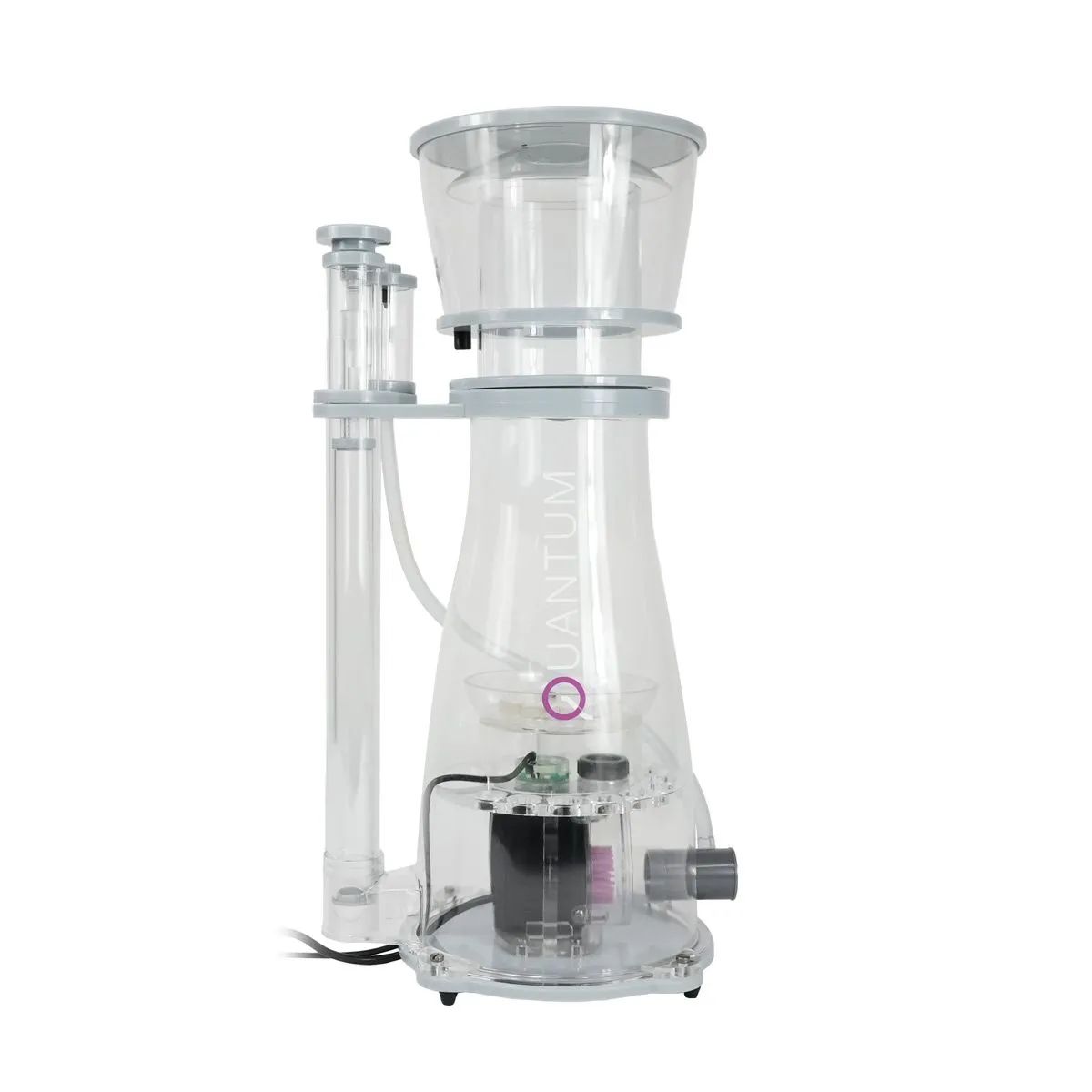

Nyos Quantum 220 EQ Protein Skimmer

High performance control for larger reef systems

The Nyos Quantum 220 EQ takes the flagship Quantum 220 body and pairs it with a controllable 24V Quantum 5.0 pump delivering serious nutrient export capacity for heavily stocked reef aquariums up to 500 gallons while keeping noise and energy use low.
With full app based control via Mobius or Apex Fusion you can match skimmer output to feeding cycles maintenance windows and nighttime plankton activity instead of running one fixed setting around the clock.

Features

• In sump internal skimmer built on the proven Nyos Quantum 220 acrylic body for tanks up to roughly 500 gallons
• 24V Quantum 5.0 DC pump with stepless speed control from 1 to 100 percent for precise foam height and dryness
• Wireless control through the Mobius app or Apex Fusion using the optional MXM module allowing schedules and interlocks with other smart equipment
• Preset operating modes including Performance Plankton Saving and Nutrient Export Reduction to simplify day and night nutrient management
• Energy saving 24V pump engineered in Europe that can use around 20 percent less power while delivering roughly 10 percent more performance than non controllable Quantum pumps
• RGB LED feedback that displays pump speed at a glance and acts as a handy maintenance light inside the stand
• Built in safety features that shut the pump down and trigger alerts if the intake is obstructed or the skimmer starts to overflow

Specifications

• Recommended aquarium volume up to 500 gallons depending on bioload
• Footprint approximately 9.3 in x 12.2 in
• Height approximately 23.8 in
• Pump model Quantum 5.0 24V DC controllable
• Power consumption around 20W at full air draw
• Skimmer type in sump internal installation only

Directions

Place the Nyos Quantum 220 EQ in a stable sump chamber with a water depth close to 8 to 10 inches and ensure the skimmer outlet is unobstructed so water can exit freely.
Start the skimmer at a conservative pump speed using the Mobius or Apex app and run it with a slightly lower water level during the first week of operation while the skimmer breaks in and the system stabilizes.
After the break in period gradually raise the internal water level and fine tune pump speed until you achieve a consistent dark skimmate then maintain performance by cleaning the collection cup and air intake on a regular schedule.

What's Included

• Quantum 220 EQ Protein Skimmer
• 24V Quantum skimmer pump

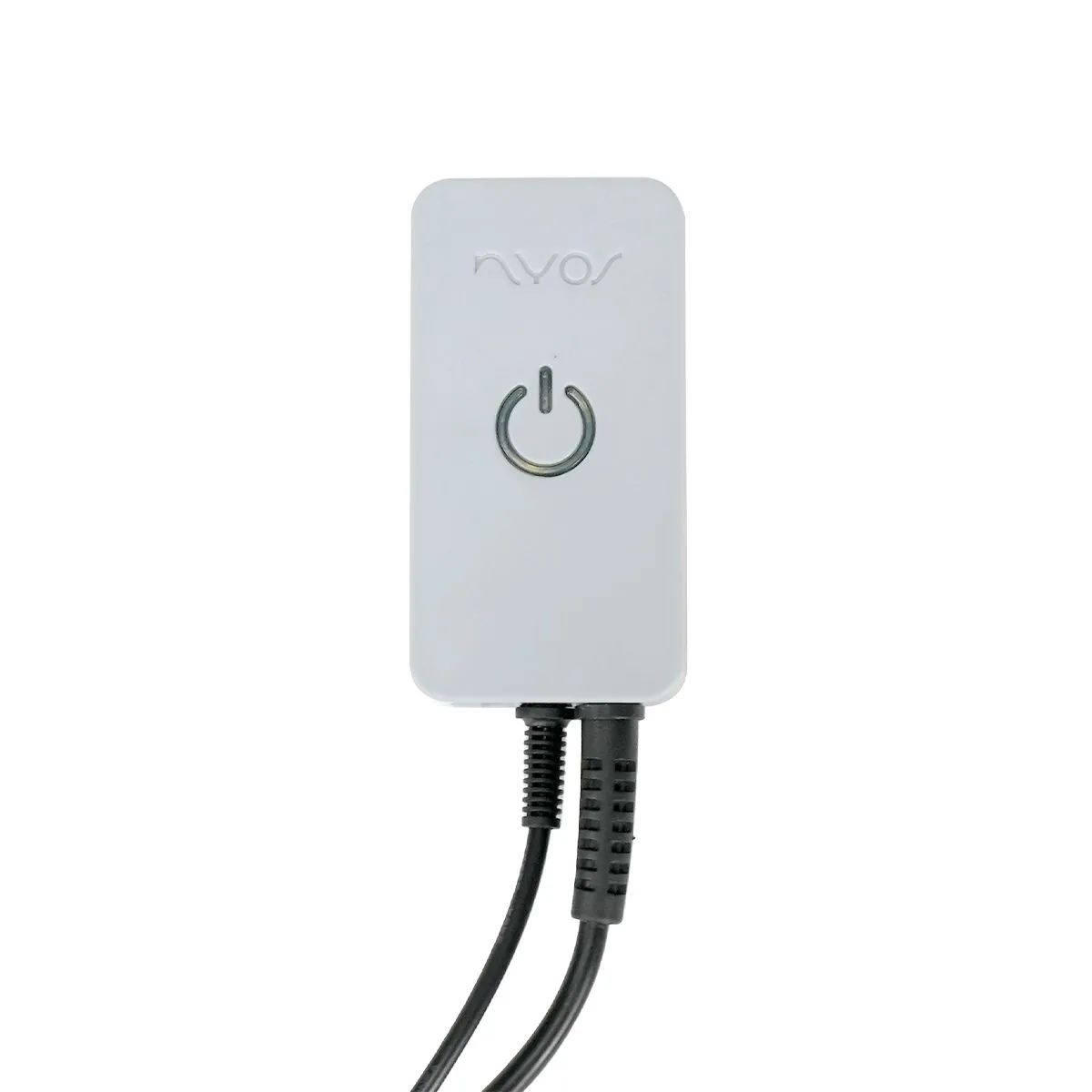

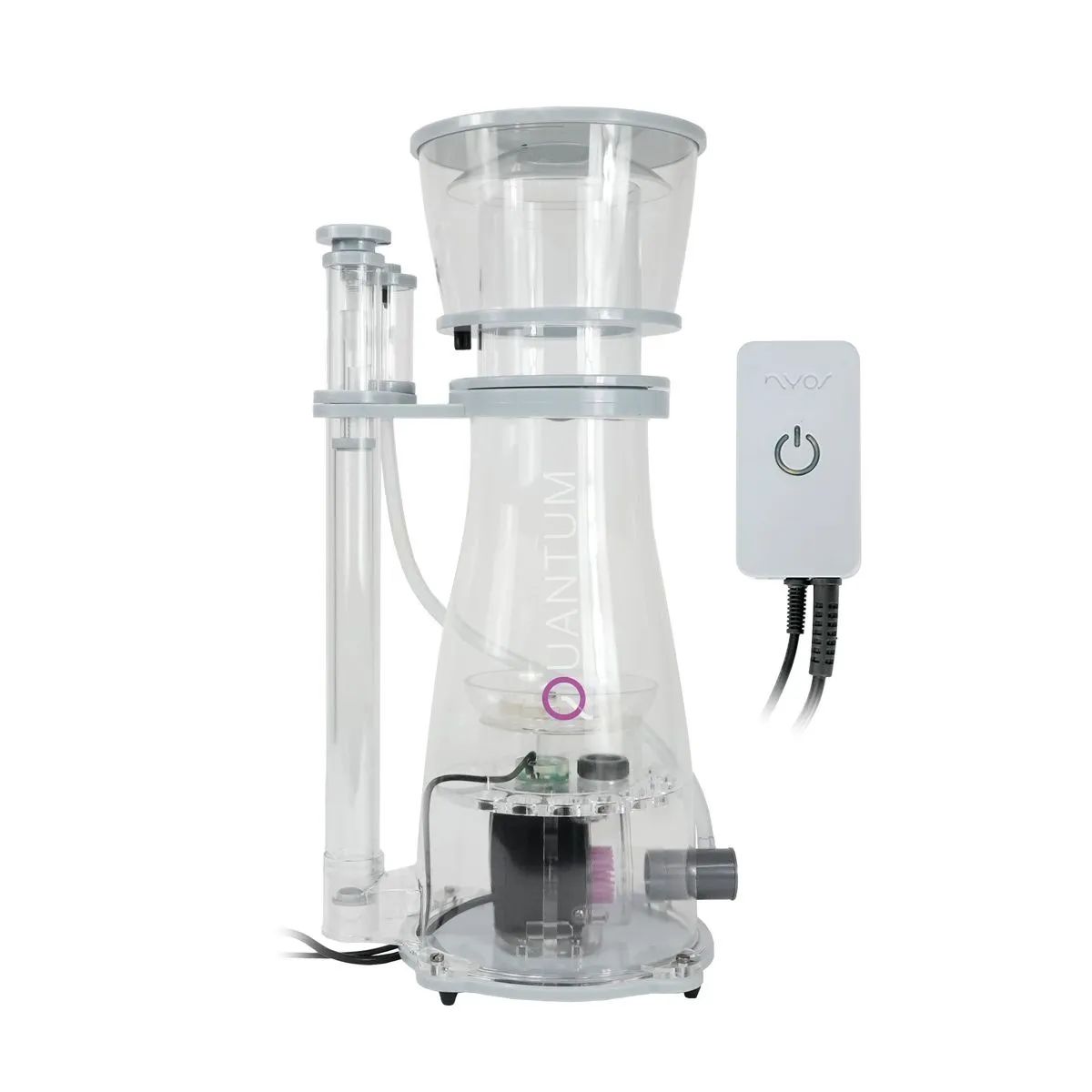

• Pump controller
• RGB LED skimmer lighting
• Bubble plate
• Power supply

Note: MXM Module is sold separately (required for Apex integration).
