Nyos Quantum 220 Protein Skimmer
Nyos Quantum 220 Protein Skimmer
Out Of Stock
✓ This item is eligible for free shipping
Couldn't load pickup availability
Product Description
Product Description

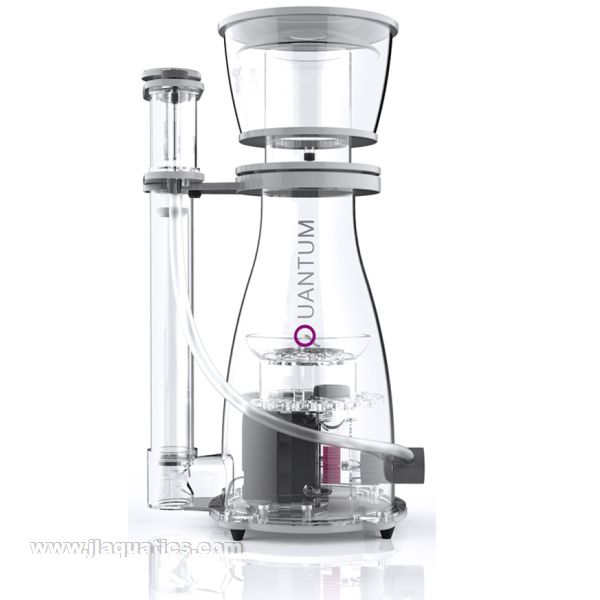

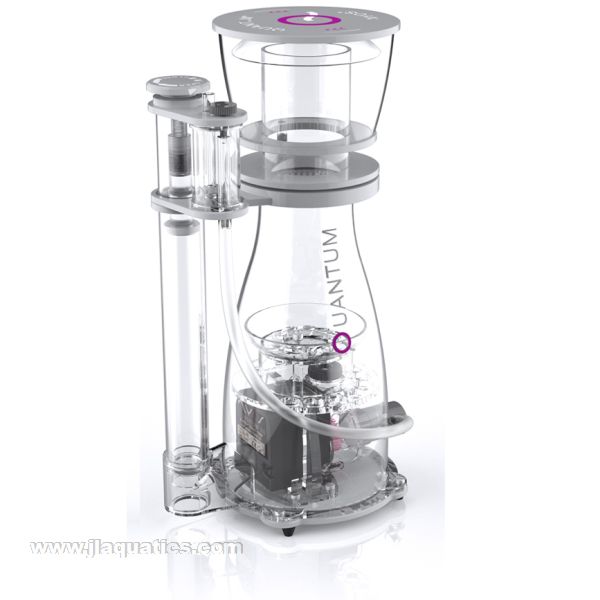

Nyos Quantum 220 Protein Skimmer
The Nyos Quantum 220 Protein Skimmer is a large high-performance in-sump skimmer for marine and reef aquariums up to 2,000 litres or 500 gallons. Built with the Quantum 5.0 pump, Nyos Hybrid Wheel impeller, Clear-View Reactor, Twister bubble plate, Sinus body design, precision water-level control, and robust seawater-ready materials, the Quantum 220 is designed for strong organic waste removal in demanding reef systems.
Large-System Nutrient Export with Quantum 220
The Quantum 220 is intended for aquariums where skimming capacity, stability, and adjustability are all important. It is a strong choice for large mixed reefs, stocked fish systems, SPS aquariums, and higher-feeding marine displays where dissolved organics can accumulate quickly. Its larger reaction body and Quantum 5.0 pump provide the capacity needed for heavier bioloads while still using a compact internal-pump footprint.
Nyos Quantum 220 Performance Features
- Quantum 5.0 pump platform: The larger pump supports high skimming performance for reef aquariums with increased organic waste and feeding demand.
- Hybrid Wheel impeller: The precision impeller uses a needle-and-lattice structure to generate fine micro air bubbles for effective protein skimming.

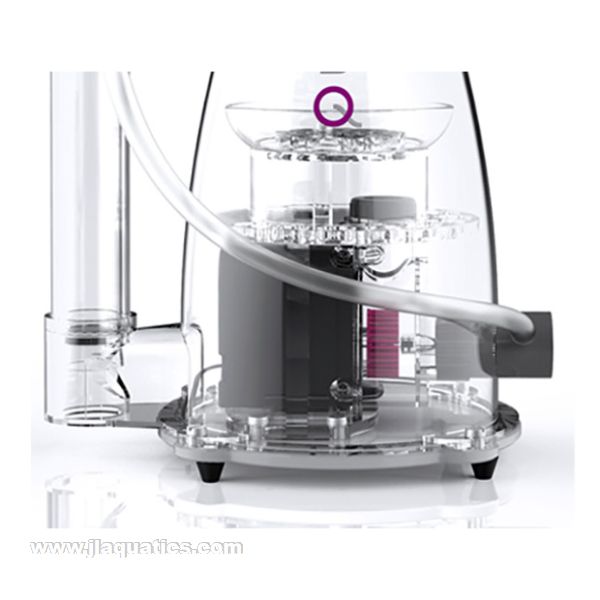

- Clear-View Reactor: The transparent optimized chamber creates the air-water mixture and allows visual inspection of the pump chamber during operation.
- Twister bubble plate: The saw-blade bubble plate increases bubble contact time by adding rotational movement inside the water column.
- Sinus body geometry: The flow-optimized body shape helps prevent disruptive dead spots and lets bubbles rise through the reactor more cleanly.
- Separate air and water control: Independent adjustment makes it easier to tune the skimmer for different sump levels, bioloads, and wet or dry skimmate targets.

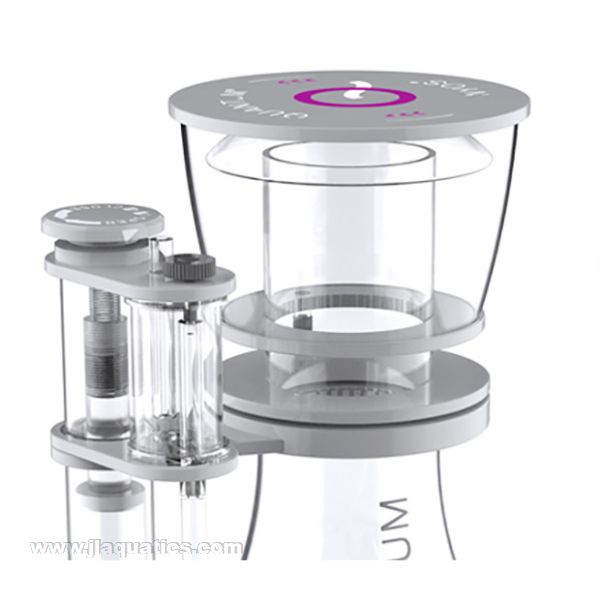

- Micro-adjustment screw: Fine internal water-level control helps reef keepers make small tuning changes without large swings in foam height.
- Quiet decoupled design: Silicone feet help reduce vibration transfer for smoother operation in sump cabinets.
- Serviceable build: The twist-lock collection cup, internal pump placement, titanium grade 2 screws, and dismantle-friendly body support routine cleaning and long-term maintenance.
Quantum 220 Specifications
- Model: Nyos Quantum 220
- Product type: Internal in-sump protein skimmer
- Recommended aquarium size: 500-2,000 L / 125-500 gal
- Pump: Quantum 5.0
- Power consumption: 22 W
- Dimensions: 23.5 x 31 x 60.5 cm / 9.3 x 12.2 x 23.8 in
- Adjustment: Separate air and water adjustment with micro-adjustment screw
- Installation: For in-sump marine and reef aquarium filtration
- Upgrade path: Compatible with the matching Nyos Quantum 220 EQ Upgrade Kit for conversion to the controllable Quantum EQ platform
Compatibility and Large Reef Notes
The Nyos Quantum 220 Protein Skimmer requires a sump chamber with stable water depth, adequate footprint, and enough clearance to remove the collection cup for cleaning. For larger reef systems, skimmer choice should consider true water volume, fish load, coral type, feeding schedule, nutrient targets, and export methods already in use. Start conservatively on new installations and increase tuning gradually once the skimmer has broken in.
Nyos Quantum Protein Skimmer Assembly Video
Directions for Use
Position the skimmer in a stable sump chamber with suitable clearance, assemble the Quantum 5.0 pump and bubble plate, connect the air intake, and lock the cup into place. Allow the skimmer to run through its break-in period before making final tuning decisions. Use the water setting pipe for broad adjustment and the micro-adjustment screw for finer foam-height control. Clean the cup and neck regularly, check the air intake for salt creep, and inspect the pump during scheduled maintenance.
What's Included
- Nyos Quantum 220 Protein Skimmer
- Quantum 5.0 pump
- Skimmer cup with twist-lock seal
- Integrated air and water adjustment hardware
