IceCap Gyre 2K Pump with WaveEngine LE Controller

The IceCap Gyre 2K Pump with WaveEngine LE Controller is a complete WiFi-controllable crossflow circulation package for reef, saltwater, and high-flow freshwater aquariums from 20 to 90+ gallons. It pairs the IceCap 2K Gyre flow pump with the HYDROS WaveEngine LE controller platform, giving aquarists broad linear gyre flow, app-based programming, direct pump control, and advanced flow patterns without relying on a basic standalone pump controller.

IceCap 2K Gyre with WaveEngine LE Overview

The IceCap 2K Gyre is designed to move water differently than a traditional point-source wavemaker. Instead of creating a narrow stream from one small outlet, the gyre-style rotor produces a wide sheet of horizontal flow that can travel across the aquarium, down the opposite wall, and back through the tank. This crossflow movement helps reduce stagnant areas behind rockwork, improves surface movement, keeps suspended debris available for filtration, and creates more natural water motion for corals and active fish.

Adding the WaveEngine LE controller turns the 2K Gyre into a modern app-controlled circulation system. Through the HYDROS platform, users can assign pump location, define minimum and maximum speed, create synchronized or alternating pump behaviour, access preset flow patterns, set operational modes such as Feed or Water Change, and monitor pump performance from a mobile device. This makes the package well suited to nano reefs, small to medium reef aquariums, mixed coral displays, and aquariums where compact equipment and refined control matter.

2K Gyre Flow and Controller Features

• Wide gyre-style circulation: Crossflow water movement helps reduce dead spots and create broad tank-wide flow instead of a single narrow jet.

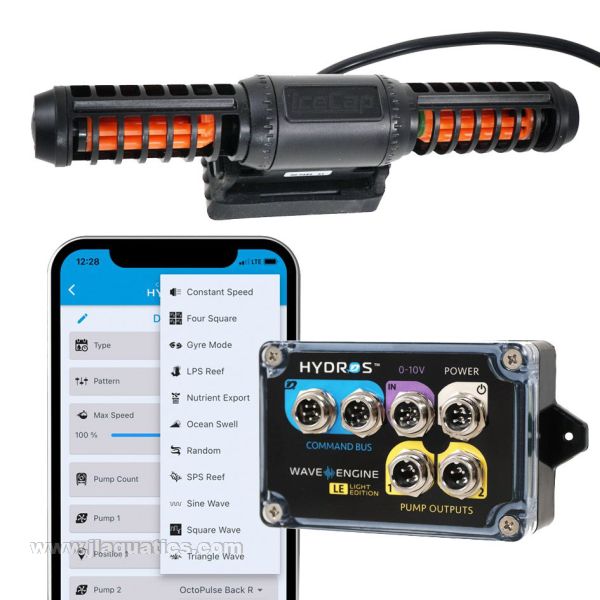

• WaveEngine LE control: The included HYDROS controller provides app-based control for flow patterns, pump speed ranges, operating modes, and scheduling.

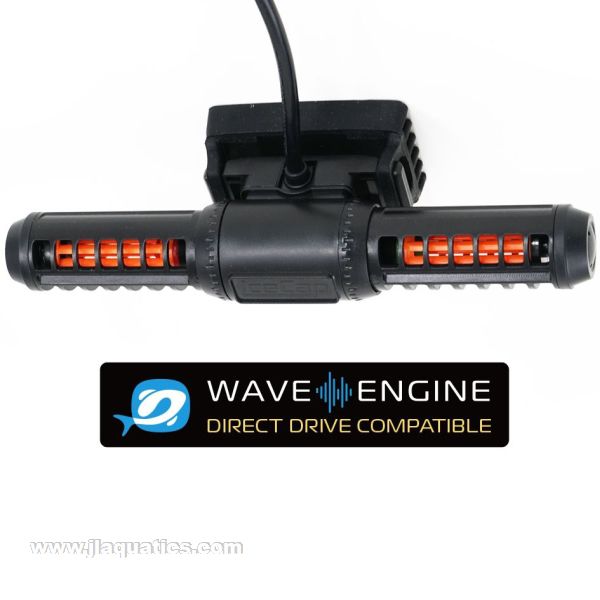

• Direct pump driver design: The WaveEngine LE can connect directly to compatible pumps to reduce controller and power supply clutter around the aquarium cabinet.
• Preset and custom flow options: The controller supports patterns such as sync, anti-sync, triangle wave, square wave, sine wave, and other preset movements.

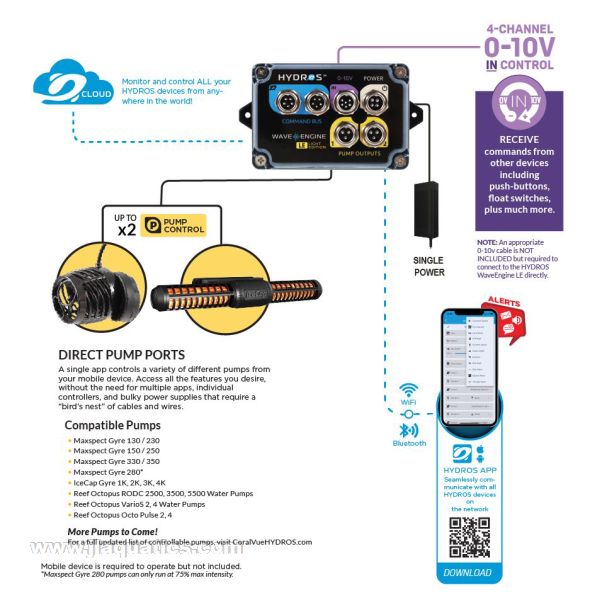

• Dual pump capability: WaveEngine LE can control and power up to two compatible direct-drive pumps from one controller and power supply setup.
• Flexible mounting position: The 2K Gyre can be mounted horizontally or vertically and can be placed close to the water surface when appropriate.
• Twin directional flow cages: Adjustable cages help shape the output direction and support different aquascape and coral placement needs.

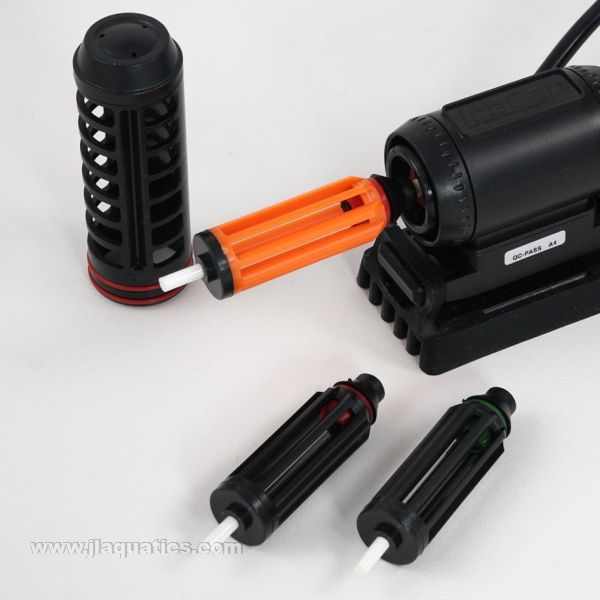

• Two propeller colour sets: Includes orange and black propeller sets so the pump can be configured for visibility or a more discreet look.
• Glass or acrylic safe: Waterproof magnetic mounting is suitable for compatible glass or acrylic aquariums up to the listed thickness.

IceCap Gyre 2K Pump with WaveEngine LE Controller Specifications

• Product type: WiFi-controllable gyre flow pump package
• Part number: IC-GYRE2K-H
• Recommended aquarium range: 20-90+ gallons
• Maximum flow: 2,000 gallons per hour
• Minimum flow: 739 gallons per hour
• Power consumption: 8-25 watts
• Pump dimensions: 8.78" L x 2.83" W x 1.5" H
• Pump weight: 457g / 16.1 oz
• Pump cable length: 6 ft
• Maximum aquarium thickness: Up to 1/2"
• Aquarium material compatibility: Glass or acrylic
• Controller platform: HYDROS WaveEngine LE
• WaveEngine LE dimensions: 5" L x 2.7" W x 1.9" H
• WaveEngine LE maximum power: 120W
• Controller connectivity: HYDROS app and cloud connectivity
• Application: Reef, saltwater, and high-flow freshwater aquarium circulation

2K Gyre Compatibility and Placement Notes

Match flow to livestock: The IceCap Gyre 2K Pump with WaveEngine LE Controller can move a large amount of water for its size, so start with lower settings around soft corals, LPS corals, long-finned fish, shrimp, fine sand, and delicate aquascapes. Increase flow gradually while watching coral extension, detritus movement, fish behaviour, and sand stability.

Use gyre flow intentionally: For surface agitation and gas exchange, place the pump higher in the aquarium and aim the crossflow across the surface. For debris suspension, angle the cages to move water behind rockwork and through lower-flow zones. Vertical mounting can be useful for specific aquascapes where horizontal placement does not produce the desired circulation path.

Official IceCap Gyre Setup Video

Setting Up the IceCap 2K Gyre with WaveEngine LE

Mount the pump on clean aquarium glass or acrylic within the rated thickness, connect the pump and controller components according to the IceCap and HYDROS setup instructions, and configure the pump in the HYDROS app. Assign pump location, set safe minimum and maximum speed limits, choose a starting flow pattern, and observe the aquarium for several hours before increasing intensity. Clean the cages, rotors, and impeller parts regularly to maintain output and reduce operating noise.

What's Included

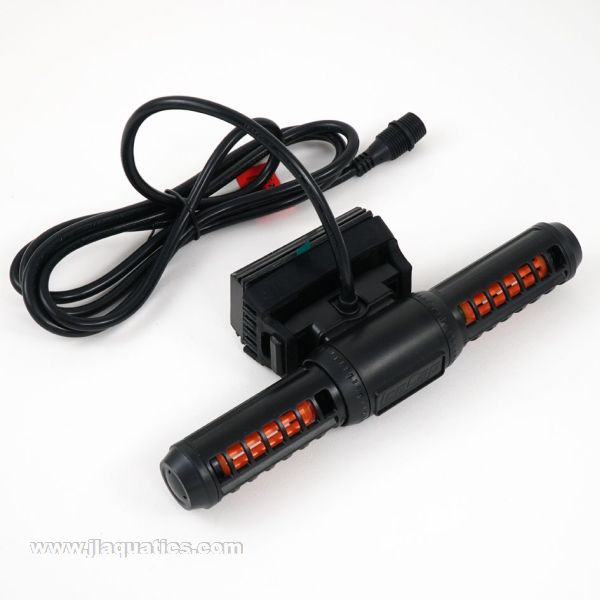

• 1 x IceCap Gyre 2K Pump
• 1 x Power supply

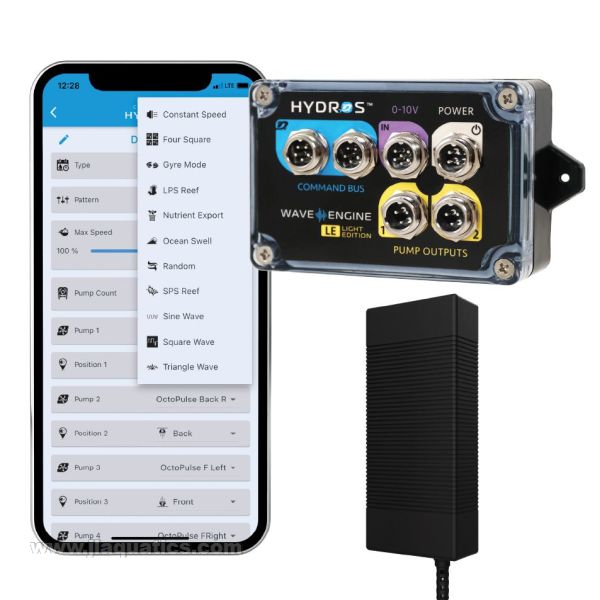

• 1 x HYDROS WaveEngine LE WiFi Controller
• 2 sets of propellers: orange and black
