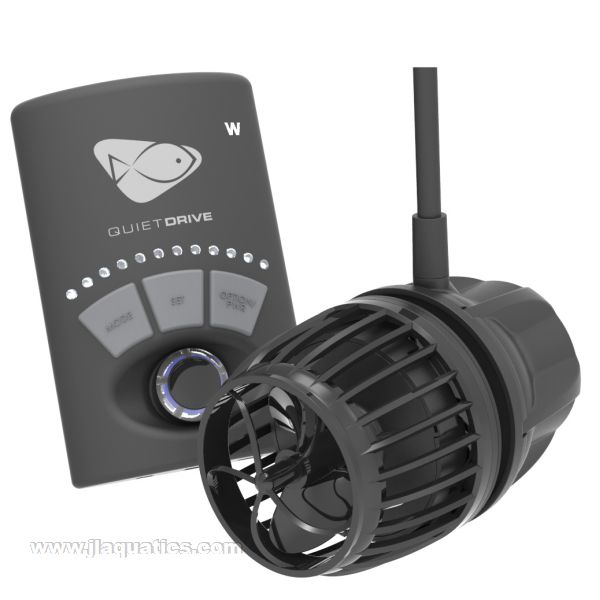

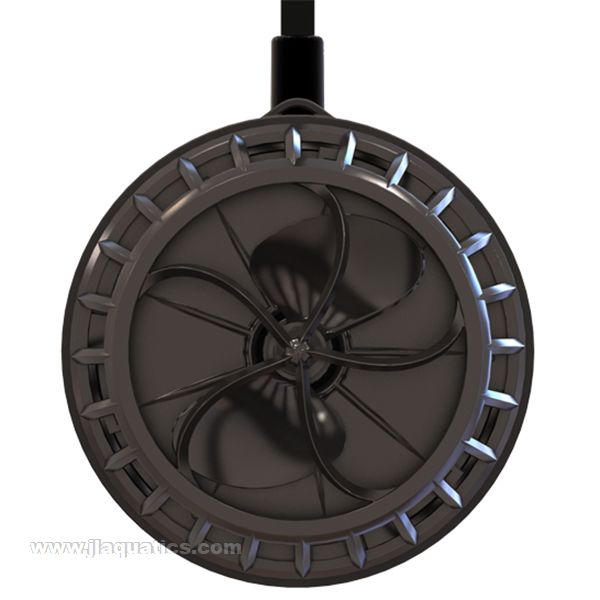

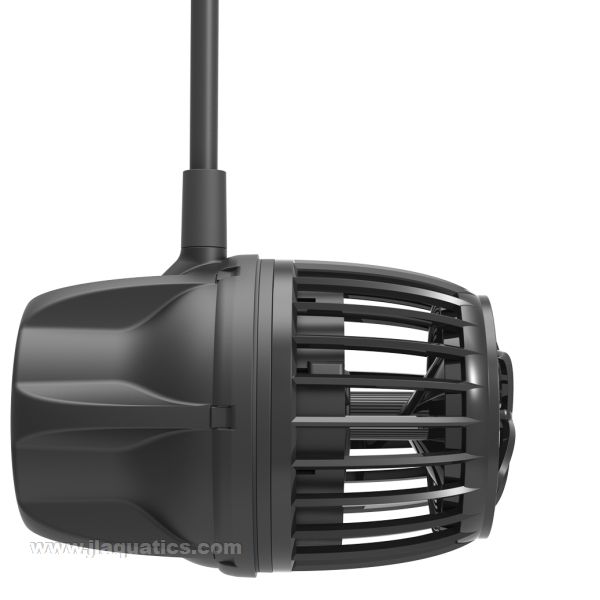

Ecotech Marine VorTech MP40wQD Water Pump

Overview

The MP40wQD is the benchmark high-performance powerhead for medium to large reef tanks combining huge broad flow with a clean cord-free display. QuietDrive delivers whisper operation and excellent efficiency while Mobius app control unlocks granular schedules and classic VorTech modes including Reef Crest Lagoon Gyre Short Pulse Tidal Swell and Nutrient Transport. Wireless “w” capability lets up to eight pumps communicate for synchronized anti-synchronized or coordinated programs and the system is Battery Backup compatible to safeguard livestock during outages.

Features

• Mobius Ready Bluetooth control with advanced mode scheduling and profiles
• Broad tank-wide flow pattern supports SPS-dominant and mixed reefs without hot spots
• Wireless multi-pump communication for complex gyres and tidal cycles
• QuietDrive technology reduces motor noise significantly and improves efficiency
• No wires in the water no risk of stray voltage and no heat added to the tank
• EcoTech Battery Backup compatible for emergency run-time

Specifications

• Max flow: 5,000 gph (19,000 lph)
• Power consumption: 9–37 W
• Recommended tank range: 50–500+ gal (190–1,800 L)
• Max glass thickness: 0.75" (19 mm)
• Control: QuietDrive driver Mobius app Bluetooth wireless “w” RF for multi-pump control
• UPC/EAN: 653341197023

Compatibility & Upgrade Paths

• Combine with additional VorTechs for opposing gyres and crossflow
• Compatible with EcoTech Battery Backup for outage resilience
• Optional Apex integration via Neptune MXM to manage lights and pumps in one interface

Maintenance & Consumables

• Routine wet-side cleaning keeps output at spec; inspect bearings shaft and prop
• Replace foam guard as needed; consider add-on guards for anemone safety
• Confirm spacer selection and re-check alignment after any maintenance

Electrical Heat Noise

• External motor minimizes heat transfer to water
• QuietDrive controller yields notably quiet operation
• Use a GFCI outlet and maintain drip loops on all cords

Warranty & Support

Supported by EcoTech Marine with online manuals quick starts and firmware updates via Mobius.

Shipping & Handling Notes

Powerful magnets inside; keep boxed away from credit cards and electronics. Verify glass thickness before install and use the correct spacer.

Directions

• Fit the proper spacer for your glass then submerge the wet side to purge air and align through the glass
• Power on the driver pair with Mobius and select an operating mode set maximum speed and schedules
• For multi-pump reefs configure sync anti-sync or coordinated programs and test Feed and Night modes
• Place the outlet path to avoid sand storms while ensuring strong cross-tank movement

What’s included

• VorTech MP40 Mobius Ready QuietDrive pump (wet side and dry side)
• QuietDrive driver/controller with mount
• Spacer and mounting hardware kit
• Foam guard
• Power supply
