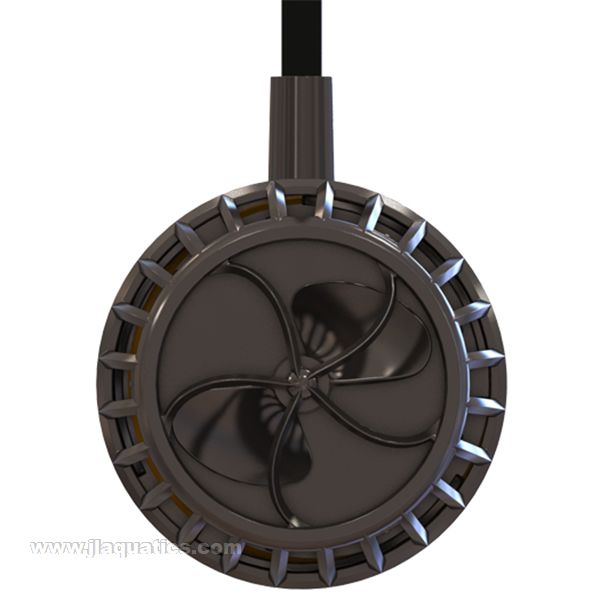

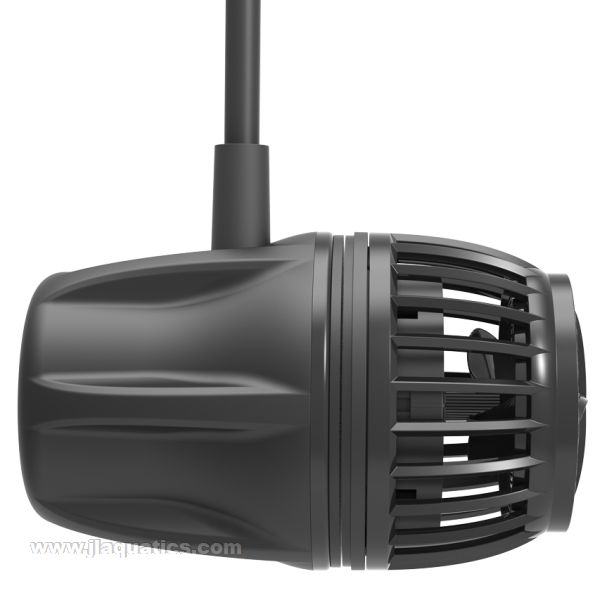

Ecotech Marine VorTech MP10wQD Water Pump

Overview

The VorTech MP10wQD delivers broad reef-safe flow with no cords in the tank thanks to EcoTech’s patented magnetically coupled wet side and external dry side. The QuietDrive controller cuts motor noise dramatically while boosting efficiency and output and the pump is Mobius Ready for direct Bluetooth control of advanced modes like Reef Crest Lagoon Gyre Short Pulse Tidal Swell and Nutrient Transport. Wireless “w” models can multi-pump sync anti-sync or coordinate for true tank-wide water movement and are compatible with the EcoTech Battery Backup for power-outage protection.

Features

• Mobius Ready app control with schedules profiles and fine speed control
• Wide gentle flow pattern eliminates hot spots and supports natural gyres
• Wireless multi-pump communication on “w” models for sync anti-sync and coordinated modes
• QuietDrive technology for up to ~90% lower motor noise versus earlier drivers with improved efficiency
• No electrical components in the water no added heat clean in-tank aesthetic
• Battery Backup compatible for hours of emergency flow during outages

Specifications

• Max flow: 2,500 gph (9,500 lph)
• Power consumption: 8–19 W
• Recommended tank range: 2.5–50+ gal (9.5–190 L)
• Max glass thickness: 0.375" (9.5 mm)
• Control: QuietDrive driver Mobius app Bluetooth wireless “w” RF for multi-pump control
• UPC/EAN: 653341197221

Compatibility & Upgrade Paths

• Pairs with additional VorTech pumps for gyre patterns and crossflow
• Works with EcoTech Battery Backup accessory for emergency operation
• Optional Apex control via Neptune MXM module for unified lighting and pump control

Maintenance & Consumables

• Periodic wet-side cleaning restores peak output; inspect bearings and shaft
• Foam guard available to protect delicate livestock and reduce debris intake
• Keep dry side dust-free and ensure spacer selection matches glass thickness

Electrical Heat Noise

• External motor keeps heat out of the water column
• QuietDrive reduces audible motor noise in typical installs
• Use a GFCI outlet and drip loops on all aquarium equipment

Warranty & Support

Backed by EcoTech Marine with downloadable quick start guides full manuals and responsive support. Firmware updates delivered via Mobius.

Shipping & Handling Notes

Strong magnet assembly; keep packaged until install and avoid contact with sensitive electronics and metal surfaces. Verify glass thickness and select the correct spacer before mounting.

Directions

• Verify your glass thickness and fit the correct spacer then place the wet side underwater to purge air
• Align wet and dry sides through the glass and fine-tune position to eliminate vibration
• Power the QuietDrive driver pair to the Mobius app and choose an operating mode; set schedules and maximum speed
• For multi-pump setups use wireless sync anti-sync or coordinated modes and test Feed and Night modes

What’s included

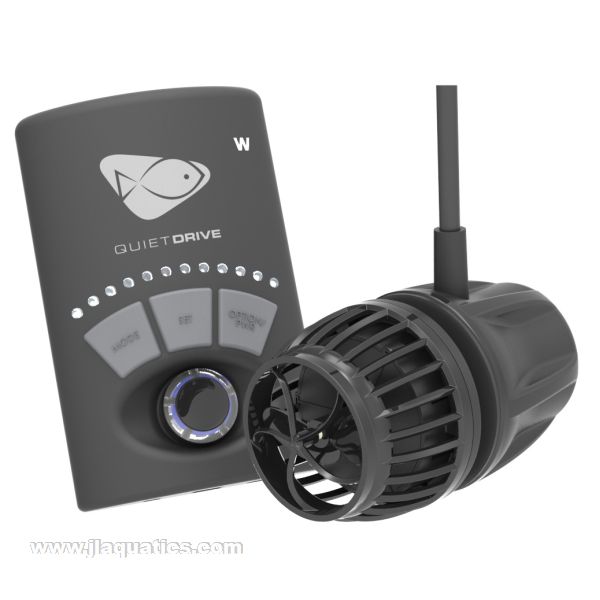

• VorTech MP10 Mobius Ready QuietDrive pump (wet side and dry side)
• QuietDrive driver/controller with mount
• Spacer and mounting hardware kit
• Foam guard
• Power supply
