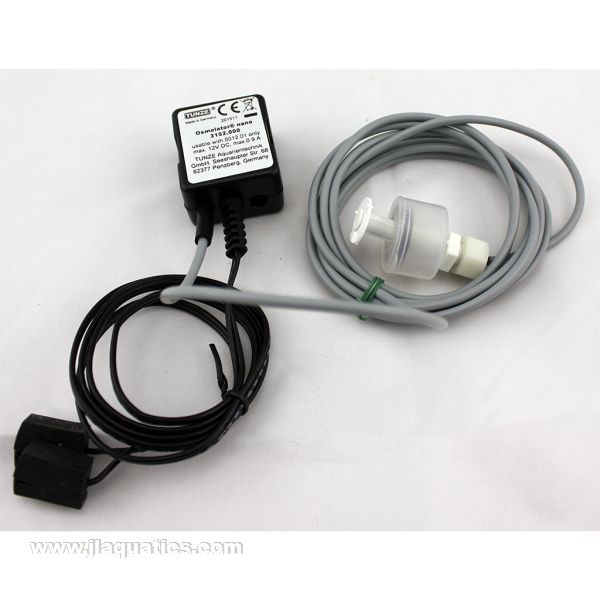

Tunze Osmolator Nano Controller - 4017
Overview
The 4017 Controller is a direct replacement brain for the Osmolator Nano. It continuously samples the capacitive level sensor, runs the 12 V pump in safe timed bursts, and includes an audible alarm for overfill or dry-run events.
Features
- Microcontroller logic with factory-preset safety timers
- LEDs indicate power, pump active, and alarm status
- Plugs directly to Nano sensor and DC pump harness
- Low-voltage 12 V design for cabinet safety
- Self-test routine on power-up
Specifications
- Operating voltage: 12 V DC
- Relay rating: 1 A
- Dimensions: 80 × 55 × 25 mm
What's Included
- Controller 4017 module
- Mounting Velcro
