Seatorch X-Power Smart DC Pump - 8000

Seatorch X-Power Smart DC Pump - 8000 is a high-output controllable brushless DC aquarium pump delivering up to 8000 L/h with a 5.5 m maximum head height for demanding freshwater and marine return or closed-loop systems, with WiFi app control, a full-colour LCD controller and 0-10V aquarium-controller compatibility.

8000 L/h Smart Pumping for High-Flow Systems

The X-Power 8000 combines the highest output of these X-Power models with electronic speed control, allowing its 8000 L/h maximum capacity to be reduced when the aquarium does not require full output. Its 5.5 m maximum head also makes the model relevant where vertical rise and plumbing resistance are important factors in return-pump selection.

• High Maximum Flow: Up to 8000 L/h for larger aquarium return and circulation applications.
• 5.5 m Head Capability: Provides additional pressure capacity for systems with greater lift or plumbing resistance.
• Variable Speed: Electronic adjustment allows flow to be matched to system requirements rather than running continuously at maximum output.
• 12 Flow Patterns: Pre-programmed modes provide additional circulation options for closed-loop use.
• Sine-Wave Technology: Smooth electronic drive reduces vibration and supports the X-Power series' low-noise operation.

WiFi Monitoring and External Aquarium Automation

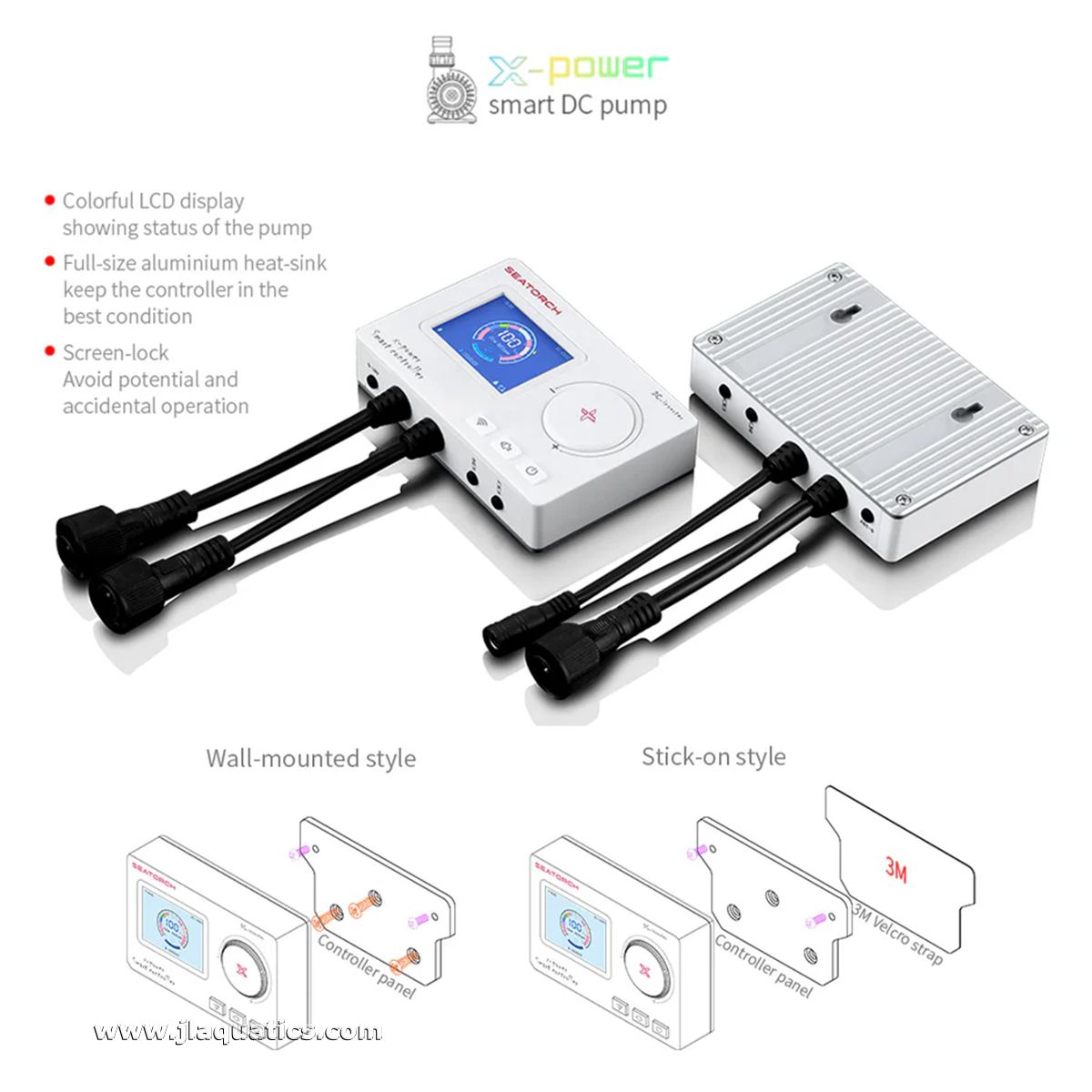

The aluminium heat-sink controller features a 2.4-inch full-colour LCD for direct monitoring while the Seatorch Link App provides wireless access to operating controls and protection functions. A 0-10V input also allows compatible aquarium-control platforms such as Neptune Apex to incorporate the pump into broader system automation.

• LCD Operating Data: Displays flow rate, speed, power consumption, operating status and system alerts.

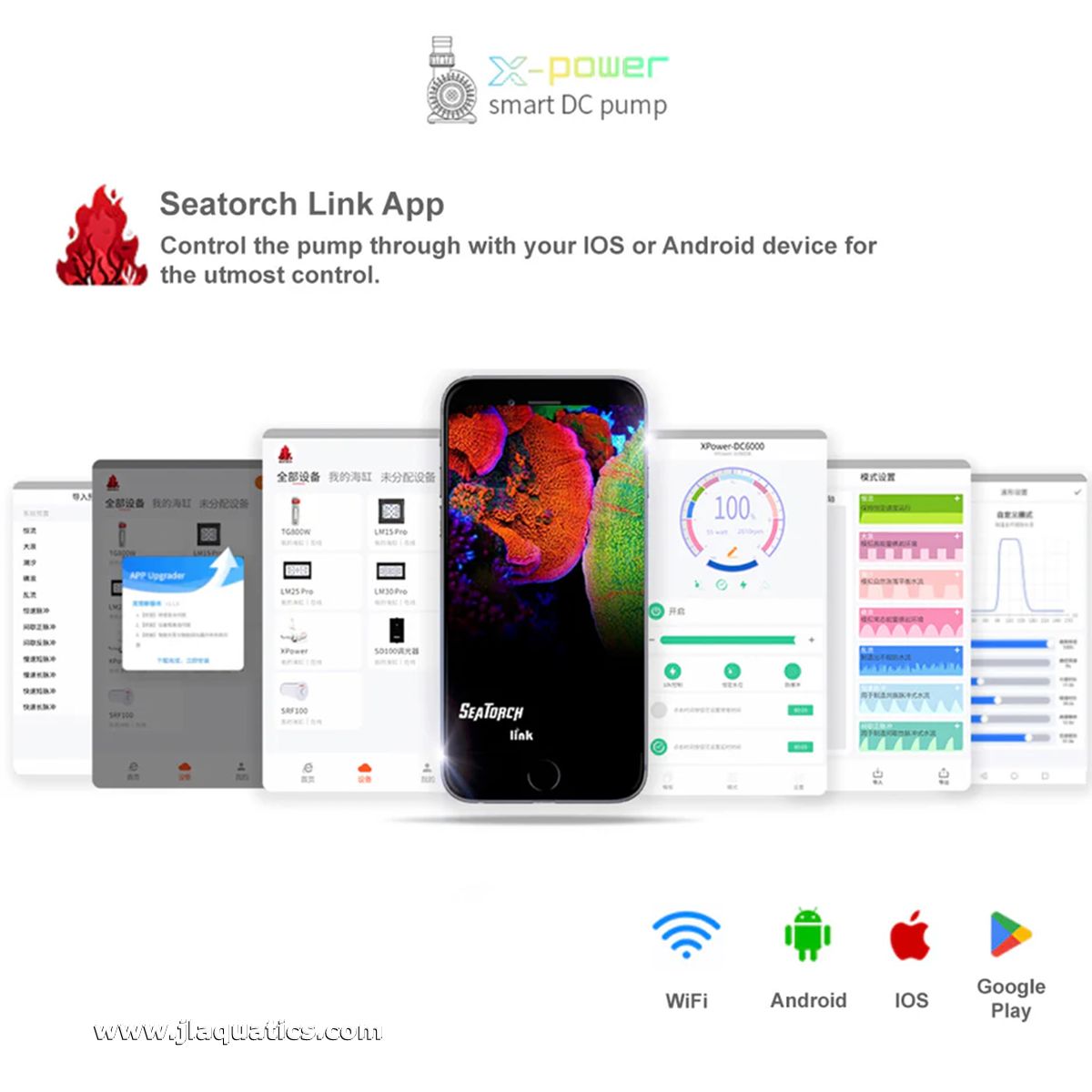

• WiFi App Control: Provides remote adjustment and access to smart functions through the Seatorch Link App.
• Dry-Run Protection: Responds when the pump operates without adequate water.
• Low-Water Shutdown: Protects against abnormal low-water conditions.
• Motor Blockage Protection: Stall shutdown responds to impeller obstruction.
• Anti-Calcification Function: Provides an operating mode intended to address mineral buildup over extended use.

8000 Model Specifications and Connections

• Maximum Flow: 8000 L/h.
• Maximum Head Height: 5.5 m.
• Power Consumption: 70W.
• Dimensions: 194 x 102 x 196 mm.
• Inlet / Outlet OD: 25 mm / 21.5 mm-26.8 mm-35 mm.

Marine Construction and MeanWell Power Supply

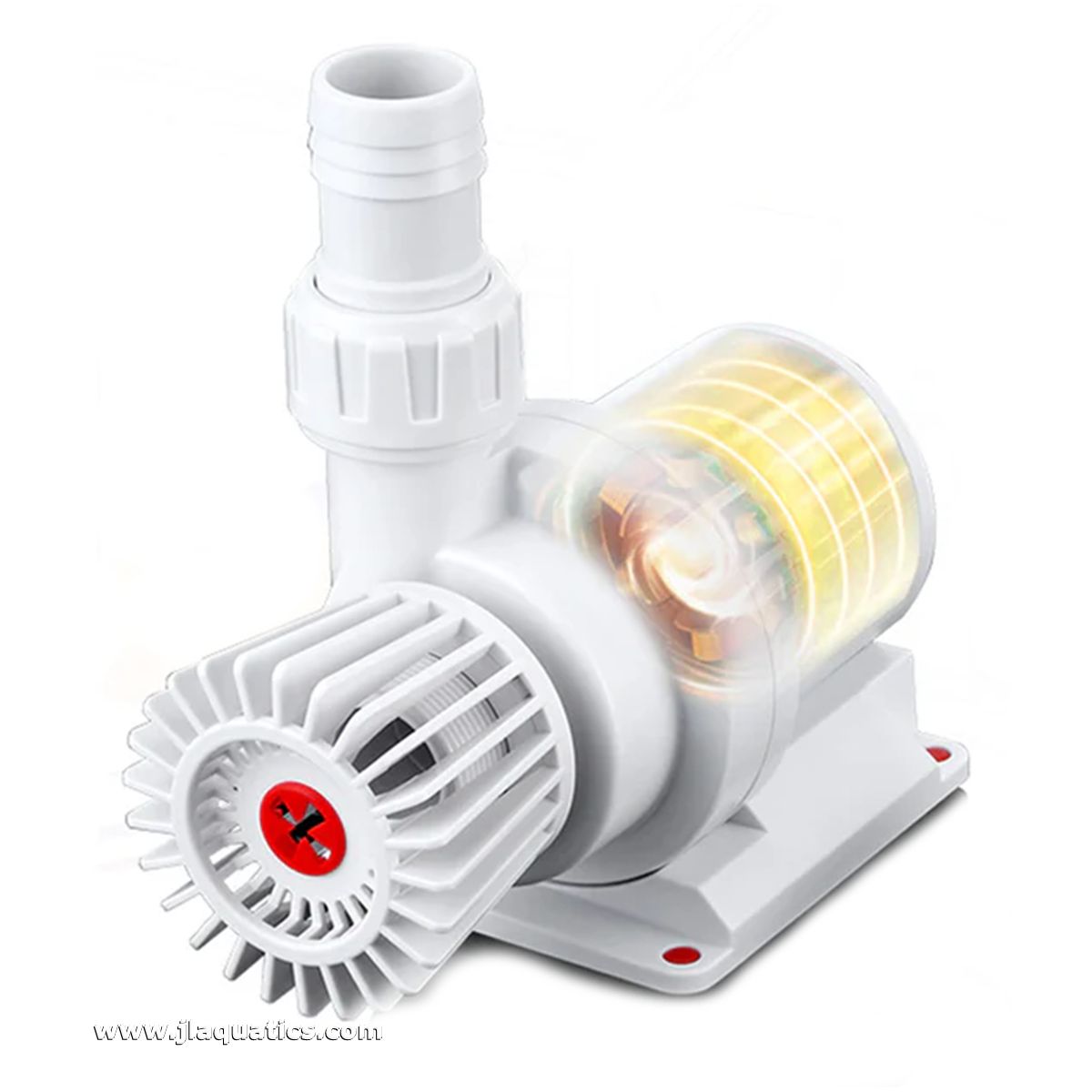

The X-Power 8000 uses an enclosed corrosion-resistant NdFeB neodymium magnetic impeller for saltwater compatibility. Unlike the lower-output DC1000 through DC6000 models, Seatorch specifies a MeanWell power supply for the DC8000. Quick couplers and unions are included to simplify disconnection when the pump requires inspection or cleaning.

Official X-Power Smart DC Pump Video

Directions

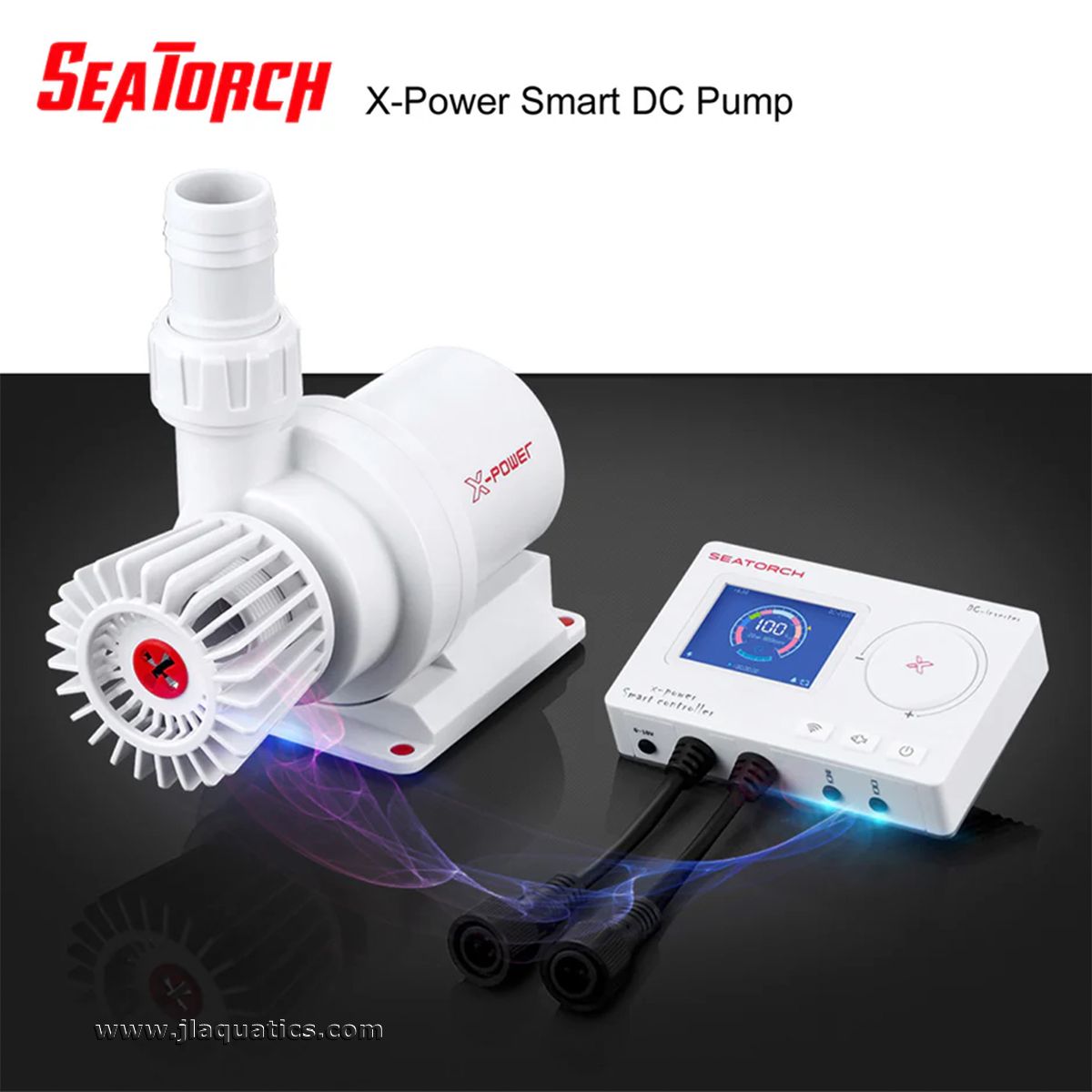

Install the pump as a return or closed-loop circulation pump using plumbing appropriate for the required flow and head pressure. Connect the supplied controller and MeanWell power supply before selecting the required speed or pairing the system with the Seatorch Link App. Where external automation is desired, connect through a compatible 0-10V aquarium controller. Periodically disconnect the pump using the serviceable plumbing connections and clean the impeller and pump chamber.

What's Included

• X-Power Smart DC Pump: 8000 L/h model.
• Controller: Aluminium heat-sink controller with 2.4-inch full-colour LCD.
• Power Supply: MeanWell power supply.
• Barb Adapters: Six adapters in 20 mm, 25 mm and 32 mm sizes.
• Quick Couplers: Two quick couplers.
• Unions: Two unions.
• Controller Mounting Panel: Mounting panel for the supplied controller.
• Instruction Manual: Manufacturer instruction manual.
