Seatorch LM-25 Pro LED Light

Overview of the Seatorch LM-25 Pro LED Light

The Seatorch LM-25 Pro LED Light is a 150 watt full spectrum reef lighting system engineered specifically for medium to large reef aquariums requiring precise spectral control and efficient light penetration. Designed around premium Cree and SemiLED diode architecture, this intelligent WiFi-enabled fixture delivers balanced coral growth output, advanced optical clarity, and programmable sunrise and sunset transitions within a sleek aluminum chassis optimized for thermal stability and long operational life.

Advanced Features of the Seatorch LM-25 Pro LED Light

• 150 Watt High Efficiency Output: Delivers concentrated PAR levels suitable for SPS, LPS and soft coral systems in medium to large reef environments while maintaining controlled energy consumption and stable thermal performance.
• Seven Independently Controlled Spectrum Channels: Allows granular adjustment of Cool White, Royal Blue, Blue, Red, Green, Purple and UV wavelengths so users can fine tune coloration, fluorescence response and growth intensity without spectrum overlap limitations.
• Premium Diode Platform: Utilizes Cree LEDs for primary spectrum channels and SemiLED components for UV and violet bands to ensure consistent output stability and long diode lifespan.
• Full Spectrum Coral Optimization: Covers 405nm through 6500K output including targeted 450-465nm and 465-485nm blue bands proven effective for zooxanthellae photosynthesis and enhanced fluorescence response.
• Second Generation 120 Degree Hemispherical TIR Lens: Engineered for high transmission efficiency exceeding 90 percent, improving light penetration while maintaining uniform spread and minimizing hot spots in reef systems.
• Coverage Footprint: Designed for approximately 75 x 75 cm reef coverage with optimal performance at depths up to 60 cm.
• Intelligent Temperature Sensing Cooling System: Built with a wavy aluminum heat sink and oil-containing turbo cooling fan regulated by temperature sensing circuitry to maintain silent operation and optimal diode longevity.
• Meanwell Power Supply Integration: High reliability external power supply ensures consistent voltage stability and electrical safety for continuous reef operation.
• Direct EcoTech Marine Radion RMS Compatibility: Engineered with mounting geometry compatible with the EcoTech Marine Radion RMS mounting system, allowing direct integration without modification or adapter hardware (mounting hardware not included).

Smart Control and App Features of the Seatorch LM-25 Pro LED Light

• WiFi IoT Connectivity: Direct wireless communication with iOS and Android devices without requiring external controllers.
• Local Area Network Monolight Mode: Allows a single fixture to connect directly to a mobile device within the local network for direct programming and adjustment.
• Router Remote Linkage Mode: Enables remote access and programming through a wireless router, allowing control even when not physically near the aquarium.
• Multi-Light Wireless Grouping: Supports master and sub-light configuration where a primary lamp acts as a transceiver transmitting programmed settings to secondary fixtures for synchronized operation.
• Independent Channel Intensity Sliders: Real-time percentage adjustment of each of the seven spectrum channels for precise spectral shaping.
• Custom Photoperiod Scheduling: Users can create detailed daily light schedules with multiple time points and intensity adjustments throughout the day.
• Sunrise and Sunset Simulation: Gradual ramping transitions reduce coral stress and replicate natural lighting progression.
• Spectrum Curve Visualization: In-app graphical spectrum interface allows users to visualize and fine tune channel intensity relationships.
• Preset Save and Export Function: Custom lighting profiles can be saved, exported and shared for consistent replication across multiple reef systems.

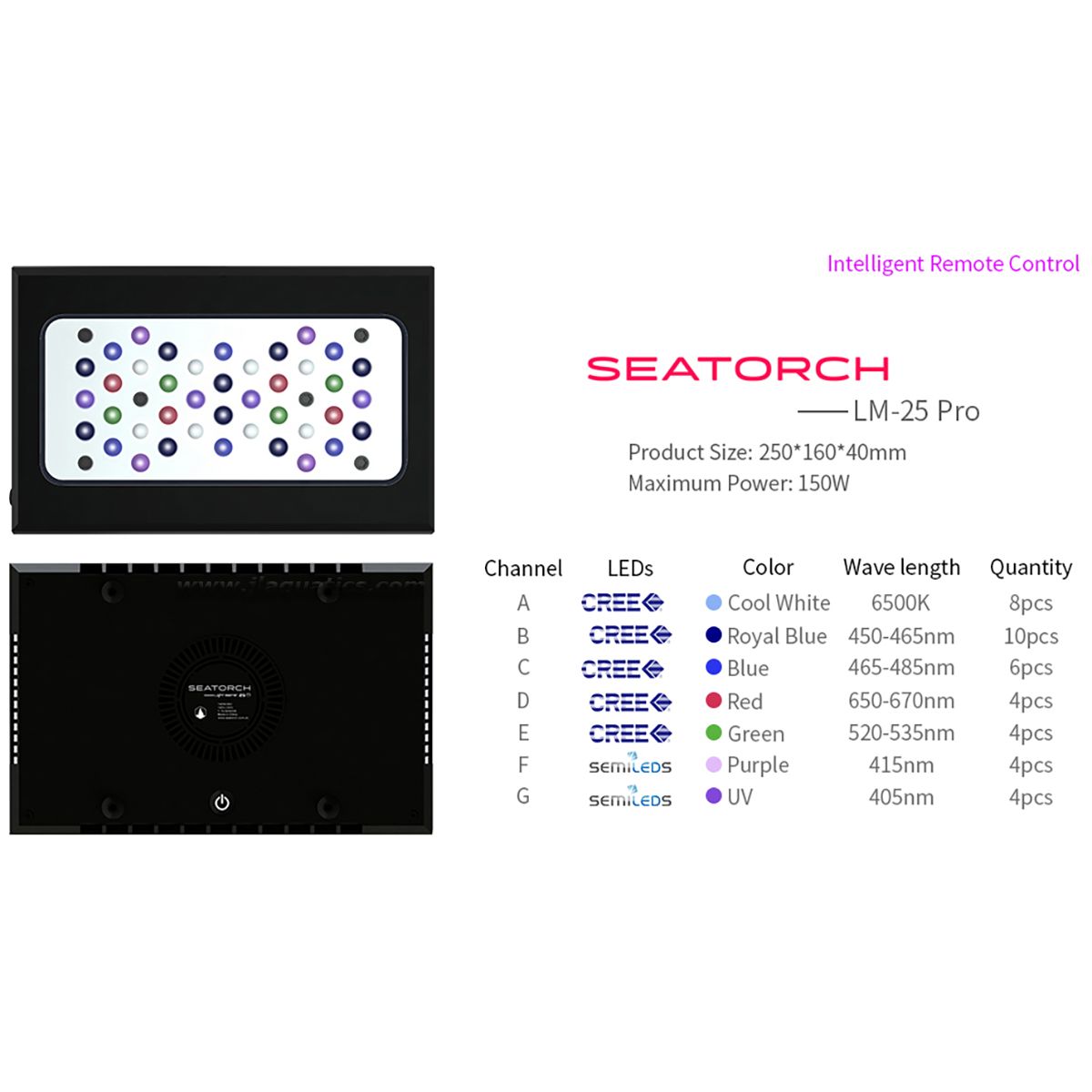

Seatorch LM-25 Pro LED Light Specifications

• Maximum Power: 150W

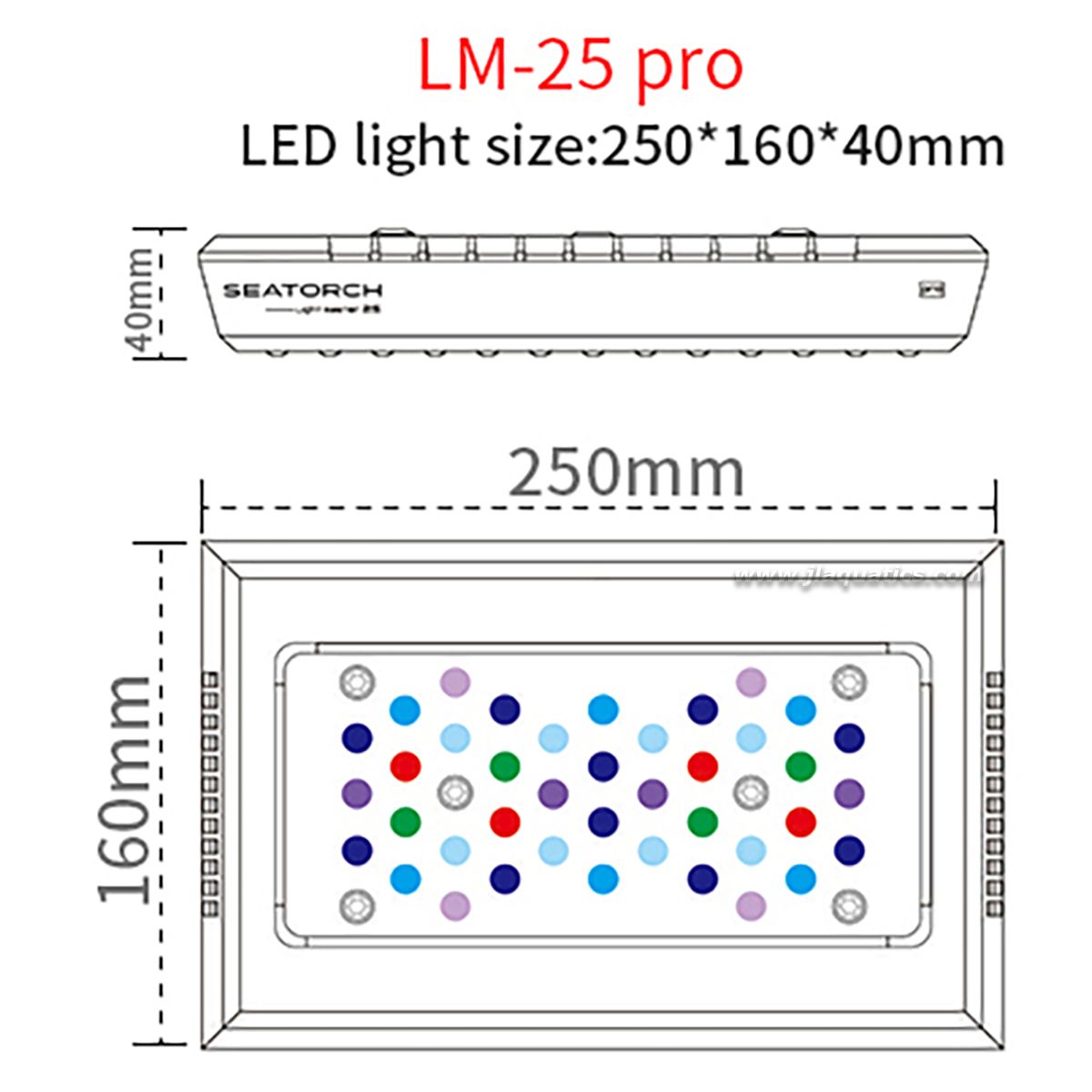

• Fixture Dimensions: 250 x 160 x 40 mm
• Coverage Area: 75 x 75 cm
• Cool White 6500K x8
• Royal Blue 450-465nm x10
• Blue 465-485nm x6
• Red 650-670nm x4
• Green 520-535nm x4
• Purple 415nm x4
• UV 405nm x4
• Lens Type: 120 Degree Hemispherical TIR
• Wireless Modes: LAN Direct and Router Remote

Directions

Securely mount the Seatorch LM-25 Pro LED Light over the aquarium using a compatible bracket or suspension system. Connect the fixture to the supplied Meanwell power supply. Download the Seatorch mobile application on a compatible iOS or Android device. Connect via LAN or router mode, configure individual channel intensities, establish a daily photoperiod and enable sunrise and sunset transitions. Ensure adequate airflow around the fixture for optimal cooling performance.

What’s Included

• Seatorch LM-25 Pro LED Fixture
• Meanwell Power Supply
• Cable Hanging Kit
