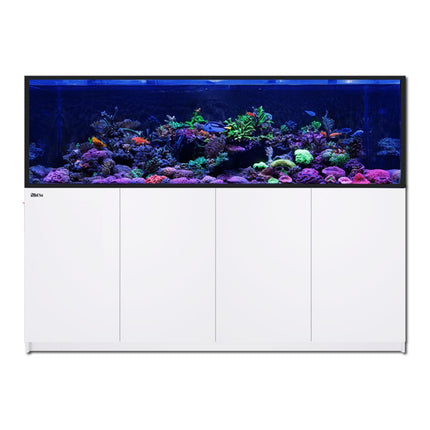

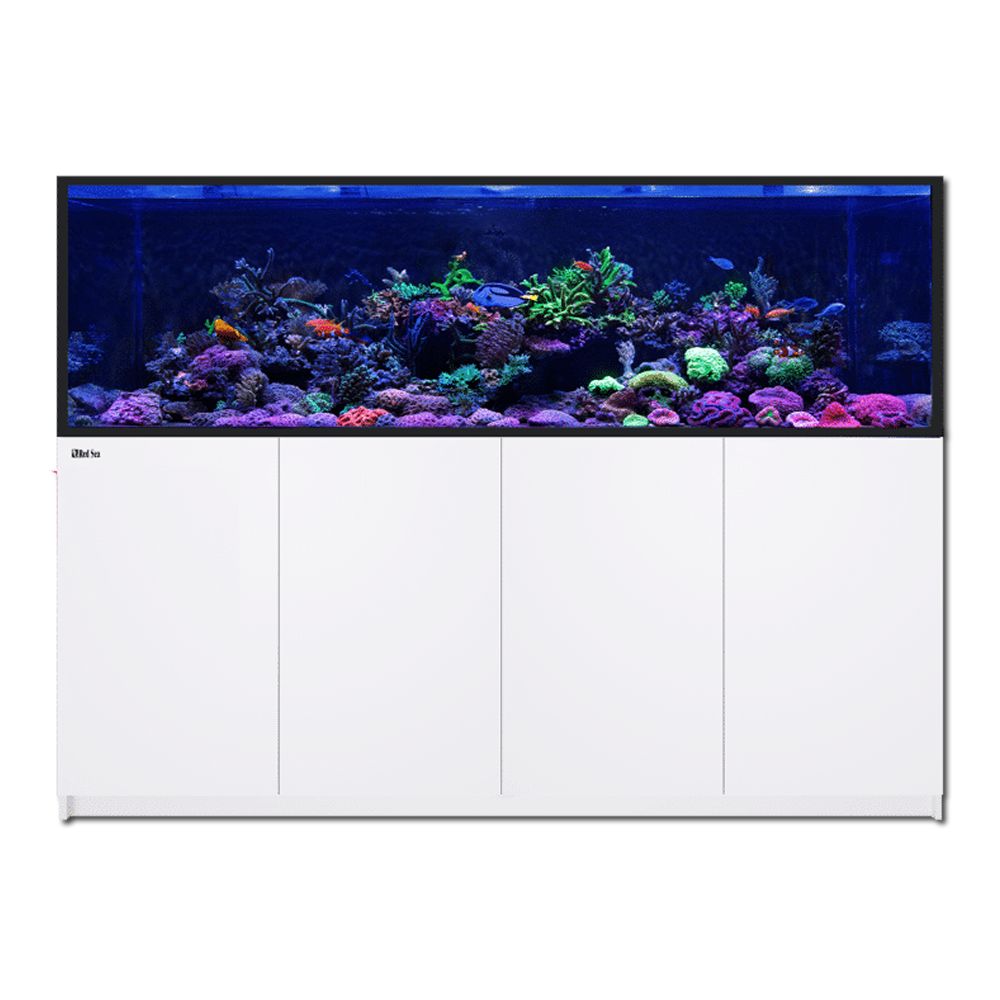

Red Sea Reefer S-850 G3+ - White Cabinet

Red Sea Reefer S-850 G3+ - White Cabinet

The Red Sea Reefer S-850 G3+ - White Cabinet pairs a 680 litre (179.6 US gallon) ultra-clear glass aquarium with a 170 litre (44.9 gallon) combined split-sump filtration system and a premium white cabinet built around a marine-spec anodized aluminum superstructure. With a published total system volume of 850 litres (224.5 US gallons), the S-850 provides a six-foot display with 68 cm (26.8 inches) of front-to-back depth for expansive aquascaping, coral gardens, and open swimming areas.

The S-850 G3+ features 19 mm ultra-clear front glass, eurobracing and additional bottom reinforcement, dual curved 32 mm returns, and precision ReefGate flow control. Its multipurpose glass extension sump can supplement the main filtration system or operate independently for freshwater storage, saltwater changes, or a separately equipped coral frag setup. The white aluminum cabinet includes replaceable exterior panels and a slide-out control panel, while ReefControl Pro and the ReefControl ATO Module provide connected automatic top-off and temperature monitoring. Remaining reef equipment is selected separately.

Red Sea Reefer S-850 G3+ White Reef Aquarium Features

• Six-foot ultra-clear display: The 180 cm (70.9 inch) length provides room for distinct rock formations, coral colonies at different growth stages, and open swimming areas between aquascaping structures.
• Deep 68 cm (26.8 inch) footprint: The wide front-to-back dimension allows branching rockwork, reef ledges, caves, and open sand channels without pressing the entire aquascape against the rear glass.
• 680 litre (179.6 gallon) display volume: The substantial main aquarium provides space for a carefully planned large marine fish or coral display, with filtration housed in the cabinet below.
• 19 mm (0.75 inch) low-iron front glass: The ultra-clear viewing panel provides improved visual clarity across the larger aquarium.
• Reinforced glass construction: Upper eurobracing, additional bottom bracing, and high-quality euro-silicone provide structural support for the display.
• Premium white cabinet finish: Replaceable white exterior panels surround a rigid anodized aluminum superstructure, providing a lighter furniture-style appearance without changing the aquarium's filtration specifications.
• Customizable equipment platform: The standard system includes the tank, cabinet, sump, plumbing, and smart top-off hardware while leaving lighting, return pumps, protein skimmer, and in-tank circulation to be selected by the aquarist.

White Aluminum Cabinet and Integrated Electronics Organization

The REEFER-S cabinet is designed around a structural aluminum frame rather than a conventional furniture cabinet alone. On the S-850, the cabinet also houses the split-sump system and provides a slide-out mounting panel for compatible electronics and dosing equipment.

• Marine-spec anodized aluminum superstructure: The rigid support frame is designed for the large eurobraced aquarium and the filtration equipment beneath it.
• Replaceable white cabinet panels: The modular exterior allows decorative panels to be replaced independently of the aluminum frame.
• Concealed leveling feet: Adjustable supports allow the cabinet to be leveled before filling while preserving the finished appearance.
• Slide-out control panel: Compatible controllers, power equipment, dosing pumps, and accessories can be mounted on an accessible panel rather than placed loosely around the sump.
• Dedicated auxiliary equipment area: Separate cabinet space can accommodate compatible chiller equipment or accessories, subject to fitment and ventilation requirements.
• Flexible service arrangement: The sump, extension reservoir, top-off hardware, and electronics should be positioned so that filter maintenance, pump removal, and routine servicing remain practical.

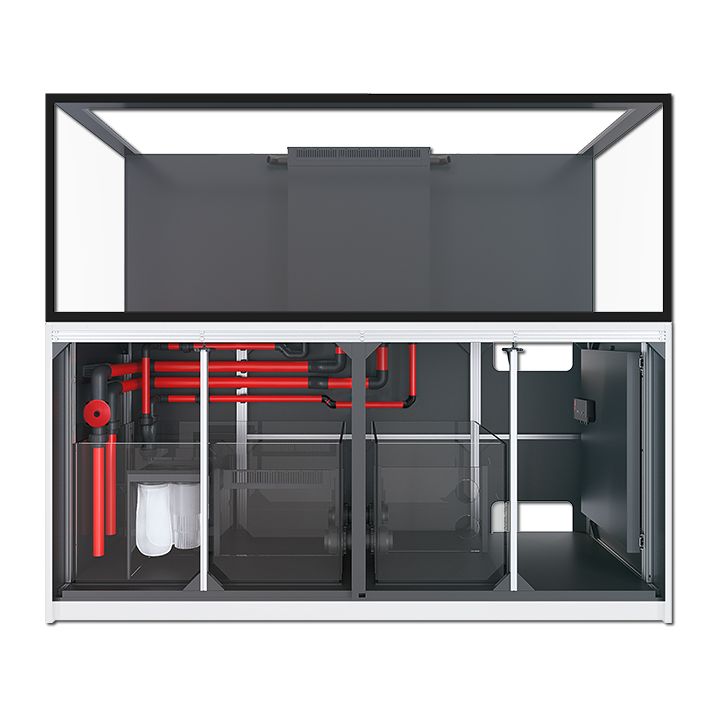

Multipurpose Split-Sump System for Flexible Filtration

The S-850 G3+ includes a professional main REEF-SPEC sump and a separate glass extension sump. Unlike the smaller S-550 and S-700, which use single-sump configurations, the S-850 allows the extension to be operated with the main filtration system or independently for a different application.

• 170 litre (44.9 gallon) published combined sump capacity: The main and extension sumps provide additional filtration volume when connected to the circulating aquarium system.
• Extra filtration or refugium space: A connected extension can be used for additional biological filtration, a larger refugium, or other compatible filtration equipment.
• Coral propagation option: The extension can be configured as a dedicated frag tank when suitable circulation, lighting, temperature control, and other required equipment are provided.
• Independent RO/DI storage: The glass extension can instead be disconnected from the main sump and used as a freshwater reservoir to supply top-off water.
• Saltwater storage: A separate extension configuration may also be used for prepared saltwater in a planned water-change arrangement.
• Operating-volume distinction: If the extension is disconnected for independent use, the published 850 litre system rating should not be interpreted as the volume of water circulating through the main aquarium.
• Professional main sump: The primary sump retains mechanical filtration, adjustable protein skimming, return circulation, and optional refugium-divider functionality.

ReefMat-Ready Mechanical Filtration and Skimmer Adjustment

The main sump provides removable mechanical filtration and an adjustable protein skimmer chamber. The supplied filter bags and media cups offer conventional particle collection, while the removable mechanical compartment accommodates compatible roller filtration upgrades.

• Two 225-micron mesh filter bags: Fine mechanical filters collect suspended debris entering the sump and can be removed for cleaning.
• Two filter media cups: The mechanical section includes media cups for alternative filtration arrangements.
• Removable ReefMat-ready compartment: The filtration assembly can be taken out to accommodate compatible automatic fleece filtration without changing the standard downflow plumbing.
• Optional ReefMat 1200: Red Sea specifies the ReefMat 1200 in the corresponding REEFER-S MAX 850 G3+ package, providing a manufacturer-listed automatic roller filter option.
• Adjustable 21-27 cm skimmer depth: The chamber accommodates compatible skimmers designed for an operating water level of approximately 8.3-10.6 inches.
• Main-sump refugium option: A compatible divider can establish a separate refugium within the primary sump, providing an alternative to using the extension for that purpose.
• Maintenance planning: The chosen mechanical filtration arrangement should leave suitable clearance for removing filter bags, servicing the ReefMat if installed, and accessing the skimmer.

Hydrodynamic 32 mm Dual Returns and Quiet Overflow

The S-850 G3+ combines an enlarged central surface-skimming overflow with hydrodynamically optimized downflow and return plumbing. Red Sea's precision ReefGate valve regulates the drain, while two curved 32 mm return outlets provide the larger pipework used on the S-850 and S-1000 models.

• Dual 32 mm (approximately 1.26 inch) return connections: The aquarium can be configured with a compatible single-pump feed or two return pumps, depending on the installation.
• Precision ReefGate valve: Small adjustments help balance the overflow operating level against the selected return-pump arrangement.
• Enlarged rectangular downflow inlet: The redesigned drain entrance reduces turbulence as water enters the filtration plumbing.
• Removable surface-skimming combs: Sections surrounding the central overflow can be removed for cleaning to maintain effective surface-water collection.
• Improved flow geometry: The factory-designed plumbing reduces unnecessary flow restrictions between the aquarium and sump.
• Correct fitting compatibility: The G3+ S-850 uses 32 mm returns. Customers modifying the plumbing should match the manufacturer's specified fittings rather than assuming conventional nominal inch-size fittings are interchangeable.

Included ReefControl Pro and ReefControl ATO Module

The REEFER S-850 G3+ supplies ReefControl Pro and the ReefControl ATO Module as standard. This provides connected automatic freshwater replacement and temperature monitoring while allowing additional compatible aquarium-monitoring hardware to be installed separately.

• ReefControl Pro Controller: Supports up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Automatic top-off: The ReefControl ATO Module uses a digital level sensor and dedicated DC pump to replenish evaporated freshwater and help maintain a consistent return chamber level.
• Integrated temperature sensor: The ATO level sensor also monitors water temperature, with readings, notifications, and available history through the connected controller.
• Complete ATO module: The supplied module includes its sensor, mounting hardware, top-off pump, silicone tubing, tube holder, and siphon breaker.
• ReefBeat connectivity: Compatible connected devices can be monitored and configured through Red Sea's ReefBeat ecosystem.
• Optional ReefSense monitoring: Additional pH, ORP, salinity, and other compatible probes can be added according to the aquarium's requirements.
• Additional power control: ReefControl Power is an optional way to integrate supported AC equipment into the connected system.
• Standard package contents: ReefControl Pro and the ATO Module are included, while separate ReefSense water-parameter probes and the complete MAX equipment package are not.

Equipment Selection for the S-850 White Reef System

The S-850 provides substantial space for a custom marine fish display, LPS or soft coral aquarium, or appropriately equipped mixed reef. Its six-foot length requires deliberate lighting and circulation planning, while the extension sump gives customers additional options for their filtration and water-storage arrangements.

• Return pumps: Red Sea specifies two ReefRun G2 12000 pumps in the equivalent MAX 850 G3+ configuration. The pumps are sold separately with this standard reef-ready system.
• Lighting: Three ReefLED G2 170 fixtures are used in the corresponding MAX package. Alternative lighting must provide appropriate coverage and intensity over the 180 x 68 cm (70.9 x 26.8 inch) display.
• Protein skimmer: The MAX configuration uses an RSK DC 900. Other skimmers should be selected for the aquarium's filtration needs and the 21-27 cm (8.3-10.6 inch) skimmer chamber depth.
• Supplementary water movement: Red Sea uses two ReefWave 45 pumps with the MAX configuration. Dedicated wavemakers help circulate water around rockwork and coral colonies independently of sump turnover.
• Freshwater supply: The included ATO system requires a reservoir. The extension sump can perform this role when deliberately configured as an independent freshwater container.
• Split-sump planning: Choose the extension's role before purchasing additional filtration equipment, particularly when deciding between extra sump volume and independent water storage.
• Black versus white: Both S-850 G3+ cabinet finishes share the same aquarium, filtration, controller, and plumbing specifications. The exterior cabinet colour is the primary difference.
• S-850 versus S-1000: The S-1000 retains the same 68 cm depth and 65 cm display height, but adds 30 cm (11.8 inches) of length and greater water volume.

Red Sea Reefer S-850 G3+ White Specifications

• Total published system volume: 850 L / approximately 224.5 US gal.
• Display aquarium volume: 680 L / approximately 179.6 US gal.
• Combined sump volume: 170 L / approximately 44.9 US gal.
• Display dimensions: 180 cm L x 68 cm W x 65 cm H / approximately 70.9 x 26.8 x 25.6 inches.
• Total height including cabinet: 153 cm / approximately 60.2 inches.
• Ultra-clear front glass thickness: 19 mm / approximately 0.75 inches.
• Glass construction: Eurobraced ultra-clear glass with additional bottom bracing and high-quality euro-silicone bonding.
• Cabinet: White marine-spec anodized aluminum superstructure with replaceable exterior panels and concealed adjustable leveling feet.
• Cabinet equipment features: Slide-out control panel and auxiliary equipment compartment.
• Return outlets: Two curved 32 mm connections for compatible single- or dual-pump arrangements.
• Filtration layout: Professional main REEF-SPEC sump and configurable glass extension sump.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Adjustable skimmer water depth: 21-27 cm / approximately 8.3-10.6 inches.
• Refugium compatibility: Optional main-sump divider or connected extension-sump refugium arrangement.
• Included controller: ReefControl Pro, supporting up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included top-off system: ReefControl ATO Module with digital level and temperature sensor, DC pump, and installation accessories.
• MAX-package pump reference: Two ReefRun G2 12000 pumps, sold separately.
• Optional roller filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years with registration within 90 days of purchase at no additional charge, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Check the installation location for adequate floor support, cabinet access, and space for handling the large glass aquarium before assembly.
• Build and level the white aluminum cabinet according to Red Sea's instructions, then arrange suitable lifting assistance to position the aquarium on its supports.
• Install the main sump, glass extension, ReefGate valve, downflow, and dual return plumbing. Establish whether the extension will be connected to the filtration system or used independently.
• Install ReefControl Pro and connect the ATO Module's water-level and temperature sensor, pump, tubing, tube holder, and siphon breaker according to the manufacturer's instructions.
• Mount compatible electronic equipment on the slide-out control panel while preserving safe cable routing and access for servicing.
• Install the selected return pumps, skimmer, reef lighting, heaters, and wavemakers. Adjust the main sump skimmer chamber to the correct operating depth for the chosen skimmer.
• Follow the manufacturer initial-fill procedure, inspect plumbing for leaks, and adjust the ReefGate gradually until the overflow water level stabilizes.
• Perform a power-out test to confirm that the connected sump arrangement can accommodate water returning from the display when the pumps stop.
• Maintain filter bags, media cups, overflow combs, and the ATO sensor. If the extension is independent, provide the circulation or storage conditions required for its particular application.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended warranty.

What's Included

• REEFER S-850 G3+ eurobraced ultra-clear glass aquarium with additional bottom bracing
• White marine-spec anodized aluminum cabinet superstructure with replaceable exterior panels and concealed adjustable leveling feet
• Slide-out equipment control panel
• Professional REEF-SPEC main sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Multipurpose glass extension sump for connected or independent use
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and dual return plumbing with ReefGate precision valve
• Central overflow with removable surface-skimming combs
• Two curved 32 mm return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
