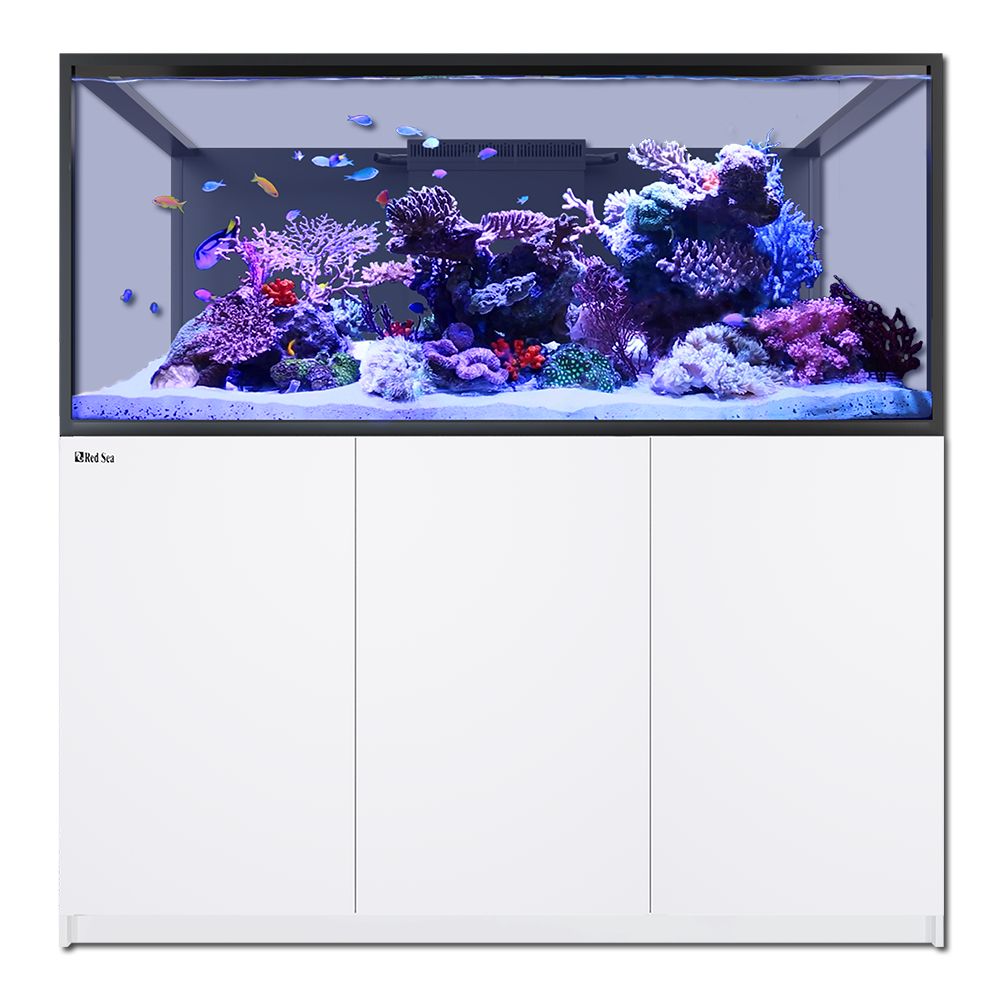

Red Sea Reefer S-700 G3+ - White Cabinet

Red Sea Reefer S-700 G3+ - White Cabinet

The Red Sea Reefer S-700 G3+ - White Cabinet combines a 564 litre (149 US gallon) eurobraced ultra-clear glass aquarium with a 135 litre (35.6 gallon) REEF-SPEC filtration sump, a white anodized aluminum-superstructure cabinet, and included ReefControl Pro smart water management. With 699 litres (184.6 US gallons) of total system volume and a 150 x 68 cm (59.1 x 26.8 inch) display footprint, it provides a premium five-foot aquarium platform for extensive reefscapes and customer-selected marine equipment.

The S-700 G3+ features 19 mm ultra-clear front glass, eurobracing with additional bottom reinforcement, dual curved return outlets, and a large surface-skimming overflow with precision ReefGate drainage. The rigid aluminum cabinet has replaceable white exterior panels, concealed leveling feet, and a slide-out control panel for compatible equipment. ReefControl Pro and the ReefControl ATO Module provide automatic freshwater top-off and connected monitoring, while the ReefMat-ready sump offers adjustable skimmer water height and optional refugium separation.

Red Sea Reefer S-700 G3+ - White Cabinet Construction

• 150 cm (59.1 inch) reef aquarium: The extended display provides room for substantial rock structures, multiple coral colonies, and open swimming areas that would be difficult to achieve in a shorter aquarium.
• 68 cm (26.8 inch) front-to-back depth: The deep footprint is useful for creating reef islands, caves, layered coral placement, and water-circulation channels around rockwork.
• 65 cm (25.6 inch) display height: The aquarium provides vertical space for multi-level coral arrangements and more substantial reef structures.
• 19 mm (0.75 inch) ultra-clear front glass: Low-iron viewing glass reduces unwanted tint while providing the substantial construction used across the REEFER-S G3+ range.

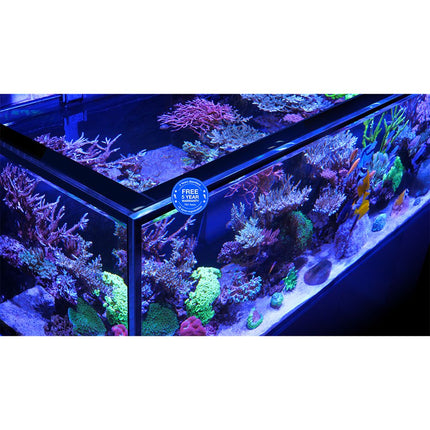

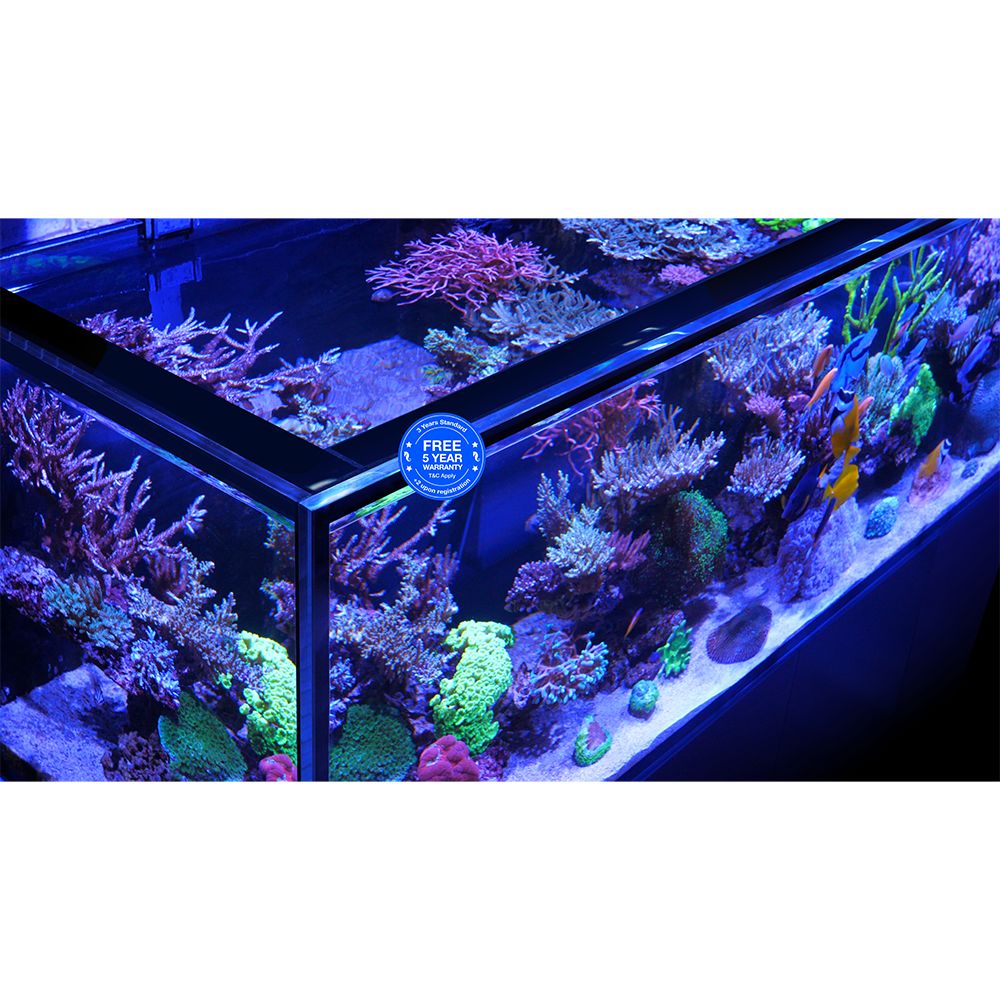

• Eurobrace and bottom-brace reinforcement: Upper perimeter bracing, additional bottom support, and high-quality euro-silicone provide structural reinforcement for the large aquarium.
• White aluminum superstructure: The cabinet uses a marine-spec anodized aluminum frame with replaceable exterior panels, concealed adjustable leveling feet, and corrosion-resistant hardware.
• Separate filtration system: The sump and supporting equipment remain housed below the display, preserving the main aquarium for aquascaping and livestock.

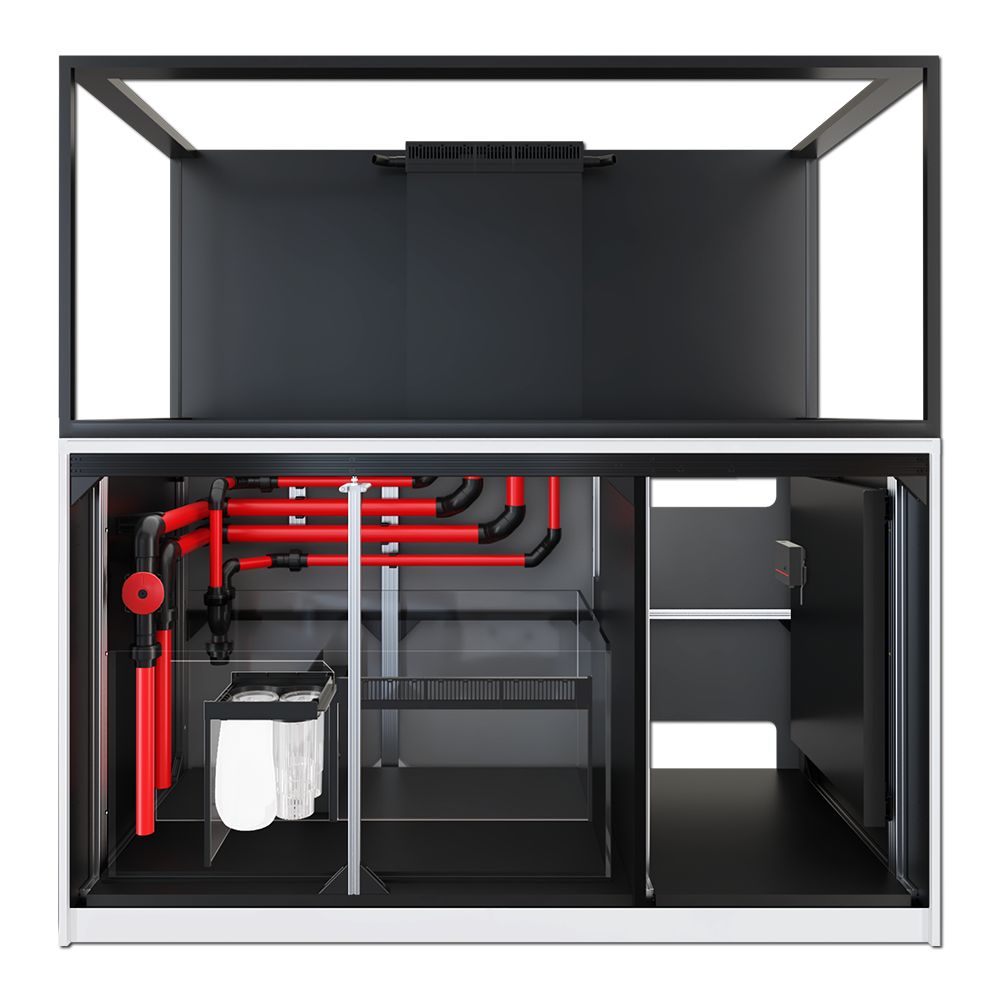

White Aluminum Cabinet and Slide-Out Electronics Panel

The REEFER-S cabinet provides the rigid aluminum supporting structure and organized equipment access needed for a large reef aquarium. Its white exterior panels give the system a lighter furniture-style finish, while the slide-out panel provides a designated area for compatible controllers, dosing equipment, and power-management hardware.

• Anodized aluminum frame: The marine-spec superstructure supports the aquarium independently of the replaceable decorative exterior panels.
• Replaceable white panels: Exterior cabinet components can be serviced separately from the structural frame.
• Hidden adjustable feet: Concealed leveling adjustments help establish correct support for the filled aquarium while maintaining the cabinet's clean appearance.
• Slide-out control panel: Provides accessible mounting space for ReefControl equipment, compatible power devices, dosing pumps, and related hardware.
• Additional equipment compartment: Dedicated cabinet space accommodates suitable auxiliary equipment, including compatible chillers where dimensions and ventilation requirements permit.
• Organized maintenance access: The sump and electronics areas allow a more deliberate equipment layout than placing every device directly around the filtration chambers.

ReefControl Pro Automation and Temperature Monitoring

The S-700 G3+ includes ReefControl Pro and the ReefControl ATO Module as standard hardware. This system manages automatic freshwater replacement and temperature monitoring, with expansion capacity for additional compatible ReefSense probes and other controlled devices.

• ReefControl Pro Controller: Supports up to seven compatible ReefSense probes or sensors and two 12V DC devices for additional monitoring and control.
• Digital automatic top-off: The ATO Module operates its DC pump in response to the level sensor, replenishing freshwater lost through evaporation and helping maintain stable salinity.
• Temperature monitoring: The digital ATO level sensor also measures aquarium temperature and provides readings and notifications through the connected controller.
• ReefBeat integration: The platform provides access to compatible device settings, sensor information, alerts, and available monitoring history.
• Optional monitoring upgrades: Additional ReefSense probes for pH, salinity, ORP, and other parameters can be purchased separately according to the needs of the reef.
• Optional AC equipment control: Compatible ReefControl Power hardware provides additional power-management functions within the ReefBeat ecosystem.
• Correct package contents: ReefControl Pro and the ATO Module are included, while additional pH and temperature probe hardware specifically associated with MAX packages is not included in this standard reef-ready configuration.

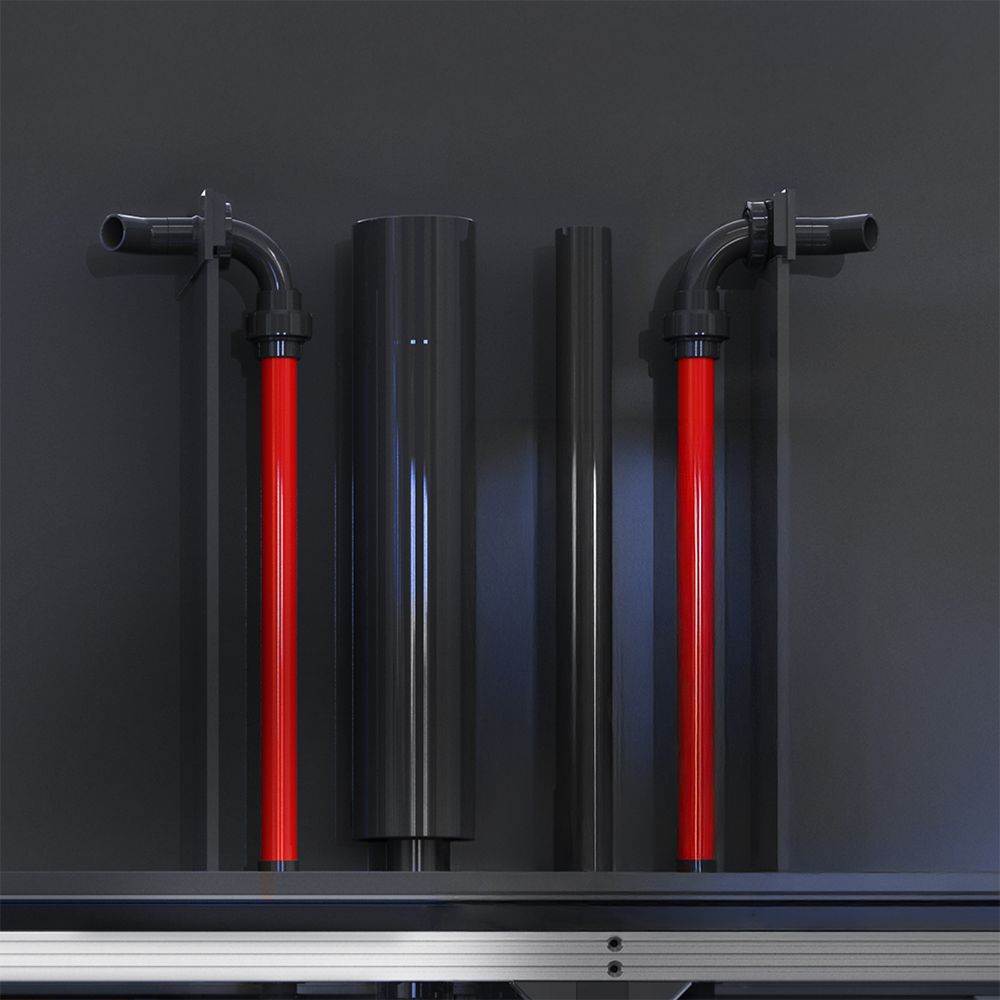

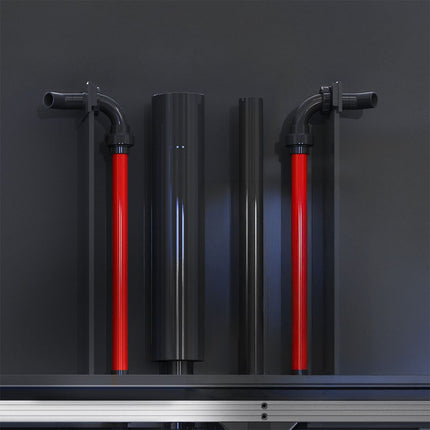

ReefGate Precision Plumbing and Dual 25 mm Returns

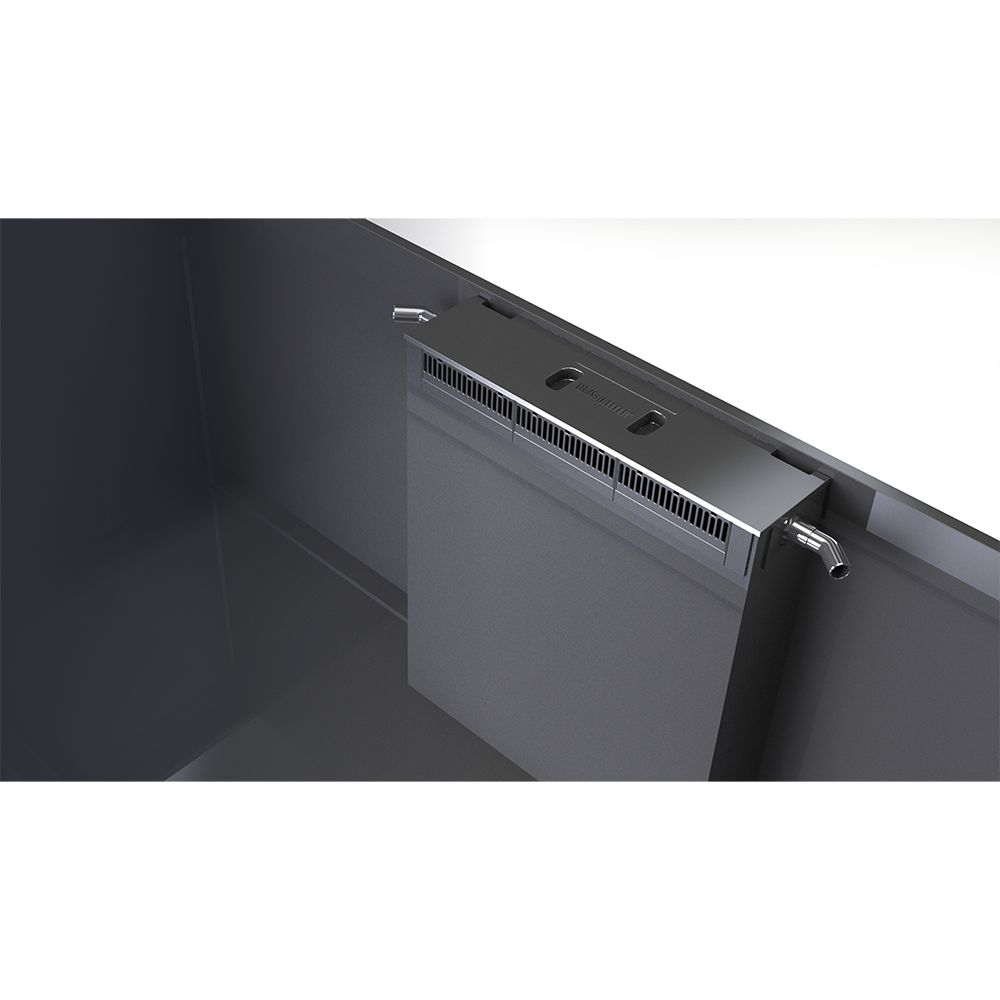

The S-700 G3+ uses a centrally located surface-skimming overflow, enlarged rectangular downflow inlet, and hydrodynamically designed pipework to move water into the sump with reduced turbulence. Two curved outlets distribute return water into the aquarium, while the ReefGate valve provides fine control over drainage.

• Dual curved 25 mm (approximately 1 inch) returns: The two return connections can operate from one compatible pump or two separate pumps, depending on the installation.
• High-precision ReefGate valve: Fine adjustment helps balance drainage against the selected return-pump arrangement and maintain a consistent overflow operating level.
• Enlarged rectangular downflow inlet: The redesigned inlet reduces turbulence as water leaves the aquarium for the sump.
• Removable surface-skimming combs: The comb sections can be removed for cleaning to maintain unrestricted collection of water from the aquarium surface.
• Hydrodynamically optimized plumbing: The supplied pipework is designed to reduce unnecessary resistance through the return and downflow paths.
• Correct return size: The new S-700 G3+ uses two 25 mm connections, while the larger S-850 and S-1000 G3+ use 32 mm returns. Match any replacement or custom plumbing to the actual model.

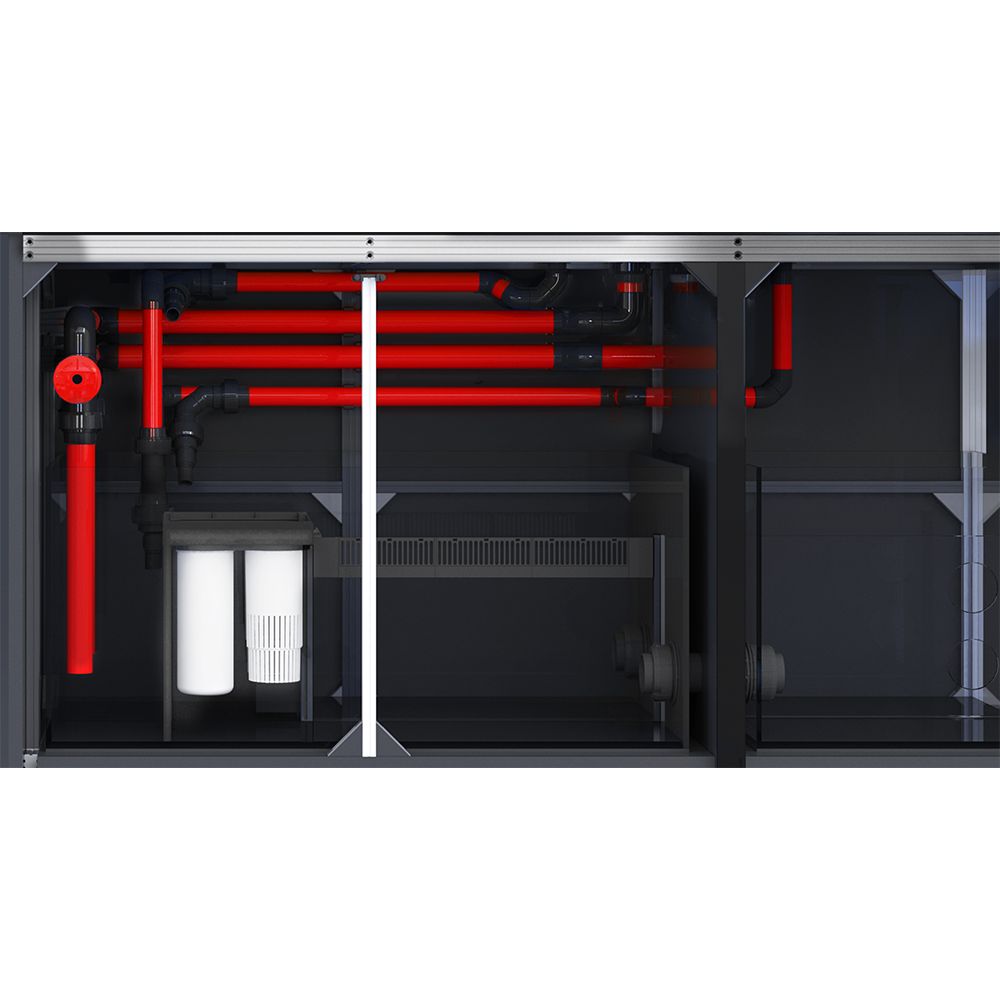

135 Litre REEF-SPEC Sump with Refugium Options

The S-700 G3+ includes a 135 litre (35.6 gallon) REEF-SPEC sump with removable mechanical filtration, an adjustable-height skimmer chamber, and support for an optional dedicated refugium. The sump provides room for compatible filtration equipment while allowing the customer to choose between manually maintained filter bags and optional automatic roller filtration.

• Two 225-micron filter bags: The supplied fine-mesh mechanical filters capture suspended debris entering from the overflow and can be removed for cleaning.
• Two filter media cups: The mechanical filtration compartment includes cups for alternative filtration arrangements.
• ReefMat-ready design: The removable mechanical filtration section can be converted for compatible automated fleece filtration without rebuilding the standard aquarium plumbing.
• ReefMat 1200 upgrade: Red Sea specifies the ReefMat 1200 for the equivalent MAX S-700 G3+, providing a manufacturer-listed automatic filtration option.
• Adjustable skimmer chamber: Operating water depth can be set between 21 and 27 cm (8.3-10.6 inches), accommodating compatible protein skimmers designed for this deeper working range.
• Optional refugium divider: A compatible partition can create a separate refugium area for additional biological filtration or nutrient-management planning.
• Single main sump: The S-700 does not use the separate glass extension sump found on the larger S-850 and S-1000 systems.

Equipment Selection and Why Choose the S-700

The REEFER S-700 G3+ is intended for aquarists building a larger custom marine fish or coral aquarium with substantial aquascaping space and organized equipment support. Compared with the S-550, its additional length increases available coral placement and swimming space while retaining the same premium cabinet concept and included ReefControl platform.

• Recommended return pump: Red Sea specifies one ReefRun G2 8000 for the corresponding MAX S-700 G3+. It is sold separately with the standard system.
• Lighting reference: Red Sea uses three ReefLED G2 170 fixtures in the MAX S-700 package. Lighting for this system should cover the 150 x 68 cm (59.1 x 26.8 inch) footprint with suitable intensity for the planned corals.
• Protein skimmer reference: The MAX configuration uses an RSK DC 900. Alternative skimmers should be checked for chamber fitment and the adjustable 21-27 cm operating depth.
• Additional circulation: Red Sea specifies two ReefWave 45 pumps in the MAX package. Independently selected wavemakers can complement the dual returns and help circulate water around substantial rock structures.
• ATO freshwater supply: The included top-off pump requires a separate freshwater reservoir. Consider placement, tubing access, and maintenance before installing other cabinet equipment.
• Filtration expansion: Optional ReefMat filtration, refugium separation, dosing equipment, and additional ReefSense monitoring can be planned around the aquarium's requirements.
• S-550 comparison: The S-700 adds 30 cm (11.8 inches) of display length, 116 litres (30.6 gallons) of display volume, and 34 litres (9 gallons) of sump capacity while sharing the same 68 cm depth and 65 cm height.
• S-850 comparison: The larger S-850 introduces an additional glass extension sump and 32 mm return plumbing. Those features are not included on the S-700.

Red Sea Reefer S-700 G3+ White Specifications

• Total system water volume: 699 L / approximately 184.6 US gal.
• Display volume: 564 L / approximately 149 US gal.
• In-cabinet sump volume: 135 L / approximately 35.6 US gal.
• Display dimensions: 150 cm L x 68 cm W x 65 cm H / approximately 59.1 x 26.8 x 25.6 inches.
• Total height including cabinet: 153 cm / approximately 60.2 inches.
• Ultra-clear front glass: 19 mm / approximately 0.75 inches.
• Glass construction: Eurobraced ultra-clear glass with additional bottom reinforcement and high-quality euro-silicone bonding.
• Cabinet: White marine-spec anodized aluminum superstructure with replaceable panels, concealed adjustable leveling feet, and slide-out control panel.
• Return outlets: Two curved 25 mm connections for single- or dual-pump configurations.
• Mechanical filtration: Removable ReefMat-ready section with two 225-micron filter bags and two media cups.
• Skimmer chamber water depth: Adjustable 21-27 cm / approximately 8.3-10.6 inches.
• Refugium: Optional dedicated sump-divider arrangement.
• Included aquarium controller: ReefControl Pro, supporting up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor and DC top-off pump.
• Recommended return pump: ReefRun G2 8000, sold separately.
• Optional automatic filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years at no additional charge when registered within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Confirm that the installation location can support the fully loaded aquarium and provides suitable delivery access and maintenance clearance.
• Assemble and level the white anodized aluminum cabinet frame according to Red Sea's instructions. Arrange adequate lifting assistance before positioning the heavy glass aquarium.
• Install the REEF-SPEC sump, overflow, ReefGate valve, and supplied drain and return plumbing with all connectors and seals correctly fitted.
• Mount ReefControl Pro and install the ATO Module's digital level and temperature sensor and top-off pump according to the manufacturer instructions. Provide a separate suitable freshwater reservoir.
• Use the slide-out control panel to arrange compatible electronics and dosing hardware with appropriate access for maintenance.
• Install the selected return pump, protein skimmer, lighting, heating, and circulation equipment. Set the skimmer operating water level within the adjustable 21-27 cm range to suit the chosen skimmer.
• Follow Red Sea's initial-fill and leak-inspection instructions. Tune the ReefGate valve in small increments and allow the overflow level to stabilize between adjustments.
• Perform a power-out test to verify that the sump can accommodate drain-back water when return circulation stops.
• Maintain the mechanical filtration components, overflow combs, and ATO sensor regularly. Establish biological filtration before introducing livestock.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER S-700 G3+ eurobraced ultra-clear glass aquarium with additional bottom bracing
• White marine-spec anodized aluminum cabinet superstructure with replaceable panels and hidden adjustable leveling feet
• Slide-out equipment control panel
• 135 litre REEF-SPEC sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and dual return plumbing with ReefGate precision valve
• Central overflow with removable surface-skimming combs
• Two curved 25 mm return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor and DC top-off pump
