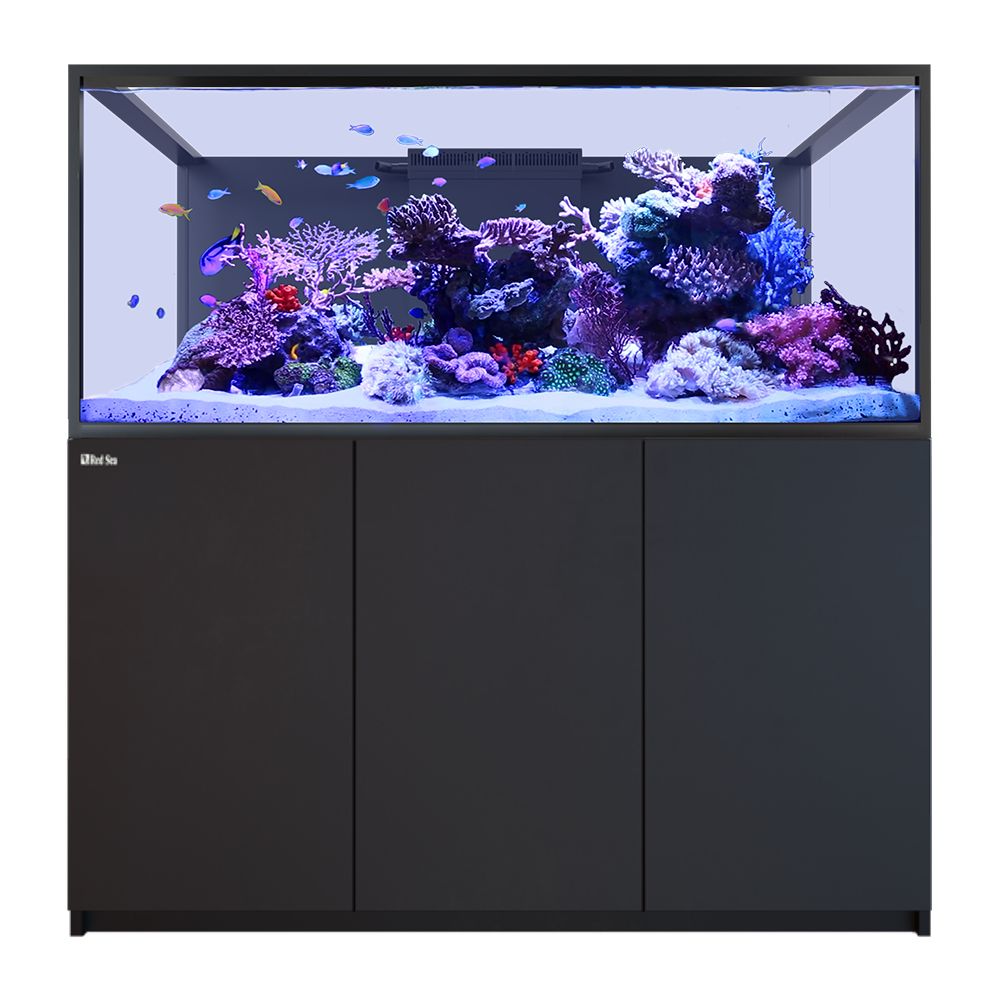

Red Sea Reefer S-700 G3+ - Black Cabinet

Red Sea Reefer S-700 G3+ - Black Cabinet

The Red Sea Reefer S-700 G3+ - Black Cabinet is a 699 litre (184.6 US gallon) premium reef-ready aquarium system combining a 564 litre (149 gallon) ultra-clear glass display, a 135 litre (35.6 gallon) REEF-SPEC sump, a black anodized aluminum-superstructure cabinet, and integrated ReefControl Pro automation. Its 150 cm (59.1 inch) length and 68 cm (26.8 inch) front-to-back depth provide substantial room for separated reef structures, large coral colonies, and open swimming areas within a five-foot aquarium.

The REEFER S-700 G3+ features 19 mm ultra-clear front glass, eurobracing with additional bottom reinforcement, replaceable cabinet panels, a slide-out control panel, and a dedicated auxiliary equipment area. Its enlarged central overflow, dual curved 25 mm returns, and high-precision ReefGate valve provide the water-management foundation for the included ReefMat-ready sump. ReefControl Pro and the ReefControl ATO Module are supplied as standard, while lighting, return pump, skimmer, wavemakers, and other reef equipment can be selected individually.

Red Sea Reefer S-700 G3+ - Black Cabinet Features

• 150 cm (59.1 inch) display length: The five-foot aquarium provides room for multiple rock islands, separate coral zones, and more open swimming channels than the smaller S-550.
• 68 cm (26.8 inch) aquascaping depth: The deep REEFER-S footprint accommodates larger rock formations, front-to-back coral placement, and open areas for circulation and maintenance.
• 564 litre (149 gallon) display: The main aquarium provides substantial viewing and aquascaping space while keeping filtration and supporting equipment inside the cabinet below.
• 19 mm (0.75 inch) ultra-clear front glass: The substantial viewing panel reduces unwanted glass tint while providing a clear view of livestock and coral colour.
• Eurobraced glass construction: Upper perimeter bracing, additional bottom reinforcement, and high-quality euro-silicone support the large glass aquarium.
• Black anodized aluminum cabinet frame: The marine-spec superstructure provides rigid support with replaceable exterior panels and hidden adjustable leveling feet.
• Custom reef equipment selection: Lighting, skimmer, return circulation, wavemakers, heating, and additional monitoring equipment can be selected according to the intended aquarium rather than supplied as a predetermined MAX package.

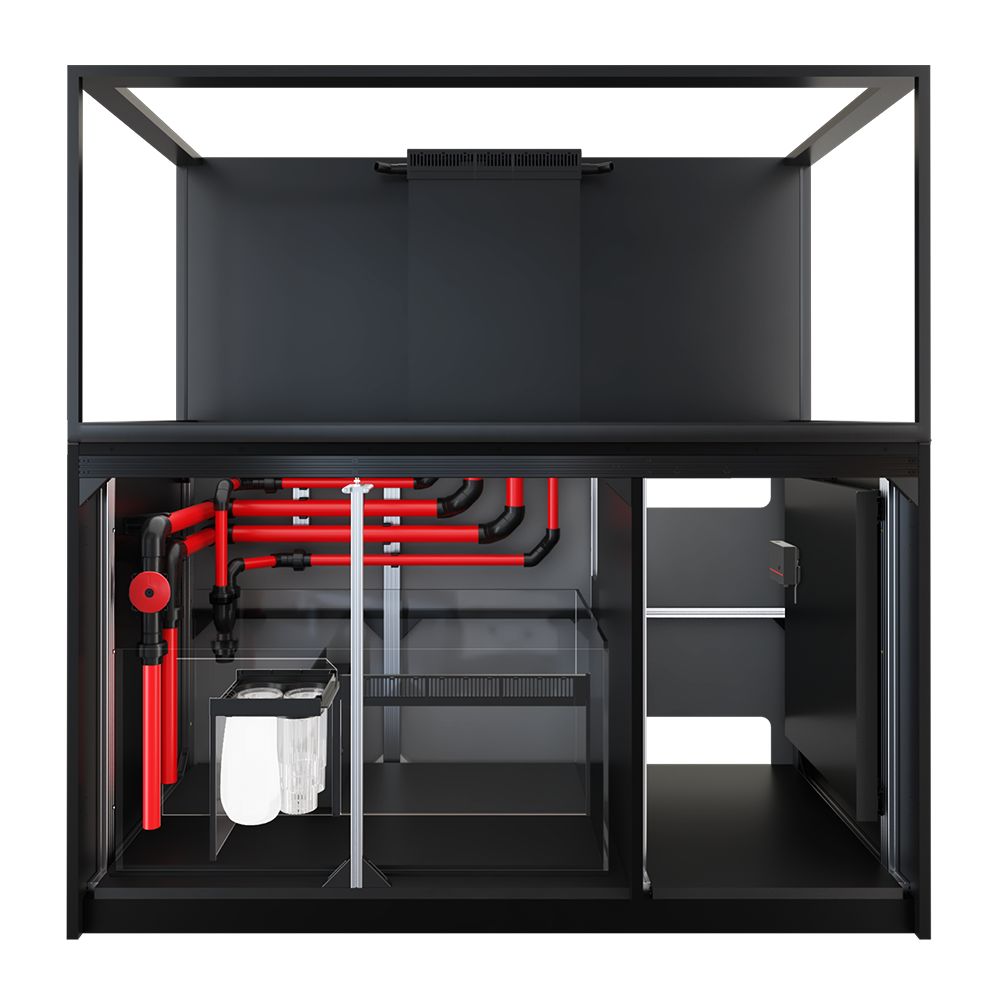

Aluminum Superstructure with Slide-Out Equipment Management

The premium REEFER-S cabinet uses a marine-spec anodized aluminum frame rather than relying solely on the cabinet panels for its supporting structure. Its replaceable exterior panels, concealed leveling feet, and slide-out control panel provide a practical way to organize a larger aquarium installation.

• Marine-spec aluminum support frame: The anodized superstructure provides a rigid foundation for the large eurobraced display and the filtration equipment beneath it.
• Replaceable black cabinet panels: The dark exterior panels provide a coordinated furniture-style finish while remaining separate from the underlying structural frame.
• Hidden heavy-duty leveling feet: Concealed adjustments allow the cabinet to be leveled before the aquarium is filled.
• Slide-out control panel: The dedicated mounting panel can organize compatible ReefControl hardware, power equipment, dosing pumps, and other devices while improving service access.
• Separate auxiliary equipment chamber: Cabinet space is available for compatible chiller equipment and supporting accessories, subject to fitment and ventilation requirements.
• Equipment access planning: The larger cabinet offers room to arrange filtration and electronic equipment with attention to cable routing, maintenance clearance, and future upgrades.

Connected ReefControl Pro and Automatic Top-Off

The S-700 G3+ includes the ReefControl Pro Controller and ReefControl ATO Module. This provides connected water-level and temperature monitoring together with automatic freshwater replenishment, while the Pro controller offers connections for additional compatible ReefSense equipment as the aquarium develops.

• ReefControl Pro included: Supports up to seven compatible ReefSense digital probes or sensors and two 12V DC devices, providing monitoring and control expansion capacity.
• Automatic freshwater top-off: The ATO Module uses a digital level sensor and dedicated DC pump to replace evaporated freshwater and help maintain a stable sump operating level and salinity.
• Integrated temperature measurement: The ATO sensor also monitors aquarium temperature, with readings and available notifications through ReefControl.
• ReefBeat monitoring: Compatible equipment and sensor information can be accessed through Red Sea's ReefBeat ecosystem, including readings, alerts, and available operating history.
• Additional ReefSense probes: Compatible pH, salinity, ORP, and other monitoring probes can be added separately according to the aquarium's requirements.
• Optional equipment management: ReefControl Power can extend control to supported AC equipment alongside the controller's available DC connections.
• Standard versus MAX distinction: ReefControl Pro and the ATO Module are included in the reef-ready package. Other MAX equipment and additional water-parameter probes are not included unless purchased separately.

Dual Return Plumbing with ReefGate Precision Drainage

The REEFER S-700 G3+ uses an enlarged centrally positioned surface-skimming overflow and hydrodynamically optimized plumbing to transfer aquarium water into the sump. The ReefGate valve provides precise drainage adjustment, while two curved return outlets allow flexibility when designing the return pump system.

• Two curved 25 mm (approximately 1 inch) return outlets: Both connections can operate from one compatible return pump or two separate pumps, depending on the plumbing arrangement.
• High-precision ReefGate valve: Fine downflow adjustments help maintain a stable overflow water level with reduced turbulence and noise.
• Enlarged rectangular downflow inlet: The redesigned drainage entrance reduces water turbulence as flow enters the pipework.
• Central surface-skimming overflow: Water is collected through removable comb sections that can be cleaned to prevent accumulated debris from restricting flow.
• Hydrodynamically improved piping: The supplied plumbing is designed to reduce unnecessary water-flow resistance between the aquarium and sump.
• Correct G3+ connection sizing: Red Sea's model-specific G3+ specifications list two 25 mm returns for the S-700, rather than the larger 32 mm plumbing used by the S-850 and S-1000.

135 Litre REEF-SPEC Sump and Filtration Options

The S-700 G3+ includes a 135 litre (35.6 US gallon) REEF-SPEC sump that provides a larger filtration area than the S-550. It includes removable mechanical filtration, an adjustable skimmer chamber, and optional refugium-divider compatibility, allowing the filtration layout to be planned around the equipment selected for a larger reef.

• Two 225-micron mechanical filter bags: The included fine-mesh filters capture suspended debris entering the sump and can be removed for maintenance.
• Two media cups: The mechanical filtration section also includes two cups, allowing alternative filtration arrangements.
• ReefMat-ready compartment: The removable filtration assembly can be converted to compatible automatic fleece filtration without rebuilding the standard downflow plumbing.
• Optional ReefMat 1200: Red Sea pairs the corresponding MAX S-700 G3+ with the ReefMat 1200, providing an identified automatic filtration upgrade.
• Adjustable skimmer operating depth: The water level can be set between 21 and 27 cm (8.3-10.6 inches), allowing compatible skimmers to operate at their required depth.
• Optional refugium divider: A compatible partition allows the sump to be configured with a dedicated refugium area for additional biological filtration or nutrient-management planning.
• Single-sump design: The S-700 uses one main filtration sump. The additional glass extension sump found on the S-850 and S-1000 is not part of this model.

Equipment Planning for the REEFER S-700 G3+

The S-700 G3+ provides the space and equipment infrastructure for a substantial marine fish display, an LPS or soft coral reef, or an appropriately equipped mixed reef. Its long and deep aquarium requires careful lighting coverage and circulation planning, while the aluminum cabinet provides a dedicated location for compatible electronics and supporting hardware.

• Recommended return pump: Red Sea specifies one ReefRun G2 8000 for the corresponding MAX S-700 G3+ configuration. The pump is sold separately with this standard system.
• Lighting reference: Red Sea pairs the MAX S-700 with three ReefLED G2 170 fixtures. Customers can select suitable lighting for the 150 x 68 cm (59.1 x 26.8 inch) footprint and the needs of the intended coral species.
• Protein skimmer reference: Red Sea specifies an RSK DC 900 for the equivalent MAX package. Alternative skimmers should fit the sump and operate within its adjustable 21-27 cm (8.3-10.6 inch) skimmer depth.
• Water circulation: The corresponding MAX configuration includes two ReefWave 45 pumps. Separately selected wavemakers can supplement the dual returns and provide appropriate flow throughout the longer display.
• Freshwater reservoir: The ATO Module requires a suitable freshwater source. Plan reservoir location, tubing, and refilling access alongside other cabinet equipment.
• Additional filtration: A compatible ReefMat, refugium divider, dosing system, and additional ReefSense monitoring can be added to suit the aquarium's filtration and livestock requirements.
• S-550 versus S-700: The S-700 is 30 cm (11.8 inches) longer, with 116 litres (30.6 gallons) more display volume and 34 litres (9 gallons) more sump capacity. Both share the same 68 cm depth, 65 cm height, 19 mm front glass, and ReefControl Pro platform.

Red Sea Reefer S-700 G3+ Black Specifications

• Total system water volume: 699 L / approximately 184.6 US gal.
• Display aquarium volume: 564 L / approximately 149 US gal.
• In-cabinet sump volume: 135 L / approximately 35.6 US gal.
• Display dimensions: 150 cm L x 68 cm W x 65 cm H / approximately 59.1 x 26.8 x 25.6 inches.
• Total height including cabinet: 153 cm / approximately 60.2 inches.
• Front viewing glass thickness: 19 mm / approximately 0.75 inches.
• Glass construction: Eurobraced ultra-clear glass with additional bottom reinforcement and high-quality euro-silicone bonding.
• Cabinet: Black marine-spec anodized aluminum superstructure with replaceable panels, concealed leveling feet, and slide-out control panel.
• Return connections: Two curved 25 mm outlets for single- or dual-pump configurations.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Adjustable skimmer water depth: 21-27 cm / approximately 8.3-10.6 inches.
• Refugium compatibility: Optional dedicated sump divider.
• Included controller: ReefControl Pro with up to seven compatible ReefSense probe or sensor connections and two 12V DC device connections.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor and DC top-off pump.
• Recommended return pump: ReefRun G2 8000, sold separately.
• Optional roller filter: ReefMat 1200, sold separately.
• Warranty: Standard 3 years, extendable to 5 years at no additional charge with registration within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Confirm that the installation location has appropriate floor support, access, and maintenance clearance for the filled aquarium, cabinet, water, equipment, and rockwork.
• Assemble and level the black aluminum-superstructure cabinet according to Red Sea's instructions. Arrange adequate assistance for lifting and positioning the large glass aquarium.
• Install the REEF-SPEC sump, overflow, ReefGate valve, and supplied return plumbing with all fittings and seals correctly seated.
• Mount ReefControl Pro and connect the ATO digital level and temperature sensor and DC pump according to Red Sea's instructions. Provide a suitable freshwater reservoir.
• Arrange compatible controllers, power equipment, and dosing hardware on the slide-out control panel while maintaining access for servicing and safe cable routing.
• Install the selected return pump, protein skimmer, lighting, heating, and circulation equipment. Set the skimmer chamber operating level within its adjustable 21-27 cm range to meet the skimmer's requirements.
• Follow Red Sea's initial-fill and leak-inspection instructions. Adjust the ReefGate valve gradually, allowing time for the overflow level to stabilize between changes.
• Perform a power-out test to confirm that the sump has sufficient spare capacity when the return pump stops.
• Maintain the filter bags, media cups, removable overflow combs, and ATO sensor. Establish biological filtration before introducing marine livestock.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER S-700 G3+ eurobraced ultra-clear glass aquarium with additional bottom bracing
• Black marine-spec anodized aluminum cabinet superstructure with replaceable panels and concealed adjustable leveling feet
• Slide-out equipment control panel
• 135 litre REEF-SPEC sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and dual return plumbing with ReefGate precision valve
• Central overflow with removable surface-skimming combs
• Two curved 25 mm return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor and DC top-off pump
