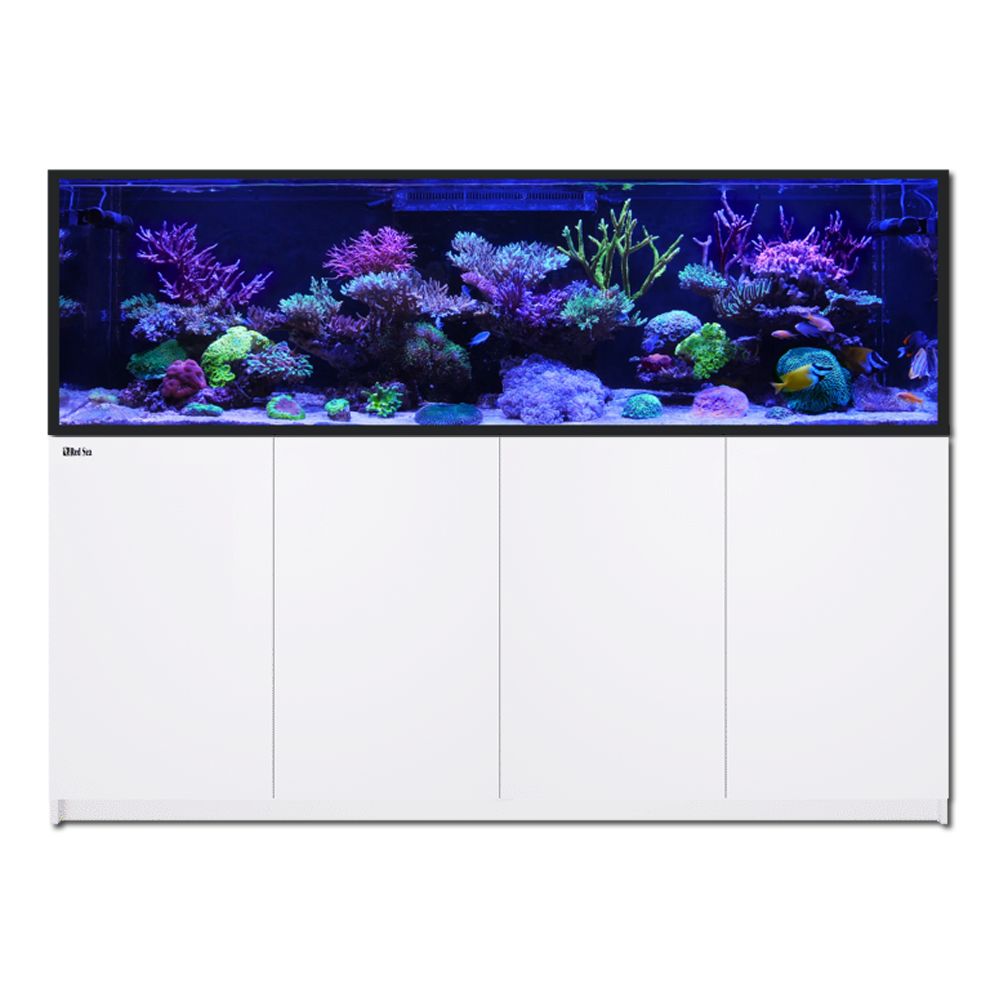

Red Sea Reefer S-1000 G3+ - White Cabinet

Red Sea Reefer S-1000 G3+ - White Cabinet

The Red Sea Reefer S-1000 G3+ - White Cabinet combines the largest aquarium in Red Sea's premium REEFER-S G3+ range with a white marine-spec anodized aluminum cabinet. This 1,000 litre (264.2 US gallon) reef-ready system includes a 795 litre (210 gallon) eurobraced ultra-clear glass display and a 205 litre (54.2 gallon) combined split-sump filtration arrangement, providing substantial space for a customized marine reef with advanced filtration and individually selected equipment.

Measuring 210 cm (82.7 inches) long, 68 cm (26.8 inches) from front to back, and 65 cm (25.6 inches) high, the S-1000 G3+ provides a flagship aquarium display with 19 mm ultra-clear front glass, perimeter eurobracing, and additional bottom reinforcement. Its white aluminum-superstructure cabinet includes replaceable panels and a slide-out control panel, while dual 32 mm returns, ReefGate precision drainage, and a configurable extension sump provide flexibility for water management. ReefControl Pro and the ReefControl ATO Module are included for automatic freshwater top-off and connected temperature monitoring.

Red Sea Reefer S-1000 G3+ White Aquarium Construction

• 210 cm (82.7 inch) viewing length: The extended display provides room for expansive rock structures, multiple coral zones, and open swimming channels across a substantial seven-foot-class aquarium.
• 795 litre (210 gallon) display aquarium: The large main tank provides space for carefully planned mature coral colonies, fish swimming areas, and distinct aquascaping structures while keeping filtration below the display.
• 68 cm (26.8 inch) front-to-back depth: The wide footprint supports rock islands, caves, layered coral arrangements, and open sand channels with space for water circulation around the aquascape.
• 65 cm (25.6 inch) display height: The aquarium offers vertical space for coral placement at different levels and substantial three-dimensional reef structures.
• 19 mm (0.75 inch) ultra-clear front glass: The low-iron viewing panel provides clarity across the large aquarium, reducing the tint associated with conventional glass.

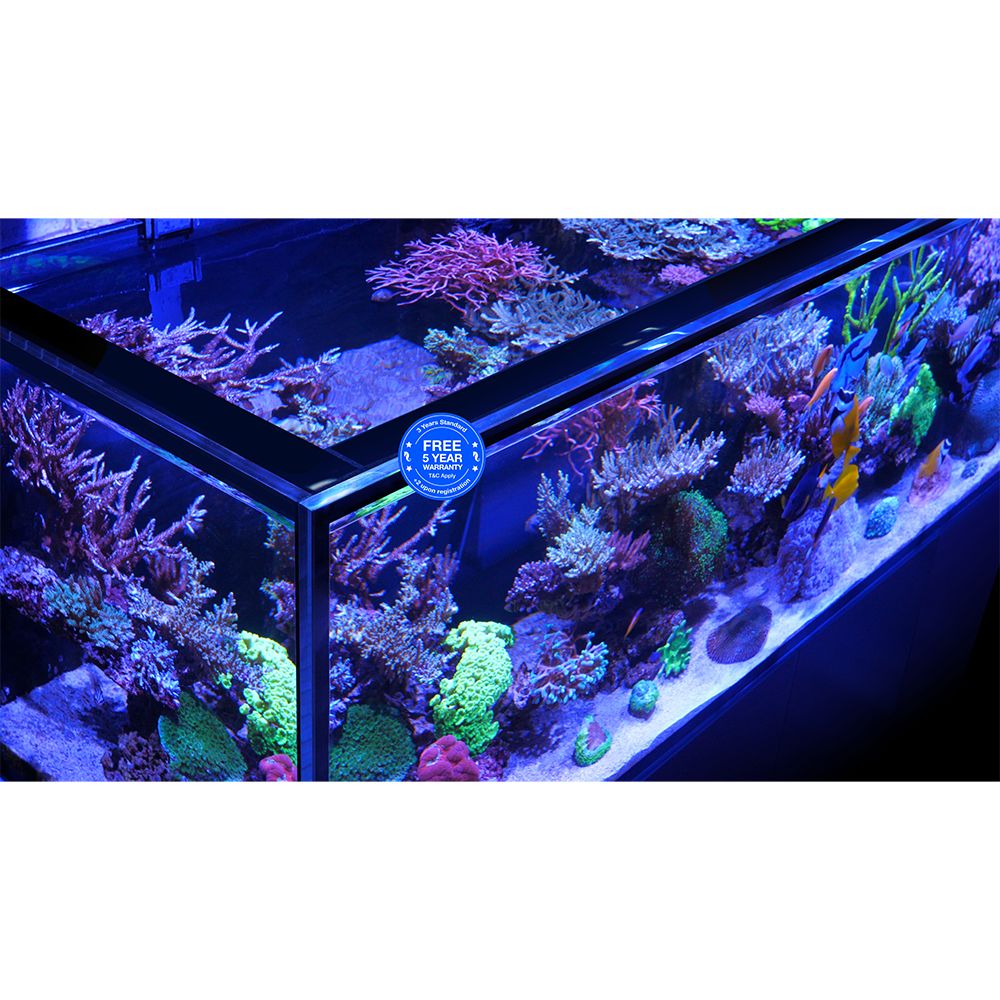

• Eurobraced structural support: Perimeter bracing, additional bottom reinforcement, and high-quality euro-silicone form Red Sea's reinforced glass construction.
• White marine-spec aluminum cabinet: The rigid anodized aluminum superstructure features replaceable white exterior panels, concealed adjustable leveling feet, and a designated electronics panel.

Premium White Cabinet with Slide-Out Control Panel

The S-1000 G3+ cabinet is designed around a marine-spec aluminum supporting frame with replaceable furniture panels. Its large equipment area accommodates the split-sump filtration system, while the slide-out control panel helps organize compatible controllers, power equipment, and dosing devices.

• Rigid anodized aluminum superstructure: The frame provides the structural support required for the large aquarium, independently of the replaceable exterior panels.
• Replaceable white exterior panels: The modular cabinet design combines a bright furniture-style finish with panels that can be serviced separately from the supporting frame.
• Hidden heavy-duty leveling feet: The concealed adjustments allow the cabinet to be accurately leveled before filling.
• Slide-out equipment panel: A dedicated mounting surface organizes compatible controllers, ReefControl hardware, dosing pumps, and power-management equipment while preserving access for maintenance.
• Additional auxiliary equipment area: The cabinet includes space intended for compatible chiller equipment and other accessories, subject to the equipment's dimensions and ventilation requirements.
• Equipment organization: The larger cabinet allows electronic equipment, filtration components, freshwater supply lines, and dosing accessories to be arranged with attention to ongoing service access.
• White versus black finish: The white and black S-1000 G3+ models share the same aquarium, cabinet superstructure, sump, plumbing, and included control hardware. Cabinet appearance is the principal distinction.

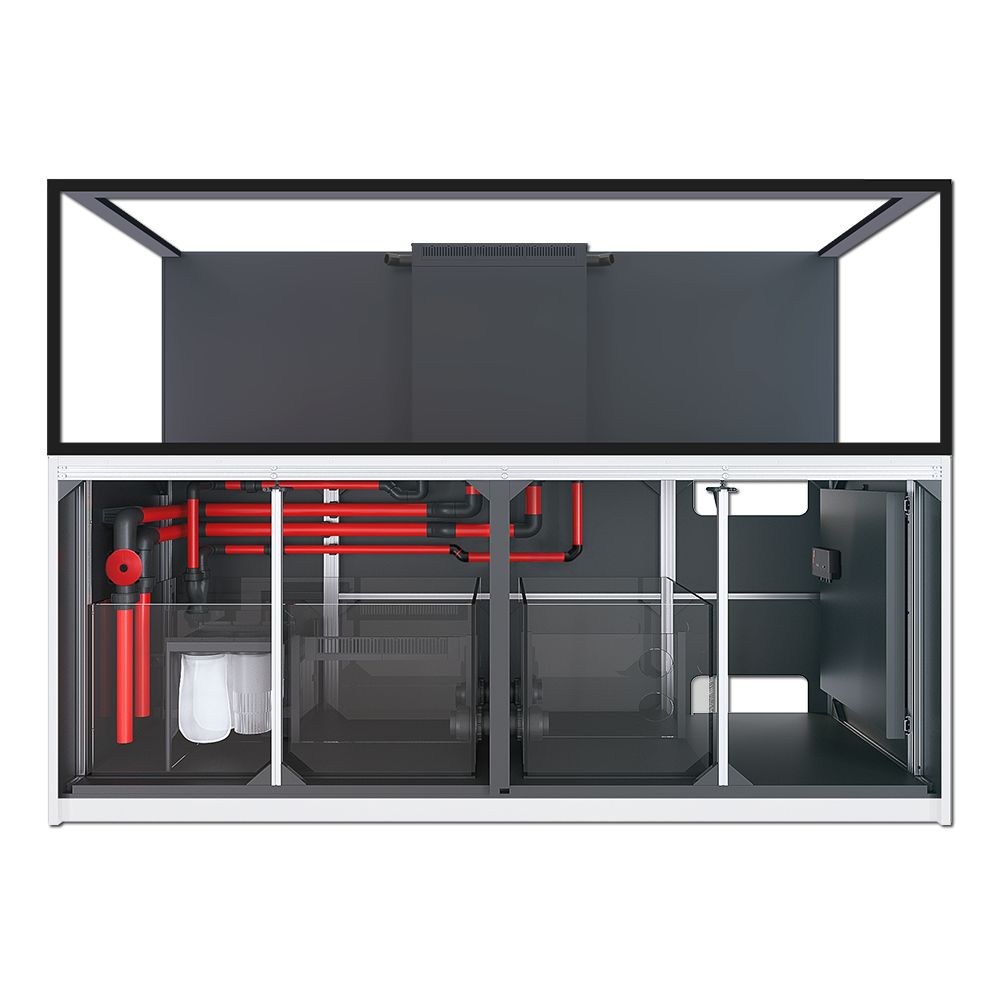

Professional Split-Sump Filtration with Glass Extension

The S-1000 G3+ uses a professional main REEF-SPEC sump combined with a separate multipurpose glass extension sump. Its published combined sump capacity is 205 litres (54.2 US gallons), providing more room for water management than the S-850. The extension may operate as part of the circulating filtration system or independently for water storage or coral propagation.

• 205 litre (54.2 gallon) combined sump capacity: When the extension is connected, the two sump sections provide substantial volume for mechanical filtration, skimming, return circulation, and supplementary filtration.
• Fully featured main sump: The primary filtration compartment houses removable mechanical filtration, an adjustable skimmer chamber, and return equipment.
• Connected refugium or extra filtration: The extension can supplement the main sump with a larger refugium or compatible additional water-treatment equipment.
• Independent RO/DI reservoir: The extension may be disconnected and used for freshwater storage, providing a potential water source for the included ATO system.
• Prepared saltwater storage: A separately operated extension can be used as a saltwater reservoir for a planned water-change system.
• Coral frag-tank configuration: With suitable independent lighting, flow, and water management, the extension can support a dedicated coral propagation setup.
• Correct system-volume interpretation: The manufacturer's 1,000 litre rating represents the published combined system capacity. An extension used independently does not contribute to the display's circulating filtration volume.
• Refugium-ready main chamber: An optional divider allows refugium planning within the primary sump independently of how the extension is used.

ReefMat-Ready Filtration and Deeper Skimmer Chamber

The main REEF-SPEC sump includes removable mechanical filtration and an adjustable skimmer chamber designed for the deeper 21-27 cm (8.3-10.6 inch) operating range used on REEFER-S systems. Its conventional mechanical filtration components can also be replaced by compatible automated fleece filtration.

• Two 225-micron mechanical filter bags: The included fine-mesh filters collect particles and detritus carried from the display into the sump.
• Two filter media cups: The supplied media cups provide alternative arrangements for the mechanical filtration section.
• Removable ReefMat-ready compartment: The filter assembly can be converted for compatible automatic roller filtration without redesigning the standard drain plumbing.
• Optional ReefMat 1200: Red Sea uses the ReefMat 1200 in the corresponding REEFER-S MAX 1000 G3+ configuration, providing a manufacturer-listed filtration upgrade.
• Adjustable protein skimmer depth: The main sump's operating water level can be set between 21 and 27 cm, allowing skimmers designed for this range to be operated at their specified depth.
• Optional biological filtration: A compatible refugium divider and the configurable extension sump provide multiple options for biological filtration and nutrient-management planning.
• Maintenance considerations: Leave sufficient clearance to service the skimmer, remove mechanical filtration components, replace ReefMat fleece if installed, and access pumps and plumbing connections.

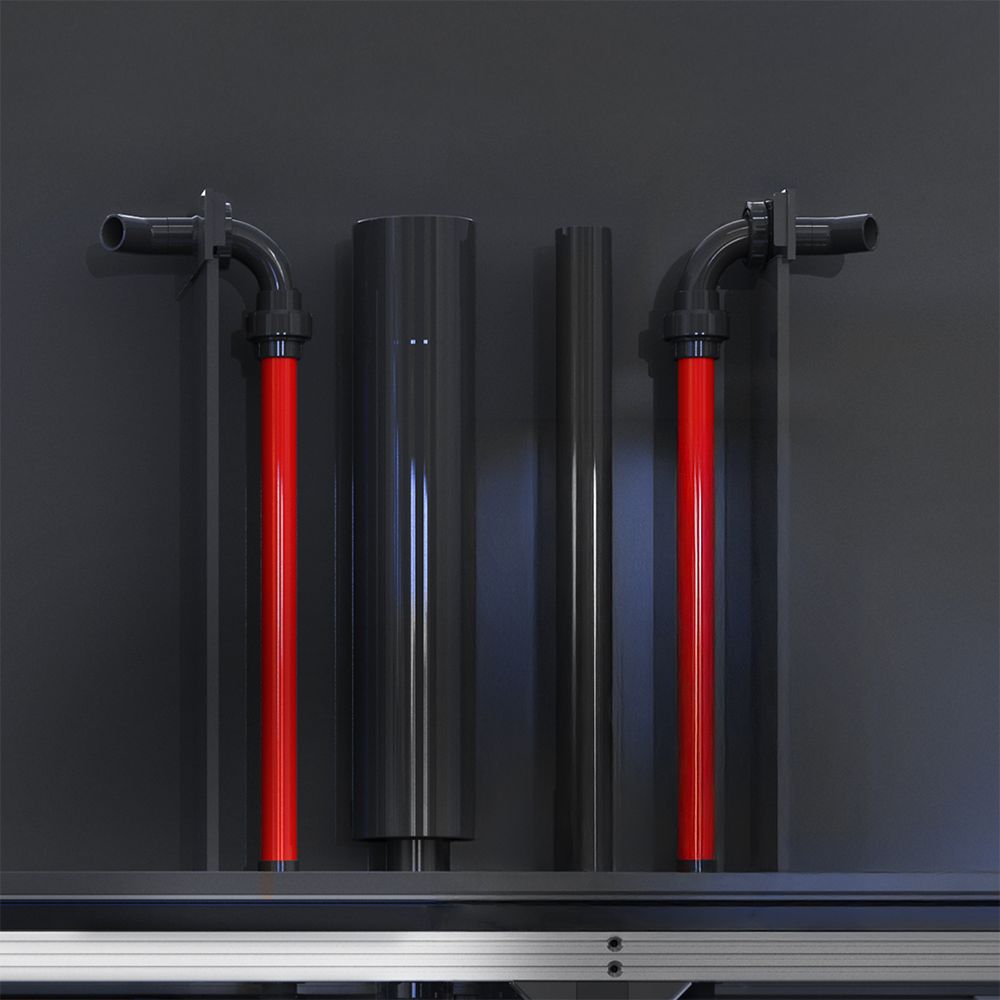

Dual 32 mm Return Outlets and Precision ReefGate Drainage

The S-1000 G3+ uses Red Sea's larger dual-return plumbing, paired with an enlarged rectangular downflow inlet and a centrally positioned surface-skimming overflow. The precision ReefGate valve provides fine adjustment of the drain, helping maintain a consistent overflow water level while limiting unnecessary noise.

• Two curved 32 mm (approximately 1.26 inch) returns: The outlets can operate with a compatible single-pump feed or two separate return pumps, allowing filtered water to enter the long aquarium from two locations.
• High-precision ReefGate valve: Gradual valve adjustments regulate the main downflow and help balance drainage against the selected return-pump configuration.
• Enlarged rectangular drain inlet: The redesigned entrance reduces turbulence as water enters the downflow plumbing.

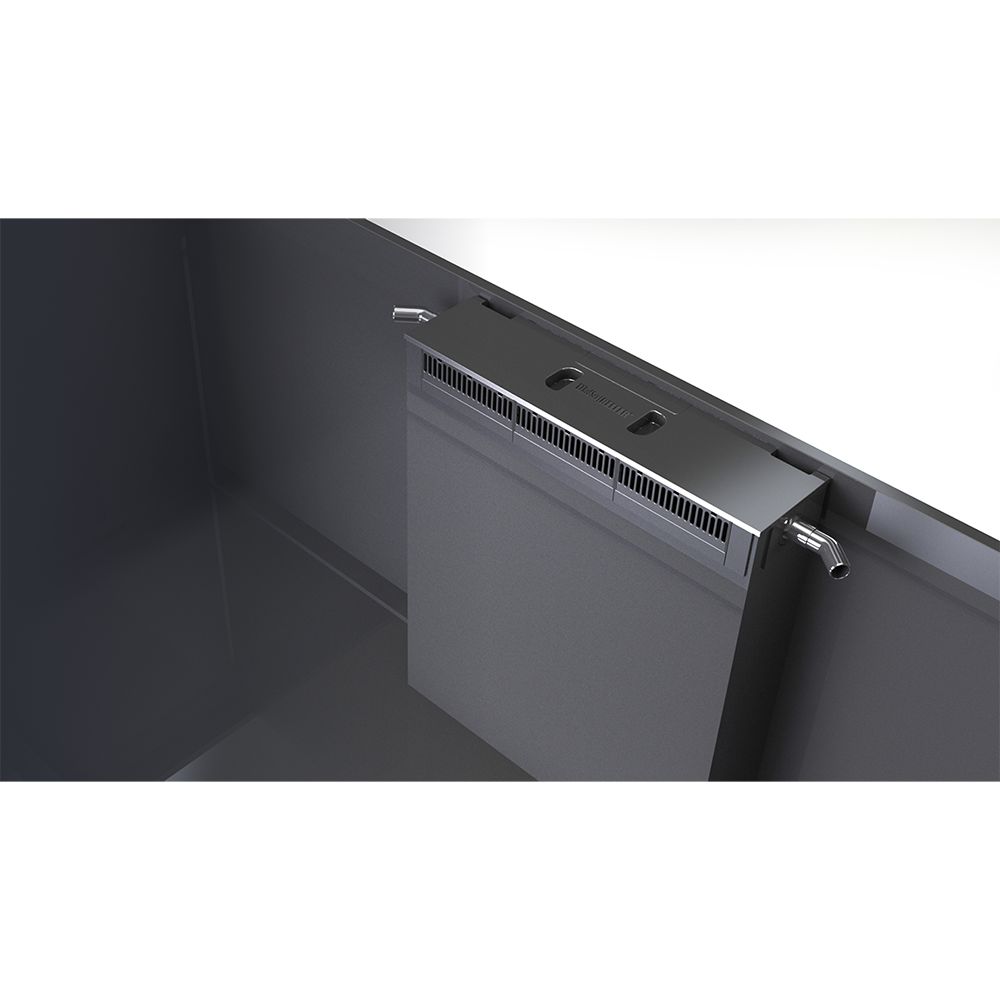

• Removable surface-skimming combs: The central overflow collects surface water through accessible comb sections that can be cleaned when deposits accumulate.
• Hydrodynamically optimized piping: The factory-designed plumbing minimizes unnecessary restrictions between the display and filtration sump.
• Correct connection sizing: The S-1000 G3+ uses 32 mm return plumbing, matching the S-850 but differing from the 25 mm returns supplied with the smaller S-550 and S-700.
• In-tank circulation planning: Dedicated wavemakers should be selected for the layout and livestock rather than relying on return-pump turnover alone to circulate water around large reef structures.

ReefControl Pro Automation and Digital ATO

The REEFER S-1000 G3+ includes the ReefControl Pro Controller and ReefControl ATO Module. This provides digital top-off, temperature monitoring, and a connected platform that can be expanded with compatible ReefSense sensors and other Red Sea control equipment.

• ReefControl Pro included: Supports up to seven compatible ReefSense probes or sensors and two 12V DC devices for additional monitoring and control.
• Automatic freshwater replacement: The ATO Module uses a digital water-level sensor and DC pump to replenish freshwater lost through evaporation, helping maintain stable sump water level and salinity.
• Integrated temperature sensing: The ATO level sensor includes a digital thermometer for connected readings and notifications.
• Complete ATO installation kit: The supplied module includes the digital sensor, mounting bracket, DC top-off pump, silicone tubing, tube holder, and siphon breaker.
• ReefBeat connectivity: Compatible aquarium equipment and sensor information can be monitored through Red Sea's ReefBeat ecosystem.
• Optional monitoring expansion: Additional compatible ReefSense pH, salinity, ORP, and other digital probes are available separately.
• Optional equipment control: ReefControl Power can provide additional supported AC equipment management through the connected system.
• Standard versus MAX equipment: ReefControl Pro and the ATO Module are included. Additional water-parameter probes, lighting, return pumps, skimmer, wavemakers, and automatic roller filtration are separate purchases.

Planning Equipment for the S-1000 White Aquarium

The S-1000 G3+ is designed for a substantial custom reef installation where equipment can be selected around the intended marine fish and coral requirements. The extended display, large water volume, and split-sump arrangement make lighting coverage, return-pump selection, equipment servicing, and installation access especially important.

• Return pump reference: Red Sea specifies two ReefRun G2 12000 pumps in the corresponding MAX S-1000 G3+ package. The pumps are purchased separately with this standard reef-ready system.
• Reef lighting reference: Four ReefLED G2 170 fixtures are specified for the MAX S-1000 G3+. Alternative lighting should be selected for the full 210 x 68 cm (82.7 x 26.8 inch) footprint and the intensity requirements of the planned corals.
• Protein skimmer reference: The corresponding MAX package uses an RSK DC 900. Alternative skimmers should be chosen for the aquarium's filtration requirements and the adjustable 21-27 cm (8.3-10.6 inch) skimmer operating depth.
• Supplementary circulation: Red Sea specifies two ReefWave 45 pumps in the MAX configuration. Independently selected wavemakers should create suitable water movement along the 210 cm display and behind substantial rockwork.
• Split-sump planning: Decide whether the glass extension will operate as additional filtration, a refugium, freshwater storage, prepared saltwater storage, or a separate frag tank before finalizing the equipment layout.
• Top-off freshwater supply: The included ReefControl ATO Module still requires an appropriate freshwater reservoir, which may be provided by the extension when configured independently.
• Additional monitoring: Optional ReefSense probes, dosing equipment, and ReefControl Power can be added according to the reef's long-term requirements.
• Installation and access: Confirm appropriate floor support and safe delivery access for the large aquarium. The published 1,000 litre water capacity represents approximately 1,000 kg of water before adding glass, cabinet, rockwork, and equipment.

S-1000 Versus the S-850 and Other REEFER-S Models

• Largest REEFER-S G3+ display: The 210 cm (82.7 inch) length provides 30 cm (11.8 inches) more display space than the S-850, making the S-1000 suited to more extensive long-format aquascapes.
• Greater display volume: The S-1000 contains 795 litres (210 gallons) in the display, compared with 680 litres (179.6 gallons) on the S-850.
• Expanded sump capacity: The combined 205 litre (54.2 gallon) sump rating is 35 litres (9.2 gallons) greater than the S-850's 170 litre arrangement.
• Same display depth and height: Both models measure 68 cm (26.8 inches) front to back and 65 cm (25.6 inches) high, with the S-1000's additional volume coming from its greater length and associated sump capacity.
• Shared premium construction: Both use 19 mm front glass, eurobracing and bottom bracing, an anodized aluminum-superstructure cabinet, and two 32 mm returns.
• Same controller platform: Both include ReefControl Pro and the ReefControl ATO Module, so the S-1000's main advantages concern scale and filtration capacity rather than a different controller.
• More extensive lighting reference: Red Sea specifies four ReefLED G2 170 fixtures for the MAX S-1000 compared with three for the MAX S-850.

Red Sea Reefer S-1000 G3+ White Specifications

• Total published system water volume: 1,000 L / approximately 264.2 US gal.
• Display aquarium volume: 795 L / approximately 210 US gal.
• Combined main and extension sump volume: 205 L / approximately 54.2 US gal.
• Display dimensions: 210 cm L x 68 cm W x 65 cm H / approximately 82.7 x 26.8 x 25.6 inches.
• Total system height including cabinet: 153 cm / approximately 60.2 inches.
• Front viewing glass thickness: 19 mm / approximately 0.75 inches.
• Glass construction: Eurobraced ultra-clear glass with additional bottom reinforcement and high-quality euro-silicone bonding.
• Cabinet: White marine-spec anodized aluminum superstructure with replaceable panels and concealed adjustable leveling feet.
• Cabinet equipment features: Slide-out electronics control panel and separate auxiliary equipment area.
• Return outlets: Two curved 32 mm connections for compatible single- or dual-pump arrangements.
• Filtration: Professional main REEF-SPEC sump and multipurpose glass extension sump.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Skimmer chamber operating depth: Adjustable 21-27 cm / approximately 8.3-10.6 inches.
• Refugium compatibility: Optional main-sump divider or connected extension-sump refugium arrangement.
• Included controller: ReefControl Pro, supporting up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor, DC pump, and installation accessories.
• MAX-package return pump reference: Two ReefRun G2 12000 pumps, sold separately.
• Optional automated mechanical filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years with registration within 90 days of purchase at no additional charge, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Verify the installation location provides sufficient floor support, delivery access, and room for servicing a fully equipped 210 cm aquarium before assembly.
• Assemble and level the white marine-spec aluminum cabinet following Red Sea's instructions. Arrange appropriate lifting equipment and assistance for positioning the heavy eurobraced glass aquarium.
• Install the main REEF-SPEC sump, glass extension, overflow, ReefGate valve, and supplied dual return plumbing. Decide whether the extension will be connected to the aquarium or operated independently.
• Mount ReefControl Pro and connect the ReefControl ATO Module, including the digital level and temperature sensor, top-off pump, tubing, tube holder, and siphon breaker.
• Arrange compatible controllers, dosing equipment, and power hardware on the slide-out control panel, maintaining safe wiring and sufficient maintenance access.
• Install the selected return pumps, protein skimmer, reef lighting, heating, and wavemakers. Adjust the skimmer chamber water level within its 21-27 cm range to meet the chosen skimmer's requirements.
• Follow Red Sea's initial-fill and leak-inspection procedure. Tune the ReefGate gradually, allowing the overflow operating level to stabilize after each adjustment.
• Perform a power-out test to ensure the connected filtration system can accommodate drain-back water when return circulation stops.
• Maintain the mechanical filters, surface-skimming combs, and ATO sensor. If the extension is used separately, maintain suitable conditions for its chosen reservoir or coral-propagation application.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER S-1000 G3+ eurobraced ultra-clear glass aquarium with additional bottom bracing
• White marine-spec anodized aluminum cabinet superstructure with replaceable exterior panels and hidden adjustable leveling feet
• Slide-out equipment control panel
• Professional REEF-SPEC main sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Multipurpose glass extension sump for connected or independent configurations
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and dual return plumbing with ReefGate precision valve
• Central overflow with removable surface-skimming combs
• Two curved 32 mm return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
