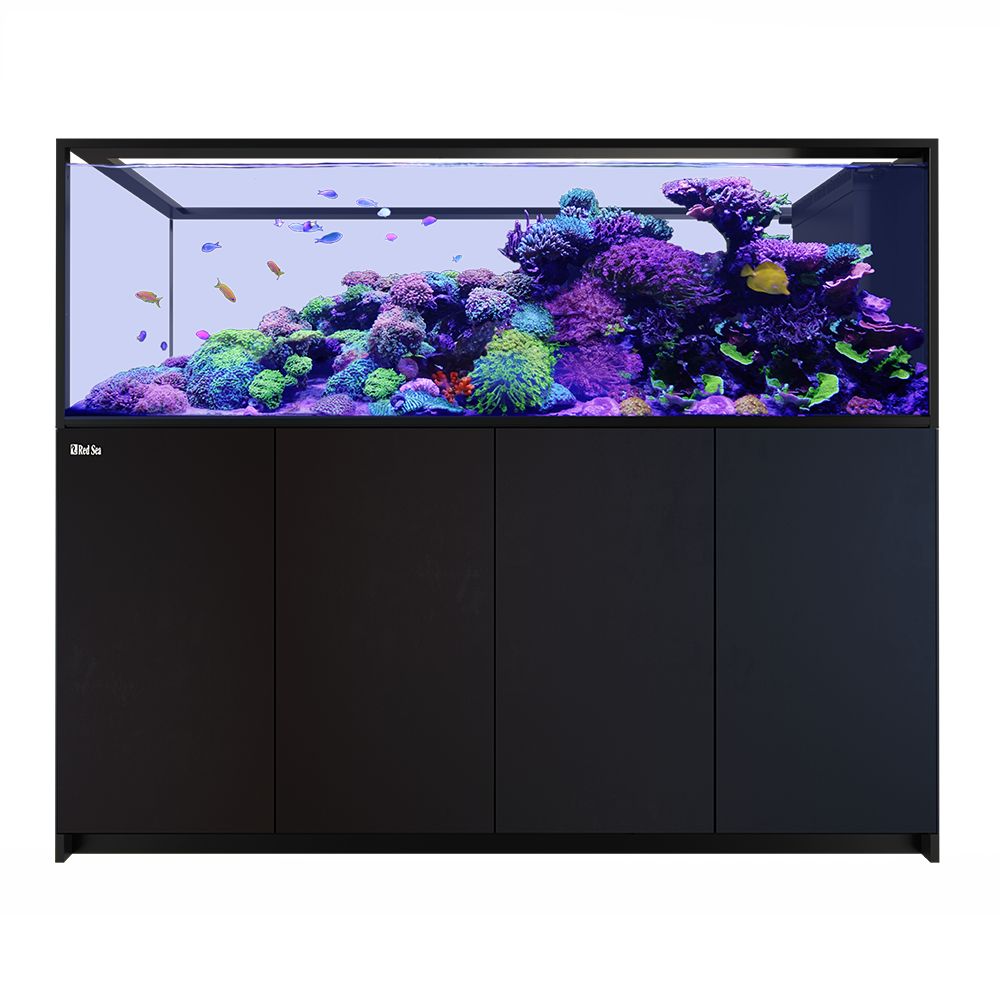

Red Sea Reefer Peninsula S-950 G3+ - Black Cabinet

Red Sea Reefer Peninsula S-950 G3+ - Black Cabinet

The Red Sea Reefer Peninsula S-950 G3+ - Black Cabinet is a 947 litre (250.2 US gallon) premium reef-ready aquarium system designed for large three-sided marine displays. Featuring a 757 litre (200 US gallon) eurobraced ultra-clear glass aquarium, a 189.6 litre (50.1 gallon) combined split-sump filtration arrangement, and a black marine-spec anodized aluminum-superstructure cabinet, it provides an expansive platform for advanced reef installations in homes, offices, lobbies, and other open spaces.

Measuring 200 cm (78.7 inches) long, 68 cm (26.8 inches) wide, and 65 cm (25.6 inches) high, the Peninsula S-950 G3+ offers extensive room for coral colonies, central reef formations, and open swimming areas viewed from both long sides and the exposed end. Its 19 mm ultra-clear glass, jet-black eurobracing, dual curved 25 mm side-facing returns, and precision ReefGate valve provide the aquarium's structural and water-management foundation. The multipurpose extension sump adds filtration flexibility, while the included ReefControl Pro Controller and ReefControl ATO Module provide connected automatic freshwater replenishment and temperature monitoring. Lighting, return pumps, skimmer, circulation equipment, and additional hardware remain independently selectable.

Red Sea Reefer Peninsula S-950 G3+ Flagship Room-Divider Display

• 200 cm (78.7 inch) aquarium length: The extensive display provides room for substantial reef islands, larger coral colonies, separate aquascaping zones, and long swimming channels.
• Three-sided viewing: Two long viewing panels and the exposed end allow the reef to be appreciated from multiple positions, creating a striking room-divider installation.
• 68 cm (26.8 inch) front-to-back width: The generous footprint supports central rock formations, caves, branching structures, and open areas that remain visible from both long sides.
• 65 cm (25.6 inch) display height: The aquarium provides vertical room for multi-level rockwork, reef ledges, and coral colonies positioned at different heights.
• 757 litre (200 gallon) display: The large main aquarium provides substantial space for carefully planned marine livestock and aquascaping while locating filtration beneath the display.
• 19 mm (0.75 inch) ultra-clear front glass: The substantial low-iron viewing panels reduce unwanted tint and enhance the visual clarity of fish, corals, and reef lighting.
• Jet-black eurobracing: Upper perimeter reinforcement and high-quality euro-silicone provide structural strength while maintaining Red Sea's distinctive finished aquarium profile.
• Premium cabinet support: The aluminum superstructure and concealed adjustable feet provide the supporting framework required for this large peninsula system.

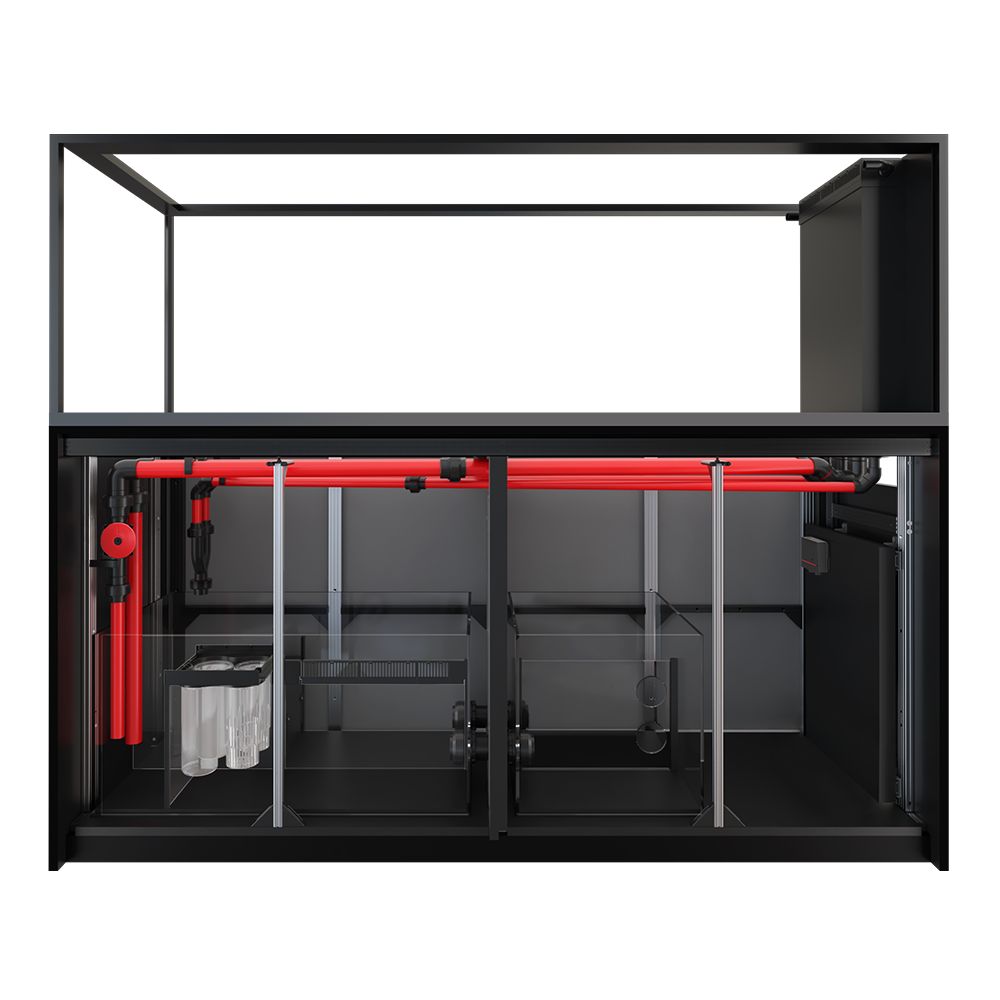

Aluminum Superstructure and Slide-Out Equipment Access

The Peninsula S-950 G3+ uses Red Sea's premium marine-spec cabinet design with a rigid anodized aluminum support frame and replaceable exterior panels. Its extended cabinet accommodates the split-sump filtration arrangement and includes a slide-out control panel for compatible aquarium electronics.

• Marine-spec anodized aluminum frame: The structural superstructure provides additional reinforcement across the long peninsula aquarium span.
• Replaceable black exterior panels: The modular cabinet offers a dark furniture-style appearance while allowing exterior components to be replaced separately from the supporting frame.
• Concealed heavy-duty leveling feet: Hidden adjustments allow the cabinet to be leveled accurately before installing and filling the aquarium.
• Slide-out control panel: The accessible panel provides a designated mounting location for compatible ReefControl hardware, power equipment, dosing pumps, and other accessories.
• Split-sump equipment space: The cabinet houses the main filtration sump and glass extension, giving customers additional options for planning filtration and freshwater storage.
• Three-sided maintenance access: The aquarium should be positioned with sufficient room for cleaning both long viewing panels and the exposed end, as well as servicing the cabinet equipment.
• Equipment organization: Controllers, top-off hardware, filtration components, and tubing should be arranged for safe cable routing and practical long-term maintenance.

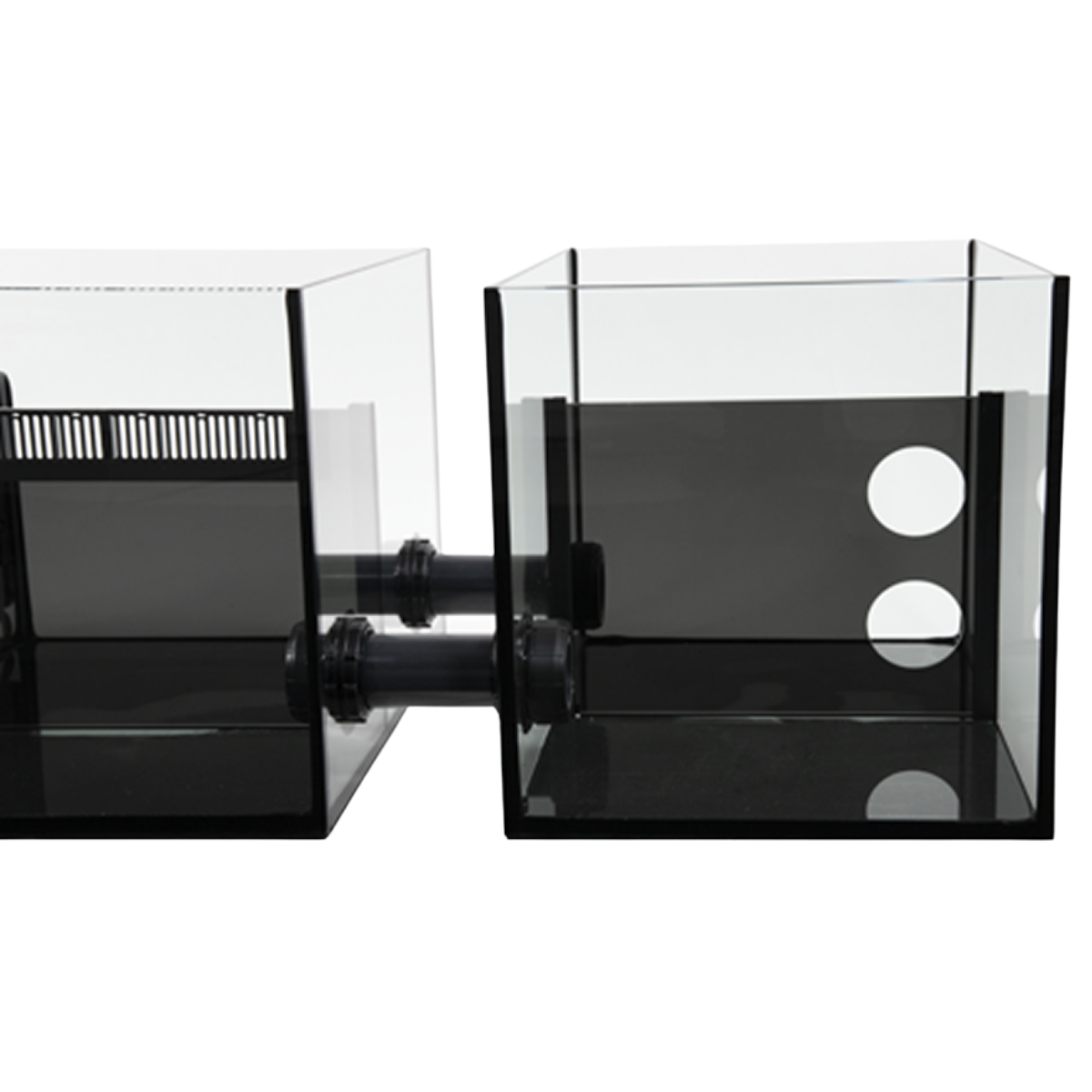

Multipurpose Split-Sump Filtration with Glass Extension

One of the S-950 G3+'s principal advantages over the smaller Peninsula S-700 is its professional split-sump arrangement. A main REEF-SPEC sump contains the essential filtration and return equipment, while a separate glass extension sump can be configured for additional filtration or operated independently for other aquarium-support applications.

• 189.6 litre (50.1 gallon) combined sump capacity: The manufacturer's published figure covers the main and extension sump arrangement, providing substantial filtration volume when both sections are connected to the circulating system.
• Professional main sump: The primary filtration area houses mechanical filtration, adjustable protein skimming, and return circulation equipment.
• Connected extension sump: The additional glass chamber can provide extra filtration volume, a larger refugium, or space for other compatible water-treatment equipment.
• Independent RO/DI reservoir: When disconnected from the main sump, the extension can store freshwater for the included automatic top-off system.
• Prepared saltwater storage: The extension can also be configured independently as a reservoir for saltwater used during maintenance and water changes.
• Dedicated coral frag tank: With suitable lighting, circulation, temperature control, and other independent equipment, the extension can support a coral propagation arrangement.
• Operating-volume distinction: The published 947 litre system volume assumes the manufacturer's combined sump capacity. Water stored in an extension operating independently does not contribute to the main aquarium's circulating system volume.
• Configuration planning: Decide whether the extension will remain connected or be used independently before selecting plumbing, automatic water-change equipment, and other filtration accessories.

ReefMat-Ready Main Sump and Adjustable Skimmer Chamber

The main REEF-SPEC sump includes conventional mechanical filtration components and an adjustable-height protein skimmer chamber. Its removable filtration section allows conversion to compatible automatic roller filtration, while the split-sump design provides additional flexibility for refugium and nutrient-management equipment.

• Two 225-micron filter bags: The supplied fine-mesh mechanical filters collect suspended particles and debris entering the sump and can be removed for routine cleaning.
• Two media cups: The filtration compartment includes cups for alternative filtration arrangements.
• Removable ReefMat-ready section: The filter compartment can be converted for compatible automatic fleece filtration without redesigning the standard downflow plumbing.
• Optional ReefMat 1200: Red Sea specifies the ReefMat 1200 for the corresponding REEFER MAX Peninsula S-950 G3+ package.
• Adjustable skimmer water level: The Peninsula G3+ sump provides an adjustable operating range of 17-27 cm (6.7-10.6 inches), allowing compatible skimmers to be matched to their required depth.
• Optional refugium separation: The main sump is refugium-ready, with an optional divider available for establishing a dedicated biological filtration area.
• Extended refugium option: The glass extension can provide additional connected refugium space when configured as part of the circulating filtration system.
• Equipment fitment: Confirm skimmer dimensions, return pump placement, and the available space for automatic filters and other accessories before assembling the complete sump system.

Peninsula Hydrodynamic Plumbing and Dual Returns

The Peninsula S-950 G3+ uses hydrodynamically optimized pipework and side-facing return outlets to distribute filtered water along the extended aquarium. An enlarged surface-skimming overflow and precision ReefGate valve control water entering the sump, helping maintain quiet operation when correctly adjusted.

• Two curved 25 mm (approximately 1 inch) return outlets: The side-facing connections direct filtered water along the peninsula display and support compatible single- or dual-pump arrangements.
• High-precision ReefGate valve: Fine downflow adjustments allow the overflow water level to be balanced against the selected return pump configuration.
• Enlarged rectangular drainage inlet: The downflow design reduces turbulence as water enters the filtration plumbing.
• Removable surface-skimming combs: The overflow collects aquarium surface water through sections that can be removed for cleaning.
• Hydrodynamically optimized piping: The plumbing arrangement is designed to reduce unnecessary restrictions and distribute return water efficiently along the long aquarium.
• Single- or dual-pump planning: The two outlets support different compatible return-pump strategies depending on the desired flow and equipment configuration.
• Model-specific return connections: Red Sea's October 2026 Peninsula S-950 G3+ specifications list dual 25 mm returns. Plumbing accessories should be chosen to match these actual connections rather than the larger 32 mm returns used on some other REEFER-S models.
• Additional circulation: Dedicated wavemakers should provide flow through the extended aquascape and around coral colonies independently of the sump return outlets.

Included ReefControl Pro and ReefControl ATO Module

The Peninsula S-950 G3+ includes ReefControl Pro and the ReefControl ATO Module, providing connected freshwater replenishment and temperature monitoring as standard equipment. The Pro controller also offers expansion capacity for additional compatible ReefSense probes and controlled devices.

• ReefControl Pro Controller: Supports up to seven compatible ReefSense digital probes or sensors and two 12V DC devices.
• Automatic freshwater replenishment: The ReefControl ATO Module monitors sump water level and operates its DC pump to replace freshwater lost through evaporation.
• Integrated temperature sensor: The digital water-level sensor also measures aquarium temperature, with available readings and notifications through ReefControl.
• ReefBeat connectivity: Compatible monitoring devices can be configured and monitored through Red Sea's ReefBeat platform.
• Complete ATO hardware: The included module supplies its digital sensor, mounting bracket, DC top-off pump, silicone tubing, tube holder, and siphon breaker.
• Optional ReefSense monitoring: Compatible pH, salinity, ORP, and other probes are available separately for additional aquarium monitoring.
• Optional power management: ReefControl Power can provide supported AC equipment management within the connected system.
• Correct package contents: ReefControl Pro and the ATO Module are included, but additional water-parameter probes and the return pumps, skimmer, lighting, and wavemakers associated with MAX packages are not.

Equipment Planning for a Large Room-Divider Reef

The Peninsula S-950 G3+ is intended for substantial marine fish displays, carefully planned LPS or soft coral reefs, and appropriately equipped mixed reefs. Its 200 cm (78.7 inch) length and three-sided viewing layout make lighting distribution, circulation, equipment access, and floor support especially important considerations before installation.

• Return pumps: Red Sea specifies two ReefRun G2 12000 pumps for the corresponding MAX Peninsula S-950 G3+ configuration. Return pumps are sold separately with this standard system.
• Lighting reference: The equivalent MAX package includes four ReefLED G2 170 fixtures. Alternative lighting should provide suitable coverage and intensity over the 200 x 68 cm (78.7 x 26.8 inch) footprint.
• Protein skimmer reference: Red Sea pairs the MAX version with an RSK DC 900. Other skimmers should be checked for physical fitment and the required water operating depth.
• Additional water movement: The MAX package uses two ReefWave 45 pumps. Separately selected wavemakers should circulate water around central rockwork and coral colonies throughout the long display.
• Freshwater reservoir: The included top-off system requires a freshwater supply. The extension sump can serve as an independent freshwater reservoir when configured for that purpose.
• Optional filtration upgrades: ReefMat filtration, refugium expansion, dosing equipment, and additional ReefSense monitoring may be added according to the needs of the reef.
• Installation access: Confirm adequate floor support, freight access, safe handling arrangements, and room around the three viewing faces and cabinet before delivery.
• Compared with the Peninsula S-700: The S-950 provides 49 cm (19.3 inches) more display length, substantially greater water volume, and a multipurpose glass extension sump while retaining ReefControl Pro and the aluminum cabinet platform.

Red Sea Reefer Peninsula S-950 G3+ Black Specifications

• Total published system volume: 947 L / approximately 250.2 US gal.
• Display aquarium volume: 757 L / approximately 200 US gal.
• Combined sump volume: 189.6 L / approximately 50.1 US gal.
• Display dimensions: 200 cm L x 68 cm W x 65 cm H / approximately 78.7 x 26.8 x 25.6 inches.
• Total height including cabinet: 165 cm / approximately 65 inches.
• Ultra-clear front glass thickness: 19 mm / approximately 0.75 inches.
• Glass construction: Eurobraced ultra-clear glass bonded with high-quality euro-silicone.
• Display format: Three-sided peninsula room-divider aquarium.
• Cabinet: Black marine-spec anodized aluminum superstructure with replaceable exterior panels and concealed adjustable leveling feet.
• Cabinet equipment features: Slide-out control panel for compatible electronic equipment.
• Return outlets: Two curved 25 mm side-facing connections for compatible single- or dual-pump configurations.
• Filtration: REEF-SPEC split-sump system with main filtration sump and configurable glass extension.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Skimmer chamber operating depth: Adjustable 17-27 cm / approximately 6.7-10.6 inches.
• Refugium compatibility: Optional main-sump divider or connected extension-sump refugium arrangement.
• Included controller: ReefControl Pro with support for up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories.
• MAX-package return pump reference: Two ReefRun G2 12000 pumps, sold separately.
• Optional automatic filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years at no additional charge when registered within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Confirm suitable floor support, freight access, and maintenance clearance for the large aquarium, cabinet, operating water volume, rockwork, and equipment before delivery.
• Assemble and level the black anodized aluminum cabinet according to Red Sea's instructions, then arrange appropriate lifting equipment and assistance to position the heavy eurobraced glass aquarium.
• Install the main REEF-SPEC sump, glass extension sump, central overflow, ReefGate valve, and dual return plumbing, ensuring that all seals and fittings are correctly installed.
• Decide whether the extension sump will operate as part of the circulating filtration system or independently as a freshwater reservoir, saltwater reservoir, or frag tank before completing the plumbing arrangement.
• Mount ReefControl Pro and connect the ReefControl ATO Module, digital level and temperature sensor, DC pump, tubing, tube holder, and siphon breaker following the manufacturer instructions.
• Arrange compatible electronic equipment on the slide-out control panel, maintaining safe cable routing and access for servicing.
• Install the selected return pumps, protein skimmer, lighting, heating, and wavemakers. Adjust the skimmer chamber water level to meet the requirements of the chosen skimmer.
• Follow Red Sea's initial-fill and leak-inspection procedure. Tune ReefGate in small increments, allowing the overflow operating level to stabilize between adjustments.
• Perform a power-out test to confirm that the connected sump arrangement can accommodate water draining back from the aquarium when the return pumps stop.
• Maintain the mechanical filters, overflow combs, return outlets, and ATO sensor. If the extension is operated independently, maintain it according to its intended storage or livestock application.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER Peninsula S-950 G3+ eurobraced ultra-clear glass aquarium
• Black marine-spec anodized aluminum cabinet superstructure with replaceable exterior panels and concealed adjustable leveling feet
• Slide-out equipment control panel
• Professional REEF-SPEC main sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Multipurpose glass extension sump for connected or independent configurations
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and return plumbing with ReefGate precision valve
• Surface-skimming overflow with removable combs
• Two curved 25 mm side-facing return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
