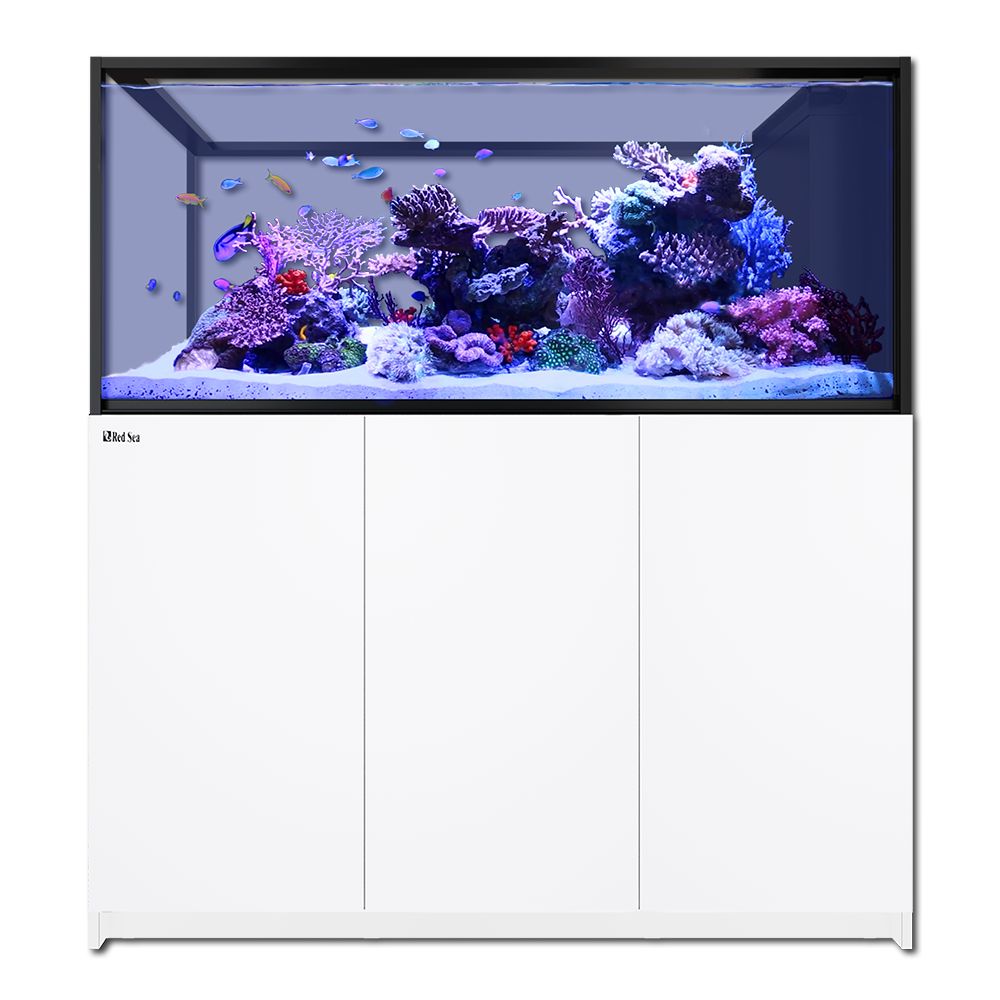

Red Sea Reefer Peninsula S-700 G3+ - White Cabinet

Red Sea Reefer Peninsula S-700 G3+ - White Cabinet

The Red Sea Reefer Peninsula S-700 G3+ - White Cabinet is a 705 litre (186.2 US gallon) premium peninsula aquarium system featuring a 568 litre (150 US gallon) eurobraced ultra-clear glass display, a 136.7 litre (36.1 gallon) REEF-SPEC sump, and a white cabinet built around a robust anodized aluminum superstructure. Designed for three-sided viewing, this large reef-ready aquarium provides a 151 cm (59.4 inch) display that can serve as an impressive room divider while allowing customers to select their preferred marine aquarium equipment.

The Peninsula S-700 G3+ combines 19 mm ultra-clear front glass, perimeter eurobracing, a premium aluminum cabinet with replaceable panels, and a slide-out control panel. Its dual curved 25 mm side-facing returns and ReefGate precision valve manage water movement through a removable ReefMat-ready sump, while the included ReefControl Pro Controller and ReefControl ATO Module provide connected freshwater top-off and temperature monitoring. The white cabinet creates a bright furniture-style appearance while filtration and electronics remain housed beneath the display.

Three-Sided Viewing with the Red Sea Reefer Peninsula S-700 G3+

• 151 cm (59.4 inch) peninsula display: The five-foot aquarium provides substantial length for rock islands, multiple coral zones, and swimming areas visible from both long sides.
• Three-sided room-divider format: Both long panels and the exposed end remain visible, allowing the reef to become a feature between adjoining spaces rather than a conventional one-sided aquarium.
• 68 cm (26.8 inch) front-to-back width: The generous footprint accommodates layered central rockwork, coral growth areas, and open sand channels with space for circulation around the structures.
• 65 cm (25.6 inch) display height: The aquarium provides vertical space for multi-level reefscapes and coral placements at different heights.
• 19 mm (0.75 inch) ultra-clear front glass: Low-iron viewing panels reduce unwanted tint and help preserve the appearance of marine fish and coral colour.
• Jet-black eurobracing: Upper perimeter reinforcement provides structural support while maintaining a distinctive finished edge around the glass aquarium.
• Professional cabinet support: The marine-spec aluminum superstructure provides a rigid foundation for the aquarium and enclosed sump equipment.

White Aluminum Cabinet and Organized Electronics Access

The REEFER-S cabinet is designed around a marine-spec anodized aluminum support frame rather than a conventional plywood cabinet alone. Its replaceable white exterior panels and slide-out control panel provide a practical installation platform for a large reef aquarium with optional controllers and filtration accessories.

• Rigid anodized aluminum superstructure: The supporting frame is designed for the large peninsula glass aquarium and provides additional strength across its extended span.
• Replaceable white exterior panels: The modular exterior creates a lighter furniture-style appearance while allowing the panels to be serviced independently of the supporting structure.
• Concealed leveling feet: Heavy-duty adjustable supports allow the cabinet to be leveled accurately before installing and filling the aquarium.
• Slide-out control panel: A designated mounting area provides access for compatible ReefControl hardware, power equipment, dosing pumps, and associated wiring.
• Equipment below the display: Mechanical filtration, protein skimming, return circulation, and compatible accessories remain inside the cabinet to preserve the clean room-divider presentation.
• Maintenance-oriented layout: Plan the positions of filtration equipment, controllers, and freshwater storage to maintain access for removing pumps, replacing filters, and servicing electronic components.
• White cabinet option: The white and black Peninsula S-700 G3+ versions share the same display, sump, plumbing, controller, and equipment compatibility. The cabinet finish is the principal difference.

ReefControl Pro and Included Smart ATO System

The Peninsula S-700 G3+ includes ReefControl Pro rather than ReefControl Lite. Combined with the included ReefControl ATO Module, it provides digital automatic freshwater replacement and temperature monitoring, with additional expansion capacity for compatible ReefSense probes and controlled devices.

• ReefControl Pro Controller: Supports up to seven compatible ReefSense probes or sensors and two 12V DC devices, providing room for a more extensive monitoring system.
• Automatic freshwater replenishment: The ReefControl ATO Module monitors the sump water level and operates its dedicated DC pump to replace freshwater lost through evaporation.
• Integrated temperature measurement: The digital ATO level sensor includes temperature monitoring, providing available readings and alerts through ReefControl.
• ReefBeat monitoring: Compatible equipment can be monitored and configured using Red Sea's connected ReefBeat platform.
• ATO installation hardware: The module supplies the level and temperature sensor, mounting components, DC pump, silicone tubing, tube holder, and siphon breaker.
• Optional ReefSense probes: Compatible pH, salinity, ORP, and other probes are available separately according to the intended monitoring requirements.
• Optional ReefControl Power: Compatible power-management hardware can be added for supported AC equipment control.
• Base versus MAX equipment: The standard aquarium includes ReefControl Pro and the ATO Module, but additional water-parameter probes, return pumps, lighting, skimmer, wavemakers, and the ReefMat are purchased separately.

Dual Side-Facing Returns for Peninsula Circulation

Red Sea's Peninsula G3+ plumbing is designed to move filtered water along the aquarium rather than relying on a conventional rear-facing return arrangement. Two curved side-mounted outlets distribute water toward the far end of the display, while an enlarged overflow and precision ReefGate valve help regulate quiet drainage to the sump.

• Two curved 25 mm (approximately 1 inch) return connections: The side-facing outlets deliver filtered water along the peninsula aquarium and support compatible single- or dual-pump arrangements.
• High-precision ReefGate valve: Small adjustments to the main downflow allow the overflow level to be balanced against the selected return pump arrangement.
• Enlarged rectangular drain inlet: The low-turbulence design reduces unnecessary noise as water enters the filtration plumbing.
• Removable surface-skimming combs: Water enters the overflow through accessible sections that can be removed for cleaning.
• Hydrodynamically designed piping: The flow path is intended to reduce restrictions and improve water distribution along the longer aquarium.
• Return pump flexibility: Compatible single- or dual-pump arrangements can be planned around the desired sump turnover and available equipment space.
• Model-specific fitting size: The Peninsula S-700 G3+ uses dual 25 mm return connections as listed in Red Sea's G3+ specifications.
• Dedicated coral circulation: Separately selected wavemakers should provide flow through the central aquascape and across coral colonies beyond the sump return flow.

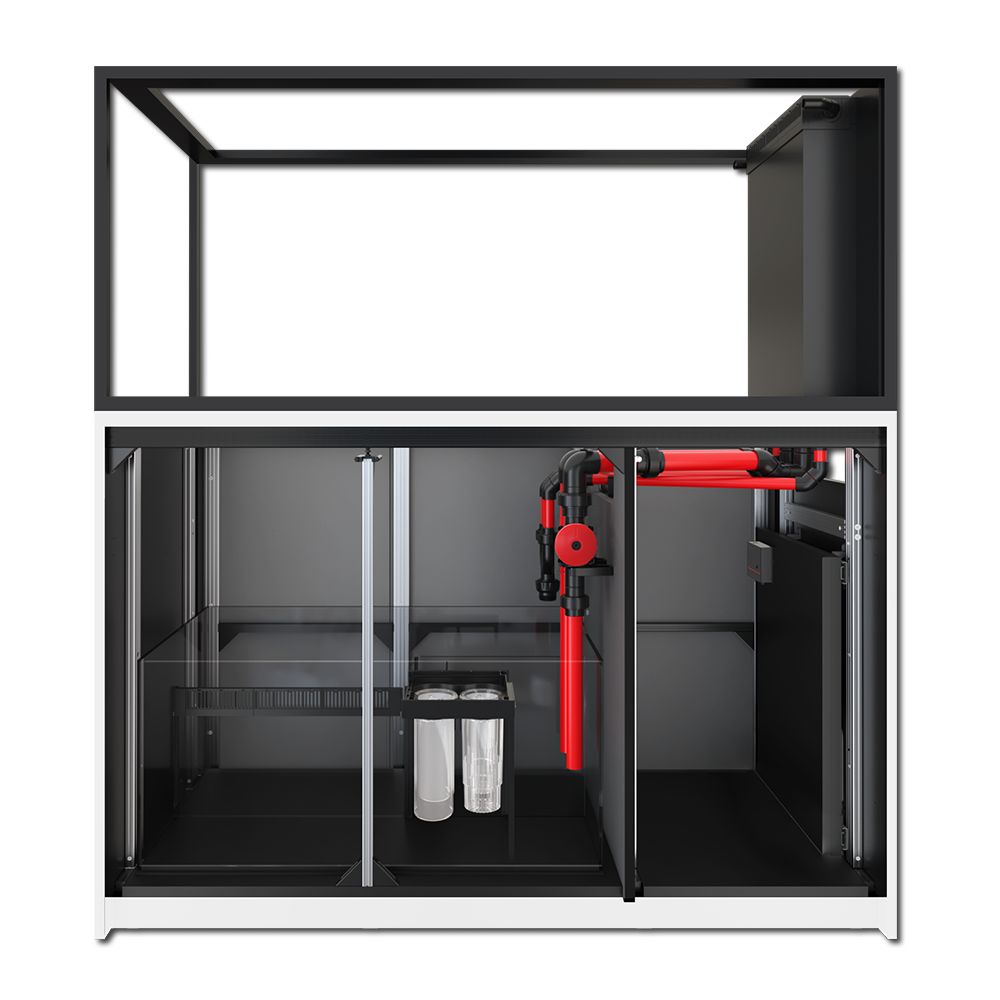

REEF-SPEC Sump with Refugium and ReefMat Options

The 136.7 litre (36.1 US gallon) sump provides a dedicated filtration area beneath the aquarium, with removable mechanical filtration, adjustable protein skimmer water level, and optional refugium-divider compatibility. Its larger capacity is suited to a custom reef with appropriately sized skimming and additional filtration equipment.

• Two 225-micron filter bags: The included fine-mesh filters collect suspended particles entering the sump and can be removed for cleaning.
• Two media cups: The mechanical filtration section includes two cups for alternative filtration arrangements.
• ReefMat-ready compartment: The removable filter assembly can be converted for compatible automated roller filtration without changing the standard drainage plumbing.
• Optional ReefMat 1200: Red Sea specifies the ReefMat 1200 for the equivalent MAX Peninsula S-700 G3+ equipment package.
• Adjustable protein skimmer chamber: The Peninsula G3+ sump provides an operating-depth adjustment range of 17-27 cm (6.7-10.6 inches), allowing compatible skimmers to operate at their required level.
• Optional dedicated refugium: A compatible divider can create a separate section for additional biological filtration or nutrient-management planning.
• Single main sump: This model does not include the multipurpose extension sump supplied with the larger Peninsula S-950 G3+.
• Service access: Leave sufficient space for removing mechanical filters, servicing the skimmer, and accessing return pumps and other equipment beneath the aquarium.

Choosing Equipment for the Peninsula S-700 White Aquarium

The S-700 G3+ is suited to larger marine fish displays, LPS or soft coral reefs, and appropriately equipped mixed reefs where the aquarium can be enjoyed from multiple directions. Its 151 cm length and 68 cm width make lighting coverage and the positioning of in-tank circulation equipment important considerations.

• Return pump reference: Red Sea specifies two ReefRun G2 12000 pumps with the corresponding MAX Peninsula S-700 G3+ configuration. Return pumps are sold separately with this standard system.
• Lighting reference: The equivalent MAX package uses three ReefLED G2 170 fixtures. Other compatible lighting should cover the 151 x 68 cm (59.4 x 26.8 inch) footprint and provide intensity appropriate for the planned corals.
• Protein skimmer reference: Red Sea pairs the MAX S-700 with an RSK DC 900. Alternative skimmers should be checked for physical fitment and the required operating water level.
• Water movement: The MAX package includes two ReefWave 45 pumps. Independently selected wavemakers should circulate water around rockwork and coral colonies without unnecessarily obscuring the viewing panels.
• Automatic top-off: The included ATO Module requires a suitable freshwater reservoir. Plan its location, tubing route, and refilling access before arranging the remaining cabinet equipment.
• Optional automation: Compatible ReefSense probes, ReefControl Power, dosing systems, and automatic ReefMat filtration can be added as needed.
• Peninsula S-700 versus standard S-700: The peninsula system is designed for three-sided viewing and a room-divider installation rather than a primarily front-facing aquarium.
• Compared with the Peninsula S-950: The S-700 retains the premium aluminum cabinet and ReefControl Pro in a shorter display with a conventional single sump rather than a split-sump arrangement.

Red Sea Reefer Peninsula S-700 G3+ White Specifications

• Total system water volume: 705 L / approximately 186.2 US gal.
• Display aquarium volume: 568 L / approximately 150 US gal.
• In-cabinet sump volume: 136.7 L / approximately 36.1 US gal.
• Display dimensions: 151 cm L x 68 cm W x 65 cm H / approximately 59.4 x 26.8 x 25.6 inches.
• Total height including cabinet: 165 cm / approximately 65 inches.
• Ultra-clear front glass thickness: 19 mm / approximately 0.75 inches.
• Glass construction: Eurobraced ultra-clear glass with high-quality euro-silicone bonding.
• Display format: Three-sided peninsula room-divider aquarium.
• Cabinet: White marine-spec anodized aluminum superstructure with replaceable exterior panels and concealed adjustable leveling feet.
• Cabinet equipment features: Slide-out control panel for compatible aquarium electronics.
• Return outlets: Two curved 25 mm side-facing connections for compatible single- or dual-pump configurations.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Skimmer chamber operating depth: Adjustable 17-27 cm / approximately 6.7-10.6 inches.
• Refugium compatibility: Optional dedicated sump divider.
• Included controller: ReefControl Pro with connections for up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor, DC pump, and installation accessories.
• MAX-package return pump reference: Two ReefRun G2 12000 pumps, sold separately.
• Optional roller filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years at no additional charge when registered within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Choose an installation location with suitable structural support and adequate space for three-sided viewing, aquarium maintenance, cabinet servicing, and freight delivery.
• Assemble and level the white anodized aluminum cabinet according to Red Sea's instructions, then arrange appropriate lifting assistance for positioning the large eurobraced glass aquarium.
• Install the REEF-SPEC sump, central overflow, ReefGate valve, and supplied dual return plumbing, ensuring that all fittings and seals are correctly seated.
• Mount ReefControl Pro and connect the included ReefControl ATO Module, digital level and temperature sensor, pump, tubing, and installation accessories following the manufacturer's instructions.
• Provide a suitable freshwater reservoir and arrange the ATO tubing so that the equipment remains accessible for regular inspection and refilling.
• Position compatible aquarium electronics on the slide-out control panel, keeping wiring and other equipment accessible for maintenance.
• Install the selected return pumps, protein skimmer, lighting, heating, and wavemakers. Set the skimmer chamber operating depth according to the selected skimmer's requirements.
• Follow the manufacturer initial-fill procedure and inspect the plumbing for leaks. Adjust ReefGate in small increments and allow the overflow level to stabilize between adjustments.
• Perform a power-out test to ensure the sump has adequate reserve capacity when return circulation stops.
• Clean the mechanical filtration components, surface-skimming combs, return outlets, and ATO sensor as required. Establish biological filtration before adding marine livestock.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER Peninsula S-700 G3+ eurobraced ultra-clear glass aquarium
• White marine-spec anodized aluminum cabinet superstructure with replaceable exterior panels and concealed adjustable leveling feet
• Slide-out equipment control panel
• 136.7 litre REEF-SPEC sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and return plumbing with ReefGate precision valve
• Surface-skimming overflow with removable combs
• Two curved 25 mm side-facing return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
