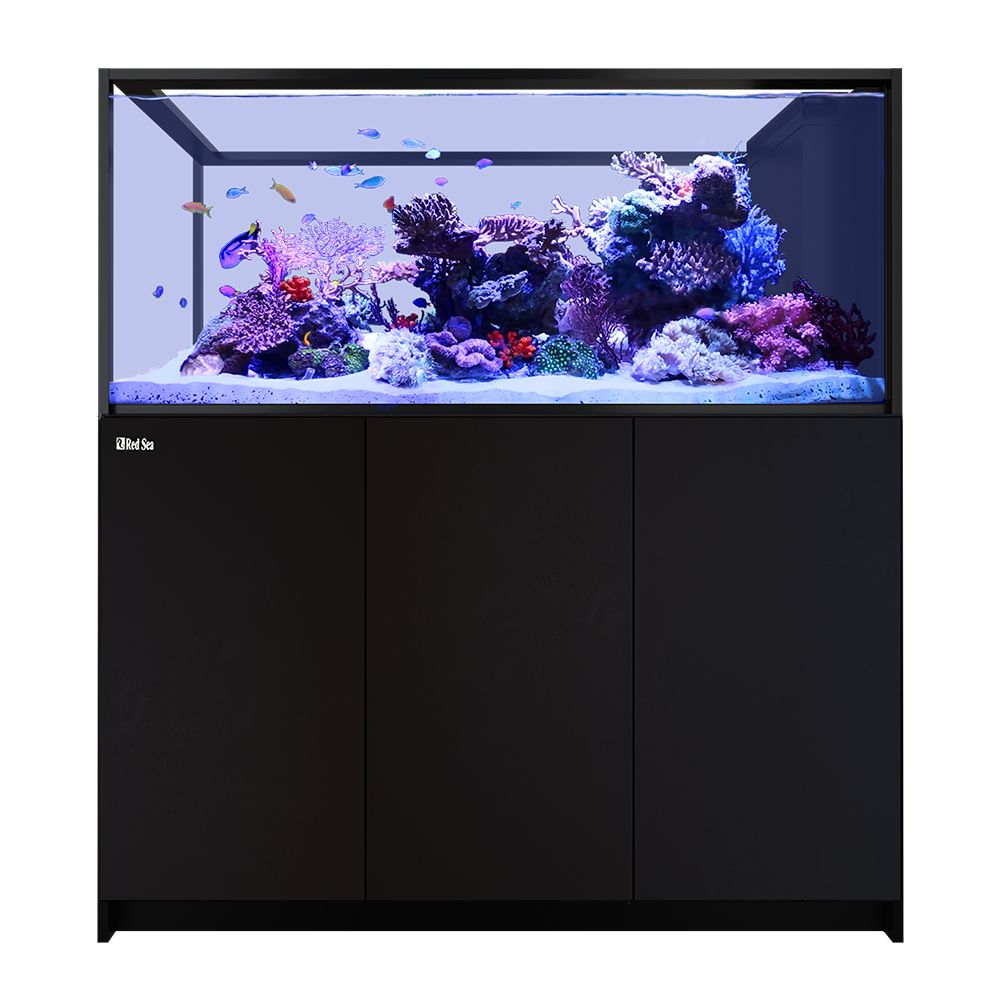

Red Sea Reefer Peninsula S-700 G3+ - Black Cabinet

Red Sea Reefer Peninsula S-700 G3+ - Black Cabinet

The Red Sea Reefer Peninsula S-700 G3+ - Black Cabinet is a 705 litre (186.2 US gallon) premium reef-ready aquarium system designed for impressive three-sided viewing. Combining a 568 litre (150 US gallon) eurobraced ultra-clear glass display, a 136.7 litre (36.1 gallon) REEF-SPEC filtration sump, and a black cabinet built around a marine-spec anodized aluminum superstructure, it provides a substantial platform for a custom reef aquarium that can also serve as a striking room divider.

Measuring 151 cm (59.4 inches) long, 68 cm (26.8 inches) wide, and 65 cm (25.6 inches) high, the Peninsula S-700 G3+ offers space for central reef structures, open swimming channels, and coral colonies visible from both long sides and the exposed end. Its reinforced 19 mm ultra-clear glass, dual curved return outlets, precision ReefGate valve, and ReefMat-ready sump provide the aquarium infrastructure, while the included ReefControl Pro Controller and ReefControl ATO Module supply connected automatic top-off and temperature monitoring. Lighting, return pumps, protein skimmer, wavemakers, and additional equipment are selected separately.

Red Sea Reefer Peninsula S-700 G3+ Three-Sided Reef Display

• Peninsula room-divider design: The aquarium is intended to be viewed from two long sides and an exposed end, making it suitable for open-concept homes, offices, reception areas, and spaces where a traditional wall-facing aquarium would be less effective.
• 151 cm (59.4 inch) display length: The five-foot aquarium provides room for substantial rock islands, individual coral zones, open sand areas, and swimming channels around the aquascape.
• 68 cm (26.8 inch) aquascaping width: The broad front-to-back dimension supports layered rockwork and central reef structures that remain attractive when viewed from either side.
• 65 cm (25.6 inch) display height: The aquarium provides vertical space for reef ledges, branching corals, and rock formations positioned at different levels.

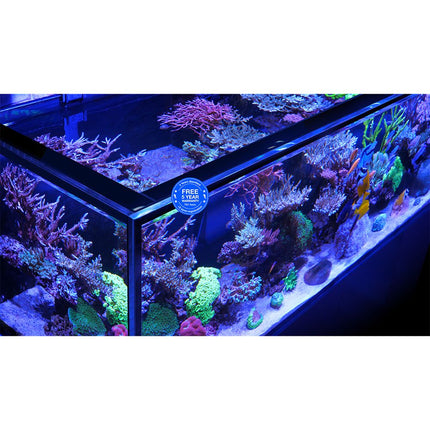

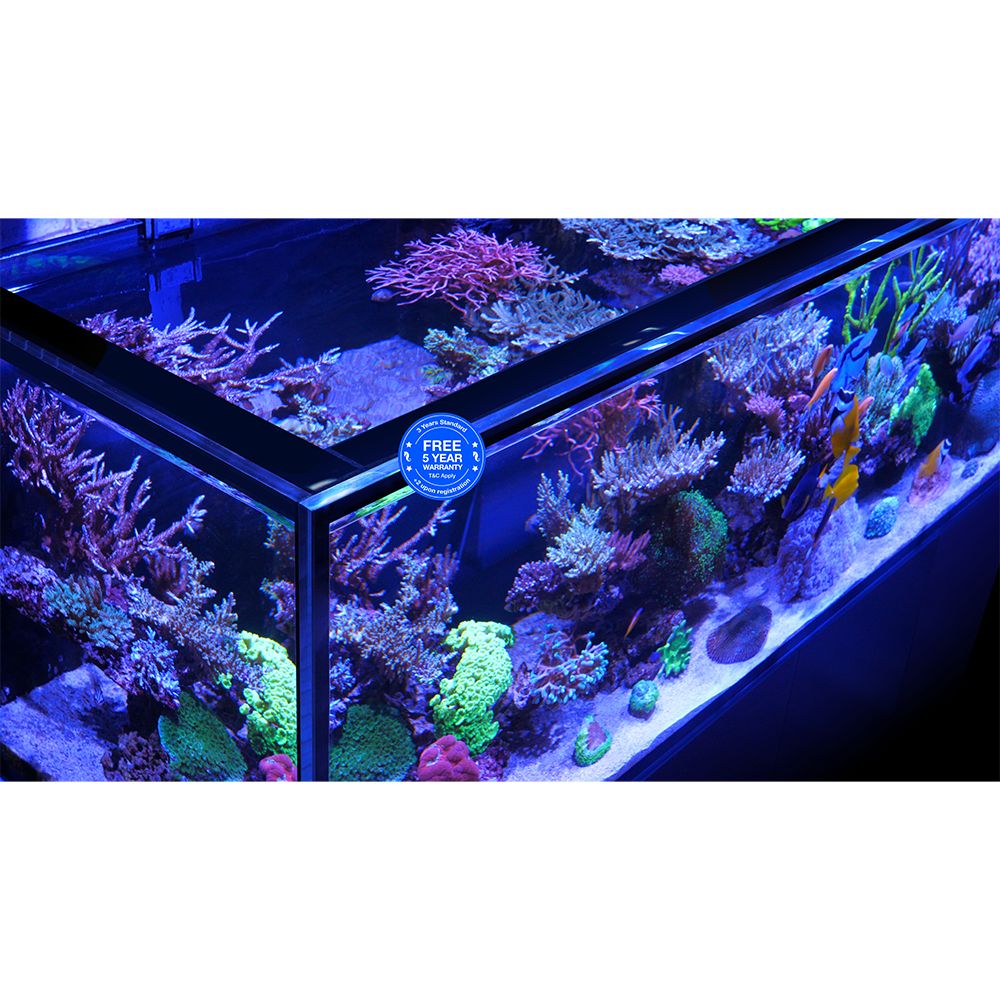

• 19 mm (0.75 inch) ultra-clear glass: The low-iron viewing panels provide clarity across the substantial display, reducing unwanted glass tint and improving the presentation of marine fish and coral colours.
• Eurobraced construction: Elegant jet-black upper perimeter reinforcement and high-quality euro-silicone bonding provide structural strength while maintaining a clean viewing profile.
• Customizable reef-ready platform: The standard system supplies the aquarium, supporting cabinet, sump, plumbing, and smart top-off hardware without requiring the complete equipment selection offered in MAX configurations.

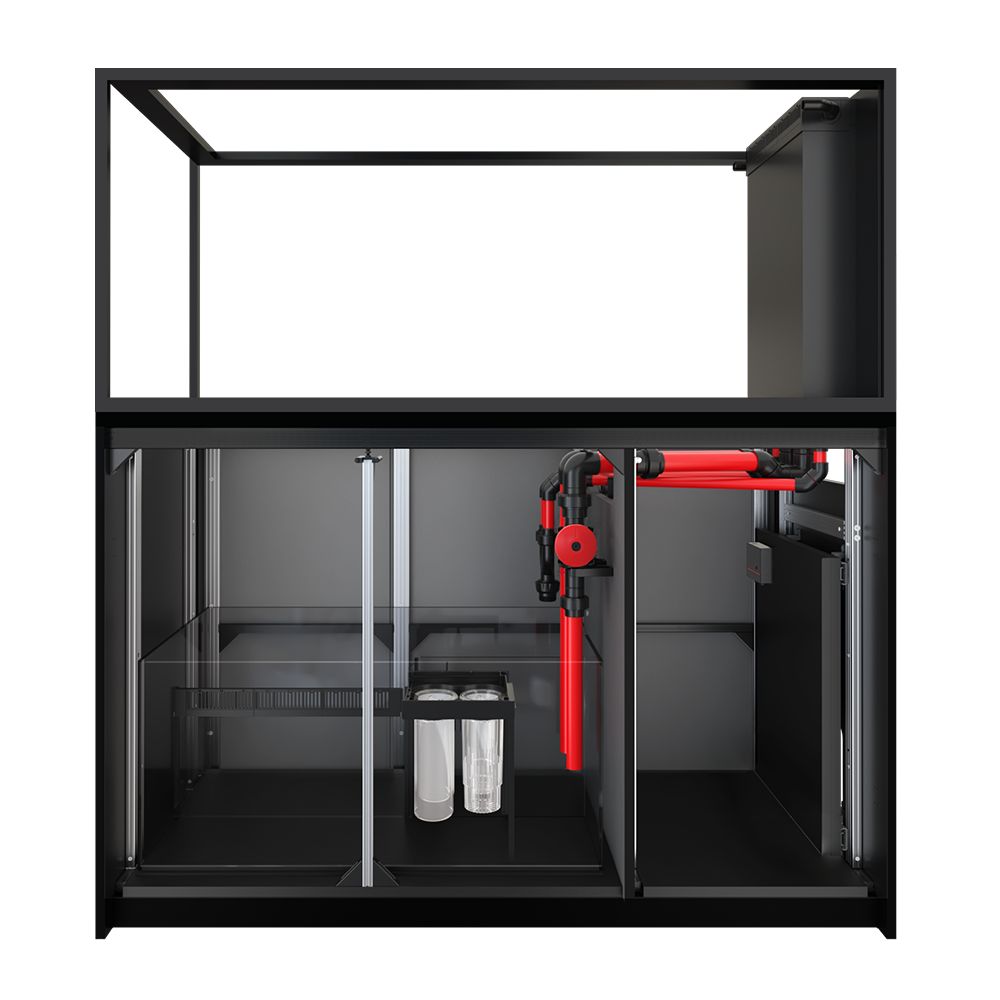

Black Aluminum Cabinet and Slide-Out Equipment Panel

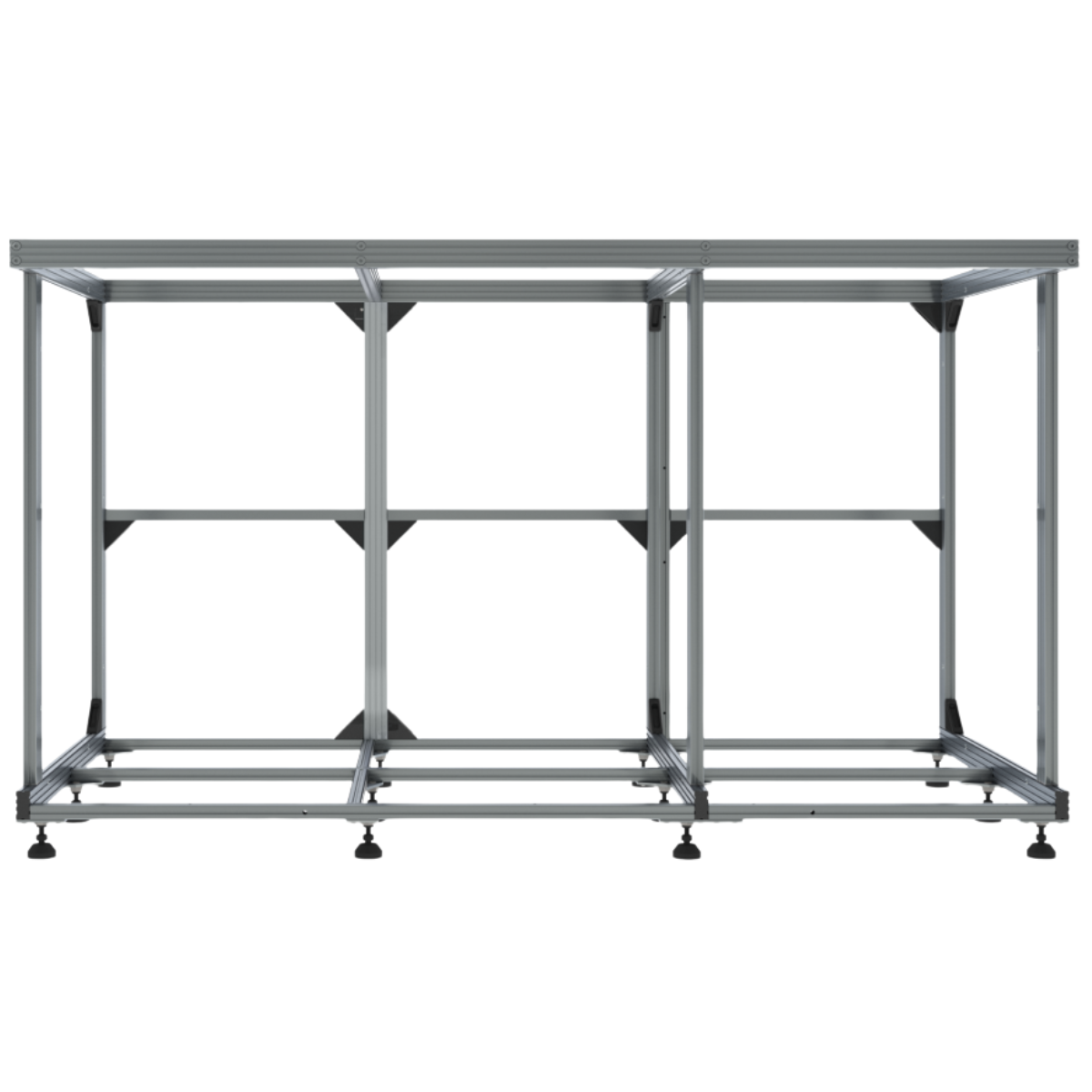

The Peninsula S-700 G3+ uses Red Sea's premium REEFER-S cabinet construction. Its rigid anodized aluminum supporting frame and replaceable black exterior panels create a sturdy furniture-style installation, while the slide-out control panel helps keep compatible electronic equipment organized and accessible for servicing.

• Marine-spec anodized aluminum superstructure: The rigid frame supports the large peninsula aquarium and provides additional reinforcement for the extended display.
• Replaceable black exterior panels: The cabinet's modular design separates the finished exterior from the underlying aluminum supporting structure.
• Hidden heavy-duty leveling feet: Concealed adjustments allow the cabinet to be leveled correctly before positioning and filling the glass aquarium.
• Slide-out control panel: A dedicated mounting surface provides an accessible location for compatible ReefControl devices, power equipment, dosing pumps, and associated wiring.
• Equipment organization: The cabinet accommodates the filtration sump and related equipment beneath the display, helping preserve the aquarium's three-sided viewing arrangement.
• Practical maintenance access: Plan the position of controllers, tubing, and electrical equipment so that mechanical filters, the skimmer, and return pumps remain accessible without unnecessary dismantling.
• Black cabinet presentation: The dark exterior creates a contrasting base beneath the illuminated reef, emphasizing the colours and movement within the aquarium.

ReefControl Pro with Digital Automatic Top-Off

The Peninsula S-700 G3+ includes Red Sea's ReefControl Pro Controller and ReefControl ATO Module as standard equipment. This provides connected water-level management and temperature monitoring, with additional connections available for compatible ReefSense sensors and other control devices.

• ReefControl Pro Controller: Supports up to seven compatible ReefSense digital probes or sensors and two 12V DC devices, providing capacity for future aquarium monitoring upgrades.
• Automatic freshwater replenishment: The ReefControl ATO Module monitors sump water level and operates its dedicated DC pump to replace freshwater lost through evaporation, helping maintain stable salinity.
• Integrated temperature sensor: The digital ATO water-level sensor also provides temperature monitoring, with readings and available notifications through ReefControl.
• ReefBeat integration: Compatible connected equipment can be monitored and configured through Red Sea's ReefBeat ecosystem, including supported device settings and alerts.
• Optional ReefSense expansion: Compatible pH, salinity, ORP, and other digital probes can be added separately according to the aquarium's monitoring requirements.
• Additional equipment control: Optional ReefControl Power hardware can extend supported AC equipment management alongside the Pro controller's device connections.
• Included ATO installation hardware: The ATO Module provides the digital level and temperature sensor, DC pump, mounting components, tubing, tube holder, and siphon breaker.
• Standard package distinction: ReefControl Pro and the ATO Module are included, while separate ReefSense water-parameter probes and the additional lighting, skimming, return pumps, and circulation equipment associated with MAX packages are not.

Peninsula-Specific Dual Returns and Quiet ReefGate Drainage

The Peninsula S-700 G3+ uses hydrodynamically designed plumbing intended to distribute filtered water along the length of the aquarium. Its dual side-facing curved return outlets complement the room-divider layout, while the enlarged downflow and precision ReefGate valve regulate water entering the sump with reduced turbulence.

• Two curved 25 mm (approximately 1 inch) return outlets: The side-facing connections distribute return flow toward the far end of the peninsula display and can be supplied by compatible single- or dual-pump arrangements.
• High-precision ReefGate valve: Fine downflow adjustments help balance the overflow operating level with the selected return pump system for quiet, consistent operation.
• Enlarged rectangular downflow inlet: The redesigned drainage entrance reduces unnecessary turbulence as water travels into the filtration plumbing.
• Removable surface-skimming combs: Sections surrounding the overflow can be removed for cleaning to maintain effective collection of surface water.
• Hydrodynamically optimized piping: Red Sea's water-management layout is designed to reduce unnecessary restrictions and improve flow along the peninsula aquarium.
• Single- or dual-pump flexibility: The two return outlets allow different compatible pump arrangements, depending on plumbing design and the desired return flow.
• Model-specific plumbing: Red Sea's S-700 G3+ specifications list two 25 mm return connections. These should not be confused with the different plumbing arrangements found on other REEFER-S models.
• Supplementary circulation: Dedicated wavemakers can be positioned to move water around central rock structures and coral colonies without unnecessarily obstructing the long viewing panels.

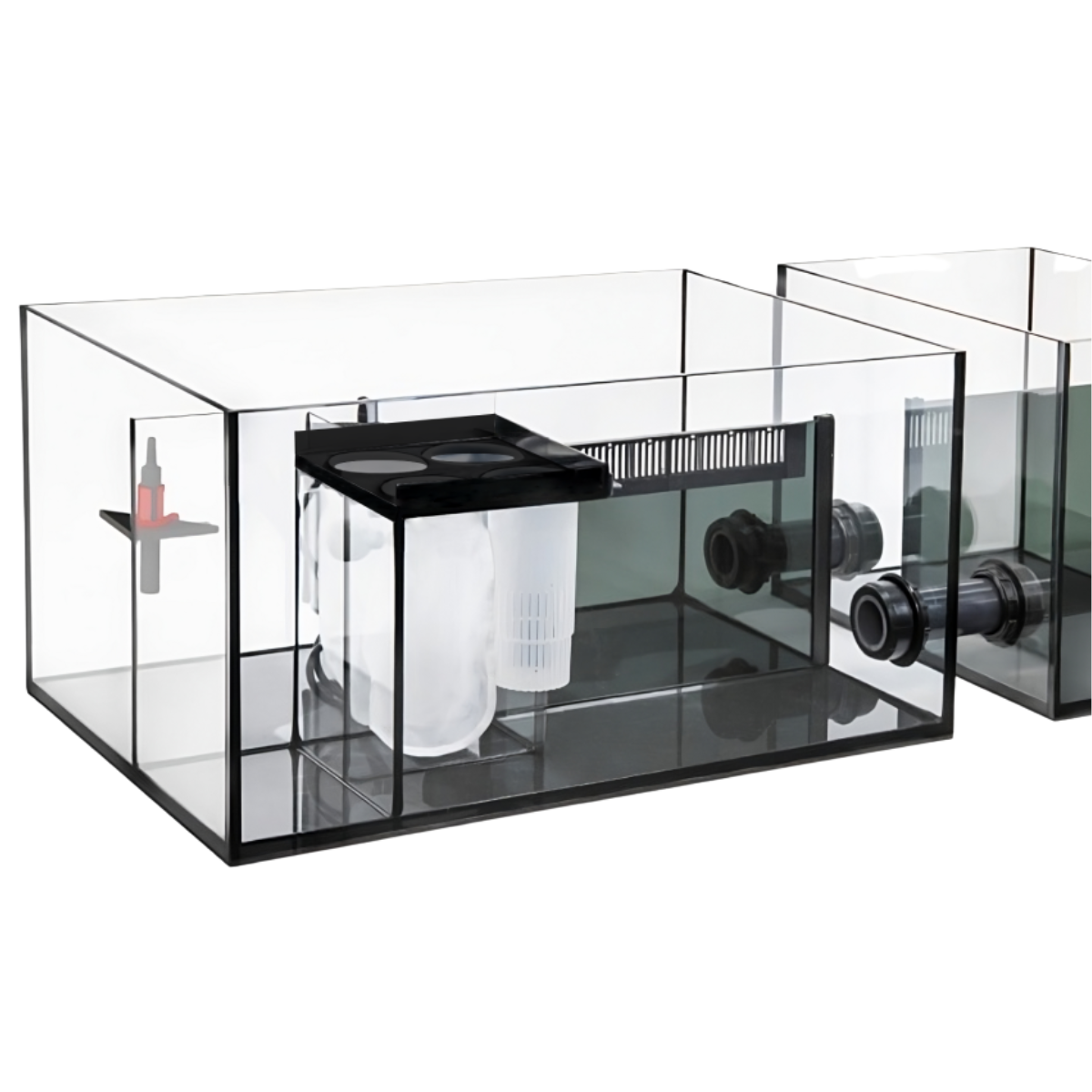

136.7 Litre REEF-SPEC Sump and ReefMat-Ready Filtration

The Peninsula S-700 G3+ includes a 136.7 litre (36.1 US gallon) REEF-SPEC sump with space for mechanical filtration, protein skimming, and return circulation. Its removable ReefMat-ready filter compartment, adjustable skimmer chamber, and optional refugium-divider compatibility provide flexibility when planning a filtration system for this large aquarium.

• Two 225-micron mechanical filter bags: The supplied fine-mesh filters capture suspended particles and detritus entering the sump and can be removed for routine cleaning.
• Two filter media cups: The mechanical filtration compartment also includes two media cups for alternative filtration arrangements.
• ReefMat-ready design: The removable mechanical filter assembly can be replaced with compatible automated fleece filtration without rebuilding the aquarium's standard downflow plumbing.
• Optional ReefMat 1200: Red Sea specifies the ReefMat 1200 for the corresponding REEFER MAX Peninsula S-700 G3+ configuration, providing an identified automatic filtration upgrade.
• Adjustable skimmer chamber: The Peninsula G3+ sump provides an adjustable operating water depth within the 17-27 cm (6.7-10.6 inch) range, allowing compatible protein skimmers to operate at their required level.
• Optional refugium divider: A compatible partition allows part of the sump to be arranged as a dedicated refugium for additional biological filtration or nutrient management.
• Single-sump configuration: The S-700 G3+ has one main filtration sump. The separate extension sump is a feature of the larger Peninsula S-950 G3+ and is not included with this model.
• Equipment planning: Confirm that the selected skimmer, return pumps, mechanical filtration, and any optional refugium equipment fit the available sump chambers before installation.

Choosing Equipment for a Five-Foot Peninsula Reef

The Peninsula S-700 G3+ provides a premium foundation for marine fish displays, soft coral and LPS reefs, or appropriately equipped mixed reefs. Its deep footprint and three-sided viewing arrangement are particularly useful for elaborate central aquascapes, although lighting and circulation should be planned to reach the full length and both sides of the display.

• Return pump reference: Red Sea specifies two ReefRun G2 12000 pumps in the corresponding REEFER MAX Peninsula S-700 G3+ equipment package. Return pumps are sold separately with this standard reef-ready aquarium.
• Lighting reference: Red Sea uses three ReefLED G2 170 fixtures in the MAX configuration. Other suitable lighting may be selected to cover the 151 x 68 cm (59.4 x 26.8 inch) footprint and provide the intensity required by the intended corals.
• Protein skimmer reference: Red Sea specifies an RSK DC 900 for the equivalent MAX package. Alternative skimmers should be selected for the aquarium's filtration requirements, chamber dimensions, and operating water depth.
• Water circulation: The MAX configuration uses two ReefWave 45 pumps. Independently selected wavemakers should direct flow around the central rockwork while preserving clear viewing angles.
• Freshwater reservoir: The included ATO Module requires a separate freshwater supply. Plan reservoir size, tubing access, and space for regular refilling.
• Optional filtration upgrades: Compatible ReefMat equipment, a refugium divider, dosing systems, and additional ReefSense monitoring can be added as the aquarium's needs develop.
• Room-divider placement: Allow enough space to clean both long glass panels and the exposed end, access the filtration cabinet, and move safely around the aquarium.

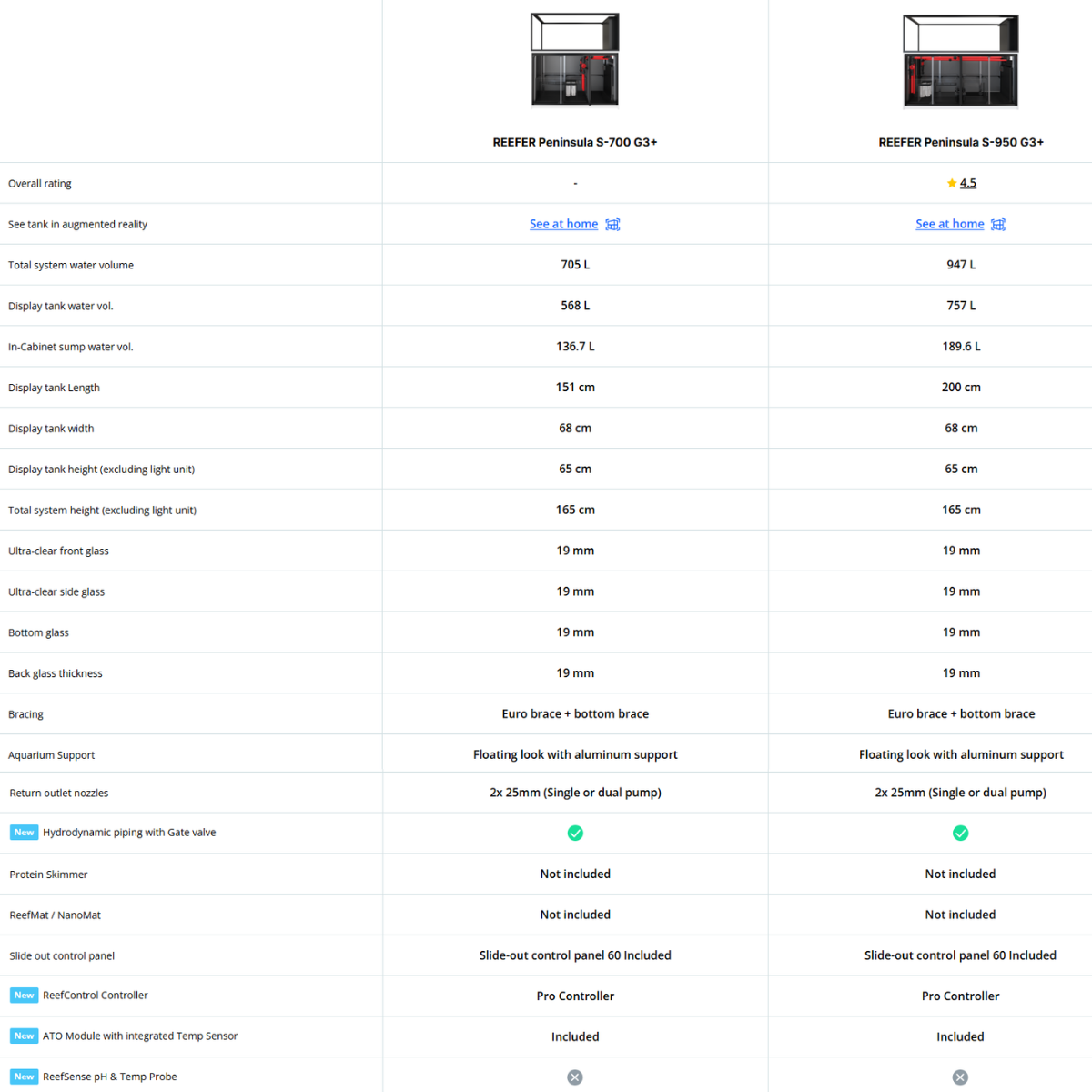

• S-700 versus S-950: The S-700 offers a shorter 151 cm display and single sump, while the S-950 provides 200 cm of aquarium length, substantially greater water capacity, and a multipurpose extension sump.

Red Sea Reefer Peninsula S-700 G3+ Black Specifications

• Total system volume: 705 L / approximately 186.2 US gal.
• Display aquarium volume: 568 L / approximately 150 US gal.
• In-cabinet sump volume: 136.7 L / approximately 36.1 US gal.
• Display dimensions: 151 cm L x 68 cm W x 65 cm H / approximately 59.4 x 26.8 x 25.6 inches.
• Total height including cabinet: 165 cm / approximately 65 inches.
• Front viewing glass thickness: 19 mm / approximately 0.75 inches.
• Glass construction: Eurobraced ultra-clear glass bonded with high-quality euro-silicone.
• Display format: Three-sided peninsula room-divider aquarium.
• Cabinet: Black marine-spec anodized aluminum superstructure with replaceable exterior panels and concealed adjustable leveling feet.
• Cabinet equipment features: Slide-out control panel for compatible electronics and accessories.
• Return outlets: Two curved 25 mm side-facing connections for compatible single- or dual-pump configurations.
• Filtration: Single REEF-SPEC sump with removable ReefMat-ready compartment, two 225-micron filter bags, and two media cups.
• Adjustable skimmer chamber: 17-27 cm / approximately 6.7-10.6 inches operating water depth.
• Refugium: Optional dedicated sump divider.
• Included controller: ReefControl Pro with support for up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories.
• MAX-package return pump reference: Two ReefRun G2 12000 pumps, sold separately.
• Optional roller filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years at no additional charge when registered within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Choose an installation location with adequate structural support and clearance around the two long viewing panels and exposed end. Confirm cabinet servicing space and access for freight delivery before assembly.
• Assemble and level the black aluminum-superstructure cabinet according to Red Sea's instructions, arranging appropriate lifting assistance for the heavy eurobraced glass aquarium.
• Install the REEF-SPEC sump, overflow, ReefGate valve, and dual return plumbing, ensuring that all connectors and seals are correctly seated.
• Mount ReefControl Pro and install the ReefControl ATO Module, connecting its digital water-level and temperature sensor, top-off pump, tubing, and associated hardware according to Red Sea's instructions.
• Provide a suitable freshwater reservoir and arrange access for refilling and inspecting the top-off equipment.
• Mount compatible electronics on the slide-out control panel with suitable cable routing and access for future maintenance.
• Install the selected return pumps, protein skimmer, lighting, heating, and wavemakers. Set the adjustable skimmer chamber water depth to suit the selected skimmer.
• Follow Red Sea's initial-fill procedure, check all plumbing connections for leaks, and tune ReefGate gradually, allowing time for the overflow level to stabilize between adjustments.
• Perform a power-out test to confirm that the sump can accommodate water draining from the aquarium when the return pumps stop.
• Maintain the filter bags, media cups, surface-skimming combs, return outlets, and ATO sensor. Establish biological filtration before introducing marine livestock.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER Peninsula S-700 G3+ eurobraced ultra-clear glass aquarium
• Black marine-spec anodized aluminum cabinet superstructure with replaceable exterior panels and concealed adjustable leveling feet
• Slide-out equipment control panel
• 136.7 litre REEF-SPEC sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and return plumbing with ReefGate precision valve
• Surface-skimming overflow with removable combs
• Two curved 25 mm side-facing return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
