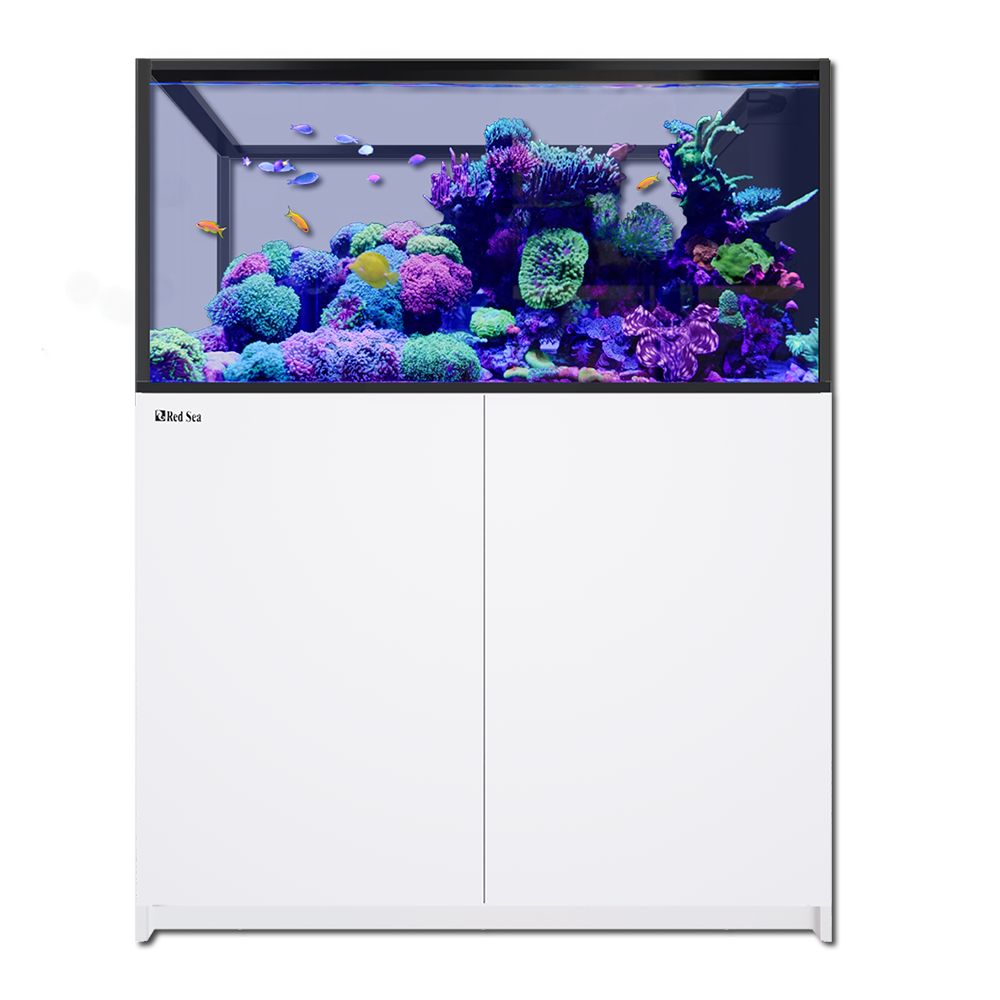

Red Sea Reefer Peninsula 500 G3+ - White Cabinet

Red Sea Reefer Peninsula 500 G3+ - White Cabinet

The Red Sea Reefer Peninsula 500 G3+ - White Cabinet is a 519 litre (137.1 US gallon) reef-ready aquarium system designed for impressive three-sided marine reef displays. It combines a 412 litre (108.8 gallon) eurobraced ultra-clear glass aquarium, a 106.6 litre (28.2 gallon) REEF-SPEC filtration sump, a reinforced White marine-spec plywood cabinet, and integrated ReefControl Pro automation. With a 125 cm (49.2 inch) length and 63.5 cm (25 inch) front-to-back width, it provides substantial aquascaping space in a room-divider format that can be enjoyed from both long sides and the exposed end.

The Peninsula 500 G3+ adds Red Sea's ReefControl Pro Controller and ReefControl ATO Module to a reinforced eurobraced glass design. Its dual curved 25 mm return outlets, hydrodynamically optimized plumbing, enlarged rectangular downflow, and precision ReefGate valve provide the circulation and drainage infrastructure for a custom reef. The larger sump includes two mechanical filter bags, two media cups, an adjustable skimmer chamber, and removable ReefMat-ready filtration. Lighting, return pumps, protein skimmer, wavemakers, and other equipment are selected separately.

Red Sea Reefer Peninsula 500 G3+ White Room-Divider Aquarium

• Three-sided peninsula viewing: The reef can be viewed through both long glass panels and the exposed end, creating a feature aquarium suited to open-concept spaces, living areas, reception rooms, and commercial installations.
• 125 cm (49.2 inch) display length: The longer aquarium provides space for extended rock formations, multiple coral zones, and open swimming channels while retaining the distinctive peninsula presentation.
• 63.5 cm (25 inch) aquascaping depth: The wide footprint accommodates substantial central rock islands, branching coral structures, and open areas between the aquascape and viewing panels.
• 412 litre (108.8 gallon) display volume: The larger main aquarium provides considerably more water volume and aquascaping space than the compact Peninsula 350 G3+.
• 15 mm (0.59 inch) ultra-clear front glass: Low-iron viewing panels reduce unwanted glass tint for improved presentation of marine fish, corals, and reef lighting.
• Eurobraced construction: Perimeter reinforcement and high-quality euro-silicone support the glass aquarium while preserving a clean, premium viewing profile.
• White marine-spec cabinet: The reinforced plywood stand provides a dark furniture-style finish with moisture-resistant panels, epoxy-painted doors, stainless steel hinges, and adjustable leveling feet.

Three-Sided Aquascaping and Reversible Cabinet Doors

The Peninsula 500 G3+ offers a different display experience from conventional aquariums that are viewed primarily from the front. Its aquascape should be planned for visibility from both sides, with circulation and equipment placement arranged so that powerheads, wiring, and rockwork do not unnecessarily obstruct the viewing panels.

• Both long panels remain visible: The room-divider layout allows the aquarium to divide two areas without presenting a conventional opaque aquarium back to either side.
• Exposed end viewing: The outer end of the aquarium provides another viewing angle into the central aquascape and open swimming areas.
• Reversible cabinet doors: The cabinet can be installed with doors accessible from either the left or right side, allowing the owner to select the most practical service arrangement.
• Reinforced plywood construction: Marine-spec laminated cabinet panels support the display and house the filtration equipment beneath it.
• Stainless steel hinges and adjustable feet: Corrosion-resistant hardware and leveling adjustments provide practical installation and maintenance features.
• Centre-focused rockwork: Free-standing rock islands and open channels are particularly effective in peninsula aquariums because they remain visible from multiple directions.
• Maintenance clearance: Leave enough room to clean all three viewing panels and access the cabinet doors without interfering with surrounding furniture or walkways.

ReefControl Pro and Integrated Automatic Top-Off

Unlike the smaller Peninsula 350 G3+, the Peninsula 500 G3+ includes ReefControl Pro rather than ReefControl Lite. The Pro controller supports more compatible ReefSense monitoring connections and auxiliary devices, while the included ReefControl ATO Module provides automatic freshwater replenishment and temperature monitoring.

• ReefControl Pro included: Supports up to seven compatible ReefSense digital probes or sensors and two 12V DC devices.
• Digital automatic top-off: The ReefControl ATO Module monitors the sump water level and operates its dedicated DC pump to replace freshwater lost through evaporation.
• Integrated temperature monitoring: The digital ATO level sensor also measures aquarium temperature and provides available readings and notifications through ReefControl.
• Included ATO components: The module includes its digital sensor, mounting hardware, DC pump, silicone tubing, tube holder, and siphon breaker.
• ReefBeat connectivity: Compatible devices and sensors can be monitored and configured through Red Sea's ReefBeat ecosystem.
• Additional ReefSense options: Compatible pH, salinity, ORP, and other monitoring probes can be added separately to suit the aquarium's requirements.
• Optional power control: ReefControl Power can provide additional supported AC equipment management through the connected ecosystem.
• Standard package clarification: ReefControl Pro and the ATO Module are included, but additional water-parameter probes and the complete lighting, skimming, and circulation equipment supplied with MAX configurations are not.

Dual Side-Facing Return Outlets and ReefGate Plumbing

The Peninsula 500 G3+ uses Red Sea's hydrodynamically optimized plumbing to move filtered water along the length of the display. Two curved side-facing return outlets help distribute water through the aquarium, while an enlarged surface-skimming overflow and precision ReefGate valve regulate the downflow to the sump.

• Two curved 25 mm (approximately 1 inch) return outlets: The dual connections deliver filtered water toward the length of the peninsula and can operate with compatible single- or dual-pump plumbing arrangements.
• ReefGate high-precision valve: Small adjustments regulate the primary drain and help balance the overflow water level against the selected return pump configuration.
• Enlarged rectangular downflow inlet: The redesigned inlet reduces turbulence as water enters the filtration pipework.
• Removable surface-skimming combs: Water enters through accessible comb sections that can be removed for cleaning.
• Hydrodynamic circulation: Red Sea's flow system is designed to distribute water efficiently along the longer peninsula display.
• Single- or dual-pump flexibility: Customers can select a compatible return arrangement according to desired flow and equipment placement.
• Additional in-tank flow: Dedicated wavemakers help circulate water behind central rock structures and across coral colonies beyond the flow provided by the sump returns.

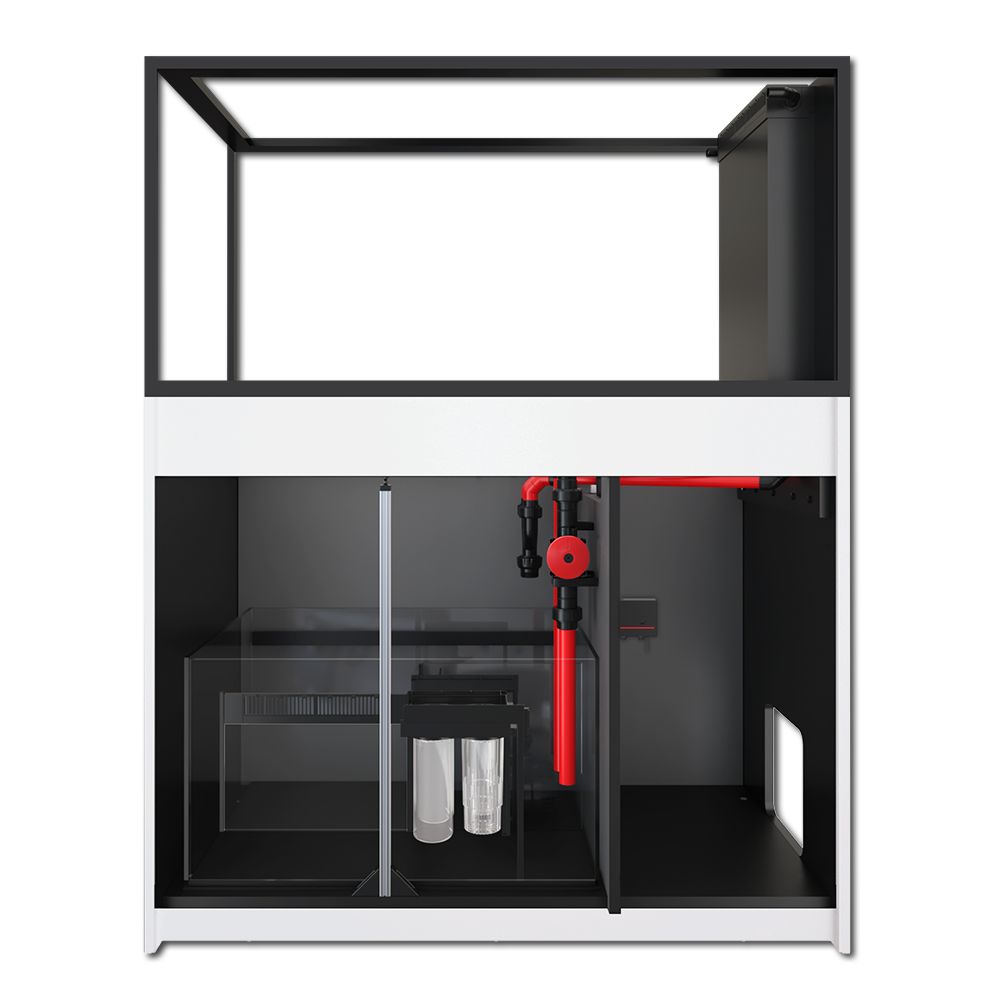

106.6 Litre REEF-SPEC Sump and ReefMat-Ready Filtration

The Peninsula 500 G3+ includes a 106.6 litre (28.2 US gallon) REEF-SPEC sump with more filtration capacity and supplied mechanical filtration components than the smaller 350. Its adjustable-height skimmer chamber, optional refugium-divider compatibility, and removable ReefMat-ready compartment give aquarists flexibility when planning a larger reef.

• Two 225-micron filter bags: The supplied fine-mesh mechanical filters collect suspended particles entering the sump and can be removed for cleaning.
• Two filter media cups: The mechanical filtration compartment also includes two cups for alternative filtration arrangements.
• ReefMat-ready compartment: The removable mechanical filtration assembly allows conversion to compatible automatic fleece filtration without rebuilding the standard drain plumbing.
• Optional ReefMat 1200: Red Sea specifies the ReefMat 1200 for the corresponding REEFER MAX Peninsula 500 G3+ configuration. This differs from the ReefMat 500 pairing used with the smaller 350 G3+.
• Adjustable skimmer chamber: The Peninsula G3+ filtration system provides an adjustable 17-27 cm (6.7-10.6 inch) operating water depth for compatible protein skimmers.
• Optional refugium divider: A compatible partition can create a dedicated refugium area for biological filtration or nutrient-management planning.
• Separate filtration space: The sump keeps skimming, mechanical filtration, and return equipment below the aquarium, preserving its three-sided viewing layout.

Equipment Selection for a Larger Peninsula Reef

The Peninsula 500 G3+ is suited to larger marine fish displays, LPS or soft coral reefs, and appropriately equipped mixed reef systems. Because the aquarium is viewed from three sides, careful planning of lighting, circulation, and central rockwork is especially important.

• Return pump reference: Red Sea specifies one ReefRun G2 8000 for the equivalent MAX Peninsula 500 G3+ package. The pump is sold separately with the standard reef-ready aquarium.
• Lighting reference: Red Sea pairs the corresponding MAX configuration with two ReefLED G2 170 fixtures. Alternative lighting should cover the 125 x 63.5 cm (49.2 x 25 inch) footprint at the intensity required by the intended corals.
• Protein skimmer reference: Red Sea specifies an RSK DC 600 for the MAX package. Alternative skimmers should be checked for sump fitment and the appropriate water-depth range.
• Supplementary circulation: The MAX version uses two ReefWave 45 pumps. Independently selected wavemakers should provide adequate circulation around the central aquascape while minimizing visual obstruction.
• Freshwater reservoir: The included ATO Module requires a suitable freshwater supply. Plan its location and tubing access alongside the larger sump and optional filtration equipment.
• Optional automation: Compatible ReefSense probes, ReefControl Power, dosing equipment, and ReefMat filtration can be added as the reef's requirements develop.
• Peninsula 350 comparison: The 500 provides a longer display, greater sump capacity, two filter bags and two media cups, and ReefControl Pro instead of Lite.
• Room-divider planning: Confirm that the installation leaves access for three-sided viewing, cleaning, cabinet doors, electrical equipment, and delivery of the glass aquarium.

Red Sea Reefer Peninsula 500 G3+ White Specifications

• Total system volume: 519 L / approximately 137.1 US gal.
• Display aquarium volume: 412 L / approximately 108.8 US gal.
• In-cabinet sump volume: 106.6 L / approximately 28.2 US gal.
• Display dimensions: 125 cm L x 63.5 cm W x 60 cm H / approximately 49.2 x 25 x 23.6 inches.
• Total height including cabinet: 160 cm / approximately 63 inches.
• Ultra-clear front glass thickness: 15 mm / approximately 0.59 inches.
• Glass construction: Eurobraced ultra-clear glass with high-quality euro-silicone bonding.
• Display format: Three-sided peninsula room-divider aquarium.
• Cabinet: White reinforced marine-spec plywood with splash-resistant epoxy-painted doors, stainless steel hinges, and adjustable leveling feet.
• Cabinet access: Doors configurable on the left or right side.
• Return outlets: Two curved 25 mm side-facing connections for single- or dual-pump arrangements.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Skimmer chamber operating depth: Adjustable 17-27 cm / approximately 6.7-10.6 inches.
• Refugium compatibility: Optional dedicated sump divider.
• Included controller: ReefControl Pro with up to seven compatible ReefSense probe or sensor connections and two 12V DC device connections.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor, DC pump, and installation accessories.
• MAX-package return pump reference: ReefRun G2 8000, sold separately.
• Optional automatic filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years at no additional charge upon registration within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Choose a suitable peninsula installation location with sufficient space for three-sided viewing, cleaning both long panels, servicing the cabinet, and maintaining safe movement around the aquarium.
• Assemble and level the White cabinet according to Red Sea's instructions. Choose left- or right-side door access before positioning the glass display.
• Install the REEF-SPEC sump, overflow, ReefGate valve, and dual return plumbing, ensuring that connectors and seals are correctly fitted.
• Mount ReefControl Pro and connect the ReefControl ATO Module, digital level and temperature sensor, DC pump, tubing, and associated installation components according to Red Sea's instructions.
• Provide a suitable freshwater reservoir for the ATO system and arrange tubing to allow easy inspection and maintenance.
• Install the selected return pump arrangement, protein skimmer, lighting, heating, and wavemakers. Adjust the skimmer chamber operating level to suit the chosen skimmer.
• Follow the manufacturer's initial-fill procedure and inspect all drain and return plumbing for leaks.
• Adjust ReefGate gradually, allowing the overflow water level to stabilize between adjustments.
• Perform a power-out test to ensure the sump can accommodate drain-back water when return circulation stops.
• Clean the filter bags, media cups, surface-skimming combs, return outlets, and ATO sensor during routine maintenance. Establish biological filtration before introducing livestock.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER Peninsula 500 G3+ eurobraced ultra-clear glass aquarium
• White marine-spec plywood cabinet with reversible door configuration and adjustable leveling feet
• 106.6 litre REEF-SPEC sump with adjustable skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and return plumbing with ReefGate precision valve
• Surface-skimming overflow with removable combs
• Two curved 25 mm side-facing return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
