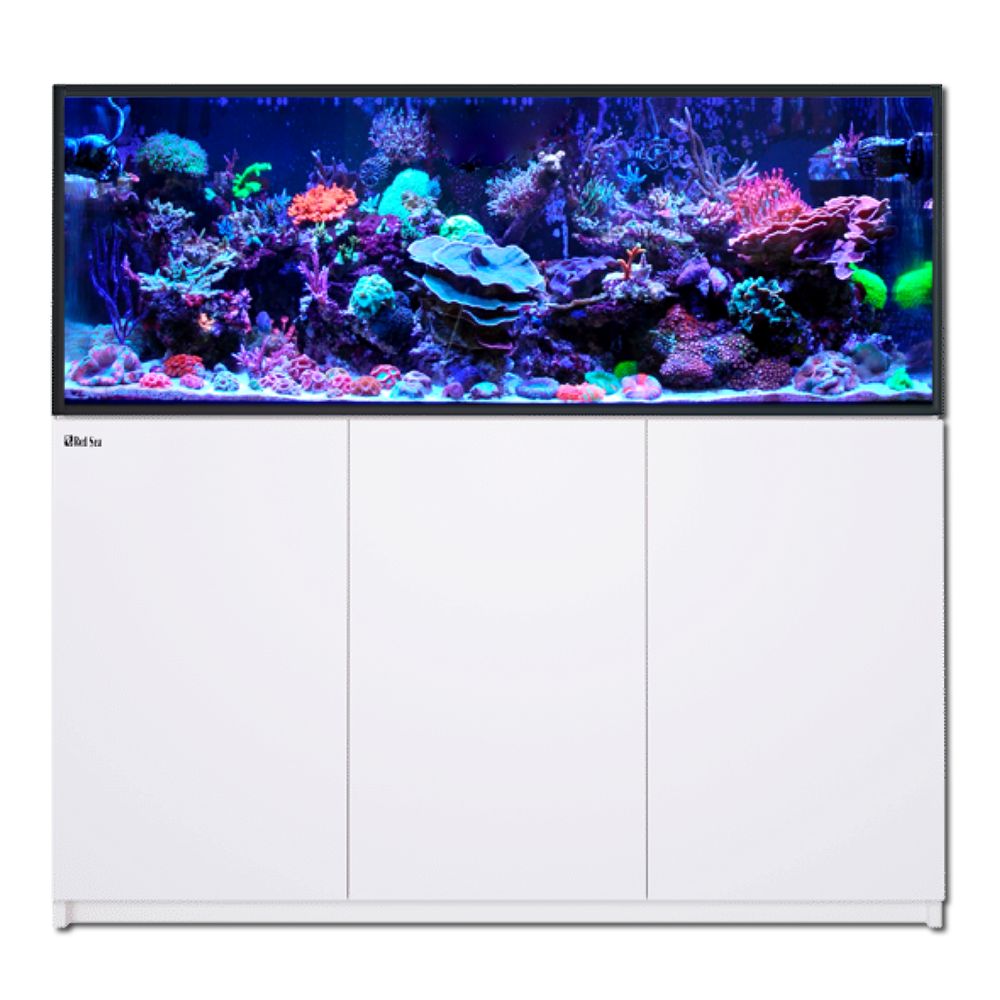

Red Sea Reefer 625 G3+ - White Cabinet

Red Sea Reefer 625 G3+ - White Cabinet

The Red Sea Reefer 625 G3+ - White Cabinet is a 620 litre (163.8 US gallon) reef-ready aquarium system combining a 497 litre (131.3 gallon) eurobraced ultra-clear glass display, a 123 litre (32.5 gallon) REEF-SPEC filtration sump, a reinforced white marine-spec plywood cabinet, and integrated ReefControl Pro automation. With a 150 cm (59.1 inch) length, 65 cm (25.6 inch) front-to-back depth, and 60 cm (23.6 inch) display height, it provides a substantial foundation for a customized marine aquarium with room for layered reef structures, larger coral colonies, and open swimming areas.

The REEFER 625 G3+ combines 19 mm ultra-clear front glass, perimeter eurobracing, additional bottom bracing, aluminum cabinet supports, and Red Sea's hydrodynamically optimized water-management system. Its dual curved return outlets, high-precision ReefGate valve, and removable ReefMat-ready sump provide flexibility for filtration and circulation, while the included ReefControl Pro Controller and ReefControl ATO Module handle automatic freshwater top-off and connected aquarium monitoring. Lighting, return pump, skimmer, wavemakers, and additional equipment are selected separately.

Red Sea Reefer 625 G3+ White Aquarium Construction

• 150 cm (59.1 inch) reef display: The five-foot aquarium provides horizontal space for separate rock formations, open swimming channels, and multiple coral placement areas without restricting the aquascape to a single central structure.
• 65 cm (25.6 inch) front-to-back depth: The generous footprint allows larger rock islands, layered coral arrangements, and open sand areas while leaving space around the aquascape for circulation and cleaning.
• 19 mm (0.75 inch) ultra-clear front glass: The low-iron viewing panel provides clarity across the large display while contributing to the aquarium's reinforced glass construction.
• Eurobracing and bottom reinforcement: The aquarium includes 15 mm (0.59 inch) jet-black perimeter eurobracing, additional bottom bracing, and high-quality euro-silicone bonding for structural integrity.
• White marine-spec plywood cabinet: The reinforced stand features moisture-resistant laminated panels, splash-resistant epoxy-painted doors, stainless steel hinges, and heavy-duty adjustable leveling feet.
• Aluminum front cabinet supports: The larger REEFER format incorporates additional aluminum reinforcement along the front of the cabinet to support the extended aquarium span.
• Floating aquarium appearance: A discreet aluminum support edge creates Red Sea's signature visual separation between the glass display and cabinet while providing additional support.

ReefControl Pro and Automatic Freshwater Management

The REEFER 625 G3+ includes Red Sea's ReefControl Pro Controller and ReefControl ATO Module as standard equipment. This provides connected automatic top-off and temperature monitoring from the beginning, with additional connections for compatible ReefSense probes and equipment control as the aquarium develops.

• ReefControl Pro included: The controller supports up to seven compatible ReefSense digital probes or sensors and two 12V DC devices, allowing a more extensive monitoring arrangement than ReefControl Lite.
• Automatic freshwater replenishment: The ReefControl ATO Module uses a digital water-level sensor and dedicated DC pump to replace evaporated freshwater, helping maintain the sump operating level and aquarium salinity.
• Digital temperature monitoring: The ATO sensor includes an integrated temperature sensor, allowing temperature readings, monitoring history, and notifications through the controller.
• Complete ATO installation components: The module includes its digital level and temperature sensor, mounting hardware, DC top-off pump, silicone tubing, tube holder, and siphon breaker.
• ReefBeat integration: Red Sea's connected ecosystem provides access to compatible sensor readings, notifications, operating history, and equipment settings through the ReefBeat platform.
• Optional monitoring expansion: Compatible ReefSense pH, salinity, ORP, and additional temperature probes can be purchased separately according to the aquarium's monitoring requirements.
• Additional equipment control: Compatible ReefControl Power hardware provides an optional way to integrate controlled AC equipment alongside the Pro controller's supported DC connections.
• Standard versus MAX distinction: The ReefControl Pro Controller and ATO Module are included, but additional ReefSense water-parameter probes and the complete MAX lighting, skimming, return pump, and circulation equipment package are not included.

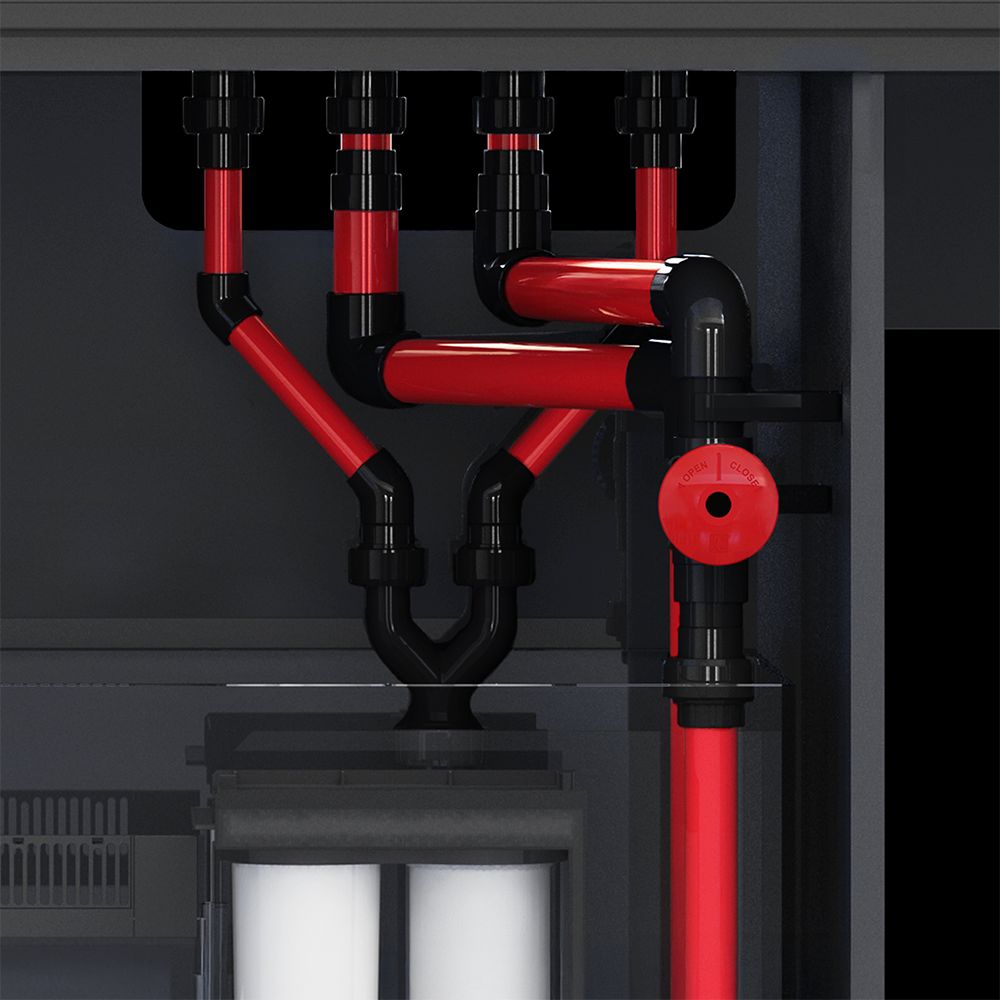

Dual Return Plumbing and Quiet ReefGate Overflow

The REEFER 625 G3+ uses an enlarged rectangular downflow inlet and hydrodynamically designed pipework to transfer water from the display into the filtration sump with reduced turbulence. The high-precision ReefGate valve controls the drain, while two curved return outlets offer flexibility when configuring water circulation for the longer aquarium.

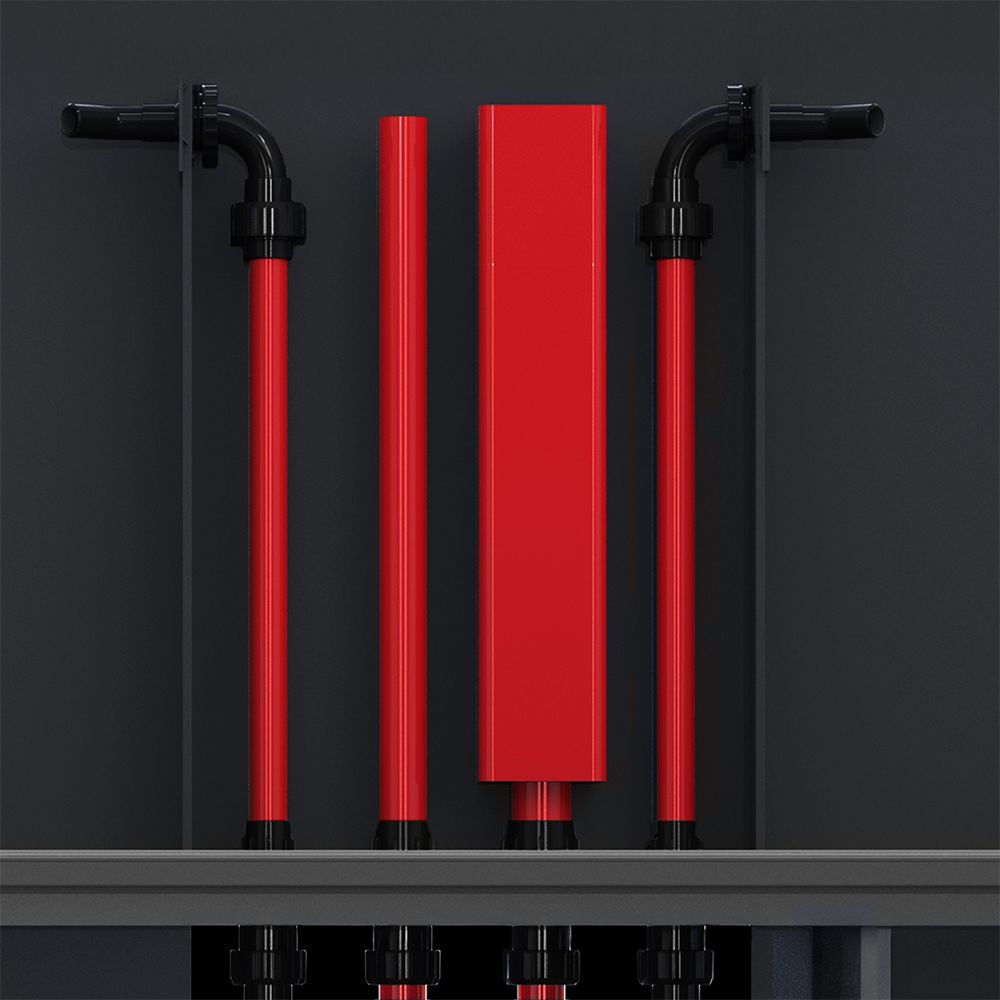

• Two curved 25 mm (approximately 1 inch) return outlets: The dual connections allow filtered water to enter the display from two positions and can be supplied by one compatible return pump or two separate pumps.
• Precision ReefGate valve: Small adjustments regulate the main downflow and help maintain a consistent overflow operating level with minimal unwanted drainage noise.
• Enlarged rectangular downflow: The redesigned drain inlet reduces turbulence as water enters the plumbing, contributing to quieter sump operation.

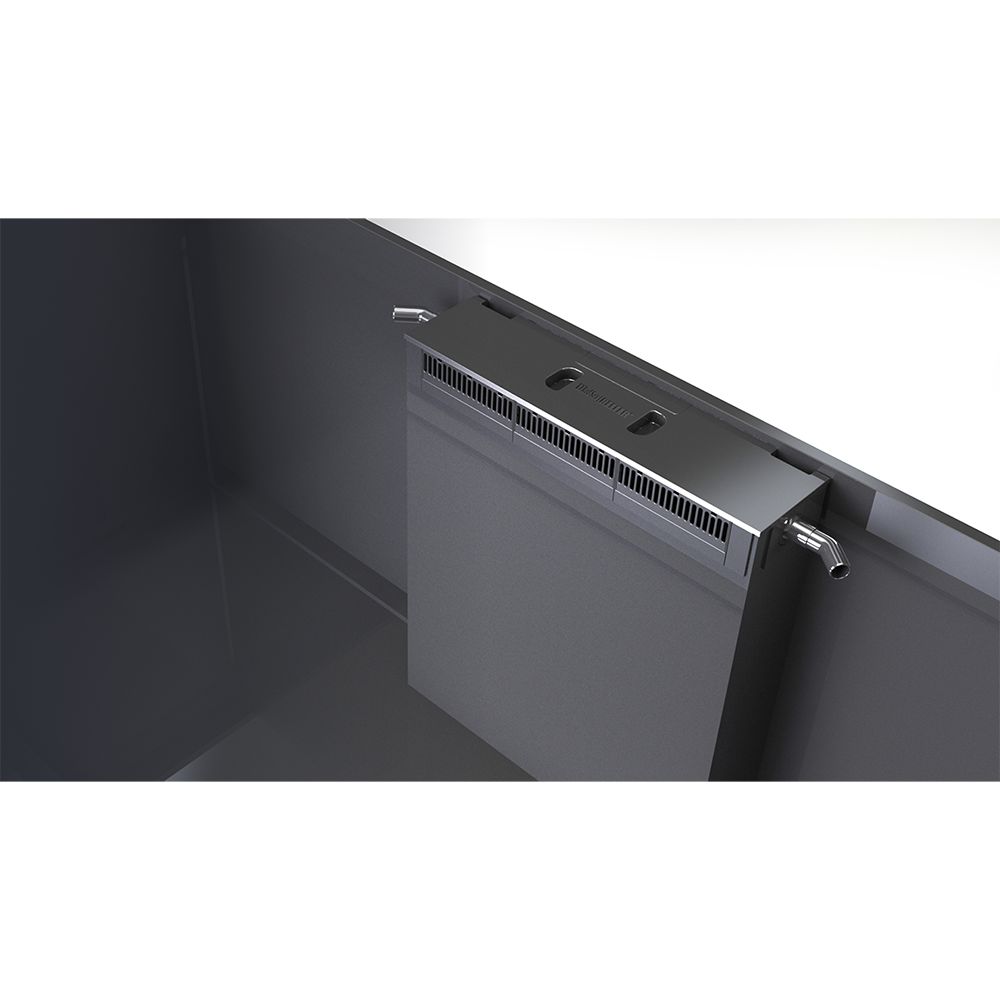

• Removable surface-skimming combs: The central overflow collects water from the aquarium surface through comb sections that can be removed for cleaning.
• Hydrodynamically optimized piping: The redesigned plumbing minimizes unnecessary flow resistance between the display and sump.
• Primary and secondary drainage: The overflow incorporates a regulated main downpipe and secondary bypass as part of its water-management system.
• Custom plumbing options: Metric and imperial pipe-connection options are available for aquarists planning alternative return plumbing arrangements.
• Model-specific return sizing: The 625 uses dual 25 mm outlets rather than the larger 32 mm return plumbing supplied with the REEFER 750 G3+.

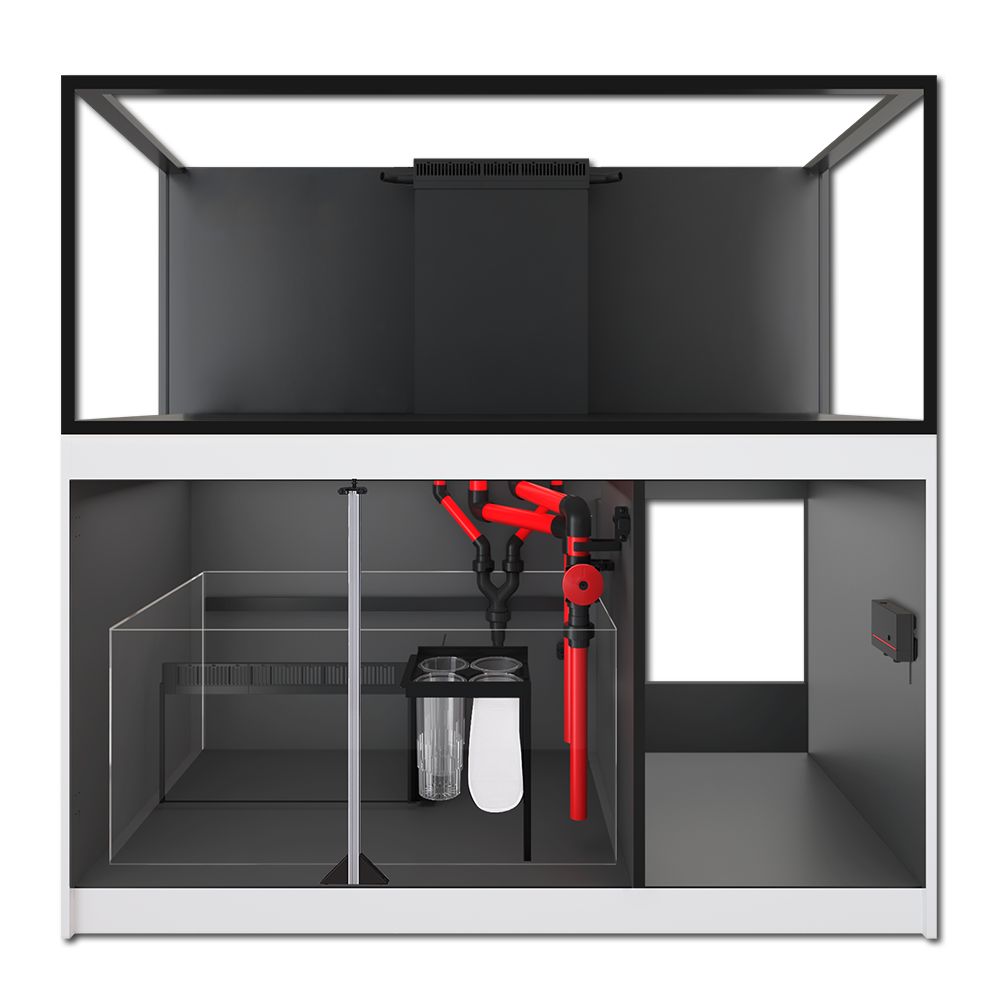

123 Litre REEF-SPEC Sump and Filtration Options

The included 123 litre (32.5 US gallon) REEF-SPEC sump provides dedicated areas for mechanical filtration, protein skimming, and return circulation beneath the aquarium. Its adjustable skimmer chamber, removable ReefMat-ready mechanical filtration compartment, and optional refugium-divider compatibility provide flexibility when designing a filtration system for a larger reef.

• Two 225-micron mechanical filter bags: The supplied fine-mesh filters capture suspended particles and debris entering the sump through the overflow and can be removed for cleaning.
• Two filter media cups: The mechanical filtration compartment also includes two media cups, providing alternative filtration arrangements.
• ReefMat-ready compartment: The removable mechanical filtration assembly can be taken out to accommodate compatible automated fleece filtration without redesigning the standard downflow plumbing.
• Optional ReefMat 1200: Red Sea specifies the ReefMat 1200 with the corresponding REEFER MAX 625 G3+ configuration, providing an identified automatic filtration upgrade for the standard system.
• Adjustable skimmer operating depth: The skimmer chamber water level can be set between 17 and 23 cm (6.7-9.1 inches) to meet the requirements of compatible protein skimmers.
• Optional refugium divider: A compatible partition can create a dedicated refugium section within the sump for customers planning additional biological filtration or nutrient management.
• Separate filtration compartments: The sump layout keeps mechanical filtration, protein skimming, and return equipment outside the main display, providing better access for maintenance and equipment changes.
• Future equipment flexibility: The available sump space can be planned around compatible dosing lines, monitoring probes, media equipment, and automatic filtration upgrades.

Equipment Selection for a Five-Foot Reef Aquarium

The REEFER 625 G3+ provides the infrastructure for a substantial marine fish display, LPS or soft coral aquarium, or an appropriately equipped mixed reef. Its deeper aquarium footprint allows complex aquascaping, but lighting coverage, circulation, protein skimming, and long-term equipment access should be considered before the system is installed.

• Recommended return pump: Red Sea specifies one ReefRun G2 8000 for the corresponding MAX 625 G3+ configuration. The return pump is sold separately with this reef-ready system.
• Lighting reference: Red Sea pairs the MAX 625 G3+ with two ReefLED G2 170 fixtures. Customers may select alternative compatible lighting for the 150 x 65 cm (59.1 x 25.6 inch) footprint according to the intended coral species.
• Protein skimmer reference: The corresponding MAX package uses an RSK DC 900. Alternative skimmers should be checked for sump fitment and compatibility with the adjustable 17-23 cm (6.7-9.1 inch) operating water level.
• Additional circulation: Red Sea specifies two ReefWave 45 pumps for the MAX package. Separately selected wavemakers should provide suitable flow around the planned rockwork and coral colonies beyond the water delivered by the sump returns.
• Freshwater reservoir planning: The included ATO Module requires a suitable freshwater supply. Allow space for the reservoir, top-off pump, tubing, and routine refilling access.
• Monitoring upgrades: Additional compatible ReefSense probes, ReefControl Power equipment, and dosing devices can be selected as the aquarium's requirements develop.
• 625 versus 750 G3+: Both systems share a 65 cm (25.6 inch) front-to-back depth, 60 cm (23.6 inch) display height, 19 mm front glass, and ReefControl Pro. The 750 adds 30 cm (11.8 inches) of length, larger dual 32 mm return connections, and a split-sump filtration arrangement.

Red Sea Reefer 625 G3+ White Specifications

• Total system water volume: 620 L / approximately 163.8 US gal.
• Display aquarium volume: 497 L / approximately 131.3 US gal.
• In-cabinet sump volume: 123 L / approximately 32.5 US gal.
• Display dimensions: 150 cm L x 65 cm W x 60 cm H / approximately 59.1 x 25.6 x 23.6 inches.
• Total system height including cabinet: 148 cm / approximately 58.3 inches.
• Ultra-clear front glass thickness: 19 mm / approximately 0.75 inches.
• Perimeter eurobracing: 15 mm / approximately 0.59 inches.
• Glass construction: Ultra-clear glass with eurobracing, additional bottom bracing, and high-quality euro-silicone bonding.
• Cabinet: White reinforced marine-spec plywood with aluminum front supports, moisture-resistant finishes, stainless steel hinges, and adjustable leveling feet.
• Return outlets: Two curved 25 mm connections for single- or dual-pump arrangements.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Adjustable skimmer water depth: 17-23 cm / approximately 6.7-9.1 inches.
• Refugium compatibility: Optional dedicated sump divider.
• Included aquarium controller: ReefControl Pro, supporting up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor, DC pump, and installation accessories.
• Recommended return pump: ReefRun G2 8000, sold separately.
• Optional automated filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, with an additional 2 years of structural coverage for the glass aquarium and cabinet available at no charge upon registration within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Choose an installation location with suitable structural support for the fully equipped aquarium and its operating water volume. Allow adequate access behind and beside the cabinet for plumbing, wiring, and maintenance.
• Assemble and level the white marine-spec cabinet, including its aluminum front supports, according to Red Sea's instructions. Arrange suitable assistance to lift and position the glass aquarium.
• Install the REEF-SPEC sump, overflow, ReefGate valve, and supplied return plumbing, ensuring that all seals and connections are correctly seated.
• Mount the ReefControl Pro Controller and connect the ATO Module's level and temperature sensor and top-off pump according to the manufacturer's instructions.
• Place the ATO pump in a suitable freshwater reservoir and install the top-off tubing, tube holder, and siphon breaker as directed.
• Install the selected return pump arrangement, skimmer, lighting, heating, and circulation equipment. Set the skimmer chamber water level to meet the operating requirements of the chosen protein skimmer.
• Follow Red Sea's initial-fill procedure and inspect the plumbing connections for leaks.
• Adjust the ReefGate valve gradually after starting circulation, allowing the overflow water level to stabilize between adjustments.
• Perform a power-out test to ensure the sump can accommodate water draining from the display when the return pump stops.
• Maintain the mechanical filtration components, removable overflow combs, return nozzles, and ATO sensor during regular aquarium servicing.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended structural warranty.

What's Included

• REEFER 625 G3+ eurobraced ultra-clear glass aquarium with additional bottom bracing
• White reinforced marine-spec plywood cabinet with aluminum front supports, adjustable leveling feet, and stainless steel hinges
• 123 litre REEF-SPEC sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and return plumbing with ReefGate precision valve
• Central overflow with removable surface-skimming combs
• Two curved 25 mm return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
