Red Sea Reefer 625 G3+ - Black Cabinet

Red Sea Reefer 625 G3+ - Black Cabinet

The Red Sea Reefer 625 G3+ - Black Cabinet is a 620 litre (163.8 US gallon) reef-ready aquarium system combining a 497 litre (131.3 gallon) eurobraced ultra-clear glass display, a 123 litre (32.5 gallon) REEF-SPEC filtration sump, reinforced black marine-spec cabinetry, and integrated ReefControl Pro automation. With a 150 cm (59.1 inch) length, 65 cm (25.6 inch) front-to-back depth, and 60 cm (23.6 inch) display height, it provides an expansive reefscaping platform for larger coral structures, open swimming areas, and customized marine aquarium equipment.

The REEFER 625 G3+ builds on Red Sea's hydrodynamically optimized plumbing system with 19 mm front glass, reinforced eurobracing and bottom bracing, front aluminum cabinet supports, dual curved return outlets, and the precision ReefGate flow valve. The included ReefControl Pro Controller and ReefControl ATO Module provide automatic freshwater replenishment, temperature monitoring, and room for additional connected aquarium equipment. Its large REEF-SPEC sump incorporates adjustable skimmer water height, an optional refugium-divider arrangement, and removable ReefMat-ready mechanical filtration, while lighting, return pumps, skimmer, and circulation equipment are selected separately.

Red Sea Reefer 625 G3+ Black Aquarium Construction

• 150 cm (59.1 inch) aquarium length: The five-foot display provides substantial horizontal room for separated reef structures, open swimming channels, and coral colonies that require space to develop.
• 65 cm (25.6 inch) front-to-back depth: The deeper footprint allows larger rock islands, branching reef formations, open sand areas, and circulation paths around substantial aquascaping structures.
• 60 cm (23.6 inch) display height: The additional vertical space supports multi-level reefscapes with coral placements at different depths within the aquarium.
• 19 mm (0.75 inch) ultra-clear front glass: The thicker viewing panel combines low-iron clarity with a substantial glass construction intended for this larger aquarium format.
• Eurobraced and bottom-braced structure: Red Sea reinforces the aquarium with 15 mm jet-black perimeter eurobracing, additional bottom bracing, and high-quality euro-silicone bonding.
• Extra-fortified black cabinet: The marine-spec plywood cabinet includes aluminum front supports for additional reinforcement, along with moisture-resistant finishes, stainless steel hinges, and adjustable leveling feet.
• Floating aquarium appearance: A discreet aluminum support edge reinforces the cabinet-to-aquarium interface while maintaining Red Sea's distinctive visual separation between the glass display and stand.

Integrated ReefControl Pro and Smart Top-Off System

The REEFER 625 G3+ includes ReefControl Pro and the ReefControl ATO Module, providing a connected platform for automatic freshwater top-off and temperature monitoring. The Pro controller has connections for additional compatible ReefSense probes and control devices, making it suitable for aquarists who intend to expand their aquarium monitoring as the system develops.

• ReefControl Pro Controller included: Supports up to seven compatible ReefSense digital probes or sensors and two 12V DC devices, providing capacity for a more extensive monitoring setup.
• Automatic freshwater top-off: The ReefControl ATO Module monitors the sump water level and operates its DC pump to replace evaporated freshwater, helping maintain stable salinity and return chamber water level.
• Integrated temperature sensor: The digital ATO level sensor also measures temperature, with readings and notifications available through the connected controller.
• ATO installation components: The module includes the digital level and temperature sensor, magnetic mounting hardware, dedicated DC top-off pump, silicone tubing, tube holder, and siphon breaker.
• ReefBeat ecosystem: Connected devices can provide monitoring history, notifications, and available equipment-control functions through Red Sea's ReefBeat platform.
• Additional ReefSense monitoring: Compatible pH, salinity, ORP, and other digital probes can be added separately according to the aquarium's needs.
• Optional device control: Compatible ReefControl Power equipment can extend the system to controlled AC devices, while the Pro controller also provides its supported DC device connections.
• Standard versus MAX configuration: ReefControl Pro and the ATO Module are supplied with this reef-ready aquarium, but additional water-parameter probes and the complete MAX lighting, skimming, circulation, and filtration equipment package are not included.

Dual Return Outlets and High-Precision ReefGate Plumbing

The REEFER 625 G3+ uses a centrally positioned surface-skimming overflow, enlarged rectangular downflow inlet, and hydrodynamically optimized pipework to move water efficiently between the aquarium and sump. Its ReefGate valve provides precise drain adjustment, while two curved return outlets give customers flexibility when selecting a return pump arrangement for the larger display.

• Two curved 25 mm (approximately 1 inch) return outlets: The dual connections can be supplied by one compatible return pump or two separate pumps, allowing return circulation to be configured around the selected equipment.
• ReefGate precision valve: Fine adjustment of the main downflow allows the overflow operating water level to be balanced against the return pump arrangement for quieter operation.
• Enlarged rectangular drain inlet: The redesigned downflow entry reduces turbulence as water enters the drainage system.
• Primary and secondary drainage: The overflow incorporates a regulated main downpipe and secondary bypass as part of its water-management arrangement.
• Removable surface-skimming combs: The central overflow collects surface water through removable sections that can be cleaned to prevent deposits and debris from restricting flow.
• Hydrodynamic pipework: Red Sea's redesigned plumbing minimizes unnecessary restrictions and improves the efficiency of circulation between the sump and aquarium.
• Additional plumbing options: Metric and imperial connection options are available for customers planning a customized return plumbing installation.
• Model-specific return size: The REEFER 625 G3+ uses dual 25 mm outlets. The larger REEFER 750 G3+ uses dual 32 mm outlets, so plumbing accessories should be matched to the actual aquarium model.

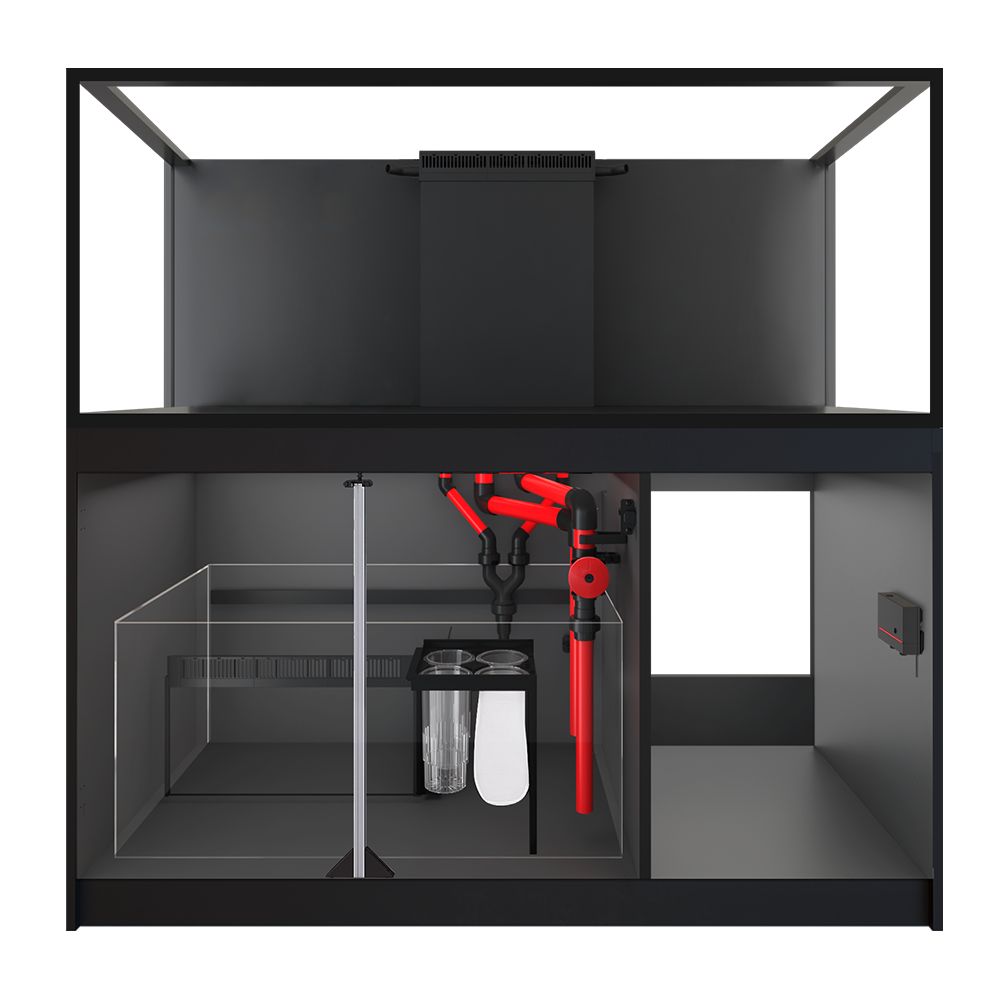

123 Litre REEF-SPEC Sump and ReefMat-Ready Filtration

The 123 litre (32.5 US gallon) REEF-SPEC sump provides a large filtration area beneath the aquarium, with separate sections for mechanical filtration, protein skimming, and return circulation. An adjustable skimmer chamber and optional refugium divider allow the layout to be configured around the filtration equipment selected for this larger reef system.

• Two 225-micron mechanical filter bags: The included fine-mesh filters collect suspended debris entering the sump from the overflow and can be removed for cleaning.
• Two filter media cups: The mechanical filtration compartment includes two cups, providing alternative filtration arrangements alongside the supplied filter bags.
• ReefMat-ready mechanical section: The removable filtration compartment is designed for conversion to compatible automated roller filtration without rebuilding the standard drain plumbing.
• Optional ReefMat 1200: Red Sea specifies the ReefMat 1200 for the corresponding REEFER MAX 625 G3+ equipment configuration, providing an identified automatic filtration upgrade path.
• Adjustable protein skimmer water depth: The skimmer chamber operating level can be set between 17 and 23 cm (6.7-9.1 inches), allowing compatible skimmers to operate at their specified water depth.
• Optional refugium divider: A compatible partition can establish a dedicated refugium area within the sump for aquarists planning additional biological filtration or nutrient management.
• Flexible equipment arrangement: The larger sump provides space for compatible skimming, mechanical filtration, return equipment, and associated accessories while keeping the main aquarium free of filtration hardware.
• Maintenance planning: The removable mechanical components and adjustable sump layout allow filtration equipment to be accessed and serviced from within the cabinet.

Choosing Equipment for a Large Mixed Reef Aquarium

The REEFER 625 G3+ provides the foundation for a substantial marine fish display, soft coral or LPS reef, or a carefully planned mixed reef using appropriately selected equipment. Its greater water volume, deeper display, and expandable monitoring platform make equipment sizing, lighting coverage, water movement, and long-term maintenance access important considerations before installation.

• Recommended return pump: Red Sea specifies one ReefRun G2 8000 for the corresponding MAX 625 G3+ system. The return pump is sold separately with this standard reef-ready configuration.
• Reef lighting reference: Red Sea pairs the MAX 625 G3+ with two ReefLED G2 170 fixtures. Customers may select other suitable lighting according to coverage of the 150 x 65 cm (59.1 x 25.6 inch) display and the requirements of the planned coral species.
• Protein skimmer selection: Red Sea specifies the RSK DC 900 for the corresponding MAX configuration. Alternative skimmers should be checked for sump fitment and the adjustable 17-23 cm (6.7-9.1 inch) operating water depth.
• Additional circulation: Dedicated wavemakers are important for moving water around larger rock structures and coral colonies beyond the flow provided by the sump returns. Red Sea uses two ReefWave 45 pumps in the equivalent MAX package.
• Freshwater reservoir: The included ReefControl ATO Module requires a suitable freshwater supply. Plan the reservoir and tubing location before arranging other filtration and electronic equipment.
• Optional filtration upgrades: Compatible ReefMat equipment, a refugium divider, dosing systems, and additional ReefSense probes can be selected as the aquarium's filtration and monitoring requirements develop.
• Space and load planning: The 150 cm (59.1 inch) length, 65 cm (25.6 inch) depth, and substantial operating water volume make floor support, delivery access, and appropriate assistance for handling the glass aquarium important installation considerations.

REEFER 625 G3+ Versus the 425 G3+

The REEFER 625 G3+ provides meaningful differences from the 425 in overall size, glass construction, and cabinet reinforcement. Both models include ReefControl Pro, dual return connections, adjustable skimmer chambers, and ReefMat-ready filtration, but the 625 provides a larger physical platform for aquascaping and equipment planning.

• Larger display volume: The 625 provides 497 litres (131.3 gallons) of display volume compared with 343 litres (90.6 gallons) on the 425.
• Additional aquascaping space: The 625 is 30 cm (11.8 inches) longer, 5 cm (2 inches) deeper, and 5 cm (2 inches) taller than the 425.
• Greater sump capacity: The 123 litre (32.5 gallon) sump provides an additional 33 litres (8.7 gallons) compared with the 425's 90 litre sump.
• Thicker front glass: The 625 uses 19 mm (0.75 inch) ultra-clear front glass versus the 425's 12 mm (0.47 inch) panel.
• Additional structural reinforcement: The 625 combines perimeter eurobracing with bottom bracing and aluminum front cabinet supports, features that distinguish its construction from the smaller model.
• Higher-capacity equipment reference: Red Sea specifies a ReefRun G2 8000, RSK DC 900, and ReefMat 1200 for the MAX 625 G3+, compared with the smaller equipment pairing used in the MAX 425 G3+.

Red Sea Reefer 625 G3+ Black Specifications

• Total system water volume: 620 L / approximately 163.8 US gal.
• Display aquarium volume: 497 L / approximately 131.3 US gal.
• In-cabinet sump volume: 123 L / approximately 32.5 US gal.
• Display dimensions: 150 cm L x 65 cm W x 60 cm H / approximately 59.1 x 25.6 x 23.6 inches.
• Total height including cabinet: 148 cm / approximately 58.3 inches.
• Ultra-clear front glass thickness: 19 mm / approximately 0.75 inches.
• Perimeter eurobracing: 15 mm / approximately 0.59 inches.
• Glass construction: Ultra-clear glass with eurobracing, additional bottom bracing, and high-quality euro-silicone bonding.
• Cabinet: Black reinforced marine-spec plywood with aluminum front supports, moisture-resistant finishes, stainless steel hinges, and adjustable leveling feet.
• Return outlets: Two curved 25 mm connections for single- or dual-pump arrangements.
• Mechanical filtration: Removable ReefMat-ready compartment with two 225-micron filter bags and two media cups.
• Skimmer chamber operating depth: Adjustable from 17-23 cm / approximately 6.7-9.1 inches.
• Refugium compatibility: Optional dedicated sump divider.
• Included aquarium controller: ReefControl Pro with support for up to seven compatible ReefSense probes or sensors and two 12V DC devices.
• Included automatic top-off: ReefControl ATO Module with digital level and temperature sensor, DC pump, and installation accessories.
• Recommended return pump: ReefRun G2 8000, sold separately.
• Optional roller filtration: ReefMat 1200, sold separately.
• Manufacturer warranty: Standard 3 years, extendable to 5 years at no additional charge when registered within 90 days of purchase, subject to warranty terms.

Red Sea REEFER G3+ Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Choose an installation location with sufficient structural support for the fully equipped aquarium and its operating water volume. Allow suitable access behind and beside the cabinet for plumbing, electrical connections, and maintenance.
• Assemble and level the reinforced black cabinet according to Red Sea's installation instructions, including the front aluminum supports, before positioning the eurobraced glass aquarium. Arrange appropriate lifting assistance.
• Install the REEF-SPEC sump, ReefGate valve, overflow, and supplied return plumbing, ensuring that seals and connections are correctly seated.
• Mount the ReefControl Pro Controller and connect the ATO Module, digital level and temperature sensor, and top-off pump following Red Sea's instructions.
• Place the ATO pump in a suitable freshwater reservoir and install the silicone tubing, tube holder, and siphon breaker according to the manufacturer's setup procedure.
• Install the selected return pump or pumps, protein skimmer, lighting, heating, and circulation equipment. Set the adjustable skimmer chamber water level to the requirements of the selected skimmer.
• Follow the manufacturer's initial-fill procedure and inspect all downflow and return plumbing connections for leaks.
• Adjust the ReefGate valve gradually after circulation begins, allowing the overflow water level to stabilize between adjustments.
• Perform a power-out test to ensure the sump can accommodate water draining from the display when the return pump stops.
• Maintain the mechanical filtration components, removable overflow combs, return nozzles, and ATO sensor to prevent debris or deposits from affecting operation.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended manufacturer warranty.

What's Included

• REEFER 625 G3+ eurobraced ultra-clear glass aquarium with additional bottom bracing
• Black reinforced marine-spec plywood cabinet with aluminum front supports, adjustable leveling feet, and stainless steel hinges
• 123 litre REEF-SPEC sump with adjustable-height skimmer chamber and removable ReefMat-ready mechanical filtration compartment
• Two 225-micron mechanical filter bags
• Two filter media cups
• Downflow and return plumbing with ReefGate precision valve
• Central overflow with removable surface-skimming combs
• Two curved 25 mm return outlets
• ReefControl Pro Controller
• ReefControl ATO Module with digital level and temperature sensor, DC top-off pump, and installation accessories
