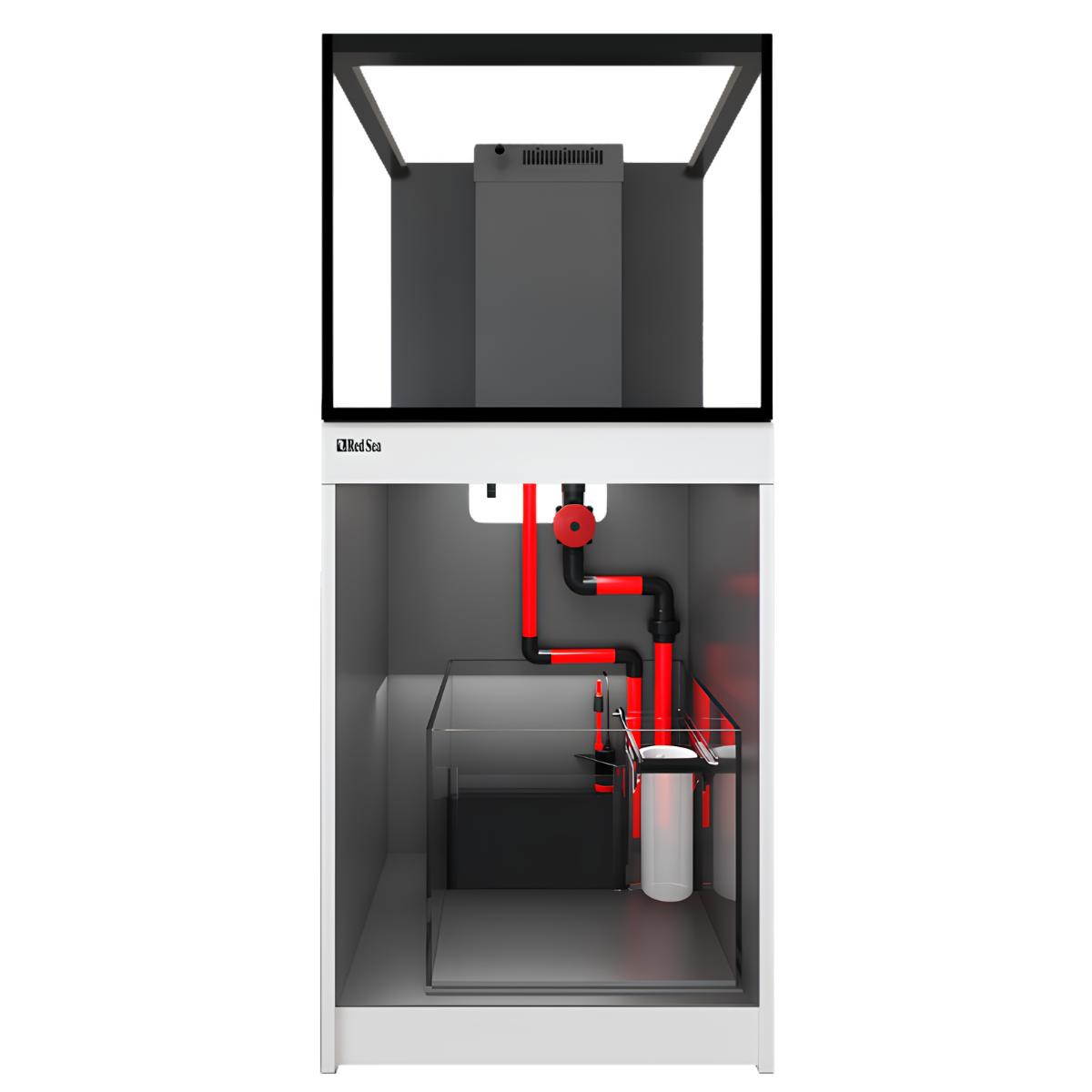

Red Sea Reef-Frame 170 - White Cabinet

The Red Sea Reef-Frame 170 - White Cabinet combines a 136 litre (35.9 US gallon) ultra-clear glass aquarium with a 39 litre (10.3 US gallon) filtration sump and reinforced white marine-spec cabinet. Designed for a custom marine reef setup, this 174 litre (46.2 US gallon) system offers the advantages of separate sump filtration within a 60 cm (23.6 inch) aquarium length.

Its eurobraced glass construction, precision ReefGate valve, enlarged downflow inlet, removable overflow combs, and ReefMat-ready filtration section provide the structural and water-management foundation for a personalized reef aquarium. The white cabinet creates a bright furniture-style appearance, while lighting, return pump, skimmer, circulation, and additional control equipment can be chosen independently.

Red Sea Reef-Frame 170 White Cabinet and Glass Design

• Compact aquarium with separate sump: Filtration operates beneath the display instead of occupying valuable space along the back of the aquarium.
• Ultra-clear front glass: The 10 mm low-iron front panel offers improved viewing clarity, helping preserve the visual appearance of fish, corals, and rockwork.
• Structural eurobracing: The glass is reinforced around its upper perimeter and bonded using Red Sea's high-quality euro-silicone.
• White marine-spec plywood: The cabinet supports the aquarium's full perimeter and features splash-resistant doors, stainless steel hinges, and heavy-duty adjustable leveling feet.
• 53 cm (20.9 inch) display depth: The aquarium provides room for rock islands and layered coral placement within a relatively short 60 cm (23.6 inch) footprint.

Surface Skimming and Precision-Controlled Drainage

The central overflow collects aquarium surface water through removable combs and directs it down to the sump. An enlarged rectangular drain inlet reduces turbulence, while the ReefGate valve allows the water level inside the overflow to be adjusted for quieter operation.

• High-precision ReefGate: Fine valve adjustments help balance the drain against the selected return pump and maintain the correct operating level inside the overflow.
• Removable overflow combs: Individual sections can be cleaned to remove deposits that interfere with surface-water collection.
• Dual-path drainage: The overflow incorporates a regulated main downpipe and secondary bypass pipe as part of its water-management system.
• Curved 25 mm return outlet: The single outlet directs water from the sump back into the aquarium. Optional metric and USA connection kits support customized plumbing arrangements.

REEF-SPEC Filtration and Equipment Fitment

The included sump provides a separate filtration area with a removable 225-micron mechanical filter bag and a ReefMat-ready compartment. A bubble-trap section with coarse sponge helps prevent air bubbles from returning to the display through the circulation pump.

• Manual mechanical filtration: The supplied filter bag collects particles and detritus carried through the overflow. It can be removed for cleaning or replacement.
• Optional automated filtration: The filter tray and removable divider can be taken out to accommodate compatible Red Sea roller filtration.
• Skimmer selection: The 170 does not feature an adjustable-height skimmer chamber, so the chosen skimmer must suit the available sump space and operating depth.
• Top-off planning: An automatic top-off system is recommended because evaporation lowers the water level in the sump's return pump compartment, affecting operating stability and salinity.
• Equipment selection: This standard bare system does not include lighting, a return pump, protein skimmer, or ReefControl automation package.

Choosing the REEF-FRAME 170 for a Smaller Reef

The 170 provides a compact platform for carefully planned marine fish, soft coral, LPS, and mixed reef displays when equipped to meet the needs of the chosen livestock. Its main distinction from the REEF-FRAME 250 is the shorter aquarium and simpler sump rather than its cabinet finish.

• Lighting footprint: Choose lighting suitable for a 60 x 53 cm (23.6 x 20.9 inch) display and the intended coral requirements.
• Recommended return pump: Red Sea lists one ReefRun G2 4000, providing an adjustable 2,000-4,000 L/h (530-1,060 US gph) flow range. It is sold separately.
• Supplementary flow: Wavemakers can provide circulation around the aquascape independently of the sump return.
• Compared with the 250: The 250 adds 30 cm (11.8 inches) of aquarium length, an adjustable skimmer chamber, and optional refugium-divider compatibility.
• Cabinet finish: The white version shares its aquarium, sump, and plumbing specifications with the black and oak REEF-FRAME 170 configurations.

Red Sea Reef-Frame 170 White Specifications

• Total system water volume: 174 L / 46.2 US gal.
• Display volume: 136 L / 35.9 US gal.
• Sump volume: 39 L / 10.3 US gal.
• Display dimensions: 60 cm L x 53 cm W x 50 cm H / approximately 23.6 x 20.9 x 19.7 inches.
• Total system height: 137 cm / approximately 53.9 inches, including cabinet.
• Front glass thickness: 10 mm / approximately 0.39 inches.
• Glass construction: Eurobraced ultra-clear glass with high-quality euro-silicone.
• Cabinet: White reinforced marine-spec plywood with stainless steel hinges and adjustable leveling feet.
• Return outlet: One curved 25 mm outlet.
• Mechanical filtration: Removable ReefMat-ready compartment with one 225-micron filter bag.
• Approximate filled system weight: 270 kg / 596 lb.
• Approximate glass aquarium weight: 41 kg / 90 lb.
• Recommended return pump: ReefRun G2 4000, sold separately.
• Warranty: 3 years standard, extendable to 5 years at no additional charge with registration within 90 days of purchase, subject to Red Sea's warranty conditions.

Red Sea REEF-FRAME Series Video

Shipping Notes

• Red Sea aquariums are exempt from our free shipping policy.
• To avoid delays, please order your aquarium separately from other products. If purchasing additional items, place one order for the aquarium and a second order for your other products.
• Orders shipping to the Northwest Territories, Yukon, or Nunavut require a shipping quote. Please call for details.
• Red Sea aquariums are brought in and shipped on an as-ordered basis. The average turnaround time before shipping is approximately two business days, except where noted below.
• All shipments outside the Vancouver area are sent by trucking company with fully insured residential delivery and power tailgate service.
• Orders within British Columbia and, in some circumstances, Alberta may require an additional 5-10 business days for processing. Orders from Alberta and provinces farther east generally ship directly from the distributor in Ontario within two business days.
• For in-store pickup, select that option at checkout to avoid delivery charges. You will be notified when the aquarium arrives, usually within 5-10 business days.
• Red Sea MAX S Series aquariums are always special order and generally require 3-6 weeks before shipping.
• Freight delivery includes transporting the aquarium to the destination address and unloading it. The freight company is not responsible for carrying the aquarium inside the building.
• Freight charges have been substantially subsidized to help reduce the delivery cost of your new Red Sea aquarium.
• Rural, remote, and extended-service areas may require an additional shipping charge. We will contact you before shipping if an adjustment is necessary.

Directions

• Select a location capable of supporting approximately 270 kg (596 lb). Allow at least 10 cm (4 inches) behind the aquarium and approximately 60 cm (24 inches) beside one side for maintenance access, as specified by Red Sea.
• Assemble and level the cabinet before placing the glass aquarium on top. Ensure all adjustable feet contact the floor.
• Install the supplied sump and plumbing, ensuring that connector O-rings are correctly seated. Hand-tighten plumbing connections without tools.
• Install the return pump and selected filtration equipment before filling, then follow Red Sea's initial-fill and plumbing leak-inspection procedure.
• Adjust the ReefGate valve gradually and allow the water level to stabilize after each adjustment.
• Perform a power-out test to ensure the sump has sufficient spare capacity when circulation stops.
• Clean the mechanical filter bag, surface-skimming combs, and return nozzle during routine maintenance.
• Register the aquarium with Red Sea within 90 days of purchase to qualify for the extended warranty.

What's Included

• REEF-FRAME 170 eurobraced ultra-clear glass aquarium
• White reinforced marine-spec plywood cabinet with adjustable leveling feet and stainless steel hinges
• REEF-SPEC glass filtration sump with removable ReefMat-ready mechanical compartment
• One 225-micron mechanical filter bag
• Internal downflow and return plumbing with ReefGate precision valve
• Central overflow with removable surface-skimming combs
• Single curved 25 mm return nozzle
