Red Sea Reef ATO+ System

Exceptionally reliable and smart ATO, temperature monitor and leak detector

Overview

The Red SeaReefATO+ is designed to maintain a stable salinity and water volume in a reef aquarium by automatically replenishing the water lost due to evaporation. In addition, the ReefATO+ provides two other critical aquarium health indicators: a fully featured on-line digital temperature monitor and a leak detector.

How ATO Works

The EC technology titanium probes detect the water levels that triggers the pump to be switched on and off to maintain a stable water level and salinity.
The ATO+ includes the added safety feature of an l-proof (solid-state EC technology) water level sensor with built-in safety shutoff. Automatic shut-down if the sensor is not connected, if the pump runs significantly longer than normal, if the RO reservoir runs out of water or if a leak is detected.

• ATO Sensor - Fail-proof (solid-state EC technology) water level sensor, with built-in back-up pump-OFF probes located 2.5cm / 1" above the normal pump-OFF point. The full array of the Reef-Spec titanium probes gives an indication at all times of the actual water level relative to the sensor, which can be seen on the ReefBeat App at all times.

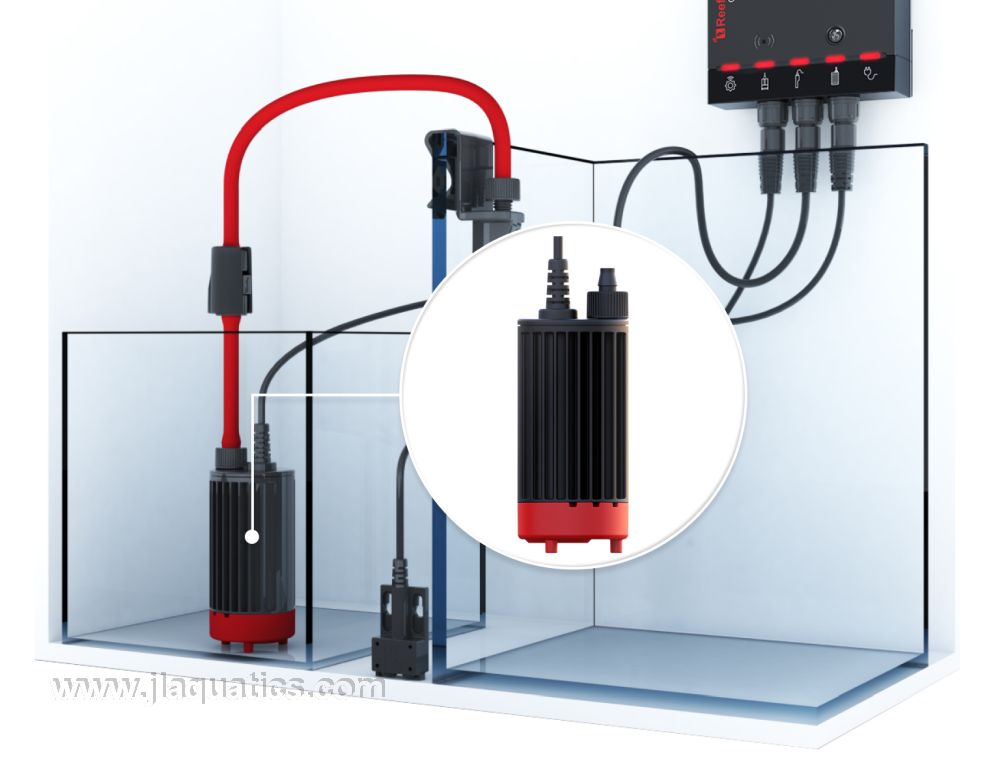

• ATO Pump
  Quiet, variable flow, 12 vdc ATO pump.
  Cylindrical design with diameter of 4.5cm / 1.8" to fit inside standard jerrycans.
  Max flow rate 300 lph / 75 gph, Max head 2.5m / 8', power 6-10W.
  Pump performance monitor in the controller will shut down the pump automatically and let you know through the ReefBeat App if it is not connected, stalls or RO reservoir runs dry.
  Pump speed is automatically adjusted according to your installation to maintain a flow rate of approximately 72 lph / 18 gph ensuring a splash proof and quiet flow of water into the sump.
  The noise damping rubber impeller chamber cover and impeller can be removed for pump maintenance.
  Includes lock-nut on the outlet hose barb for secure connection to the silicon tubing.
• Leak Detector - The highly sensitive, Reef-Spec leak detector with saltwater resistant titanium probes detects the full range of waters from RODI to seawater. If a leak is detected the ATO Auto-fill is immediately disabled, and after a few seconds to confirm that the leak persists, the controller sounds an optional audible alarm and sends a notification to your mobile device. Connect the Leak Detector to the Emergency Quick-action for the aquarium and ReefBeat eco-system will automatically shut down other ReefBeat devices such as the ReefRun return pumps.
• Temperature Sensor - The temperature sensor integrated in the ATO+ sensor has been pre-calibrated to give an accuracy of +/-0.1F.
  The ReefBeat App allows you to set a narrow "desired" temperature range, and a slightly wider "acceptable" range, that will be seen on- line in the ReefBeat App and in the full temperature logs. In the event that the temperature goes outside the acceptable range you will get a notification to your smartphone.
  The detailed logs will show you the minimum, maximum and average temperatures at 15 minute intervals for the past 28 days.

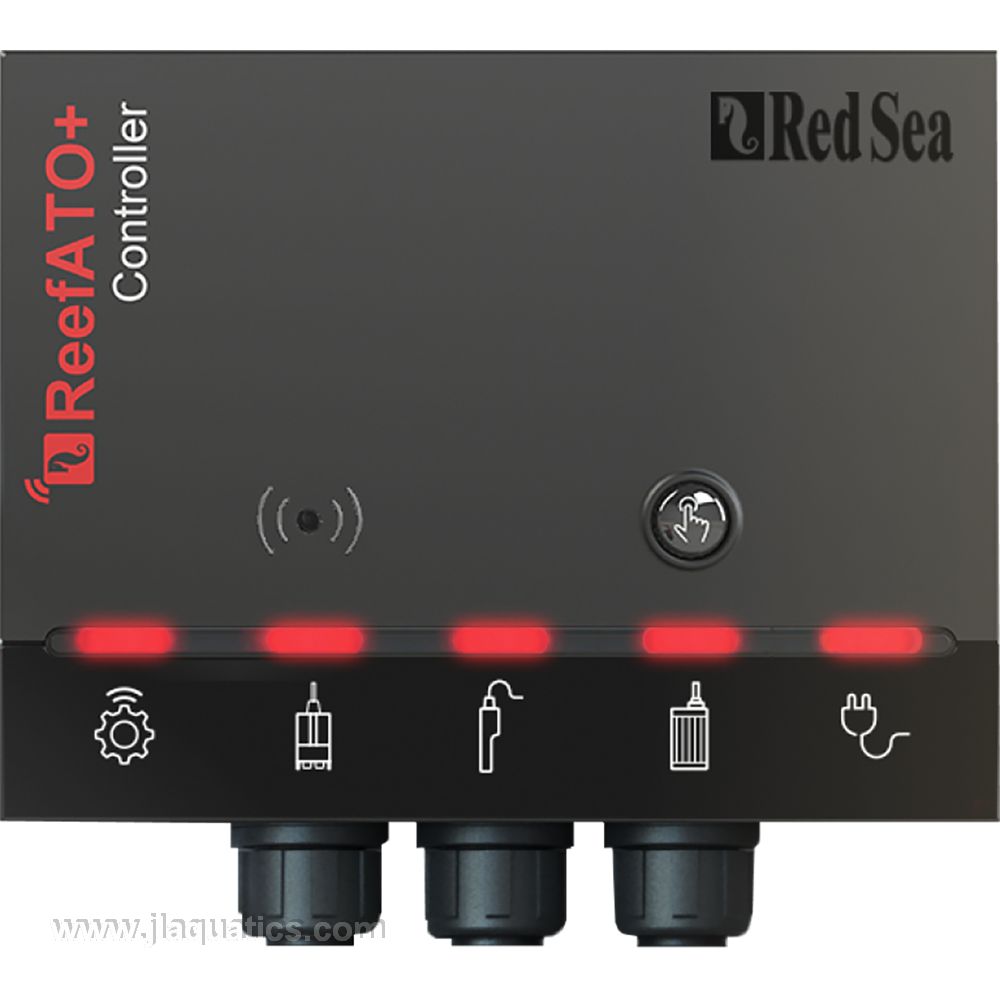

• Smart Controller - The micro-processor monitors and reliably controls all of the components and connects them to the ReefBeat eco-system.

ReefATO+ Complete Installation Kit

• Sensor holder and magnetic corner mounting bracket for 12mm (1/2") glass. This is suitable for all non-red sea aquariums and allows you to virtually mount in any system.
• 3M / 10' - 1.5mm / 1/16" thick silicone tubing ID 5mm / 0.2"

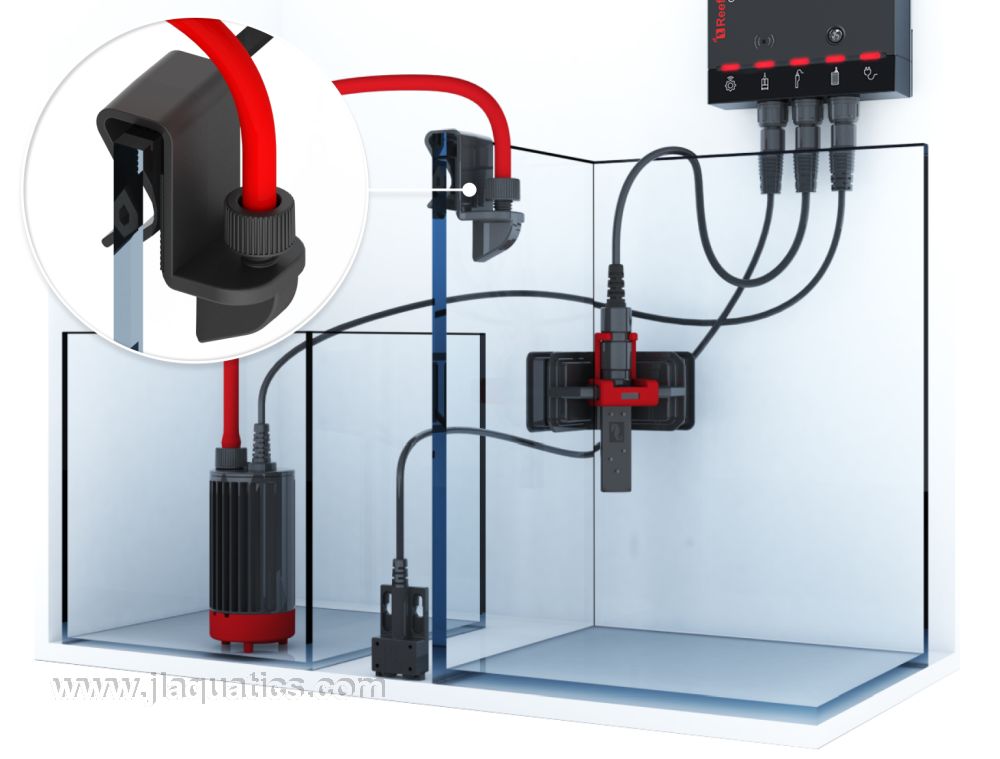

• Silent flow - Tube holder, clips on 4 - 12mm / 1/2" glass

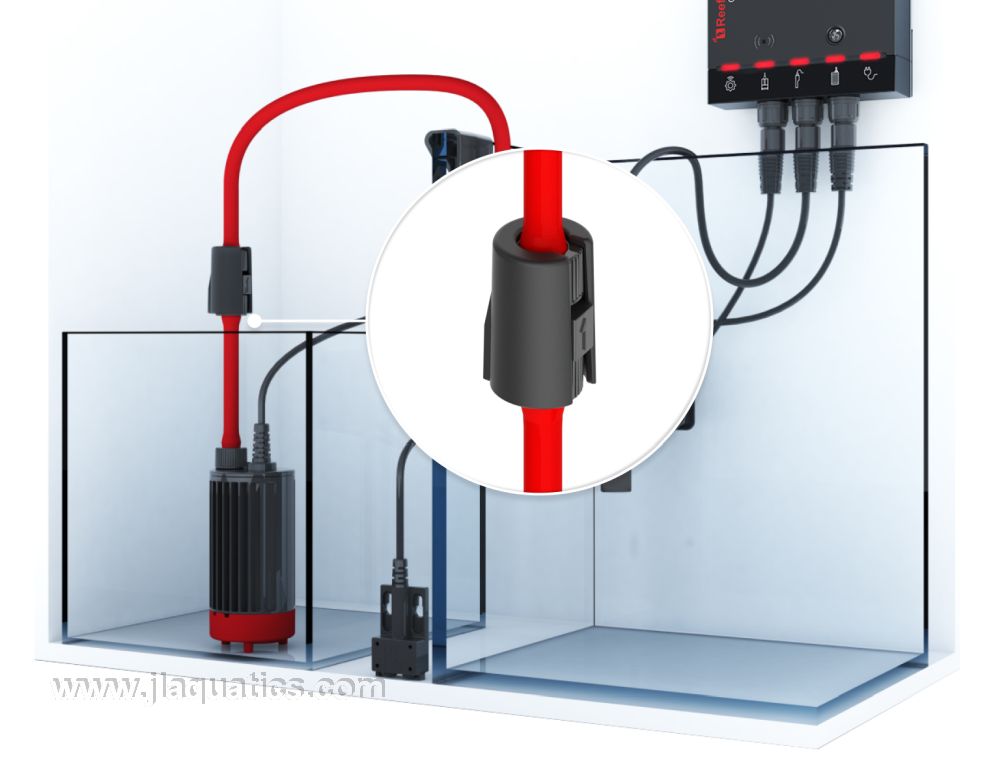

• Siphon breaker
• **SALTWATER ONLY** WILL NOT WORK WITH FRESHWATER AQUARIUMS.

Note: If you are using the ReefATO+ on a Red Sea Reefer, you can save some money and purchase the upgrade kit. It does not include the magnets and bracket needed to holder the sensor that other non Red Sea systems may require.
