Red Sea Reef ATO+ Reefer Upgrade Kit
Red Sea Reef ATO+ Reefer Upgrade Kit
Hurry up, only 1 item left in stock.
✓ This item is eligible for free shipping
Couldn't load pickup availability
Product Description
Product Description
Red Sea Reef ATO+ Reefer Upgrade Kit
The Red Sea Reef ATO+ Reefer Upgrade Kit is a smart 3-in-1 auto top off, temperature monitor and leak detection upgrade for compatible Red Sea REEFER aquariums that already use the required Red Sea sensor mounting location.
Smart REEFER Upgrade for Top Off and Monitoring
This upgrade kit gives compatible Red Sea REEFER systems the same Reef ATO+ core functions as the full system while omitting the magnetic sensor bracket hardware that many REEFER installations do not require. It is built for reef keepers who want connected top off control, sump-level stability, temperature visibility and leak detection without purchasing the full universal mounting kit.
Reef ATO+ Upgrade Kit Features
- REEFER-focused package: Designed as the lower-cost upgrade option for compatible Red Sea REEFER aquariums that do not need the full universal sensor mounting hardware.
- Automatic freshwater replenishment: Replaces evaporated freshwater to help maintain stable water level and reef salinity.
- Solid-state EC level sensing: Uses titanium probe technology with no traditional moving float arm.
- Built-in temperature monitoring: The level sensor also provides online temperature monitoring through ReefBeat.
- Leak protection layer: External titanium-probe leak detector can disable auto top off and trigger alerts if water is detected where it should not be.
- Variable-flow pump control: The 12 VDC ATO pump is monitored by the controller and can be shut down if abnormal pump operation is detected.
- ReefBeat connectivity: Connects to Red Sea's app ecosystem for device setup, status visibility and mobile notifications.
Saltwater use only. This system is not intended for freshwater aquariums.
Reef ATO+ Reefer Upgrade Specifications
- System type: Smart ATO, temperature monitor and leak detector upgrade.
- Intended aquarium type: Compatible Red Sea REEFER saltwater systems.
- ATO sensor: Solid-state EC titanium probe sensor with integrated temperature monitoring.
- Temperature accuracy: Listed by Red Sea as accurate to 0.1 degree.
- ATO pump power: 6-10 W.
- Pump diameter: 4.5 cm / 1.8 in.
- Maximum pump flow: 300 LPH / 75 GPH.
- Maximum pump head: 2.5 m / 8 ft.
- Tubing: 3 m / 10 ft silicone tubing with 5 mm / 0.2 in internal diameter.
- Glass clip range for tube holder: 4-12 mm / 1/2 in.
- Control app: Red Sea ReefBeat.
REEFER Compatibility Notes
This upgrade kit does not include the magnetic sensor mounting bracket and magnets supplied with the full Red Sea Reef ATO+ System. Use the upgrade kit only when the compatible Red Sea REEFER aquarium already provides the required mounting arrangement. For non-Red Sea systems, or installations that need the magnetic sensor holder and bracket, choose the full Red Sea Reef ATO+ System instead.
Official Red Sea Video
Setup Directions

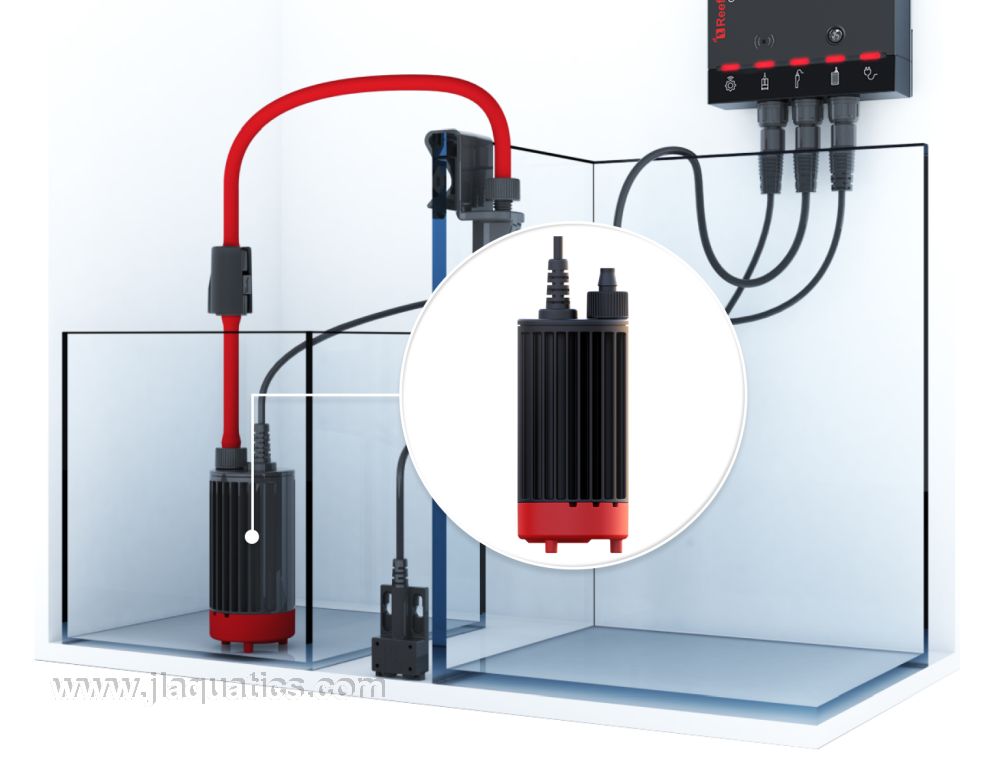

Confirm the REEFER model and sensor mounting arrangement before installation. Install the level sensor in the intended sump position, place the pump in a freshwater reservoir and route the supplied tubing to the sump with the tube holder and siphon breaker. Position the leak detector at the lowest practical leak-risk area near the aquarium or cabinet, connect the controller in ReefBeat, then test pump operation, sensor response and leak detection before leaving the system unattended.
What's Included
- ReefBeat connected ATO+ controller.
- ATO level and temperature sensor.
- ATO pump.
- Leak detector.
- Sensor holder.
- 3 m / 10 ft silicone tubing.
- Silent-flow tube holder.
- Siphon breaker.
