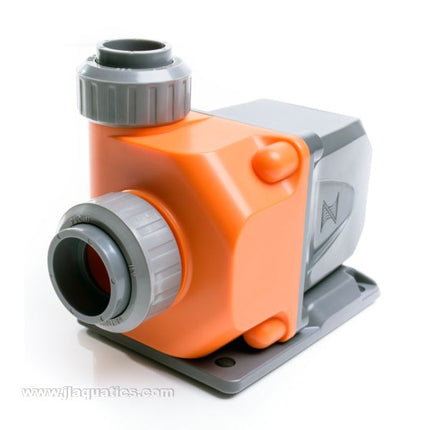

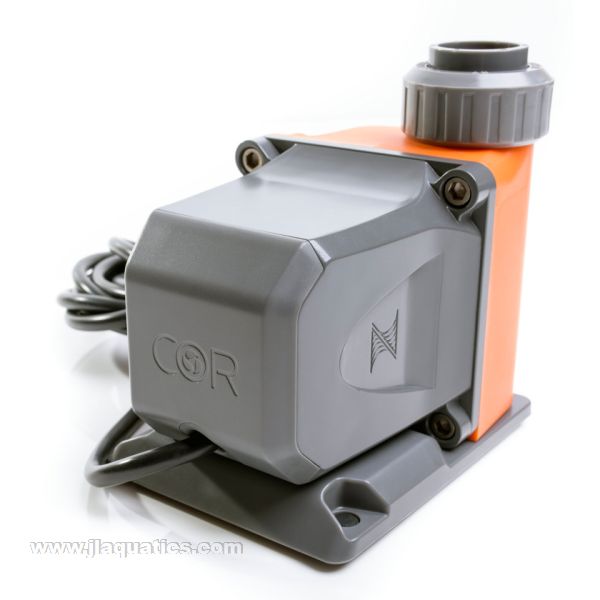

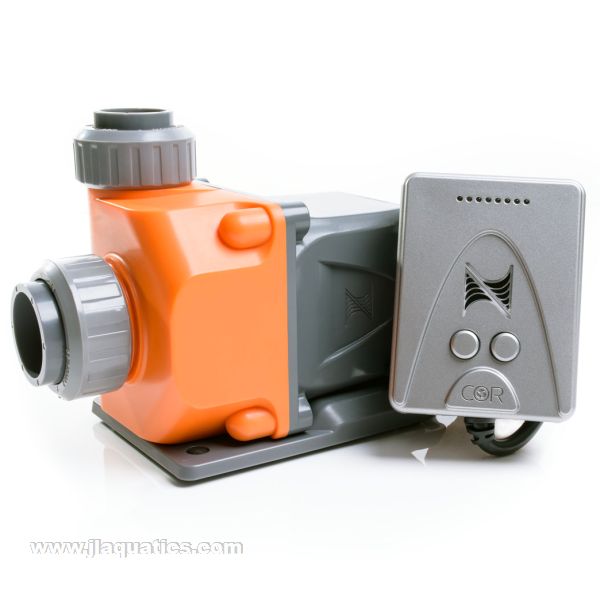

Neptune COR-15 Water Pump

The Neptune COR-15 Water Pump is an ultra-premium Apex-connected DC return pump designed for quiet, efficient, intelligent water movement in advanced reef, marine, and freshwater aquarium systems.

Apex-Connected COR-15 Return Pump

The COR-15 is built for aquarists who want their return pump integrated directly into the Apex ecosystem. Instead of running as a basic fixed-output pump, the COR-15 connects through an available 1LINK port and allows flow control, feed modes, alerts, pump status, and operational feedback to be managed through Apex Fusion.

With up to 1,500 GPH of flow, quiet brushless DC operation, included plumbing fittings, and intelligent protection features, the COR-15 is a strong choice for medium-sized reef systems, display returns, manifold-fed filtration, and Apex-controlled aquarium builds where reliability and visibility matter.

Neptune COR-15 Features

• Apex-integrated pump control: Connects to a compatible Apex system through an available 1LINK port for flow adjustment, monitoring, alerts, feed modes, and programming through Apex Fusion.
• Up to 1,500 GPH flow: Provides strong return-pump capacity for many medium aquarium systems while maintaining efficient DC pump operation.
• Energy-efficient performance: Uses up to 50W of power under Neptune specifications, helping deliver strong circulation without the heavy draw of older AC return pumps.
• WhisperDrive technology: Uses vector-controlled brushless DC motor technology for quiet operation with reduced vibration.
• IQ-Level calibration: Allows the pump to learn the desired maximum flow level for the aquarium and return to that memorized setting after power interruptions.
• Feed Mode support: Slows the return pump during feeding routines so food remains available longer and the system restarts in a more controlled way.
• Obstruction detection: Alerts when a significant blockage or restriction is detected, helping identify problems such as intake debris, snails, clogged plumbing, or restricted flow paths.
• Internal temperature monitoring: The driver monitors motor temperature and can reduce pump output if needed to protect the pump while keeping water moving.
• Clean 1LINK power setup: Runs from a compatible 1LINK port without a separate external power brick, helping keep controller-board installations cleaner.
• Internal or external use: Suitable for submerged or external aquarium plumbing applications when installed correctly.

COR-15 Specifications

• Product type: Apex-connected variable-speed DC aquarium return pump

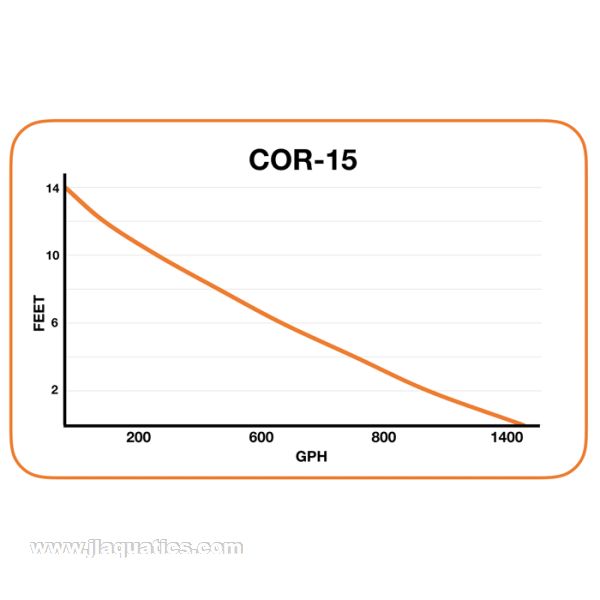

• Maximum flow: Up to 1,500 GPH / 5,700 LPH
• Power consumption: Up to 50W
• Standalone operation: No
• Required connection: Compatible Apex system with available 1LINK port
• Use type: Internal or external aquarium return-pump installation
• Smart features: IQ-Level, Feed Mode, obstruction detection, visual error notification, and Apex app error notification
• Included plumbing support: 1.25" union plus 1.0" and 0.75" slip fitting options
• Pump dimensions: 3.875" W x 4.875" H x 6.250" D
• Driver dimensions: 3" W x 4" H x 1" D

Apex Control and Protection Benefits

The COR-15 becomes especially powerful when used as part of a full Apex-controlled aquarium. Flow can be adjusted for normal operation, feeding, maintenance, emergency routines, and equipment coordination. It can also be integrated into broader Apex logic so the return pump responds appropriately to feed cycles, alarms, water-level conditions, maintenance modes, or other system events.

The pump’s obstruction detection and internal temperature monitoring give the aquarist more visibility than a basic return pump. If the intake becomes restricted or the pump begins operating outside normal conditions, the COR driver and Apex system can help bring attention to the issue before it becomes a major circulation problem.

Plumbing and Compatibility Notes

The COR-15 is designed to work best when plumbed with the least practical restriction. The included 1.25" union can help reduce head loss compared with smaller outlet plumbing, while the included 1.0" and 0.75" slip fittings support more common aquarium return-line setups. Final flow will depend on plumbing diameter, vertical head height, elbows, valves, manifolds, return nozzles, and other restrictions.

The COR-15 requires a compatible Apex system with an available 1LINK port and is not intended as a stand-alone pump. Basic plumbing knowledge, pipe, hose, fittings, valves, and other installation parts may be required depending on the aquarium layout.

Setup Directions

Install the COR-15 internally or externally according to the aquarium plumbing plan, using appropriately sized pipe, hose, fittings, unions, and valves. Connect the pump to the COR-15 driver, connect the driver to a compatible 1LINK port, then complete the Apex Fusion setup task. Confirm flow direction, check every plumbing joint for leaks, set IQ-Level, test feed mode, and verify alerts before relying on the pump for regular system circulation.

What's Included

• Neptune COR Pump

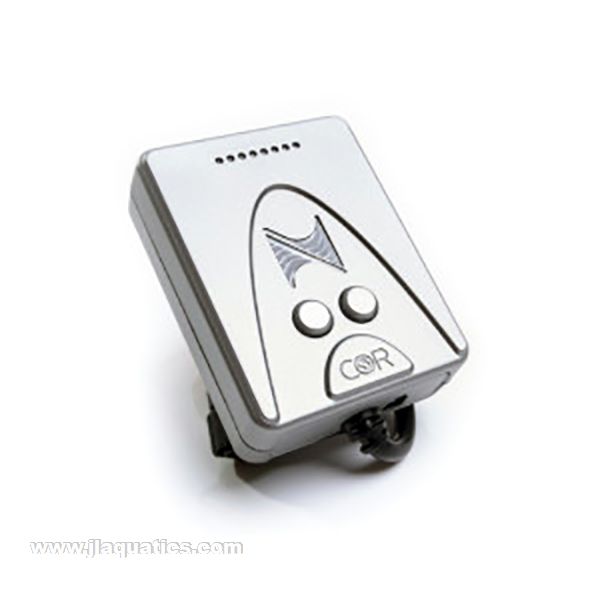

• COR-15 Pump Driver
• 1.25" PVC Union Slip-to-BSPP Fitting
• 1.0" Slip Fitting
• 0.75" Slip Fitting
• 1LINK Cable
