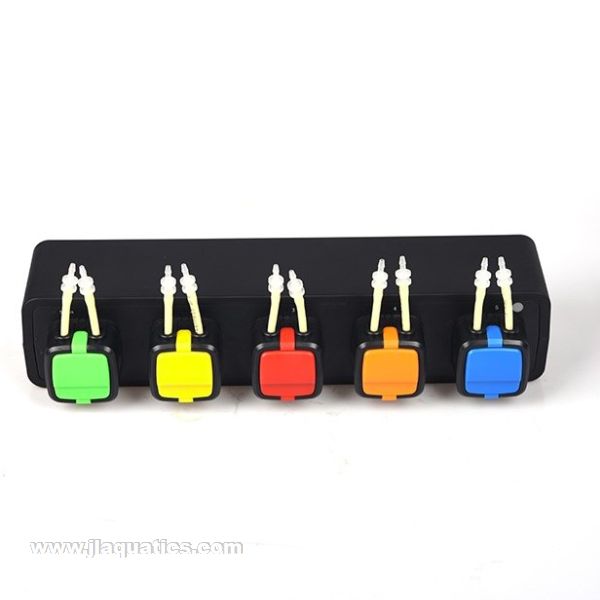

Kamoer X5S WiFi Dosing Pump

The Kamoer X5S WiFi Dosing Pump is a compact five-channel aquarium dosing system for reef keepers who need one additional dosing channel beyond a standard four-head unit. With WiFi app control, five dosing heads, 0.1 mL to 9999 mL fluid volume range, flow calibration for each pump, and flexible scheduling, it is designed for automated multi-supplement dosing in reef and aquarium systems.

Kamoer X5S Five-Channel Doser Overview

Five-channel dosing flexibility: The X5S gives aquarists five independently managed dosing heads for more complete supplement automation. This is useful when a reef system needs alkalinity, calcium, magnesium, trace elements, amino acids, carbon source, or other compatible liquid additives dosed separately without adding another single-channel unit.

Compact WiFi-controlled format: The X5S is designed around a small cabinet-friendly body with colourful conventional dosing heads. J&L lists the unit as under 250 mm wide and only 50 mm deep, and additional retailer data lists 285 x 91 x 60 mm. The key buyer value is the compact five-head layout that provides more dosing channels in less cabinet space than several separate pumps.

Practical schedule control: The X5S supports 1 to 24 dosing times per day, user-defined dosing periods, daily or selected-day dosing, auto/manual options, anti-interference delay between channels, and remaining-liquid monitoring. These functions help organize complex dosing plans and reduce the risk of different supplements entering the system too close together.

X5S WiFi Dosing Features

• Five dosing heads: Provides an extra channel for aquariums with more complete supplementation needs.
• WiFi app control: Allows dosing setup and adjustment from a compatible iPhone or Android device.
• Compact multi-head body: Saves cabinet space compared with using multiple separate dosing pumps.
• High-quality PharMed tubing: Pump heads use durable tubing intended for reliable aquarium dosing service.
• Flow calibration per pump: Each head can be calibrated to match real measured output.
• Flexible dosing schedule: Supports 1 to 24 doses per day, selected dosing periods, daily schedules, every X days, or specified weekdays.
• Auto and manual options: Allows programmed automatic dosing or manual operation when needed.
• Anti-interference delay: Helps avoid dosing incompatible liquids at the same moment.
• Container volume monitoring: Tracks liquid remaining in each dosing container for easier maintenance planning.
• Settings backup: Battery backup retains settings if power is lost.

Kamoer X5S WiFi Dosing Pump Specifications

• Product type: Five-channel WiFi aquarium dosing pump
• Dosing heads: 5
• Fluid volume range: 0.1 mL to 9999 mL
• Dosing accuracy: Less than +/-2%
• Control method: WiFi app control
• Dosing frequency: 1 to 24 dosing times per day
• Dosing modes: Auto and manual dosing options
• Scheduling: Daily, every X days, or specified days of the week
• Channel management: Anti-interference delay and remaining-liquid monitoring
• Application: Multi-channel reef and aquarium liquid dosing automation

X5S Compatibility and Dosing Notes

Best for systems needing extra channels: The Kamoer X5S WiFi Dosing Pump is most useful when four channels are not enough. It can help simplify dosing for more complex reef systems, but dosing should always be based on measured aquarium consumption rather than guesswork.

Calibrate and test regularly: Calibrate every pump head with the tubing and container arrangement being used. Recheck output after replacing tubing, changing fluid viscosity, changing tubing length, or moving containers above or below the doser.

Keep dosing organized: Label each line and container, keep outlet tubes secured, and use dosing delays where chemical interaction is a concern. Avoid positioning tube ends where they can siphon or become submerged in a way that affects dosing accuracy.

Setting Up the Kamoer X5S Doser

Install the doser in a dry cabinet location, connect inlet and outlet tubing for each channel, and prime every line before calibration. Pair the unit with the app, calibrate each head using measured output, then program the dosing schedule according to aquarium testing and target levels. Start with conservative doses, monitor the aquarium closely, and adjust gradually as consumption changes.
