Kamoer X2SR Auto Water Change Pump

Overview

Automatically Perform Water Changes!

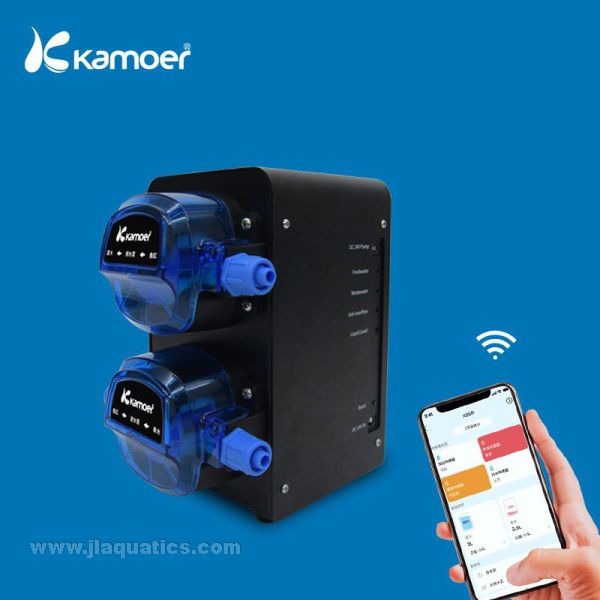

X2SR is a water change system that can remotely control it through the mobile phone App using WiFi. The automatic water replenishment function can be completed through the submersible pump interface.

To mitigate possible overflow risks, X2SR comes standard with an anti-overflow sensor. When the water level reaches the anti-overflow sensor, an alarm will be triggered, and the water supply and change will stop.

Specifications

• Flow: More than 900ml/min
• Power Adapter Input: 100VAC -240VAC
• Output: DC24V 1.9A
• Number of dosing: 24 times/day-1 time/99 days
• Interface: WiFi (App remote control)
• Working environment: Temperatures: 0 - 70C; Humidity: 10% - 90% (non-condensation)

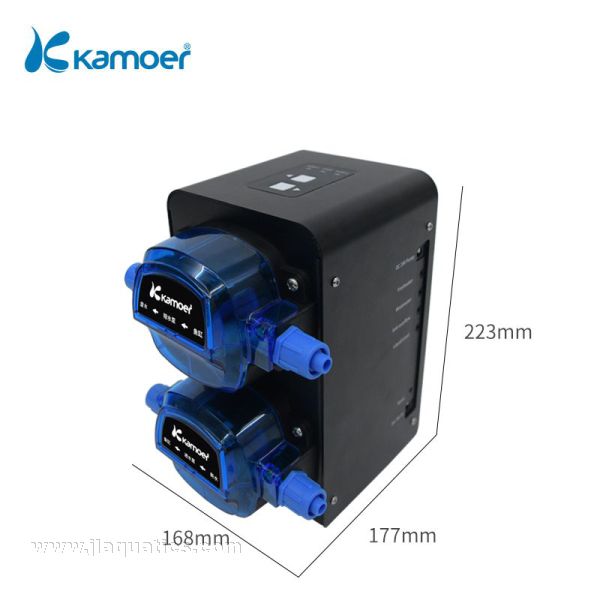

• Dimensions (L*W*H): 168*177*223mm (including pump head)
• Weight: 4.106KG (not including power supply)

What's in Box X2SR Pump Package by Kamoer

1 - X2SR
Power adapter body (DC24V 1.9A)
Power adapter plug (US/UK/EU/AU)
Plastic cylinder (50ml)
PVC tube 9.5*12.5mm; green 6m
Kamoer tube manifold Transparent
Float level sensor(headphone plug)
Float level sensor bracket
Magnet (black)
A submersible pump(DC 24V)
Male-to-male line
12 PVC connecting pipe for auto top-off 8*11mm transparent 1.5m
Anti-siphon connector(1/4 straight)
Grease x 10g
Quick start guide
Qualified certification

Precautions when using your X2SR Auto Water Change Set-up from Kamoer

• Please use the product's own power adapter and work in the specified working environment.
• This product only supports 2.4G Wi-Fi, not 5G Wi-Fi.
• Perform flow calibration before using the device to ensure that the water output is the same as the water input when changing water.
• The connecting pipe for the liquid inlet should be as short as possible, and the connecting pipe for the liquid outlet should be suspended above the tank.
• Please carefully check whether the connection direction of the water inlet and outlet is correct, and do not connect them in reverse.
