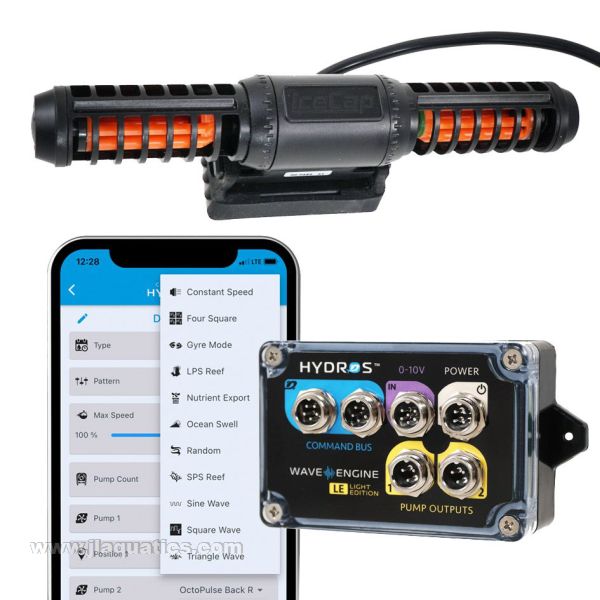

IceCap Gyre 4K Pump with WaveEngine LE Controller
IceCap Gyre 4K Pump with WaveEngine LE Controller
Hurry up, only 3 items left in stock.
✓ This item is eligible for free shipping
Couldn't load pickup availability
Product Description
Product Description
IceCap Gyre 4K Pump with WaveEngine LE Controller
The IceCap Gyre 4K Pump with WaveEngine LE Controller is a high-output WiFi-controllable gyre circulation package for aquariums from 25 to 150+ gallons. It combines the 4,000 GPH IceCap 4K Gyre pump with the HYDROS WaveEngine LE controller, giving larger reef and saltwater systems wide crossflow movement, advanced app-based flow programming, direct pump control, and controller features designed for more dynamic water movement.
IceCap 4K Gyre with WaveEngine LE Overview

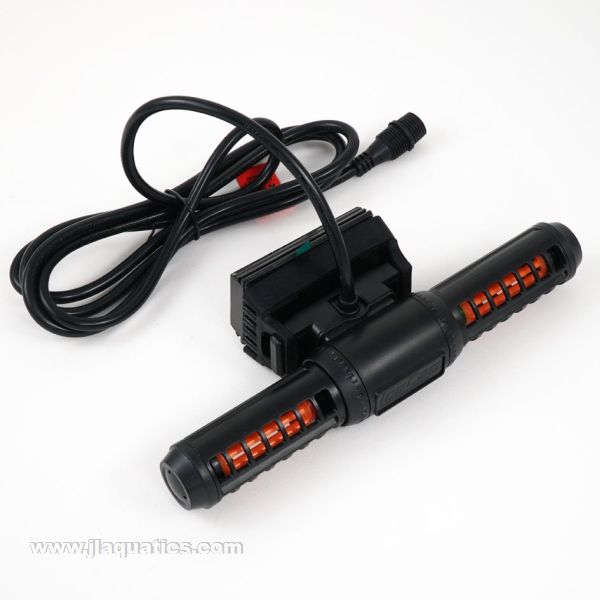

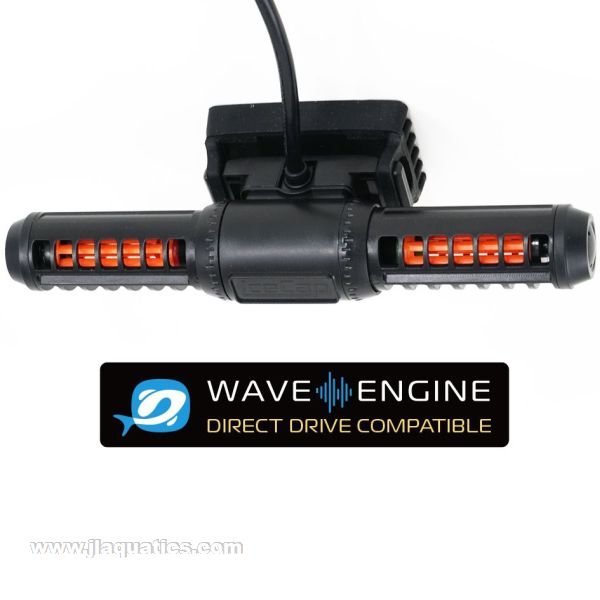

The 4K Gyre is built for aquariums that need stronger broad flow than the 2K model can provide. Its larger pump body and higher flow range make it well suited to larger reef displays, SPS-dominant aquariums, fish-heavy saltwater systems, long tanks, and layouts where rockwork can create dead zones behind or under structures. The gyre design helps create a continuous water-moving pattern across the aquarium rather than one concentrated blast from a small nozzle.

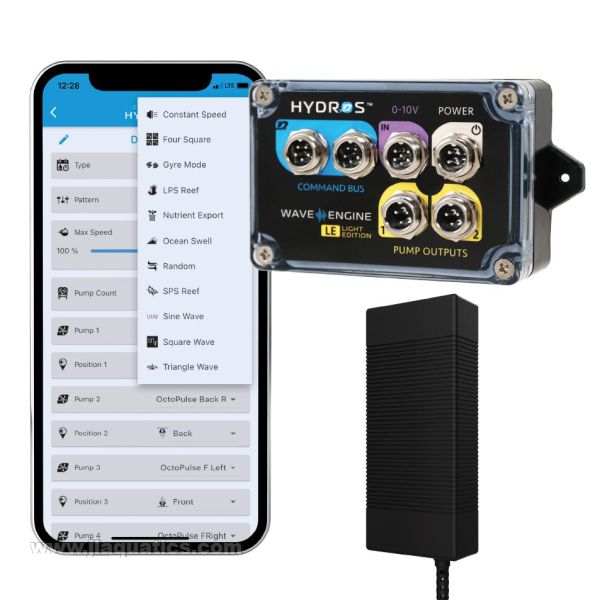

With the WaveEngine LE controller, the 4K becomes part of the HYDROS control ecosystem. The controller can run preset and custom flow patterns, set speed limits, create operational modes, monitor pump performance, and manage up to two compatible direct-drive pumps. This helps reduce equipment clutter and gives aquarists more precise control over flow intensity throughout the day.
4K Gyre Flow and Controller Features
- High-output gyre flow: Delivers up to 4,000 GPH of broad crossflow circulation for larger aquariums and stronger-flow reef systems.
- HYDROS WaveEngine LE included: Provides WiFi app-based pump control through the HYDROS platform.
- Dynamic flow patterns: Supports preset and programmable patterns including sync, anti-sync, triangle wave, square wave, sine wave, and other movement styles.

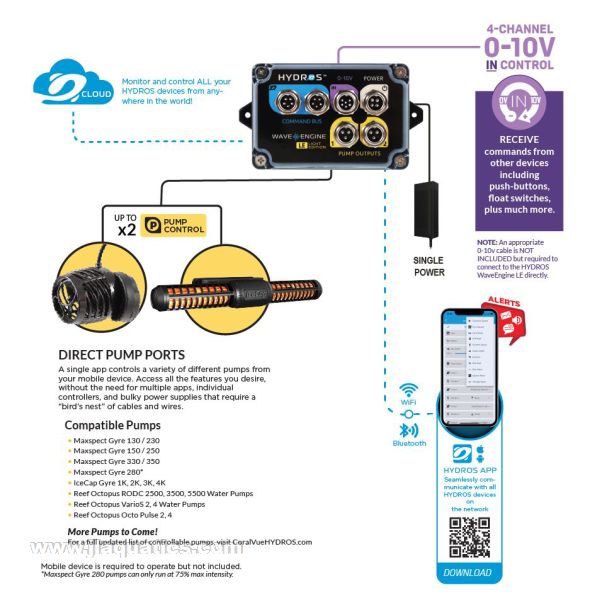

- Direct pump control: WaveEngine LE can directly power compatible pumps to help reduce separate pump controller and power brick clutter.
- Dual pump capability: Allows up to two compatible direct-drive pumps to work together under one controller.
- Performance monitoring: The HYDROS platform can monitor pump performance details such as power use and RPM information.
- Flexible mounting: The 4K Gyre can be mounted horizontally or vertically and can operate close to the water surface when properly installed.

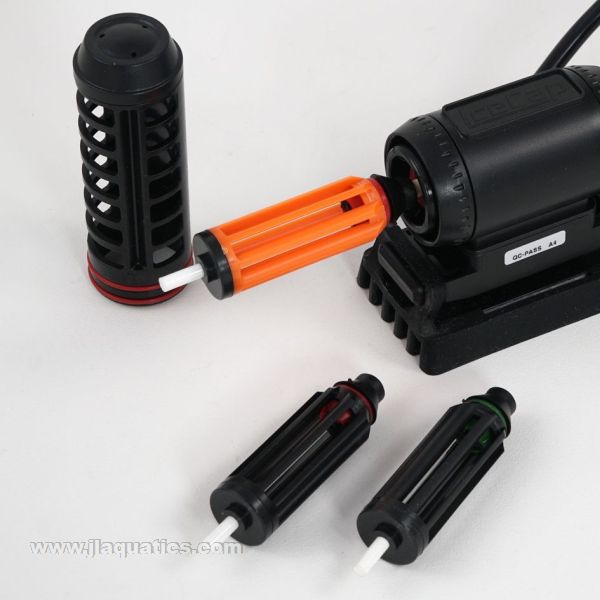

- Twin directional flow cages: Adjustable cages help refine output direction for reef rockwork, coral placement, and surface agitation.
- Waterproof magnet mounts: Secure mounting supports glass or acrylic aquariums up to 5/8" thick.
IceCap Gyre 4K Pump with WaveEngine LE Controller Specifications
- Product type: WiFi-controllable gyre flow pump package
- Part number: IC-GYRE4K-H
- Recommended aquarium range: 25-150+ gallons
- Maximum flow: 4,000 gallons per hour
- Minimum flow: 1,286 gallons per hour
- Power consumption: 13-45 watts
- Pump dimensions: 12" L x 3.15" W x 1.7" H
- Pump weight: 711g / 25.1 oz
- Pump cable length: 6 ft
- Maximum aquarium thickness: Up to 5/8"
- Aquarium material compatibility: Glass or acrylic
- Controller platform: HYDROS WaveEngine LE
- WaveEngine LE dimensions: 5" L x 2.7" W x 1.9" H
- WaveEngine LE maximum power: 120W
- Controller connectivity: HYDROS app and cloud connectivity
- Application: Larger reef, saltwater, and high-flow aquarium circulation
4K Gyre Compatibility and Placement Notes
Use the 4K for systems that need stronger flow: The IceCap Gyre 4K Pump with WaveEngine LE Controller is a powerful circulation package and should be matched to tank size, aquascape, substrate, coral tolerance, and livestock behaviour. It can be excellent for long tanks and SPS-style reef systems, but lower settings should be used around delicate corals, loose sand, small fish, shrimp, and new livestock.
Plan for controller access: Mount the WaveEngine LE in a dry, accessible area away from splash zones and salt creep. Use drip loops on all cables and confirm the controller remains reachable for app setup, updates, and troubleshooting. When using multiple pumps, assign pump locations carefully in the HYDROS app so sync and anti-sync patterns behave as expected.
Official IceCap Gyre Setup Video
Setting Up the IceCap 4K Gyre with WaveEngine LE
Install the 4K Gyre on compatible aquarium glass or acrylic, connect the pump and WaveEngine LE components according to the manufacturer setup instructions, and configure the pump in the HYDROS app. Begin with reduced maximum speed, then increase intensity gradually while watching coral movement, fish behaviour, sand stability, and debris suspension. Clean the cages, rotors, propellers, and magnet mount regularly so the pump maintains strong and quiet operation.
What's Included
- 1 x IceCap Gyre 4K Pump
- 1 x Power supply
- 1 x HYDROS WaveEngine LE WiFi Controller
- 2 sets of propellers: orange and black
