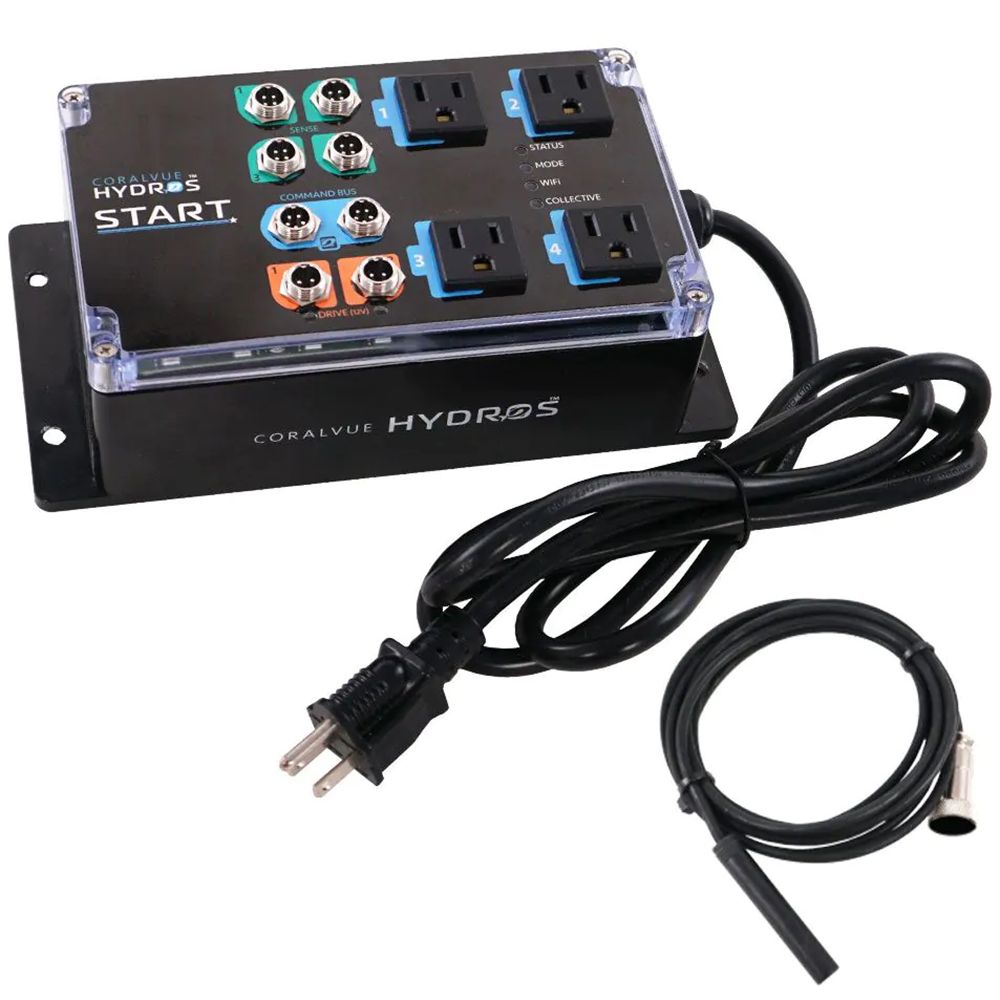

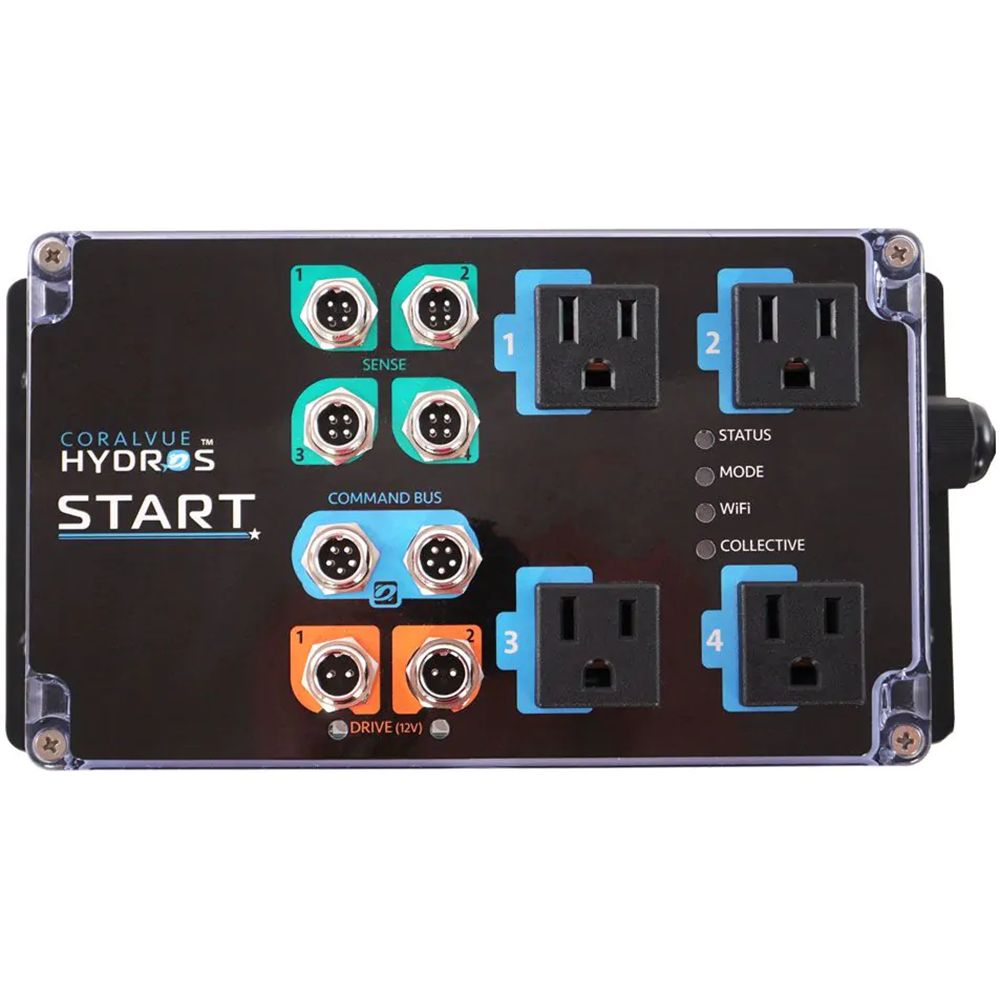

HYDROS Start Aquarium Controller

Overview

The HYDROS Start is an affordable entry controller that monitors temperature and powers up to four critical devices while leaving room to expand. With built in WiFi control and a simple app you can add sensors for water level leaks flow and more and scale with additional HYDROS gear as your system grows.

Features

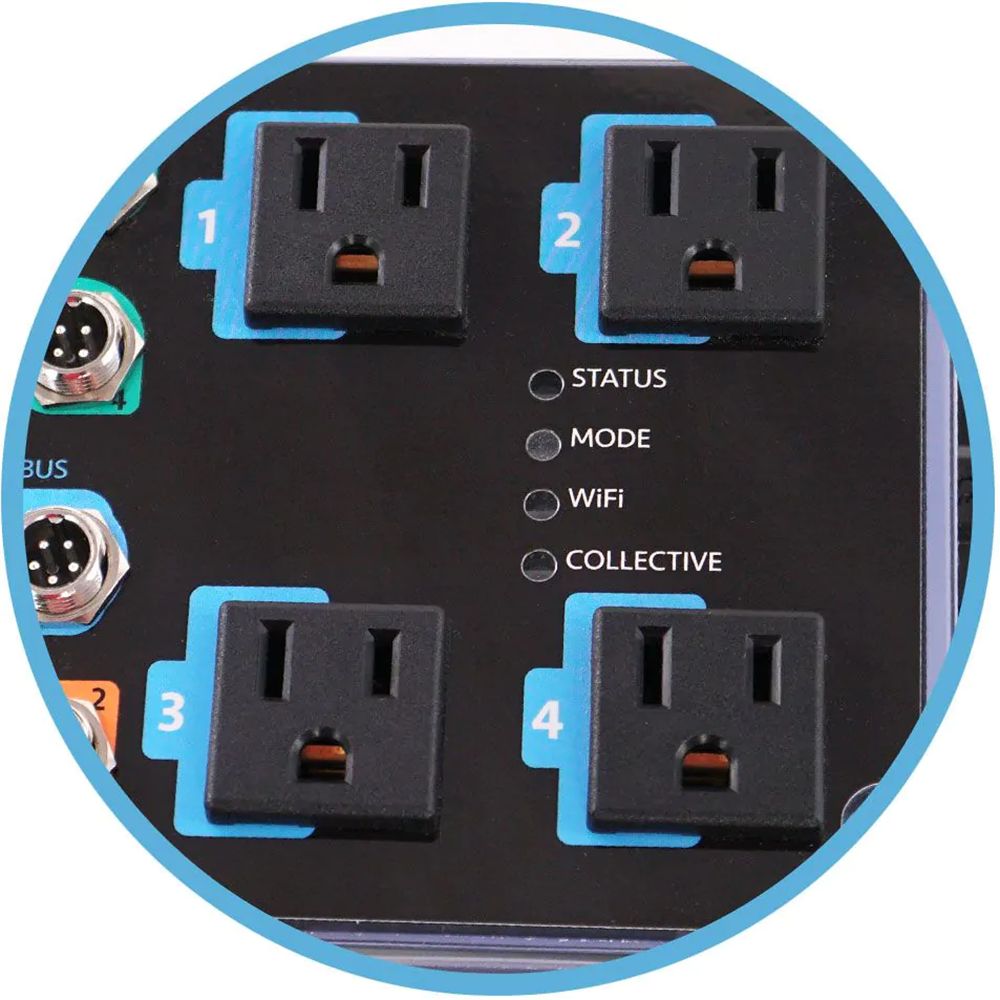

• Four controllable AC outlets to automate heaters pumps lights skimmers and more
• Four Sense Ports accept temperature water level leak flow and TDS sensors
• Two Drive Ports power 12V devices such as ATO and dosing pumps cooling fans cabinet LEDs and small solenoids
• Two Command Bus ports for expansion and redundant failsafe linking with other HYDROS controls
• Control up to eight WiFi devices via the HYDROS app with rules schedules and alerts
• Fast dual core processor local and cloud control user defined notifications and internal health monitoring

Specifications

• SKU: HDRS START
• Ports: 4 AC outlets 4 Sense Ports 2 Drive Ports 2 Command Bus
• AC Outlet Capacity: 8A max per outlet 14A total
• Drive Port Capacity: 1.5A per port 3A total
• Dimensions L x W x H: 9.5 x 4.75 x 3.25 in
• Power Cord Length: 6 ft

Compatibility and Upgrade Paths

Works with HYDROS accessories including optical level sensors leak detectors flow sensors TDS sensors ATO and dosing pumps fans cabinet LEDs small solenoids and the HYDROS IV. Expand control using HYDROS Smart Plugs 4 Outlet WiFi AC Power Strips and XP8 power centers all managed in the HYDROS app sold separately.

Maintenance and Care

Mount the controller above the waterline with a drip loop keep vents clear and avoid moisture exposure. Do not exceed 8A per outlet or 14A total. Update firmware through the HYDROS app periodically and audit outlet assignments after adding new equipment.

Warranty and Service

Backed by a 1 year limited warranty with support through the CoralVue Support Portal; warranty starts on purchase date and covers defects in materials and workmanship per CoralVue terms.

Shipping and Handling Notes

Ships as an electronic controller; handle gently and keep dry. Verify packaging condition on arrival and install on a stable dry surface away from salt spray and splashes preferably on a GFCI protected circuit.

Directions

Mount the controller connect the included temperature sensor plug life support devices into the four AC outlets download the HYDROS app connect Start to WiFi name outputs set schedules and rules and test each fail safe before regular operation.

What's Included

• HYDROS Start Controller
• Temperature Sensor
