Hydros Kraken Power Center

Overview

The Kraken introduces a new concept in aquarium controllers and provides high-power 24V DC switched outputs and a large heavy-duty power supply. This allows "power bricks" and "wall warts" to be removed from aquarium systems, significantly reducing wire clutter.

Hydros Kraken is Ultimate Aquarium Power Strip System Critical Equipment

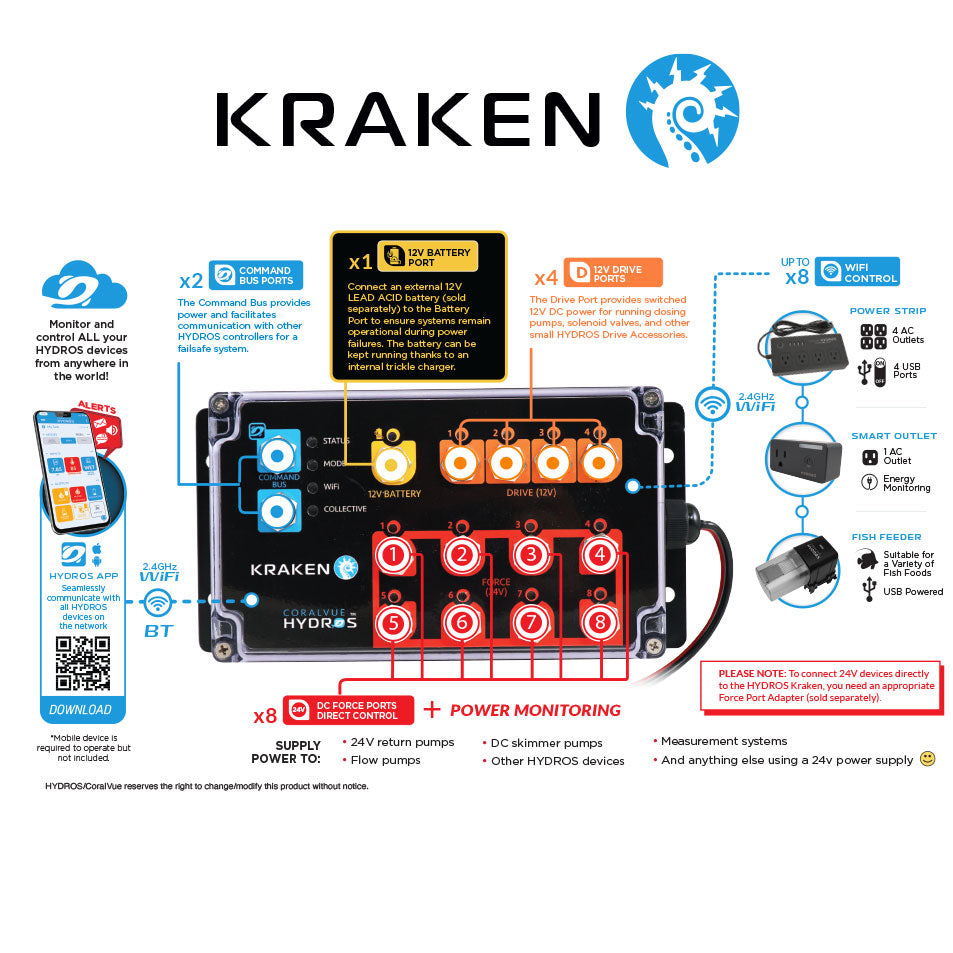

The HYDROS Kraken is an eight Force Port (24V DC) energy center and controller hybrid specifically designed to replace the power supplies of equipment like flow pumps, return pumps, and LED lights. Each individually controlled Force Port is built into the HYDROS controller for the highest level of security. The Kraken has an external industrial-grade Meanwell power supply with a 20amp/380w max power capacity, and it is designed to pass ETL/UL certification.
Besides powering on and off the controllable Force Ports, the Kraken also has four 12V Drive Ports for cabinet lighting, auto-top-off (ATO) pumps, and solenoids. The HYDROS Kraken is passively cooled, and the controller runs silently with its isolated power circuitry. Best of all, each of the eight Force Ports offer individual power monitoring.
Besides reducing the amount of 24V power bricks lying around the aquarium, the HYDROS Kraken is also a fully functioning HYDROS system controller capable of taking over intelligent decisions based on the status of other HYDROS devices within the Collective. The two HYDROS Command Bus Ports on the Kraken allow for a wired connection to any other HYDROS controller to form a collective of all Controls for the ultimate fail safe. system.
Control and monitor your Kraken power center from anywhere in the world using the technologically advanced HYDROS cloud-based app. The Kraken can also monitor and wireless control up to eight HYDROS WiFi devices.

Features

• Power up to 20 amps of system-critical life support equipment
• Eliminates clutter by removing the need for eight individual 24V power supplies
• The Kraken is a full brain that can share and take over the decision-making of a HYDROS Collective
• Control up to eight WiFi devices like fish feeders, smart outlets, and even additional WiFi power strips
• Command Bus Port provides power to add redundancy power to your HYDROS Collective
• Designed to pass ETL/UL Certification
• Universal voltage works with both 110 and 220V
• External Industrial Grade Meanwell Super Brick
• No noisy fans, the Kraken is entirely passively cooled
• Optical isolation between the power circuitry and the control circuitry. This provides safety failure and isolates the control circuitry to reduce noise.
• Engineered, built, and supported in the USA.

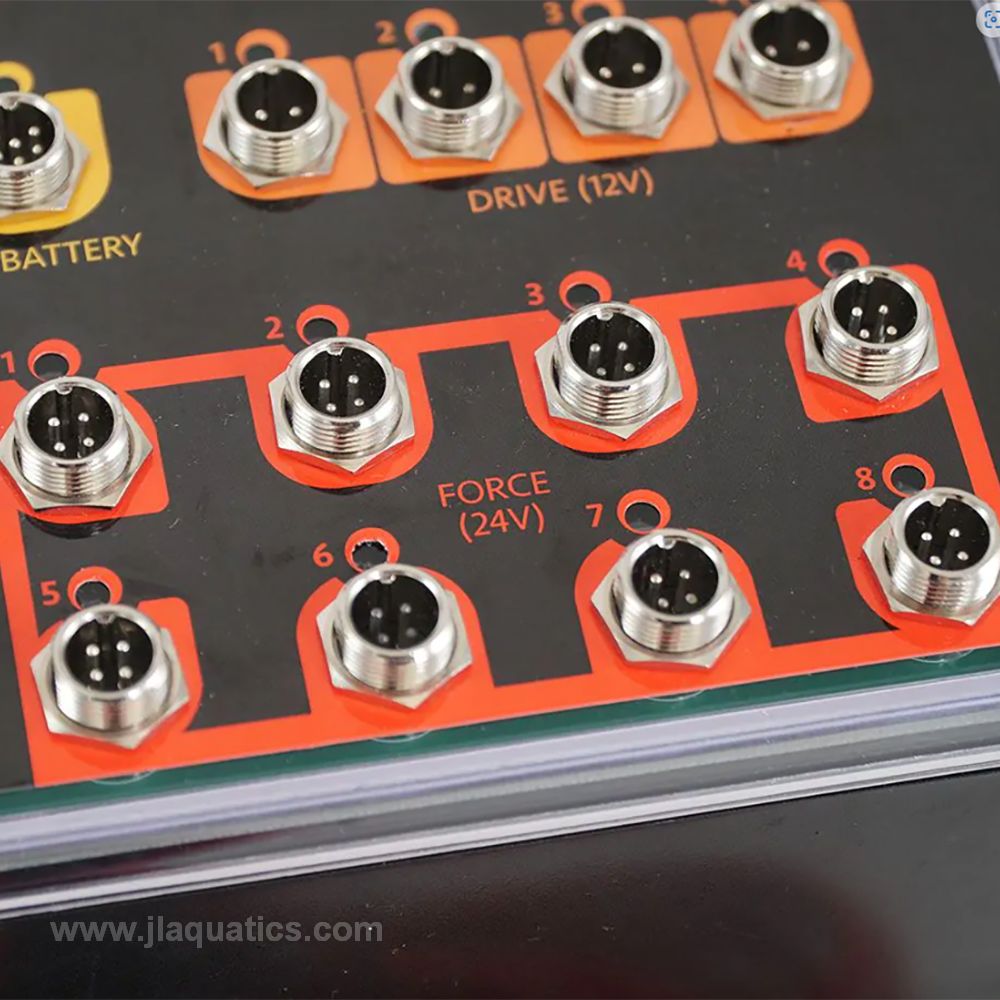

Force Ports 8 Available

Eight controllable DC power ports, each with individual power monitoring capabilities to safely manage aquarium equipment like lighting, water pumps, protein skimmers, filters, and much more using 24V power. Each high-current 24-volt Force Port provides up to 10amps of 24V DC power to eliminate equipment's "power bricks" and/or "wall warts" that are typically required to run.

Hydros Kraken Force Port Examples Include

Flow pumps 24V return pumps Measurement systems Other Hydros devices Controllers Small to medium-sized aquarium lights

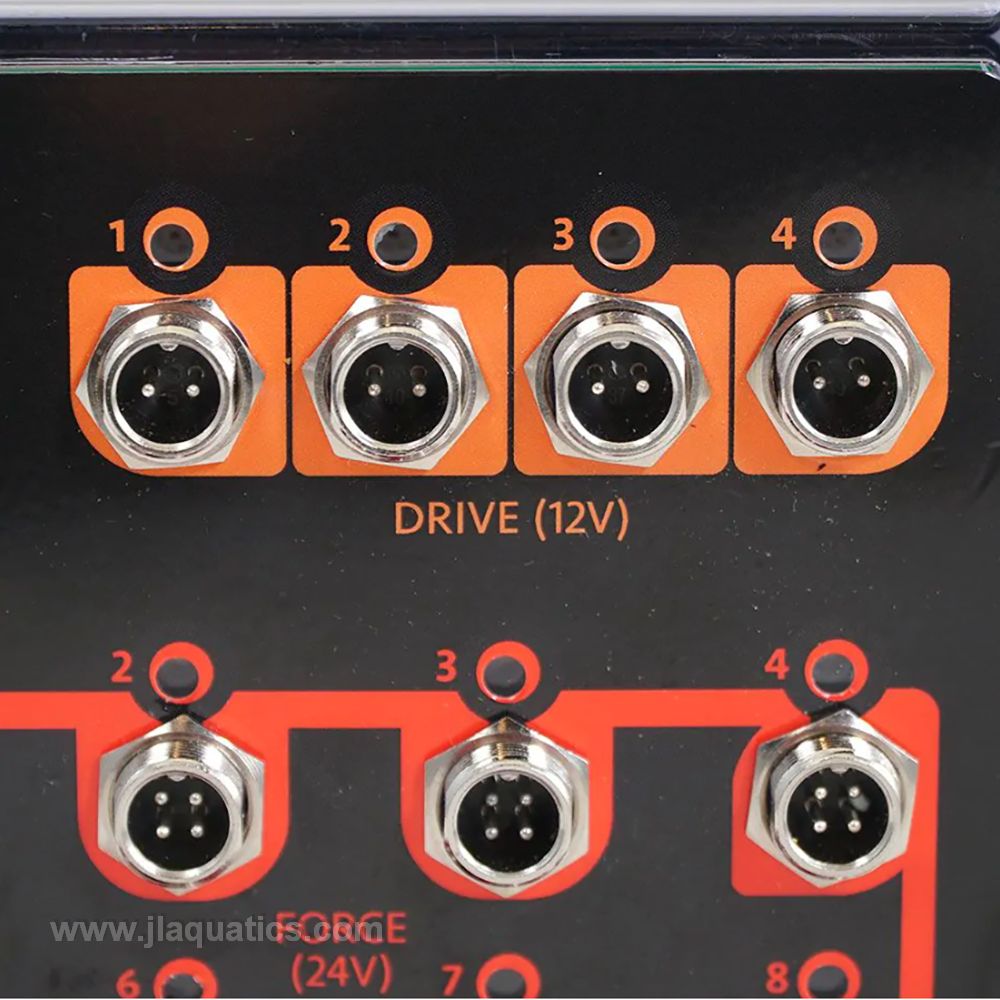

Drive Ports 4 Available

The Drive Ports provide switched 12V DC power for running small lights, motors, pumps, fans, and other accessories. The exact current being supplied by each port is continuously monitored by the Control, so if a motor or pump quits drawing current or draws too much, you will be immediately notified.

Accessories currently supported include:

Auto Top-Off (ATO) pumps
Dosing pumps
Cooling fans
Cabinet LED lights
Solenoids to control reverse osmosis systems
Steering valves and relays stirrers
Hydros iV testing vessel

Battery Backup Port 1 Available

A specific connection for an external 12V Lead Acid Battery to keep your system alive during power failures. A battery will keep the entire HYDROS system running in Low Power Mode during a power failure. An internal trickle charger keeps these batteries ready to use. The voltage and current on the battery are monitored and reported to the user. This battery can be as large or small as you choose, from small sealed lead acid batteries to large arrays of boat batteries. The Kraken's internal charger can be disabled if you prefer to use a battery charger.

Command Bus 2 Available

The HYDROS Command Bus is used to power the Control as well as communicate with other HYDROS devices for the ultimate fail safe.

External Super Brick 1 Available

A large 24V "super brick" IP65-rated industrial power supply to run all the outputs and the entire HYDROS system. The Super Brick can provide up to 20 Amps of 24 Volt DC power (480 watts). Supply is manufactured by Meanwell, a highly trusted and regarded power supply company.

Specifications

• Max Per Force Port: 10A
• Total Max Amperage: 20A
• Dimensions 9.5 x 4.75 x 3.2 (LxWxH)
