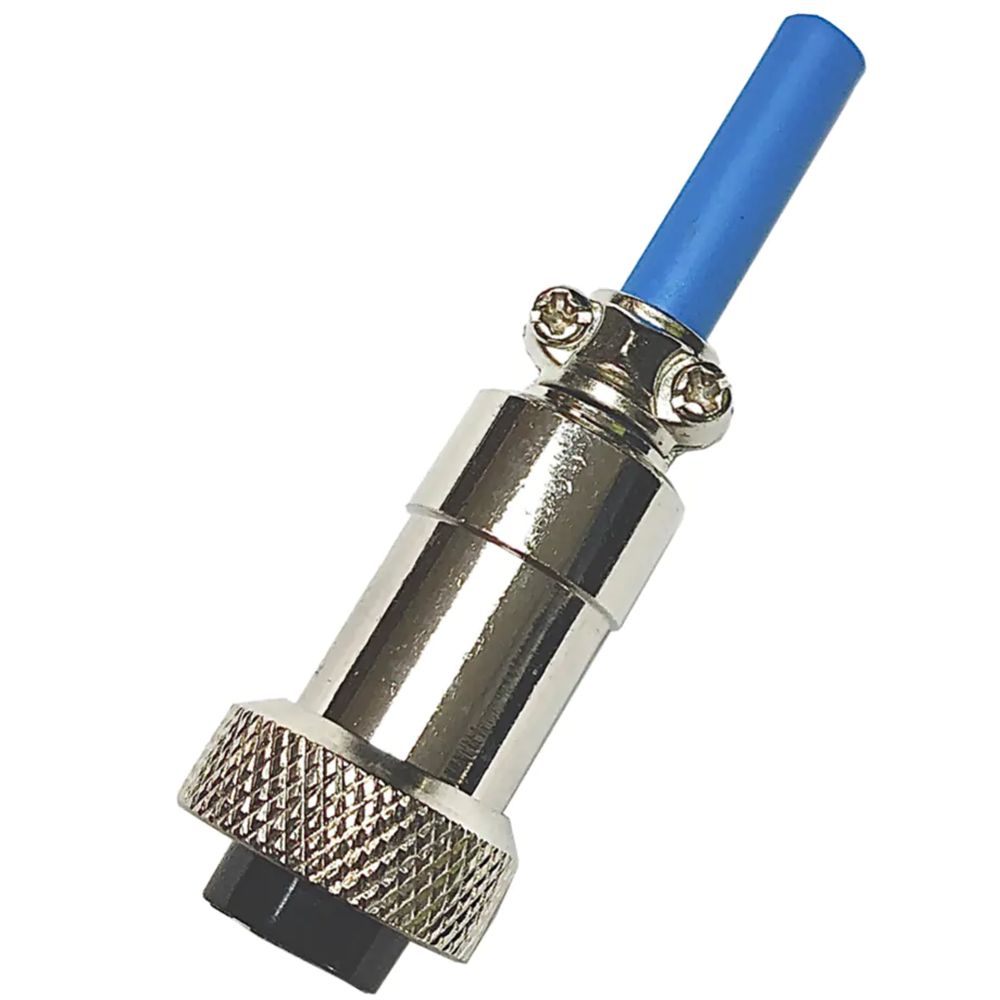

Hydros Command Bus Terminator

Overview

Essential accessory for reliable HYDROS Collectives. The Command Bus Terminator properly closes the communication bus to prevent signal reflections and maintain strong, error-free data between HYDROS devices.

Features

• Ensures correct impedance and stable communication on the Command Bus
• Simple, tool-free installation on an open Command Bus port
• Compact form factor fits tight control boards and cabinets
• Often included integrated on certain HYDROS power supplies; add where ports remain open

Specifications

• Model: HDRS-CBC-TM
• UPC/EAN: 850009641335
• Use: Terminate open Command Bus ports in a HYDROS Collective
• Compatibility: All HYDROS devices with Command Bus ports

Directions

• Power down the Collective

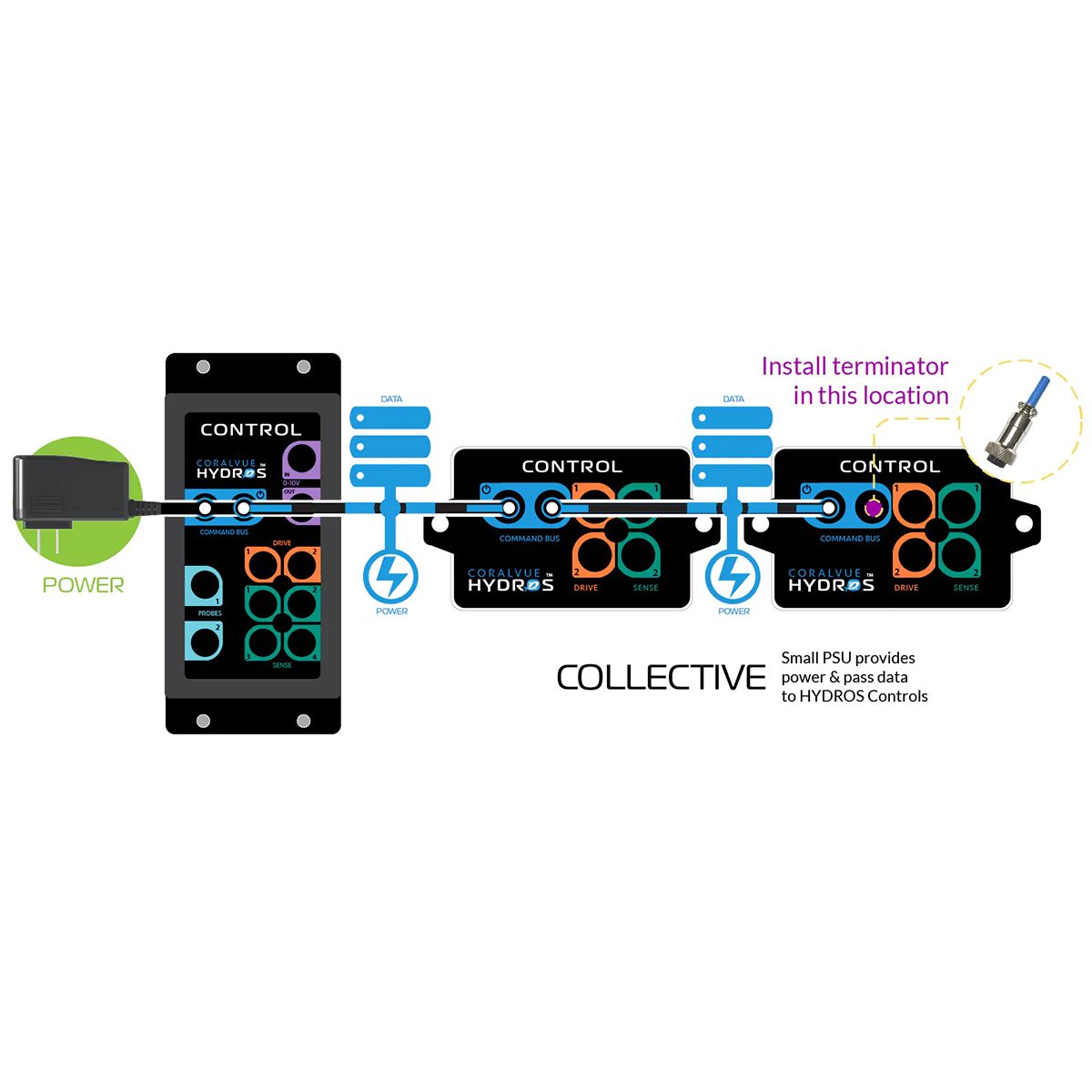

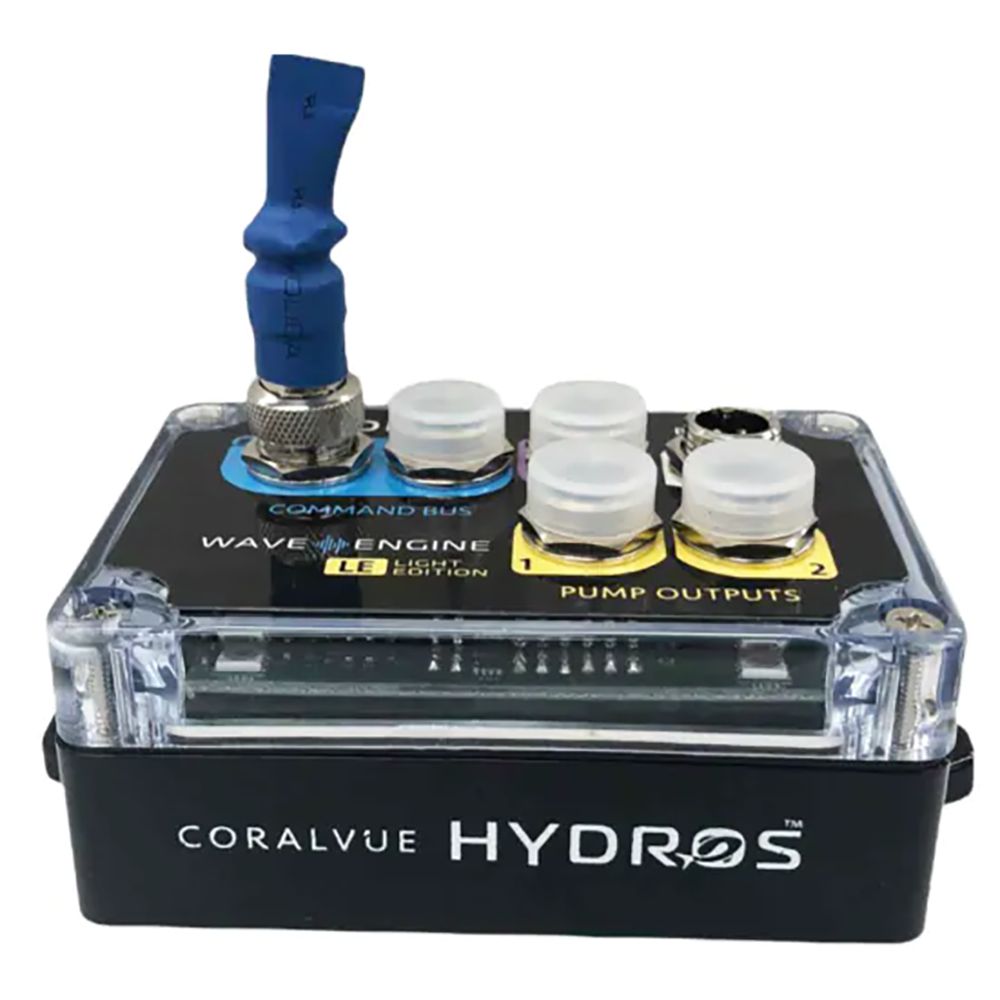

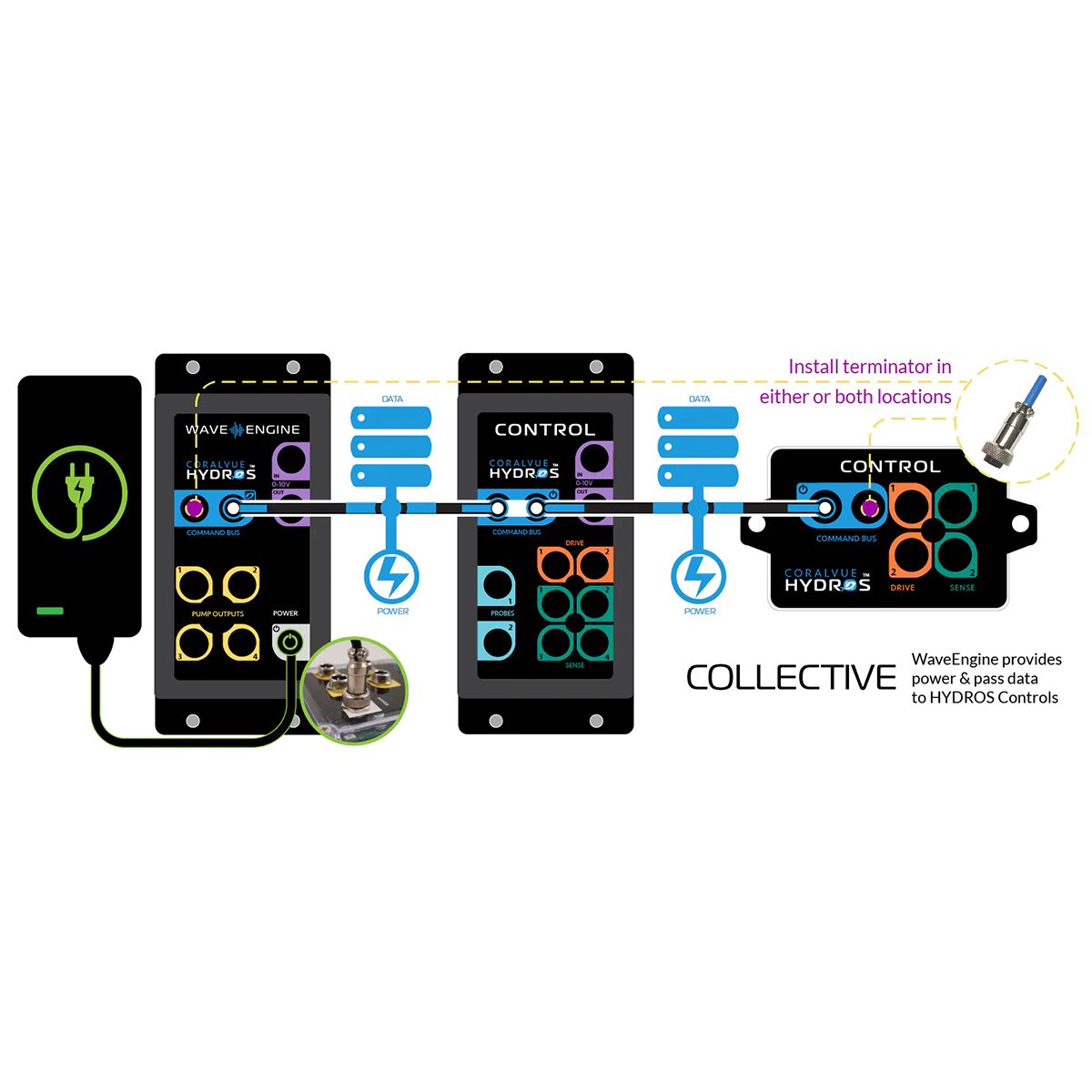

• Insert the Terminator into an open Command Bus port and hand-tighten if threaded

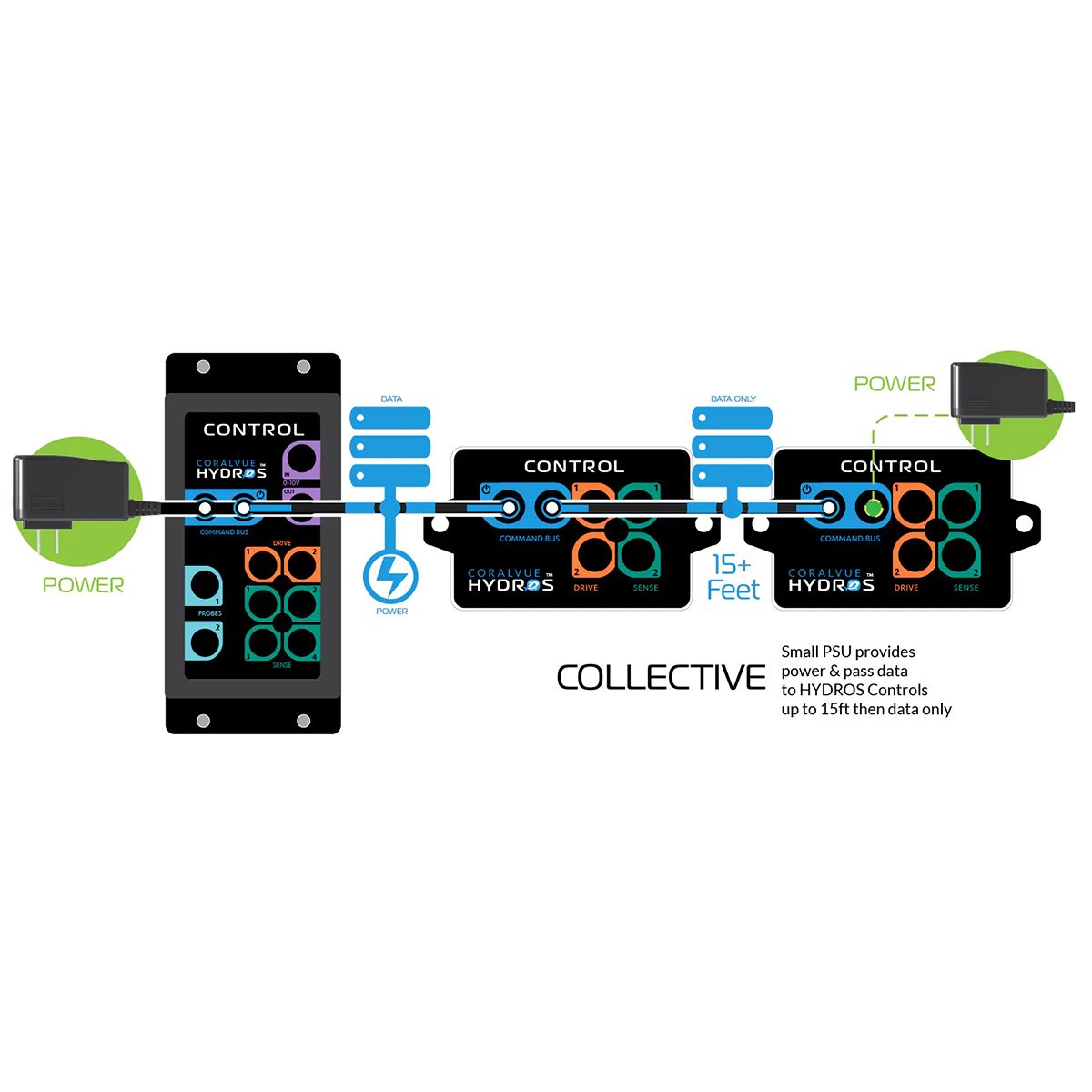

• Ensure all required ports are terminated to complete the bus
• Restore power and confirm stable device communication
