Eshopps Eclipse Overflow Kit (Medium)
Eshopps Eclipse Overflow Kit (Medium)
Hurry up, only 2 items left in stock.
✓ This item is eligible for free shipping
Couldn't load pickup availability
Product Description
Product Description
Eshopps Eclipse Overflow Kit (Medium)
Eshopps Eclipse Medium Sump Overflow System

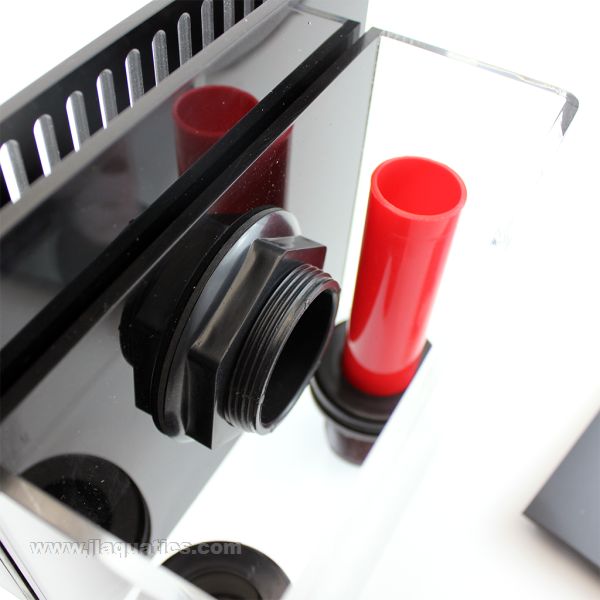

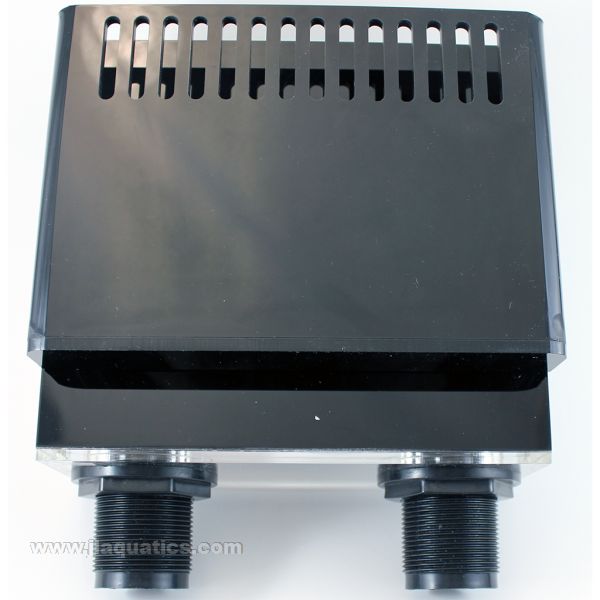

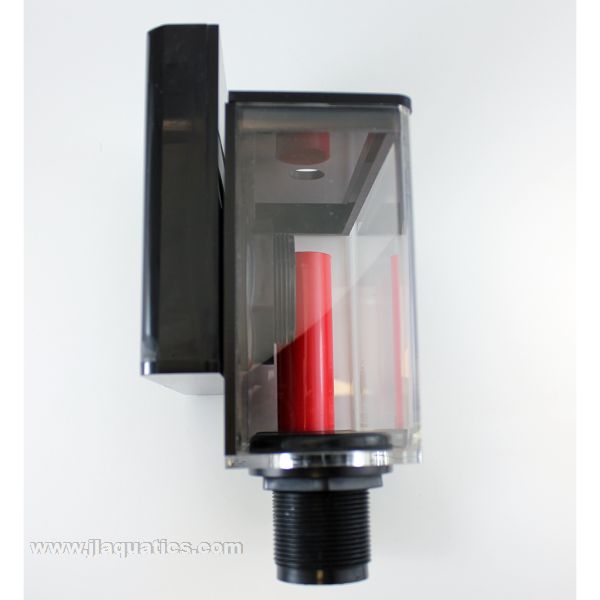

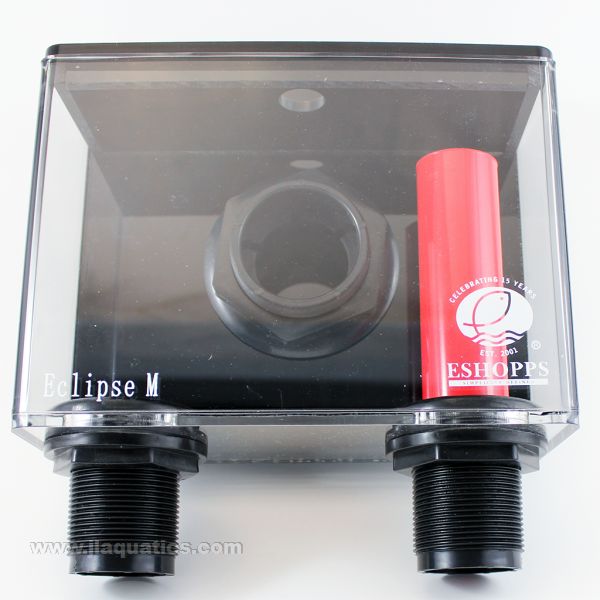

The Eshopps Eclipse Overflow Kit (Medium) creates a clean and compact connection between a drilled aquarium and an external sump. Its 8-inch internal surface-skimming box extends approximately 1.25 inches into the aquarium, preserving valuable display space while providing a wider overflow area than the Eclipse Small.
Rated for return flow up to 800 GPH and aquariums up to 100 gallons, the Eclipse Medium uses an internal and external box configuration with two 1-inch drain bulkheads. The supplied drilling template and 60 mm holesaw help position and create the transfer opening in a suitable aquarium panel.
Eclipse Medium Overflow Features
- Eight-inch surface-skimming width supports aquarium flow up to 800 GPH
- Slim internal box minimizes intrusion into the aquarium
- External box organizes drain bulkheads outside the display
- Two 1-inch drains allow a primary and secondary drain arrangement
- Overflow teeth draw water from the aquarium surface
- Low-profile construction provides a cleaner alternative to bulky internal overflow towers
- Designed for reduced operating noise when properly installed and tuned
- Includes the drilling equipment required for a suitable glass aquarium
Eshopps Eclipse Medium Specifications
- Maximum recommended flow rate: 800 GPH
- Recommended aquarium size: Up to 100 gallons
- Total dimensions: 8 x 3 x 6 inches
- Internal box dimensions: 8 x 1.25 x 6 inches
- Transfer bulkhead: One 1.5-inch bulkhead
- Drain bulkheads: Two 1-inch slip x slip bulkheads
- Included holesaw size: 60 mm
- Eshopps item number: 95861
Eclipse Medium Compatibility/Notes
The aquarium must be drilled to install this overflow. Confirm that the intended glass panel is not tempered and can be safely drilled. Leave enough clearance behind the aquarium for the three-inch-deep external box, drain fittings and connected plumbing.
The 800 GPH rating represents the maximum recommended overflow capacity. Return-pump selection should account for plumbing head pressure and should leave reserve drain capacity rather than operating continuously at the system's absolute limit.
Eshopps Eclipse Medium Installation Directions
Lower the aquarium water level below the installation area and secure the supplied template at the desired height. Check the position carefully because the template establishes the overflow location and operating-water level.
Use the included 60 mm holesaw to drill the opening while keeping the cutting area wet and following proper aquarium-glass drilling procedures. Assemble the internal and external boxes with the supplied transfer bulkhead and gaskets, then install the drain bulkheads and standpipe. Complete the plumbing and perform a controlled fresh-water test to confirm leak-free operation and adequate emergency-drain capacity.
What's Included
- Eclipse Medium internal overflow box
- Eclipse Medium external overflow box
- External overflow box lid
- One 1.5-inch transfer bulkhead
- Two 1-inch drain bulkheads
- Red PVC standpipe

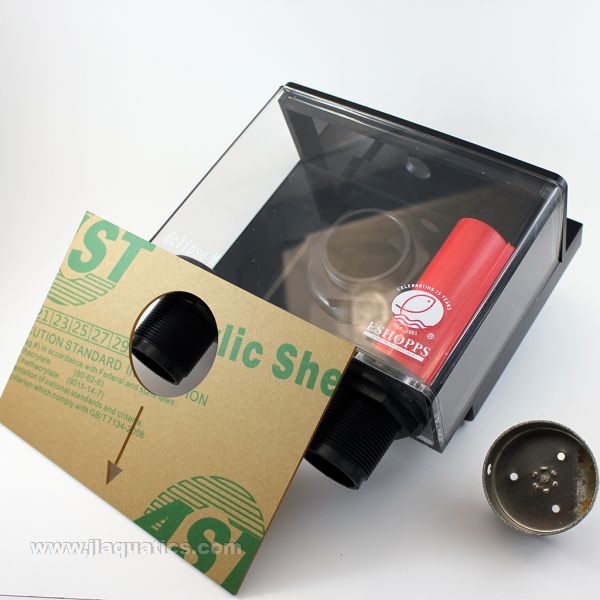

- Drilling template
- 60 mm holesaw
