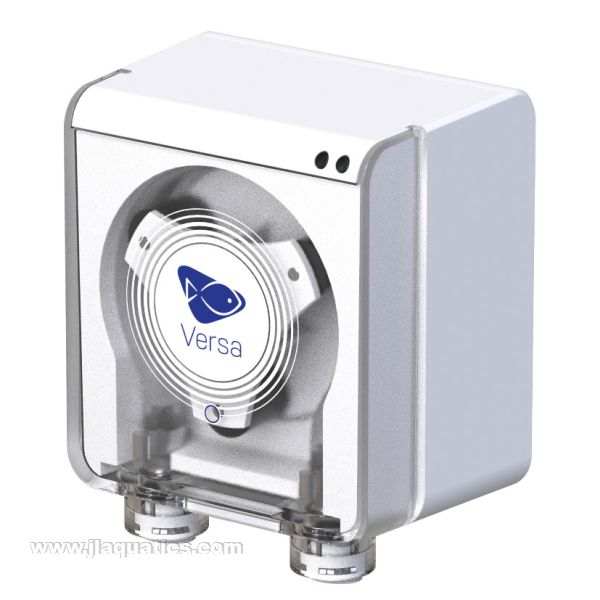

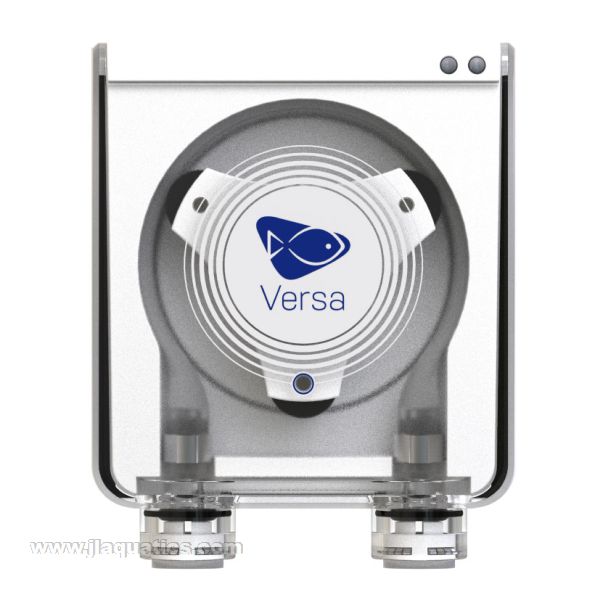

Ecotech Versa VX-1 Dosing Pump

Ecotech Versa VX-1 Dosing Pump Overview

The Ecotech Versa VX-1 Dosing Pump is a precision aquarium peristaltic pump designed for more than traditional additive dosing. Built with a DC stepper motor, planetary gearing, Mobius app control, and a wide operating range, the Versa VX-1 can be used for calcium and alkalinity dosing, trace elements, kalkwasser, auto top-off, automatic water changes, liquid feeding applications, and reactor feed duties where precise fluid movement is required.

EcoTech designed the Versa to handle both very small and high-volume dosing tasks. It can dose as little as 6 microliters per minute, run continuously up to 200 ml per minute, or move up to 300 ml per minute in volumetric operation. With advertised accuracy of 2% or less, heavy-duty construction, laboratory-grade tubing, and Mobius programming, the VX-1 is a premium choice for reef keepers who want a dosing pump that can handle both daily supplementation and more demanding automation tasks.

Features of Ecotech Versa VX-1 Dosing Pump

• Precision peristaltic pump: Designed for accurate fluid movement in marine, reef, and freshwater aquarium systems.
• Multi-purpose aquarium use: Suitable for dosing, auto top-off, automatic water changes, reactor feeding, and compatible liquid feeding applications.
• Accurate to 2% or less: Built for dependable dosing performance when calibrated and maintained correctly.
• Wide dosing range: Capable of extremely small dosing volumes as well as high-volume fluid movement for larger tasks.
• DC stepper motor: Provides controlled pump movement for precision dosing and repeatable operation.
• Planetary gearing: Gear drive is optimized for precision, durability, and long-term pump performance.

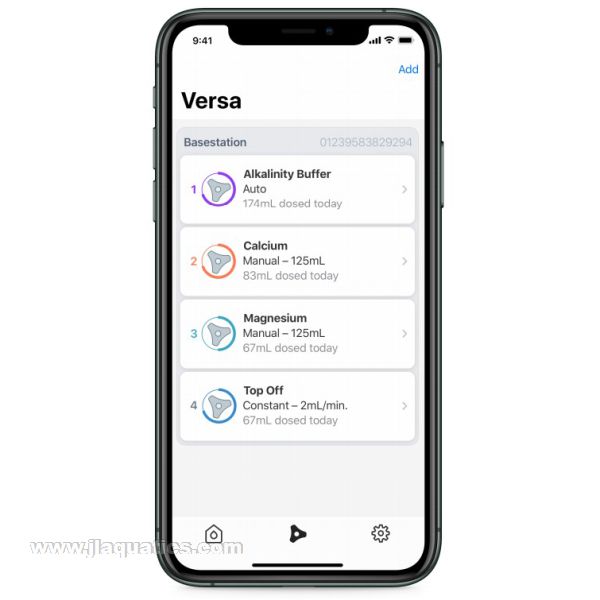

• Mobius app control: Program dosing modes, schedules, volumes, rates, and pump behaviour from a compatible smart device.
• Multiple operating modes: Supports Auto Mode, Continuous Mode, and Manual Mode for different aquarium automation needs.
• Up to 30 manual events: Manual programming allows up to 30 discrete dosing events per pump within a 24-hour period.
• Catch-Up and safeguards: Programming features help reduce dosing issues when a pump is interrupted or behind schedule.
• Heavy-duty construction: Durable ABS plastics, precision gearing, and laboratory-grade tubing are designed for demanding aquarium use.
• Modular system design: Can be used individually or added to a Versa Base Station for organized multi-pump installations.

Specifications for Ecotech Versa VX-1 Dosing Pump

• Model: Versa VX-1
• UPC: 653341191922
• Product Type: Peristaltic aquarium dosing pump
• Applications: Dosing, auto top-off, automatic water changes, reactor feeding, and compatible liquid feeding
• Accuracy: 2% or less
• Minimum Dosing Volume: 6 microliters per minute
• Maximum Continuous Dosing: 200 ml per minute
• Maximum Volumetric Dosing: 300 ml per minute

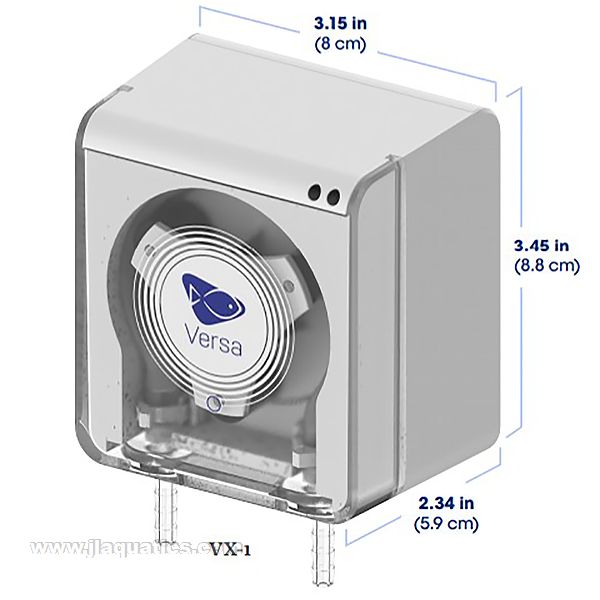

• Length: 3.15 in. / 80 mm
• Width: 2.34 in. / 59.4 mm
• Height: 4.21 in. / 106.9 mm
• Power Consumption: 12W
• Universal Input Range: 100-240VAC / 50-60Hz
• Peak Inrush Current: 1.3A
• Included Connectors: Female PTC and barbed adapter
• Control Platform: Mobius app
• Compatible Base Station: Ecotech Versa VXB-1 Base Station

Ecotech Versa VX-1 Dosing Pump Compatibility/Notes

• Suitable for marine, reef, and freshwater aquariums where controlled fluid dosing or transfer is required.
• Common reef applications include alkalinity, calcium, magnesium, trace elements, amino acids, kalkwasser, automatic water changes, and reactor feed control.
• Actual dosing accuracy depends on calibration, tubing condition, fluid viscosity, line length, head pressure, and maintenance.
• Use only aquarium-safe fluids and confirm the pump tubing and fittings are appropriate for the solution being dosed.
• The VX-1 can operate as a single pump or dock into a Versa Base Station for organized multi-pump systems.
• Versa Base Station, additional pumps, tubing, containers, and accessories are sold separately unless included in a bundle.

Directions for Ecotech Versa VX-1 Dosing Pump

• Install the pump in a dry, accessible location protected from splashing and salt spray.
• Connect intake and output tubing securely using the appropriate included connector or compatible fitting.
• Prime the line and confirm the direction of fluid movement before programming dosing.
• Pair the pump with Mobius and calibrate it before relying on it for aquarium dosing.
• Create the desired dosing program using Auto, Continuous, or Manual Mode as appropriate.
• Start with conservative dosing amounts and verify aquarium parameters regularly.
• Inspect tubing, fittings, pump head, and dosing containers regularly to prevent leaks, blockages, or inaccurate dosing.

What's Included

• 1 x Ecotech Versa VX-1 Dosing Pump
• Female PTC Connector
• Barbed Adapter
• Power supply and documentation as supplied by EcoTech Marine
