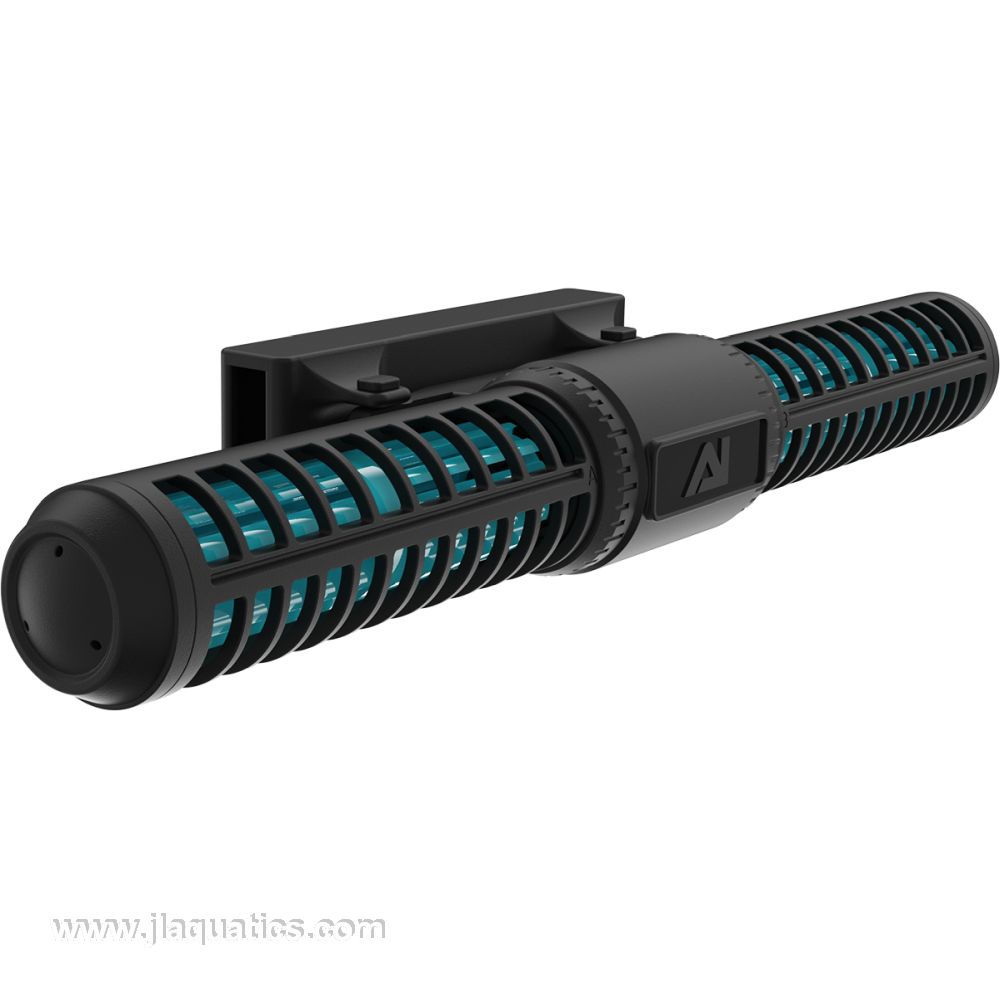

AI Orbit 4 Cross-Flow Pump
AI Orbit 4 Cross-Flow Pump is a controllable aquarium gyre-style pump designed to create broad cross-flow circulation across larger reef aquariums, marine displays, and advanced aquatic systems.
AI Orbit 4 Cross-Flow Pump for Larger Reef Current
The Orbit 4 creates wide sheet-like water movement instead of a narrow directional jet, helping simulate tidal-style circulation across the aquarium. This cross-flow pattern can lift detritus from low-flow areas, move food through the water column, and create more even movement across rockwork and coral zones.
Orbit 4 Reversible Gyre Flow Features
- Creates broad cross-flow circulation for reef and marine aquarium systems.
- Reversible pump operation allows forward and reverse flow patterns.
- Control options include myAI, Mobius, and Apex Fusion with a compatible MXM module.
- Flow modes include Constant Speed, Pulse, Random, and Reverse.

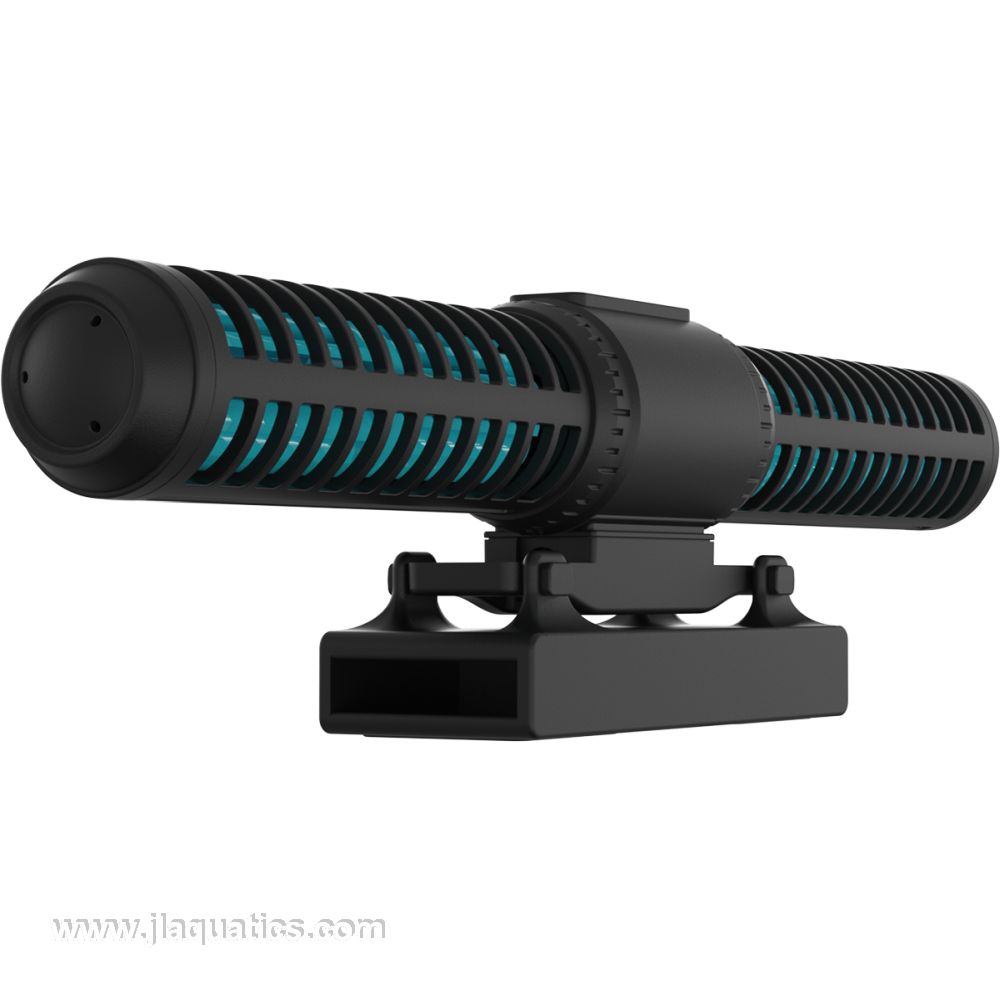

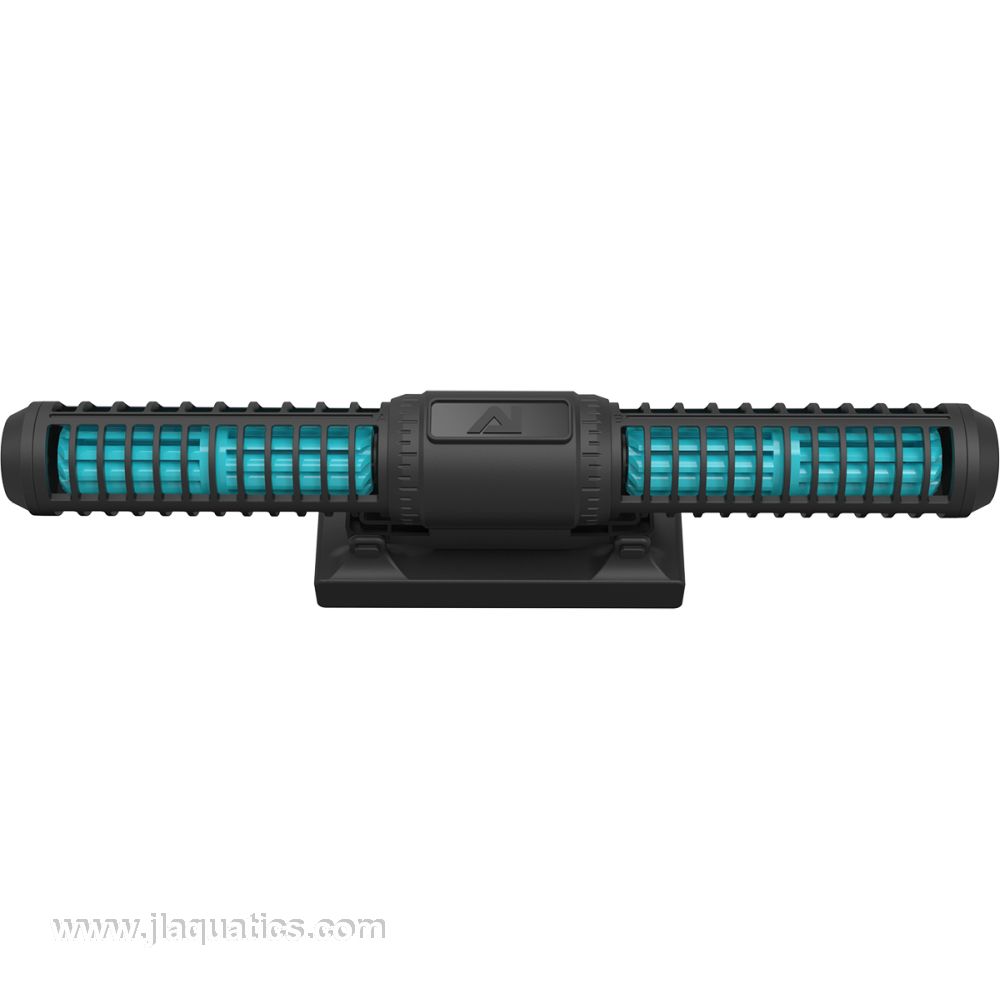

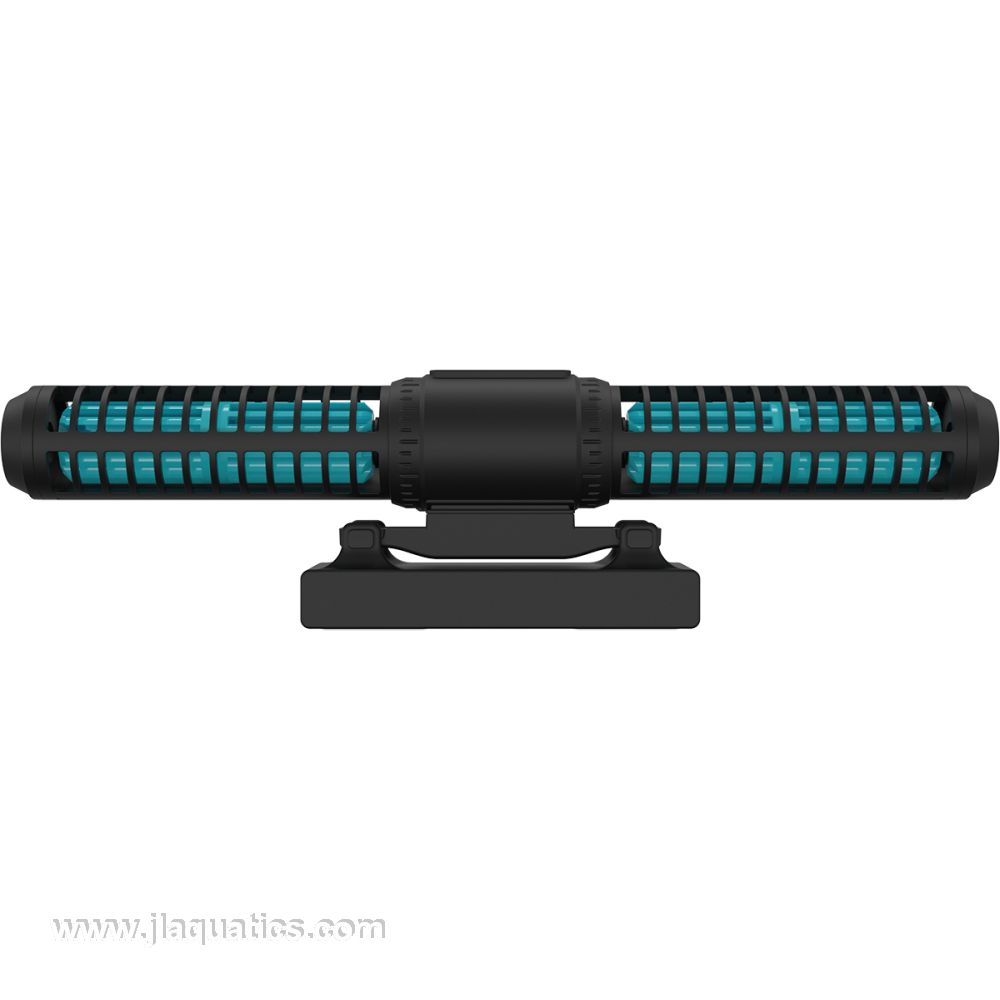

- Magnetic mounting system allows secure installation and easy service access.
- Useful for reducing dead spots, lifting detritus, and improving overall aquarium circulation.
- Pairs well with Nero pumps when a mix of cross-flow and chaotic directional flow is desired.
AI Orbit 4 Pump Specifications
- Product type: controllable cross-flow aquarium pump
- Recommended aquarium size: approximately 50-120+ gallons

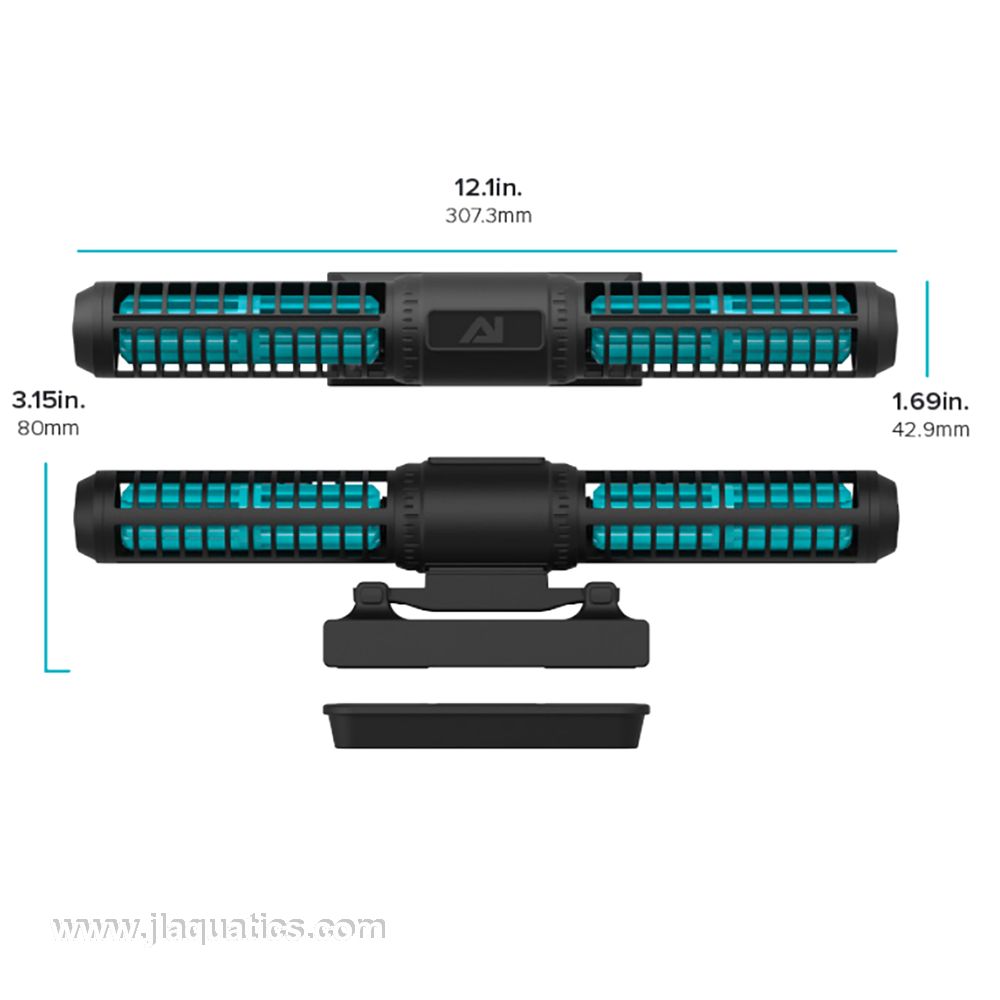

- Dimensions: 12.1 in. W x 1.69 in. D x 3.15 in. H
- Maximum glass thickness: 0.79 in. / 20 mm
- Power consumption: variable, 45W maximum
- Input: 100-240VAC, 50-60Hz, 2A
- Mounting style: magnetic mount
- Control options: myAI, Mobius, and Apex Fusion with MXM module
Orbit 4 Placement and Flow Planning Notes
Use the Orbit 4 where the pump can move water across the aquarium length or width without immediately blasting into rockwork. In sandy tanks, begin with lower output and increase gradually to avoid substrate movement. Reverse and pulse-style programming can help create changing current patterns and reduce settled debris.
AI Orbit 4 Setup Directions
- Choose a mounting location that allows the cross-flow pattern to travel across the aquarium.
- Confirm the aquarium glass thickness is within the magnet rating.
- Install the pump and outside mounting magnet carefully on clean glass or acrylic.
- Connect the power adapter and pair the pump with the preferred app or compatible controller setup.
- Start with reduced flow and test Constant Speed, Pulse, Random, or Reverse modes.
- Observe coral movement, detritus lift, fish behaviour, and sand stability before increasing output.
- Clean the pump regularly to maintain strong quiet flow and reduce calcium or algae buildup.
What's Included
- One AI Orbit 4 Pump with integrated driver
- One mounting magnet
- One power adapter with universal plug adapter set
- One quick start guide
