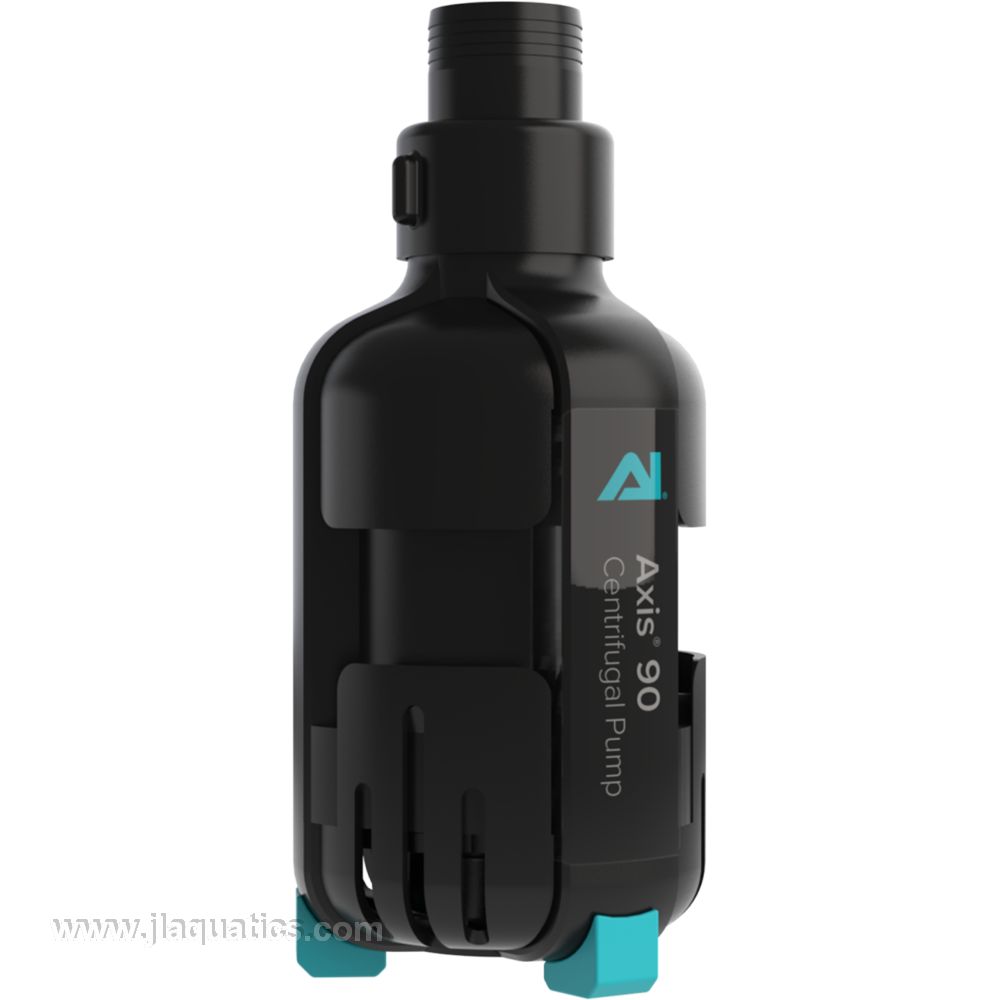

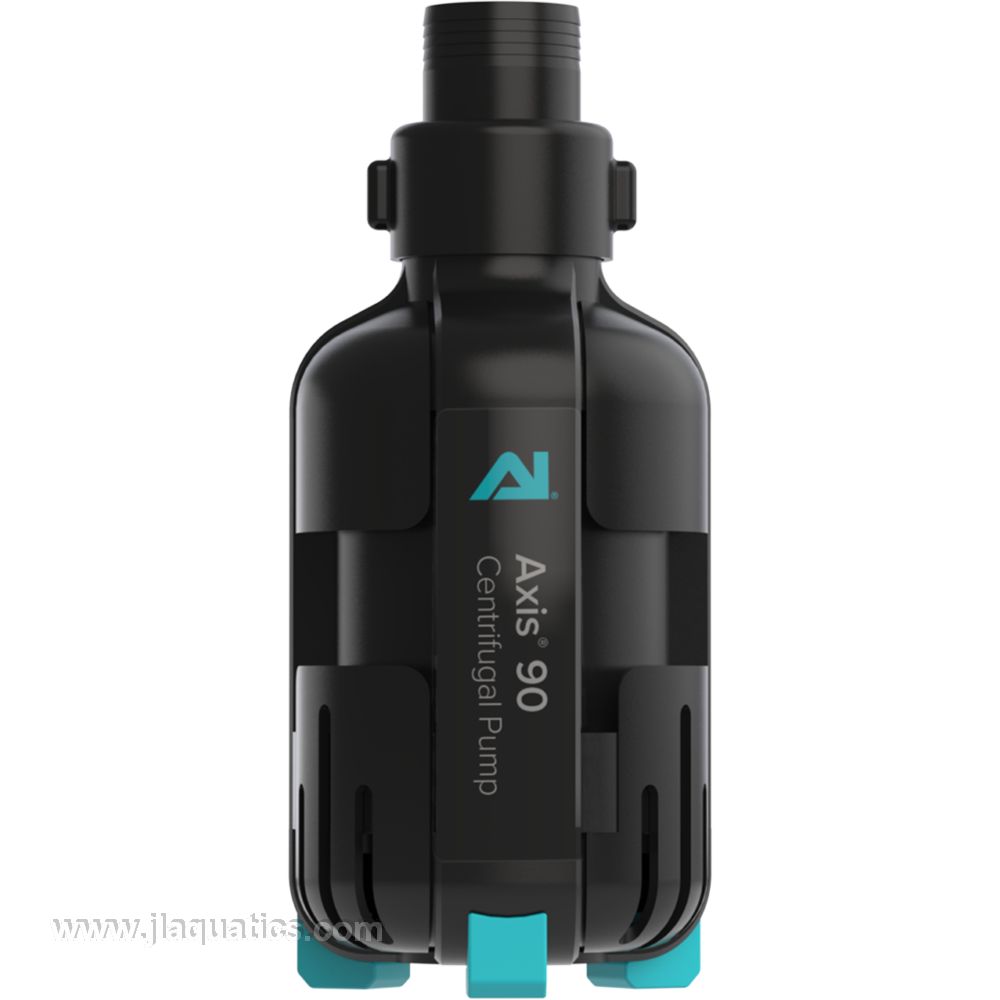

AI Axis 90 Centrifugal Water Pump
AI Axis 90 Centrifugal Water Pump is a larger controllable DC return pump for reef aquariums, freshwater systems, sumps, and aquatic setups that need higher flow and stronger head capability than smaller Axis models.
AI Axis 90 Return Pump for Larger Aquarium Flow
The Axis 90 is the highest-output Axis model in this group, making it a strong option for larger aquariums, higher head return plumbing, and systems where smart control and pump calibration are valuable. It combines return-pump utility with app-based programming and coordinated feed or maintenance modes.
Axis 90 High-Output DC Pump Features
- Higher-output controllable DC pump for larger aquarium return applications.
- Smart control through myAI, Mobius, or Apex Fusion with a compatible MXM module.
- Schedule mode supports custom flow programming over time.
- Feed mode temporarily reduces flow so food is less likely to be pulled into overflow plumbing.
- Calibrate mode helps set flow limits and tune the pump to the aquarium system.
- Suitable for reef tanks, freshwater aquariums, sumps, and larger return-pump upgrades.
- Includes larger barbed output nozzle options for higher-flow plumbing layouts.
AI Axis 90 Pump Specifications
- Product type: controllable centrifugal aquarium water pump
- Maximum flow rate: approximately 925 GPH / 3500 LPH
- Maximum head height: approximately 10 ft / 3 m
- Recommended aquarium size: up to approximately 90 gallons

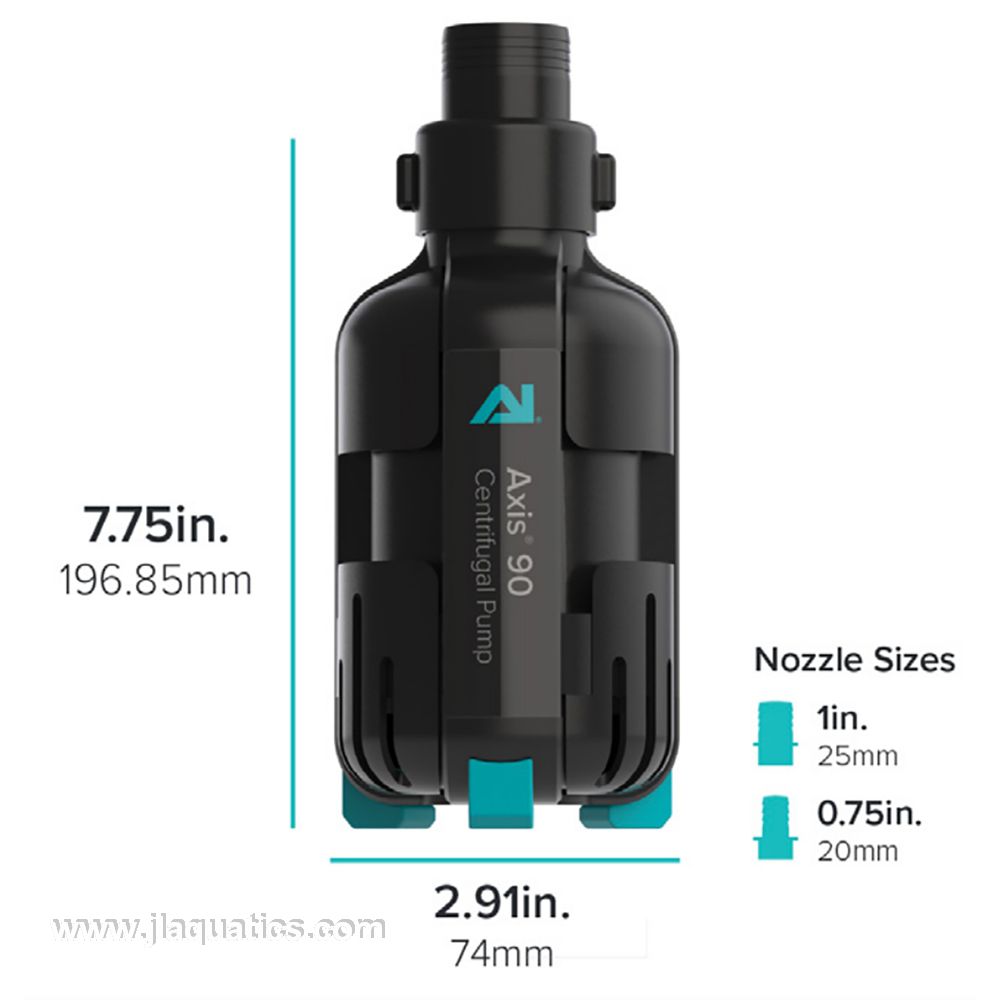

- Dimensions: 2.91 in. diameter x 7.75 in. tall
- Power consumption: variable, 40W maximum
- Input: 100-240VAC, 50-60Hz, 1A
- Barbed output nozzle sizes: 0.75 in. / 20 mm and 1 in. / 25 mm
Axis 90 Sump and Return Pump Notes
Match the Axis 90 to the aquarium’s overflow capacity, plumbing diameter, and desired turnover rate. Higher output does not always mean better performance if plumbing is restrictive or the overflow becomes noisy. Use calibration and scheduling to tune the pump rather than relying only on valves or restrictions.
AI Axis 90 Setup Directions
- Select the barbed nozzle size that matches the return plumbing or tubing.
- Install the pump fully submerged in the sump or appropriate pump chamber.
- Secure the return tubing and confirm all plumbing connections are tight.
- Connect the power adapter and configure control through the preferred app or compatible controller.
- Use calibrate mode to set safe pump limits for the aquarium and overflow.
- Bring flow up gradually while checking sump level, overflow stability, noise, and back-siphon behaviour.
- Service the pump regularly to remove debris, biofilm, and calcium buildup from the impeller area.
What's Included
- One AI Axis 90 Pump with integrated driver
- One 0.75 in. / 20 mm barbed output nozzle
- One 1 in. / 25 mm barbed output nozzle
- One power adapter with universal plug adapter set
- One quick start guide
