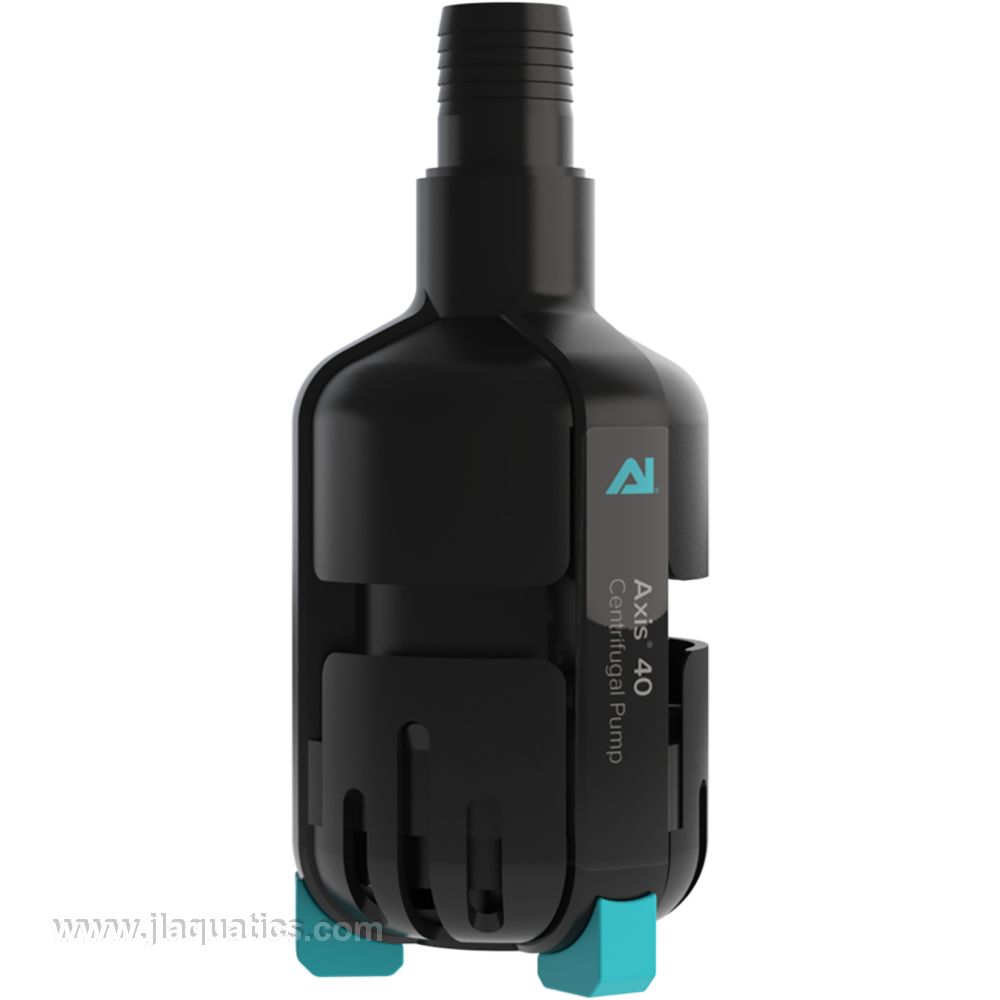

AI Axis 40 Centrifugal Water Pump
AI Axis 40 Centrifugal Water Pump is a controllable DC aquarium return pump for small to mid-size systems, providing quiet adjustable flow for reef tanks, freshwater aquariums, sumps, and rear-chamber filtration layouts.
AI Axis 40 DC Return Pump for Small Reef Tanks
The Axis 40 offers more flow and head capability than the Axis 20 while keeping the same smart control concept. It is a good fit for aquariums that need adjustable return flow, feed-mode convenience, and app-based scheduling without moving into a larger high-output pump size.
Axis 40 Controllable Pump Features
- Quiet energy-efficient DC centrifugal pump for return and circulation applications.
- Smart control through myAI, Mobius, or Apex Fusion with a compatible MXM module.
- Schedule mode creates custom flow programs over time.
- Feed mode temporarily reduces output during feeding.
- Calibrate mode helps match pump output to the aquarium and reduce back-siphon concerns.
- Useful for small reef tanks, compact sump systems, freshwater setups, and all-in-one aquarium upgrades.
- Includes two barbed output nozzle sizes for flexible return-plumbing setup.
AI Axis 40 Pump Specifications
- Product type: controllable centrifugal aquarium water pump
- Maximum flow rate: approximately 400 GPH / 1500 LPH
- Maximum head height: approximately 9 ft / 2.8 m
- Recommended aquarium size: up to approximately 40 gallons

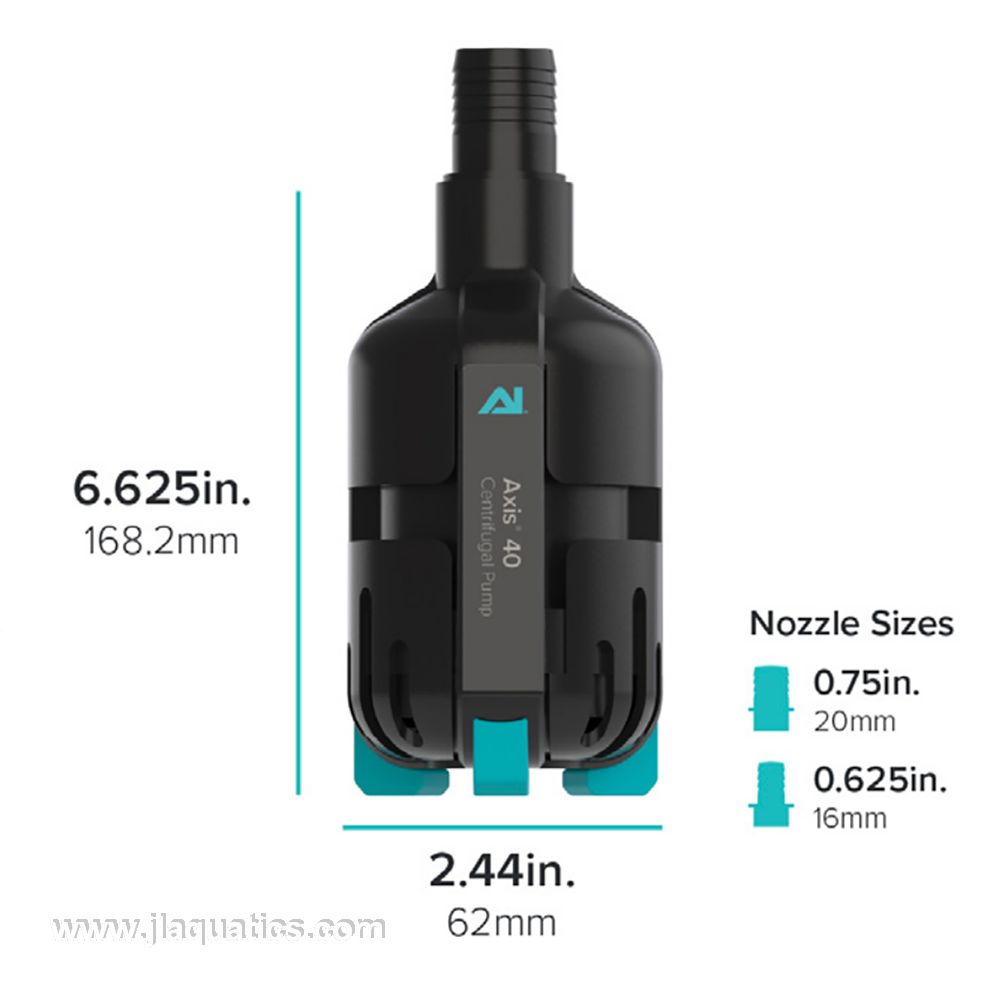

- Dimensions: 2.44 in. diameter x 6.625 in. tall
- Power consumption: variable, 20W maximum
- Input: 100-240VAC, 50-60Hz, 1A
- Barbed output nozzle sizes: 0.625 in. / 16 mm and 0.75 in. / 20 mm
Axis 40 Return Flow and Plumbing Notes
Use the Axis 40 where its flow and head rating match the aquarium’s return plumbing and overflow capacity. Avoid running excessive flow through undersized plumbing, and leave enough service access to remove the pump for routine cleaning. Calibration is especially helpful when tuning return flow to an existing system.
AI Axis 40 Setup Directions
- Choose the barbed output nozzle that matches the tubing or return line.
- Place the pump fully submerged with open space around the intake.
- Secure tubing to the output nozzle and check that the return line is routed safely.
- Connect the power adapter and configure app or controller control.
- Use calibrate mode to set safe minimum and maximum operating levels.
- Increase flow gradually while checking sump level, overflow noise, and return performance.
- Remove and clean the pump as needed to maintain consistent output.
What's Included
- One AI Axis 40 Pump with integrated driver
- One 0.625 in. / 16 mm barbed output nozzle
- One 0.75 in. / 20 mm barbed output nozzle
- One power adapter with universal plug adapter set
- One quick start guide
