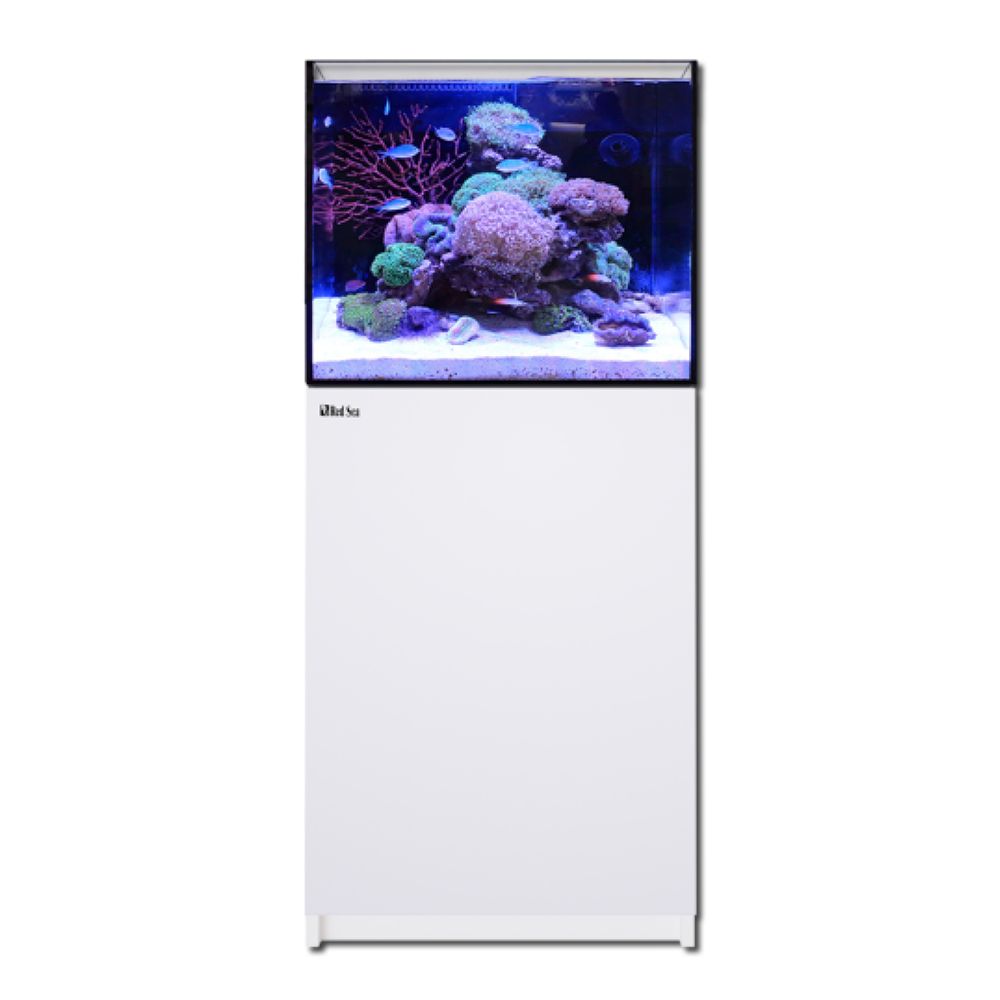

Red Sea Reefer 170 G3 - White Cabinet

Overview

The Reefer 170 G3 is a compact rimless reef ready system built on Red Sea G3 upgrades for stronger distribution and quieter running The ultra clear glass display pairs with a marine spec plywood cabinet in white and a REEF SPEC sump that is ReefMat ready and includes an integrated ReefATO+ for stable day to day operation

Key G3 Infrastructure

• Hydrodynamically optimized plumbing for higher circulation efficiency
• Low turbulence rectangular downflow and quiet operation
• ReefGate precision valve for easy near silent tuning
• Curved dual return nozzles for broad distribution
• Central overflow with removable surface skimmer
• ReefMat ready mechanical chamber with micron socks and media cups
• Integrated ReefATO+ for auto top off temperature monitoring and leak detection

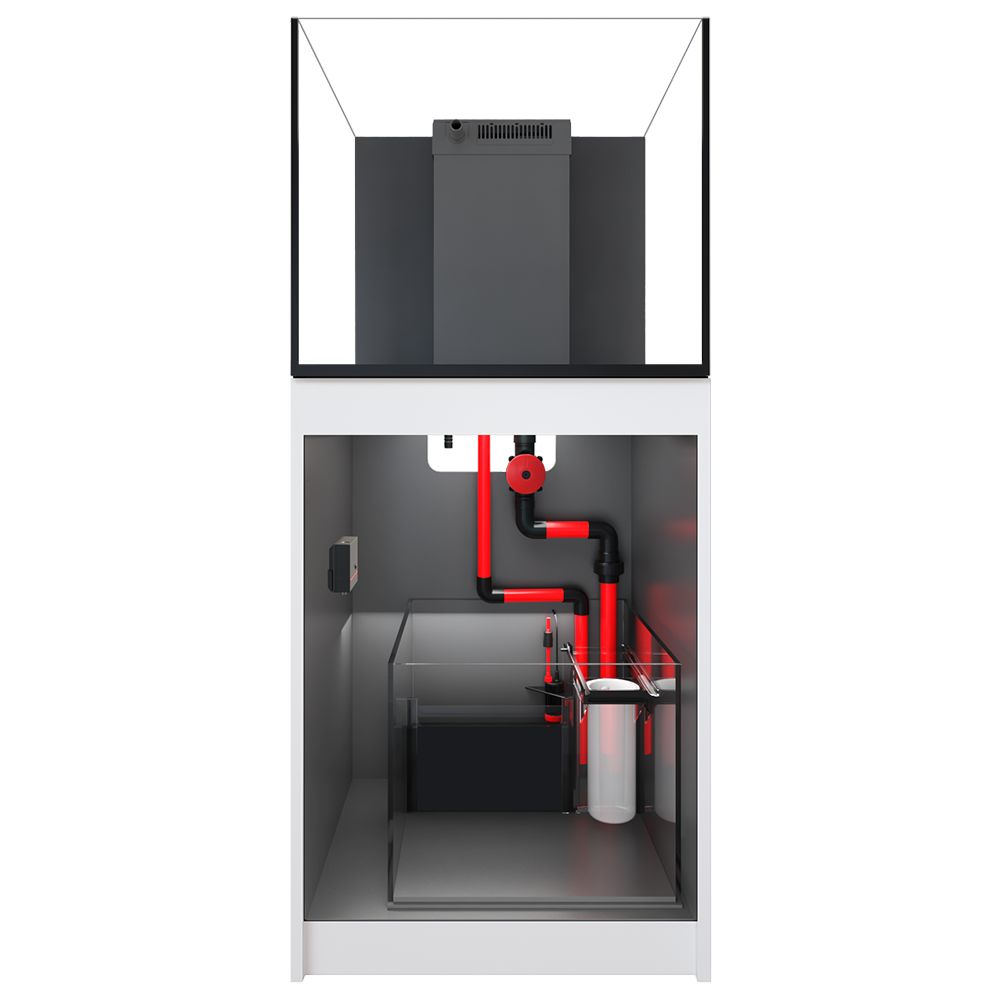

Filtration and Flow Path

The wide surface skimmer feeds a rectangular downflow to the REEF SPEC sump The mechanical stage ships with socks and media cups and accepts a ReefMat 250 without replacing the sump Curved return nozzles widen spread to reduce dead spots and complement the redesigned G3 plumbing for efficient low noise recirculation

Cabinet and Build

The cabinet uses laminated marine spec plywood with epoxy painted doors stainless hinges hidden adjustable feet and clean cable routing The display is rimless with smooth beveled edges for unobstructed viewing

Specifications

• Total system volume: 165 L / 43.6 gal
• Display volume: 128 L / 33.8 gal
• Sump volume: 37 L / 9.8 gal
• Display dimensions: 60 cm L x 50 cm W x 51 cm H approx 24 x 20 x 20 in
• Total height with cabinet: 137 cm approx 54 in
• Glass thickness: front 10 mm sides 12 mm bottom 10 mm
• Format: rimless ultra clear glass
• Cabinet: white marine spec plywood
• Recommended return pump: ReefRun G2 4000
• Recommended ReefLED: 1 x ReefLED G2 115
• Recommended ReefMat: ReefMat 250 rated to 250 L 66 gal

Compatibility and Setup

The sump footprint supports compact skimmers media reactors and small refugium layouts The return line geometry suits most DC return pumps and the ReefATO+ keeps salinity stable while reporting temperature and leak status in the ReefBeat app

What's Included

• Ultra clear rimless glass aquarium
• White marine spec plywood cabinet with leveling feet
• REEF SPEC sump with mechanical chamber micron socks and media cups
• Pre assembled downflow and return plumbing with ReefGate precision valve
• Central overflow with removable surface skimmer
• Curved dual return nozzles
• Integrated ReefATO+ sensors and controller

G3 Shipping Notes

• To avoid delays please order Red Sea aquariums by themselves. If you are wishing to order multiple things, please place two separate orders. One for the aquarium, and one for the rest of your products.
• Please call for a shipping quote if ordering from NWT, YK, or NUN.
• All Red Sea aquariums are brought in and shipped out on an as ordered basis. The average turn-around time to ship an aquarium to you is two business days except as where noted below.
• All shipments outside of the Vancouver Area are shipped via trucking company with residential and power tailgate delivery, and are fully insured.
• Tanks ordered within BC and (in some circumstances) Alberta may take an extra 5-10 business days to process. Systems ordered from Alberta and east of there usually will ship within two business days direct from the distributor in Ontario.
• If you are ordering for pick-up from our store, please select in-store pickup to avoid delivery charges. You will be notified when the tank arrives (usually within 5-10 business days).
• Please note the freight company is only responsible for getting the aquarium to the destination address and off-loading it. They are not responsible for carrying it inside.
• All freight charges have been greatly subsidized to help you get up and running with your new Red Sea system!
