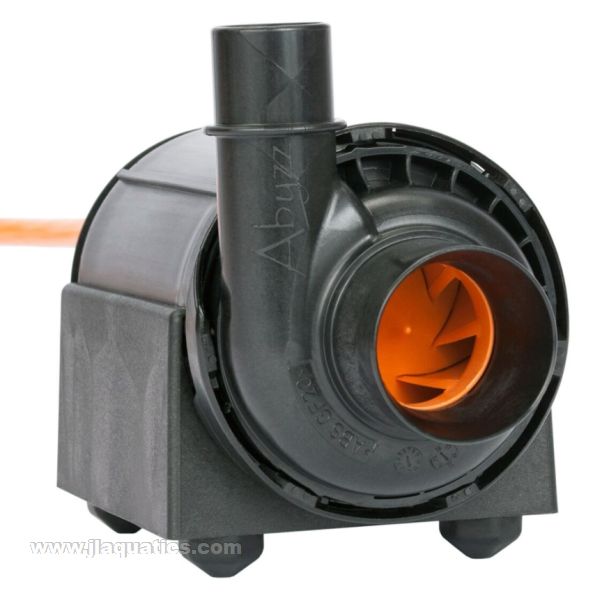

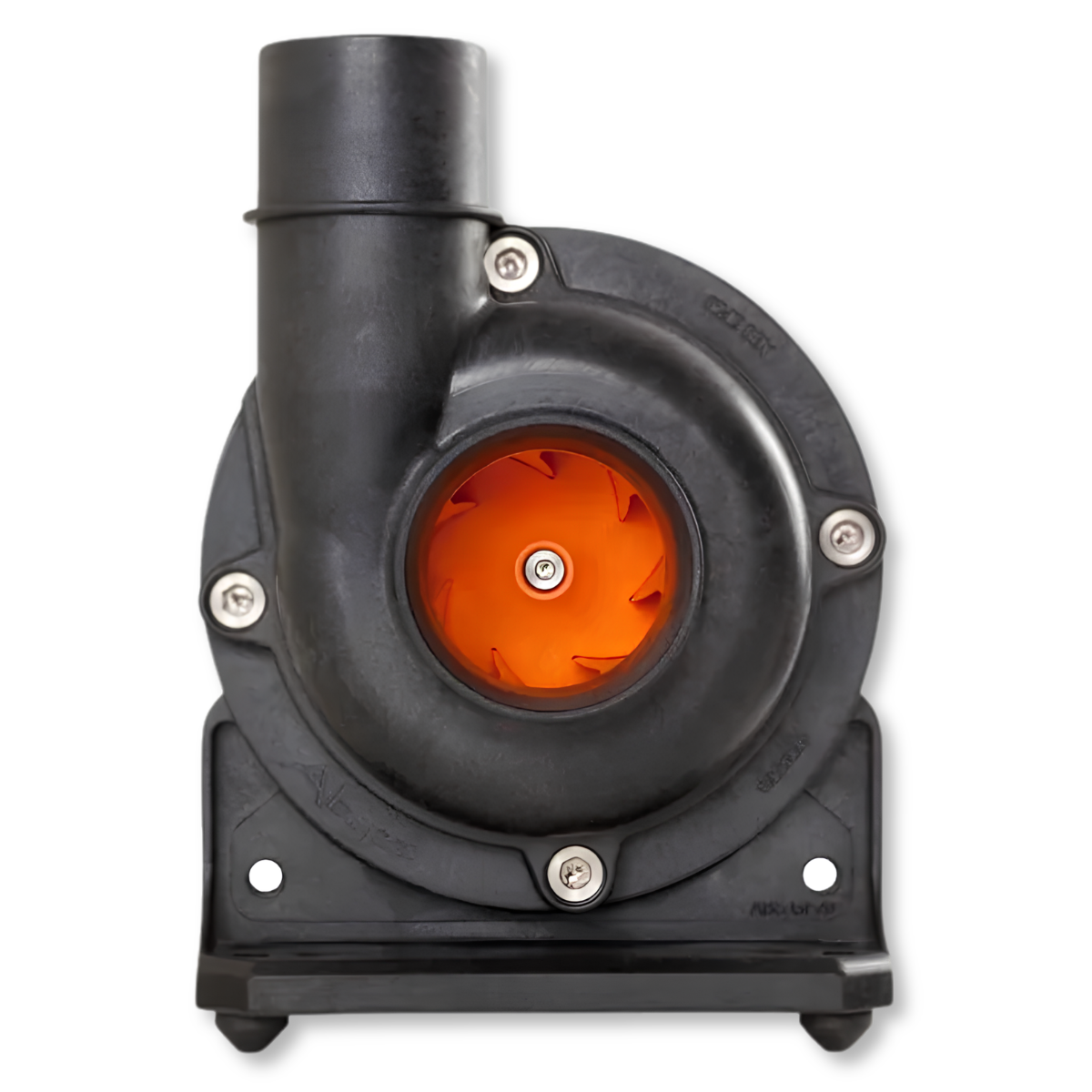

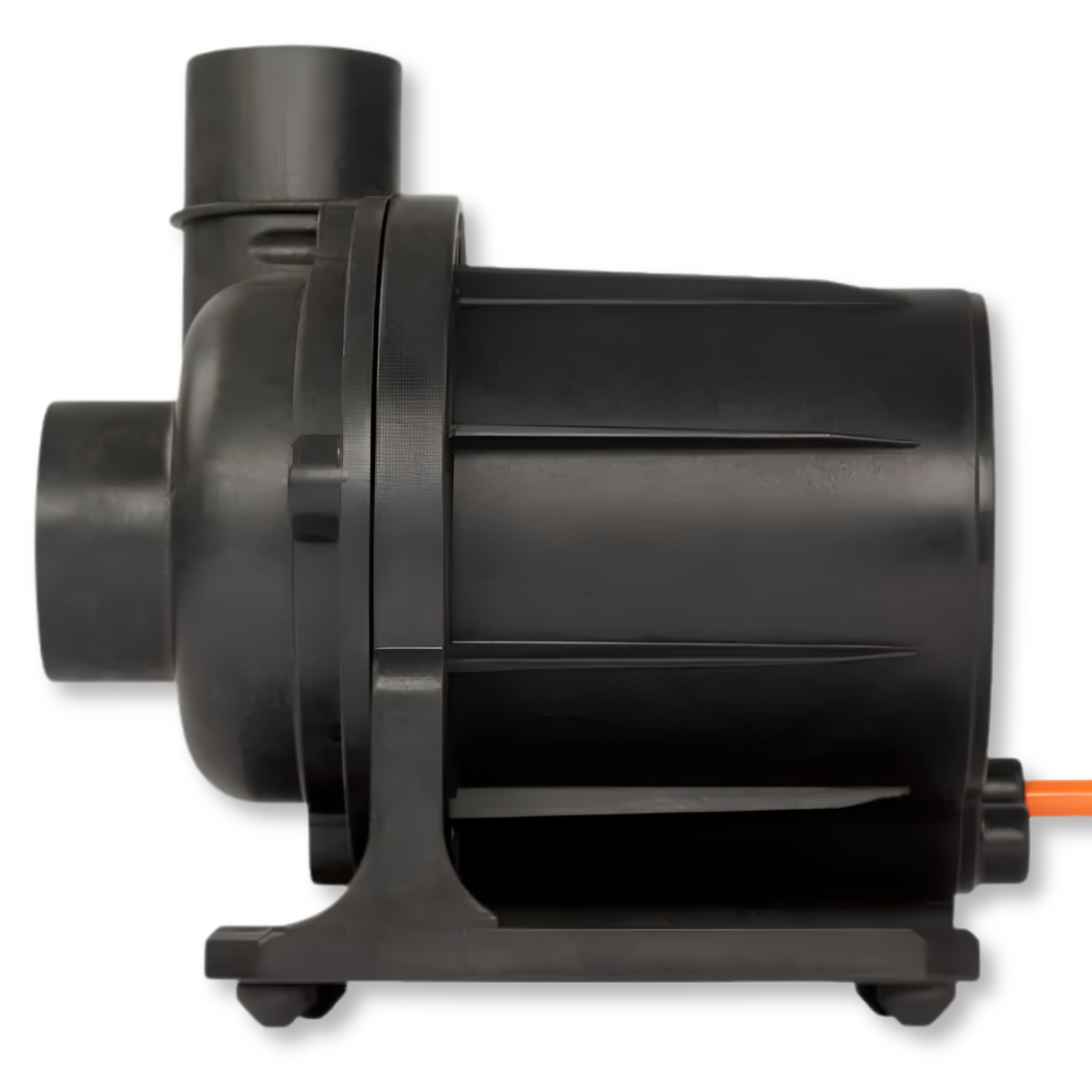

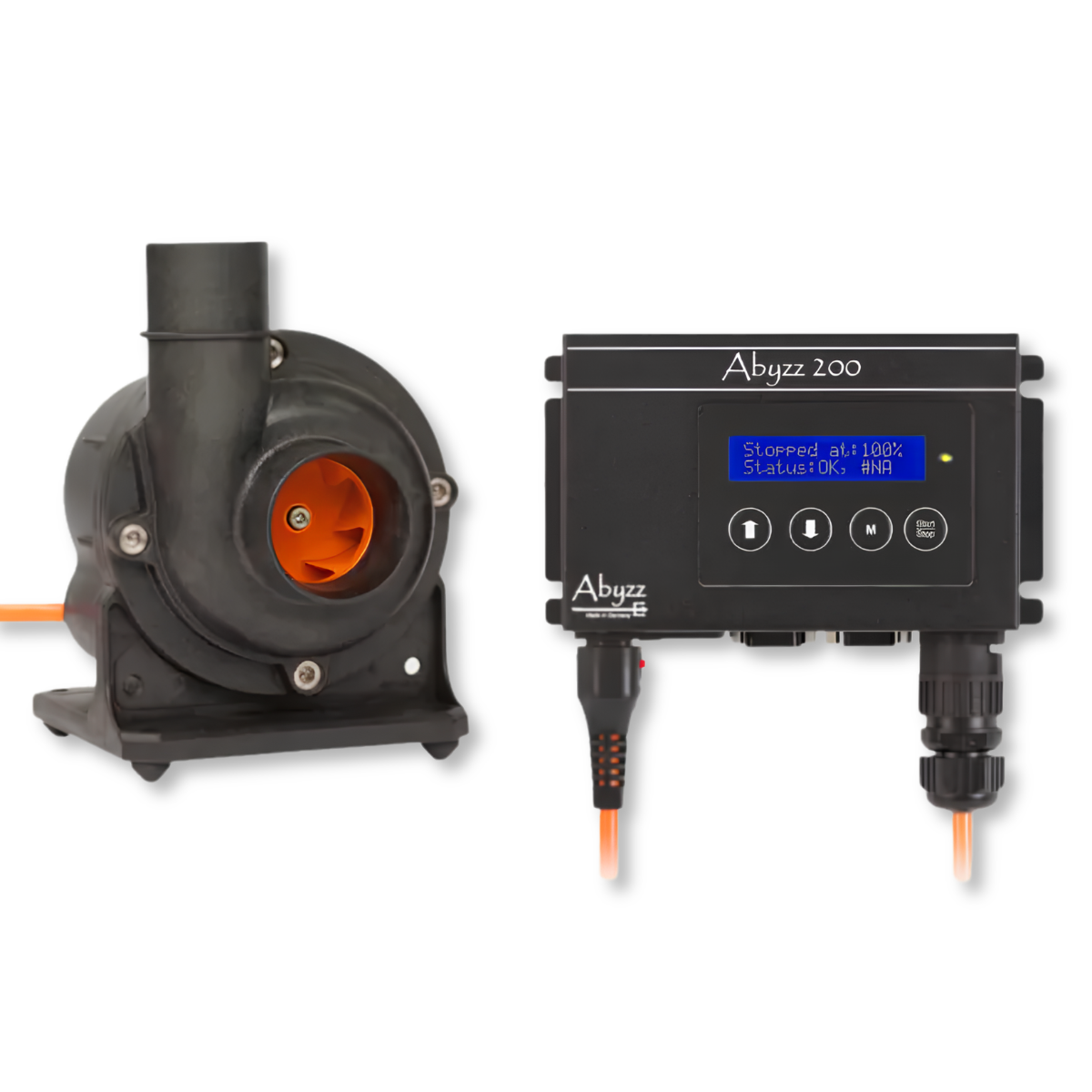

Abyzz A200-3M DC Water Pump
Abyzz A200-3M DC Water Pump is a premium controllable DC water pump for advanced aquarium, reef, freshwater, pond filtration, water feature, and commercial aquatic systems where quiet operation, precise output control, and long-term reliability are priorities.
Abyzz A200 DC Pump for High-Performance Aquarium Flow
The Abyzz A200 combines a programmable driver with a sine-wave controlled three-phase synchronous pump, allowing the pump speed to be matched to the system instead of relying only on valve restriction. It is well suited for high-demand return pump applications, larger sump systems, closed-loop circulation layouts, and installations where stable flow and low-noise operation are important.
Designed and manufactured in Germany by venotec, the A200 uses premium materials including a titanium impeller, integrated bearing flushing, silicon carbide bearings, and a hard metal shaft to support efficient, low-maintenance operation in demanding aquatic environments.
Abyzz A200 Variable Speed Pump Features
- Programmable flow control: 0-100% speed adjustment lets the pump output be tuned to the aquarium, sump, plumbing, or circulation requirement.
- MCFS flow programming: Menu Controlled Flow Sequencer programming can generate waves, bursts, and random flow patterns for more dynamic water movement.
- Integrated BOOSTMODE: BOOSTMODE allows temporary override of programmed operation when additional flow is needed.
- Efficient motor design: The sine-wave controlled three-phase synchronous motor is designed for high efficiency and precise speed regulation.
- Low-maintenance construction: Integrated bearing flushing helps protect against calcination, while silicon carbide bearings and a hard metal shaft support long service life.
- Quiet operation: Abyzz pump architecture is designed for low-noise operation in high-end aquarium and aquatic system installations.
- Safety-focused driver: Built-in protection functions include dry-run warning, temperature alert, and additional pump protection features.
- Flexible installation: The pump may be immersed or mounted externally in a dry position when installed correctly below water level.
- Peripheral support: Auxiliary connection support allows use with compatible Abyzz peripheral devices or external control interfaces.
- Registered guarantee support: Abyzz offers long-term manufacturer guarantee coverage after registration according to Abyzz registration terms.

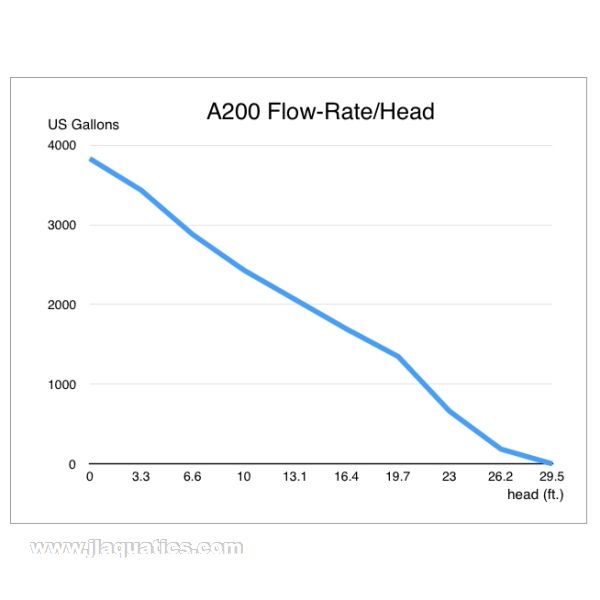

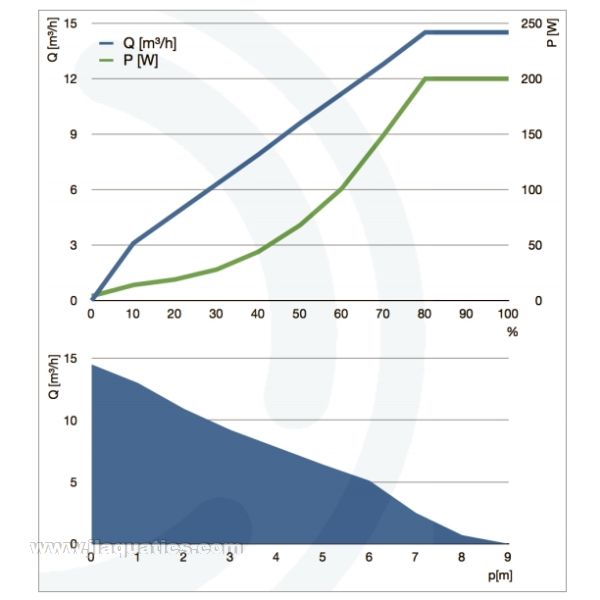

Abyzz A200 Technical Data and Plumbing Specs
- Maximum flow rate: 17,000 l/h / 4,500 gph
- Rated flow rate: 14,500 l/h / 3,800 gph
- Maximum delivery height: 8.8 m / 28.8 ft
- Maximum discharge speed: 5.8 m/s / 19 ft/s

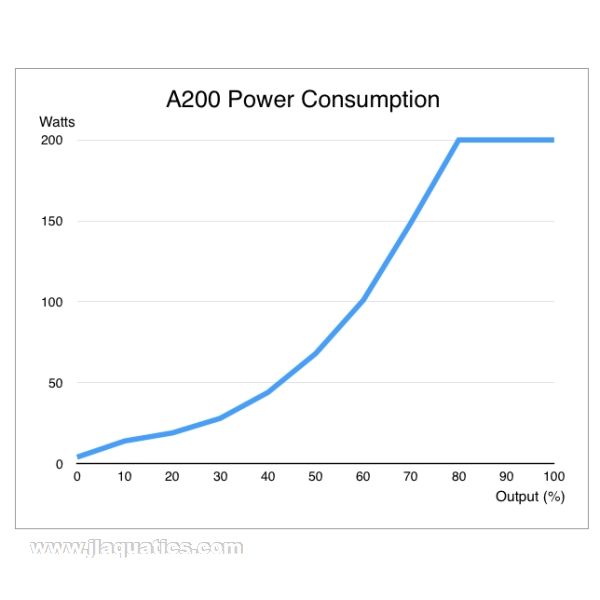

- Power consumption: 4-200 W
- Operating voltage: 120V or 240V version depending on supplied model; confirm voltage before installation
- Operating frequency: 50-60 Hz
- Maximum operating pressure: 1.2 bar / 17.4 psi
- Maximum immersion depth: 2 m / 6.5 ft
- Pump ambient temperature: 1-50°C / 34-122°F
- Driver ambient temperature: 0-30°C / 32-86°F without additional cooling
- Pump cable length: 3 m / 10 ft
- Inlet/outlet connections: Metric 50 mm / 40 mm, suitable for PVC/AVB adhesive fittings; imperial adapters available separately
- Dimensions/weight: 455 x 230 x 220 mm / 5.51 kg
Abyzz A200 Application and Compatibility Notes
The A200 can be used in freshwater and seawater aquariums, reef systems, pond filter systems, creeks, water features, and commercial applications. The pump is not self-priming and must be mounted below water level. Mounting orientation must be horizontal.
Special order item: this pump typically takes approximately 7 business days to arrive in store.
Abyzz Pump Product Overview Video
Abyzz A200 Installation and Plumbing Directions
- Confirm the supplied voltage version before connecting power.
- Install the pump horizontally and below water level whether used submerged or externally.
- Do not use the pump as a self-priming pump.
- Plan plumbing around the metric 50 mm inlet and 40 mm outlet and use suitable fittings or adapters where required.
- Keep the driver and electrical connections dry and protected from splashing, salt creep, and physical damage.
- Leak test plumbing before relying on the pump for livestock support.
- Disconnect power before service, cleaning, or handling the pump.
What's Included

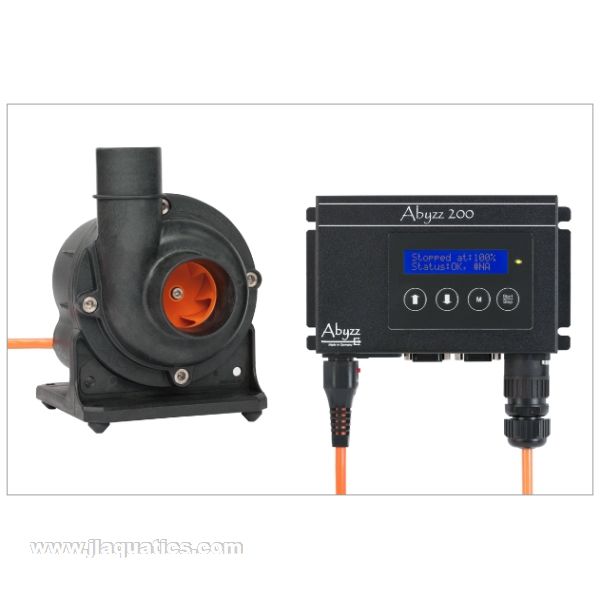

- Abyzz A200 pump with 3 m pump cable

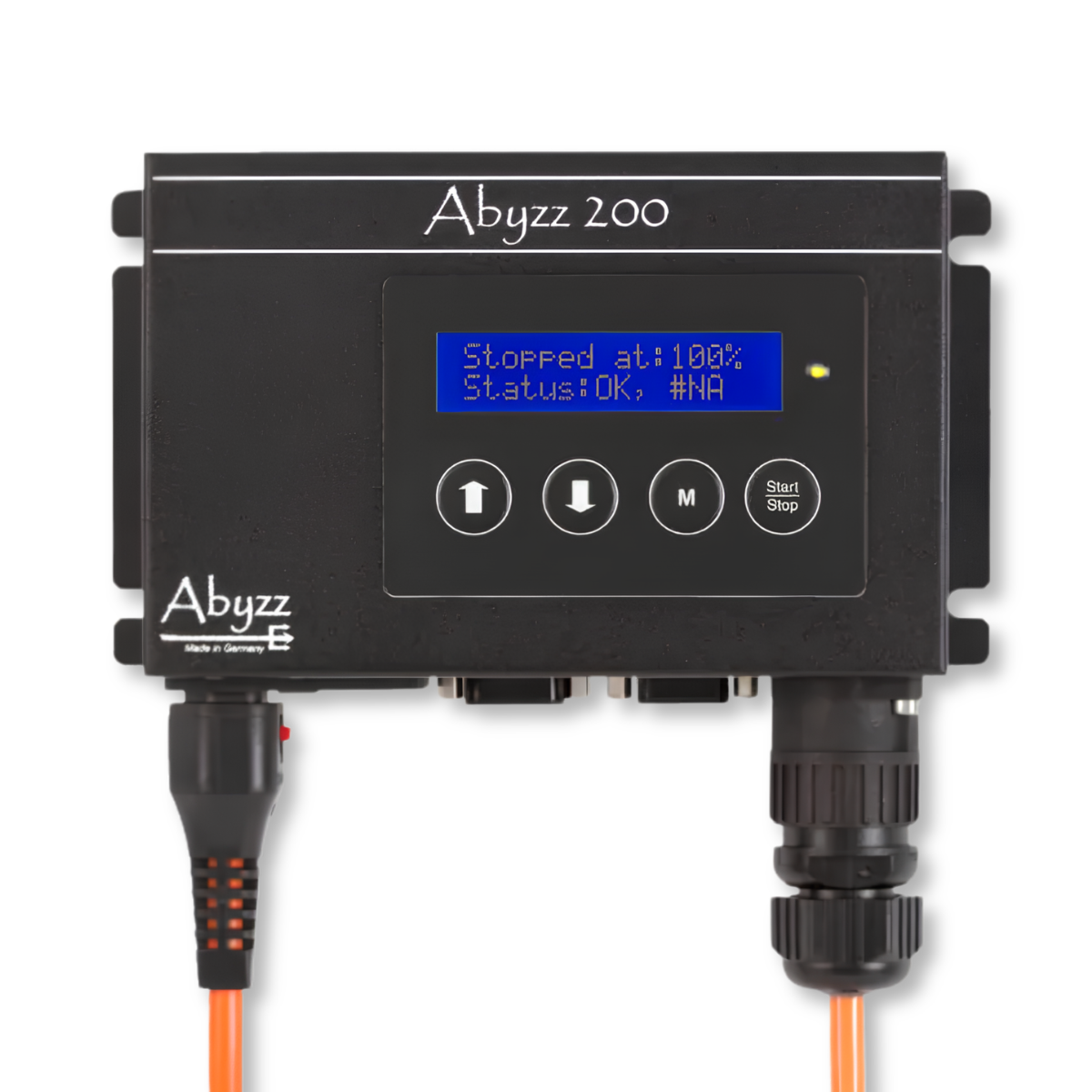

- Abyzz A200 driver
- Mains cable, 1.5 m
- Card with link to manual
- Registration documents
