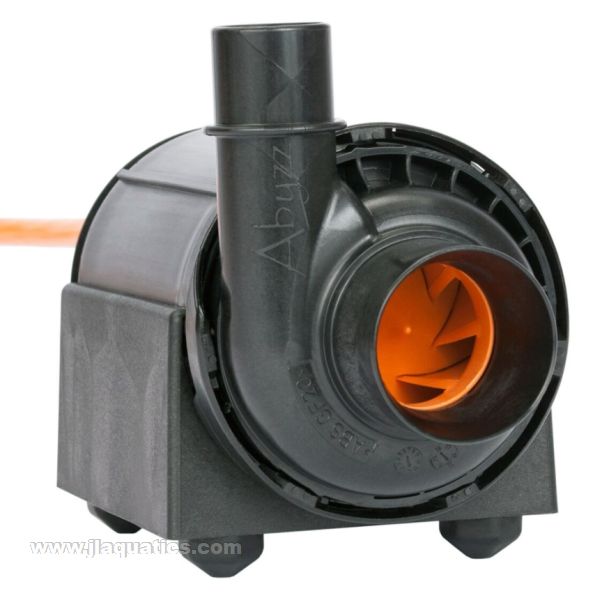

Abyzz A100-2M DC Water Pump

Abyzz A100-2M DC Water Pump

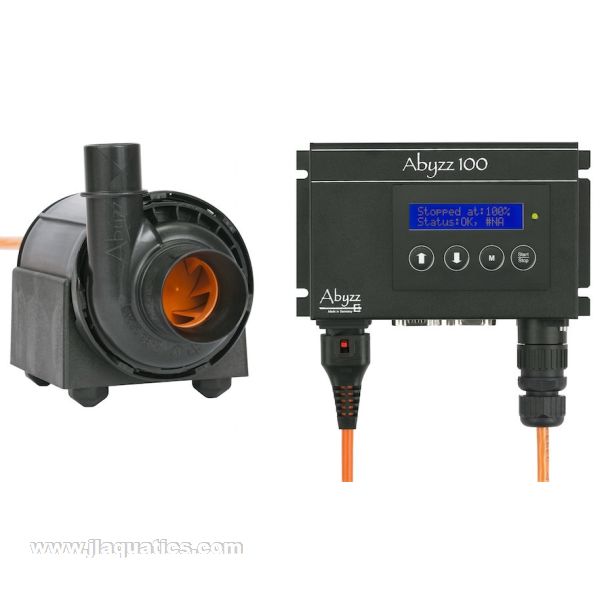

The innovative Abyzz A100-2M-90V/240V includes all the quality and features of the bigger Abyzz pumps in a very compact and powerful package.

Featuring laser welded a titanium encased Neodymium rotor, powerful and programmable menu-controlled electronic driver, and a sinusoidal three-phase synchronous motor, the A100 is in a class of it's own in terms of size and performance.

The motor operates at an efficiency factor of over 90% which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power hungry higher voltage pumps.

The menu controlled driver and motor run on an mere 12V and because of that it can be used in a myriad of applications. The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits - CaCO3). In conjunction with the silicon carbide bearings and special Tungsten carbide shaft, this feature provides for low-maintenance operations.

The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great, ensure a long operational lifetime, and meet the most demanding requirements and highest quality standards.

This product was developed and is manufactured in Germany by Venotec.

Features of Abyzz Pumps

• Variable speed range (0 - 100%)
• MCFS (Menu Controlled Flow Sequencer) for random, wave etc.
• BOOSTMODE integrated
• Comprehensive safety functions (e.g. dry run, temperature sensor, and overload protection)
• Soft start-up
• Bus-enabled interface for peripheral devices
• Lockable plug contacts
• Low-noise operation
• Operating Voltage: 12V
• Removable motor stand

Abyzz A100-2M Specifications

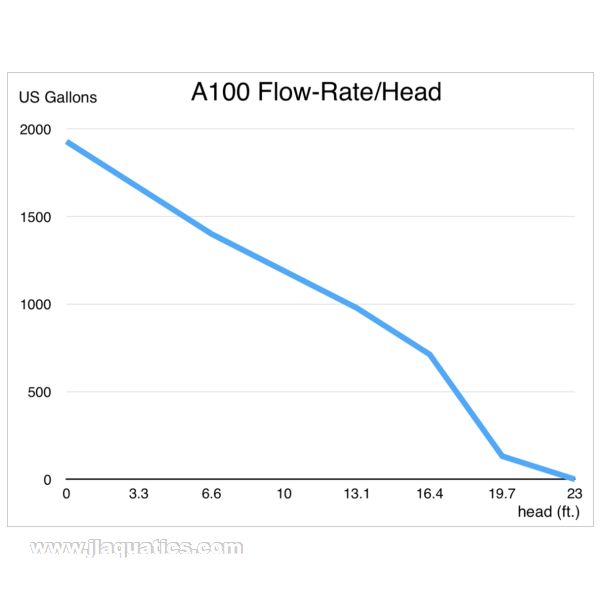

• BOOSTMODE max flow rate: 2,200 gph / 8,500 lph
• Normal mode max flow rate: 1,880 gph / 7,300 lph
• Delivery height: max. 19.5 ft / 6.0 meters

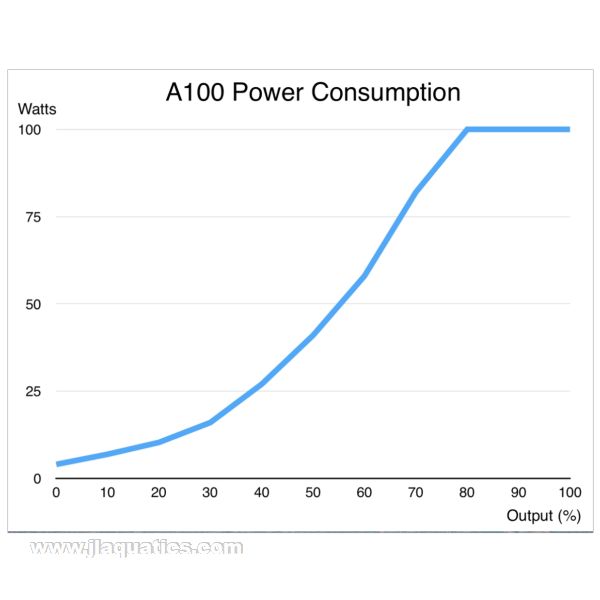

• Rated input : 5-100W
• Input voltage: 90V-240V~ @ 50-60Hz
• Operating Voltage: 12V
• Ambient temperature: 35.6dF - 104dF +2dC...+40dC
• Maximum operating pressure: 17.4 PSI / 1,2 bar
• Maximum immersion depth: 6.5 ft / 2 meters
• Pump cable length: 6.5 ft/ 2m
• Inlet/outlet connections: 40mm/25mm (suitable for PVC/AVB adhesive fittings)
